Toshiba 1800 SERIES Manuel utilisateur

1800 Series

UNINTERRUPTIBLE POWER SYSTEMS

2400 VA

True On-Line Double Conversion, PWM Input PF Correction UPS

Isolation Transformer for Complete Power Conditioning

High Overload and CF for Motor Type Loads

Auto-Restart and Cold Start Features for Remote Location

Increased Input Voltage Window +10% to -40% for Increased Battery Life

Four (4) Fan Speed for Optimum Cooling and Noise Reduction

Compactly Designed, Both Rectifier and Inverter Utilize 36.5 kHz IGBT Technology

Intelligent Charger with Rapid Charge in only 3.5 hours to 90%

Wide Input Frequency Window for Complete Generator Compatibility



%XTENDED

7ARRANTY

!VAILABLE

Extended

Warranty

Available

&YUFOEFE

Extended

"WBJMBCMF

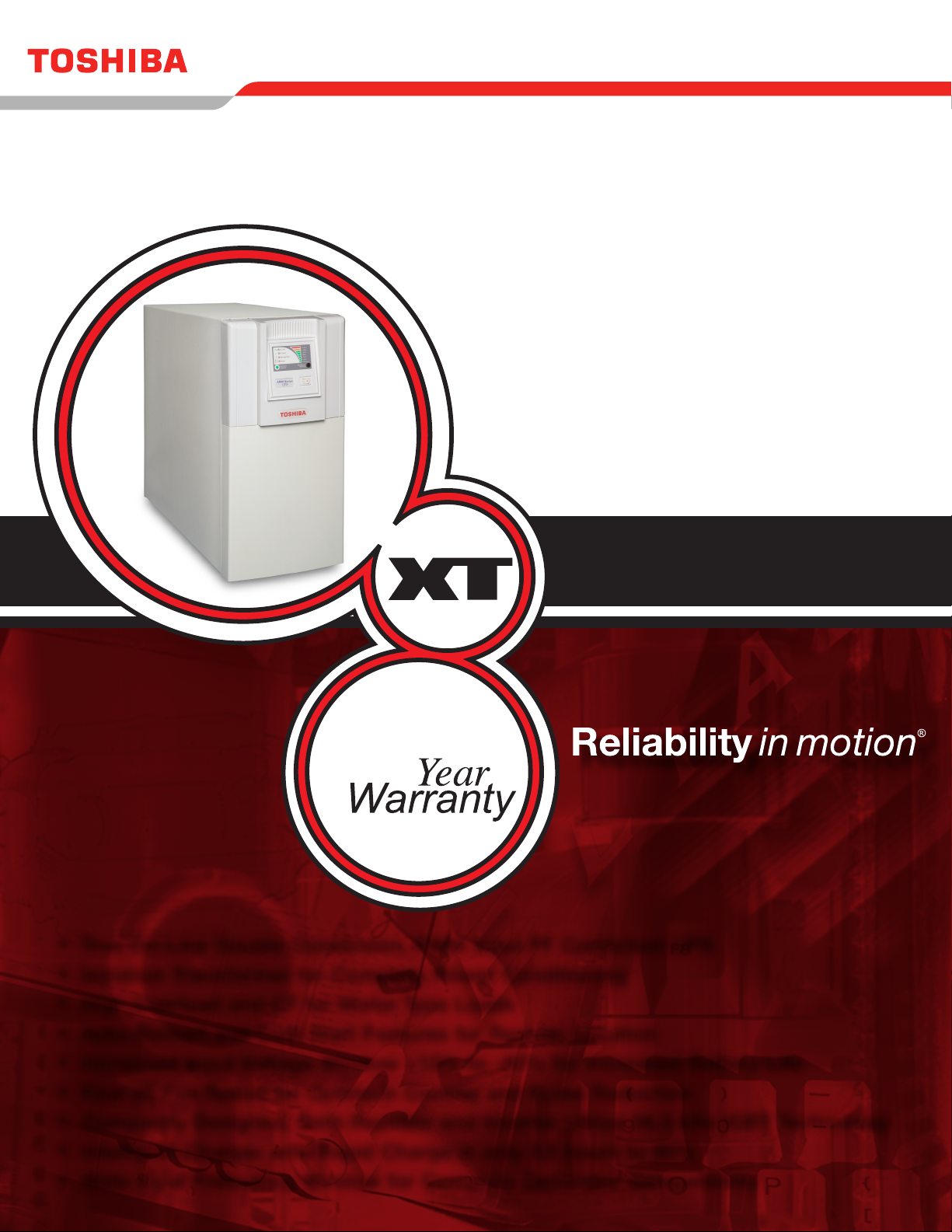

1800 Series with Optional Panel

1800 Series 2400 VA

UPS ADJUSTABLE SPEED DRIVES MOTORS CONTROLS INSTRUMENTATION PLC

INDUSTRIAL DIVISION

13131 West Little York Road, Houston, Texas 77041

Tel 713/466-0277 Fax 713/466-8773

US 800/231-1412 Canada 800/872-2192 Mexico 001/800/527-1204

www.toshiba.com/ind

Available Through:

*UPS1800epXT070225*

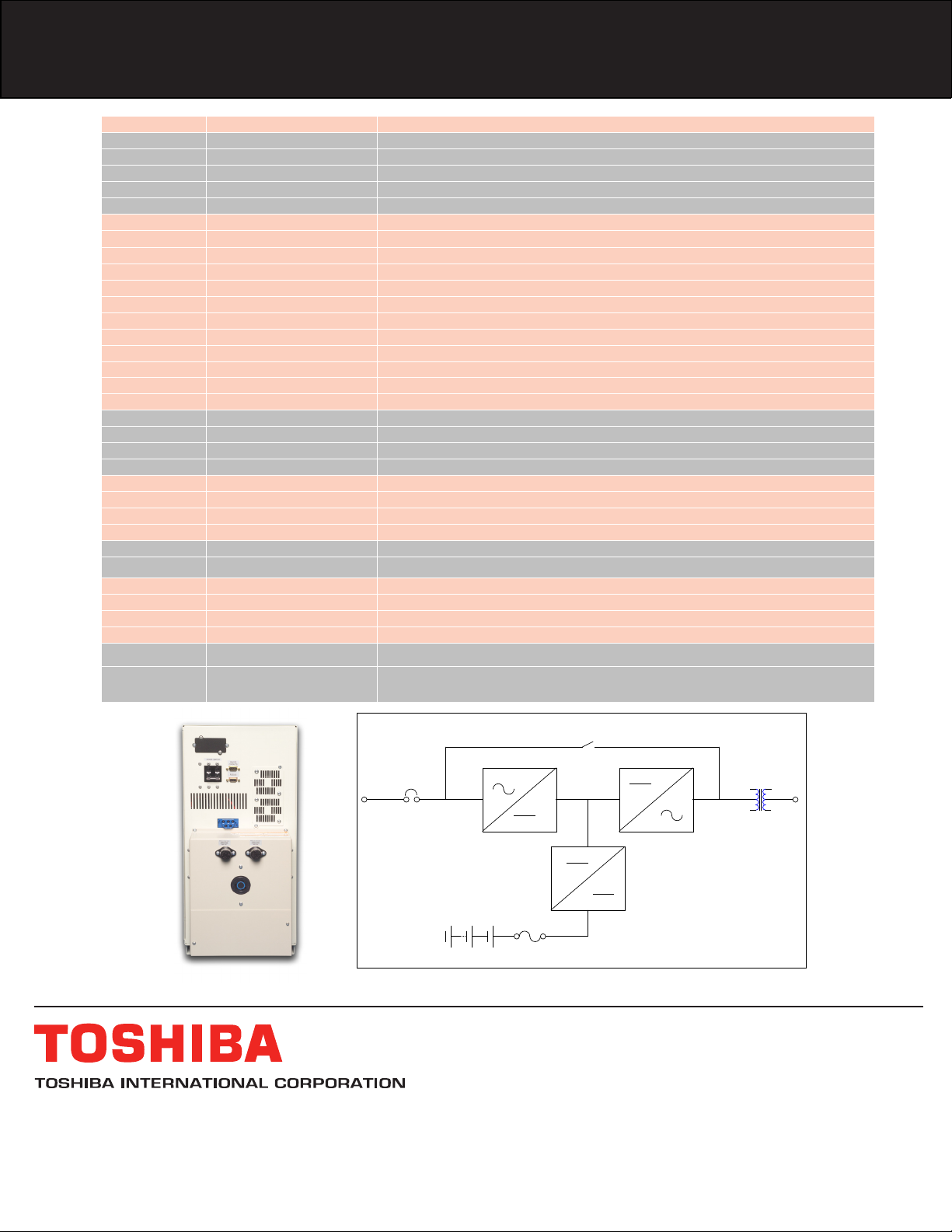

CAPACITY 2400 VA

INPUT Voltage Single-Phase 208/240 Vac (3 Wire Input/L-L,G)

Voltage Range 144 V to 264 V (+10% to -40%)

Frequency 50/60 Hz Auto-Sensing

Synchronization Window ± 3 Hz

Power Factor Greater than 0.95

OUTPUT Voltage 120/208/240 Vac (3 Wire Input/L-L,G)

Capacity (VA/W) 2400 VA*/1680 W*

Voltage Regulation ± 3%

Voltage Distortion Less than 5% THD at Full Non-Linear Load. Less than 3% THD at Full Linear Load.

Step Load ± 9% Max. from 100% to 0% or from 0% to 100% Linear Load

Rated Current at 240 V 9.6 A

Overload Capacity 125% for 1 Minute; 150% for 30 Seconds

Crest Factor 2.5 at Full Load

Frequency 50/60 Hz Auto-Sensing (± 0.5 Hz)

Wave Form Sine Wave, Zero Transfer Time

Load Power Factor 0.7

Efficiency AC to DC to AC 80%

BATTERY DC Voltage 48 V

Backup Time (Full Load) 7 Minutes

Battery Type Enersys NPX-35FR Lead Acid 9 Ah/12 V

Number of Batteries Two (2) Strings in Parallel, Four (4) Batteries per String

PHYSICAL Interface RS-232, Dry Contact, External Battery Connectors

Line Cord and Receptacles Hardwired (With Optional Line Cord & Receptacle Panels)

Dimensions 254 W x 686 D x 597 H mm (10 W x 27 D x 23.5 H in.)

Weight 77 kg (170 lbs.)

OPTION Network Interface Card RemotEye®II Part #: RMTI-INT-R4

Environmental Monitoring

Device Part #: RMTI-EMD-HT

ENVIRONMENT Operating Ambient Temperature 0 to 40° C (32 to 104° F)

Humidity 30% to 90%, Non-Condensing

Audible Noise Less than 50 dB Normal and Battery Modes

Altitude 1000 m (3000 ft) Above Sea Level

CONFORMANCE Regulatory Approvals UL1778, CUL, CE, FCC Class A, IEEE 587, ANSI/C62.41, ISO 9001, ISO 140001, NEMA/PE1-

1993

Warranty Three (3) Years on Electronics

Two (2) Years Full Replacement on Batteries (See Toshiba Warranty Policy for Full Details)

*208/240 Transformer Models Result in 5% Derating

CONV

208/240 V

50/60 Hz

Input INV

Internal Batteries

DC CONVERTER

UPS Cabinet

208/240 V MODEL

STATIC BYPASS

120/208/240 V,

50/60 Hz

Output

Transformer
