Toshiba Template e-STUDIO2020AC Manuel utilisateur

MULTIFUNCTIONAL DIGITAL COLOR SYSTEMS /

MULTIFUNCTIONAL DIGITAL SYSTEMS

Template

Under the copyright laws, this manual cannot be reproduced in any form without prior written permission of Toshiba Tec

Corporation.

Preface 3

0.Preface

Thank you for purchasing our product.

This manual describes how to use the template functions of this equipment.

Read this manual before using the equipment.

Some models provide the scanning/printing function as an option.

How to read this manual

Symbols in this manual

In this manual, some important items are described with the symbols shown below. Be sure to read these items

before using this equipment.

Target audience for this manual

This is a manual that is aimed at general users and administrators.

Model and series names in this manual

In this manual, each model name is replaced with a series name as shown below:

Optional equipment

For available options, see the reference below:

Information About Equipment - Information About Equipment - Options

Screens in this manual

The details on the screens may differ depending on your model and how the equipment is used, such as the status of

the installed options, the OS version and the applications.

The illustration screens used in this manual are for paper in the A/B format. If you use paper in the LT format, the

display or the order of buttons in the illustrations may differ from that of your equipment.

Indicates a potentially hazardous situation which, if not avoided, could result in death, serious

injury, or serious damage, or fire in the equipment or surrounding objects.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury, partial damage to the equipment or surrounding objects, or loss of data.

Indicates information to which you should pay attention when operating the equipment.

Describes handy information that is useful to know when operating the equipment.

References describing items related to what you are currently doing. See these references as

required.

Model name Series name

e-STUDIO2020AC/2520AC e-STUDIO6525AC Series

e-STUDIO2525AC/3025AC/3525AC/4525AC/5525AC/6525AC

e-STUDIO2528A/3028A/3528A/4528A/5528A/6528A e-STUDIO6528A Series

4 Preface

Abbreviations in this manual

In this manual, “Dual Scan Document Feeder” (DSDF) and “Reversing Automatic Document Feeder” (RADF) are

collectively referred to as “Automatic Document Feeder” (ADF).

Trademarks

For trademarks, refer to the Safety Information.

CONTENTS 5

CONTENTS

Preface................................................................................................................................................. 3

How to read this manual ............................................................................................................................................ 3

Chapter 1 REGISTERING JOB SETTINGS ONTO THE HOME SCREEN

Registering Job Settings onto the Home Screen....................................................................................... 8

Registering job settings from setting screen of each function .................................................................................. 8

Registering job settings from job history.................................................................................................................... 9

Creating a Folder onto the Home Screen ............................................................................................... 11

Chapter 2 USING TEMPLATE BUTTONS

Template Functions............................................................................................................................. 14

Recalling Templates ............................................................................................................................ 15

Using templates ......................................................................................................................................................... 15

Using templates for Scan to E-mail (When SMTP is selected for the authentication method).............................. 16

Changing Data .................................................................................................................................... 18

Changing the folder data........................................................................................................................................... 18

Changing template data............................................................................................................................................ 19

Deleting Folders or Templates.............................................................................................................. 20

INDEX .......................................................................................................................................................... 21

6 CONTENTS

1.REGISTERING JOB SETTINGS ONTO THE

HOME SCREEN

Registering Job Settings onto the Home Screen ....................................................................8

Registering job settings from setting screen of each function ............................................................................8

Registering job settings from job history..............................................................................................................9

Creating a Folder onto the Home Screen.............................................................................11

8 Registering Job Settings onto the Home Screen

0.Registering Job Settings onto the Home Screen

You can register job settings of copying, scanning, or faxing as icons onto the shared home screen or user home screen

and easily recall and employ them.

Registering onto the shared home screen is available when an administrator in [Home Setting] of TopAccess

permits the change operation to a general user. For details, see the reference below:

TopAccess - [Administration] - [Setup] Item List - General settings - Home Setting

When the users of the template need to be limited, register the setting in the user home screen.

Registering job settings from setting screen of each function

You can register job settings from settings screens of copying, scanning, or faxing.

Set all the required functions.

Example: Editing function - image shift, reproduction ratio - 90%, number of copy sets -10

The [Paper Size] and [Paper Type] functions for bypass copying cannot be set.

Press (Adding to Home screen button).

Select a place (unregistered button or folder) to register the icon onto the home screen.

If there is no unregistered buttons on the home screen, switch the pages.

For the creation method of the folder, see the reference below:

P.11 “Creating a Folder onto the Home Screen”

1.REGISTERING JOB SETTINGS ONTO THE HOME SCREEN

Registering Job Settings onto the Home Screen 9

REGISTERING JOB SETTINGS ONTO THE HOME SCREEN

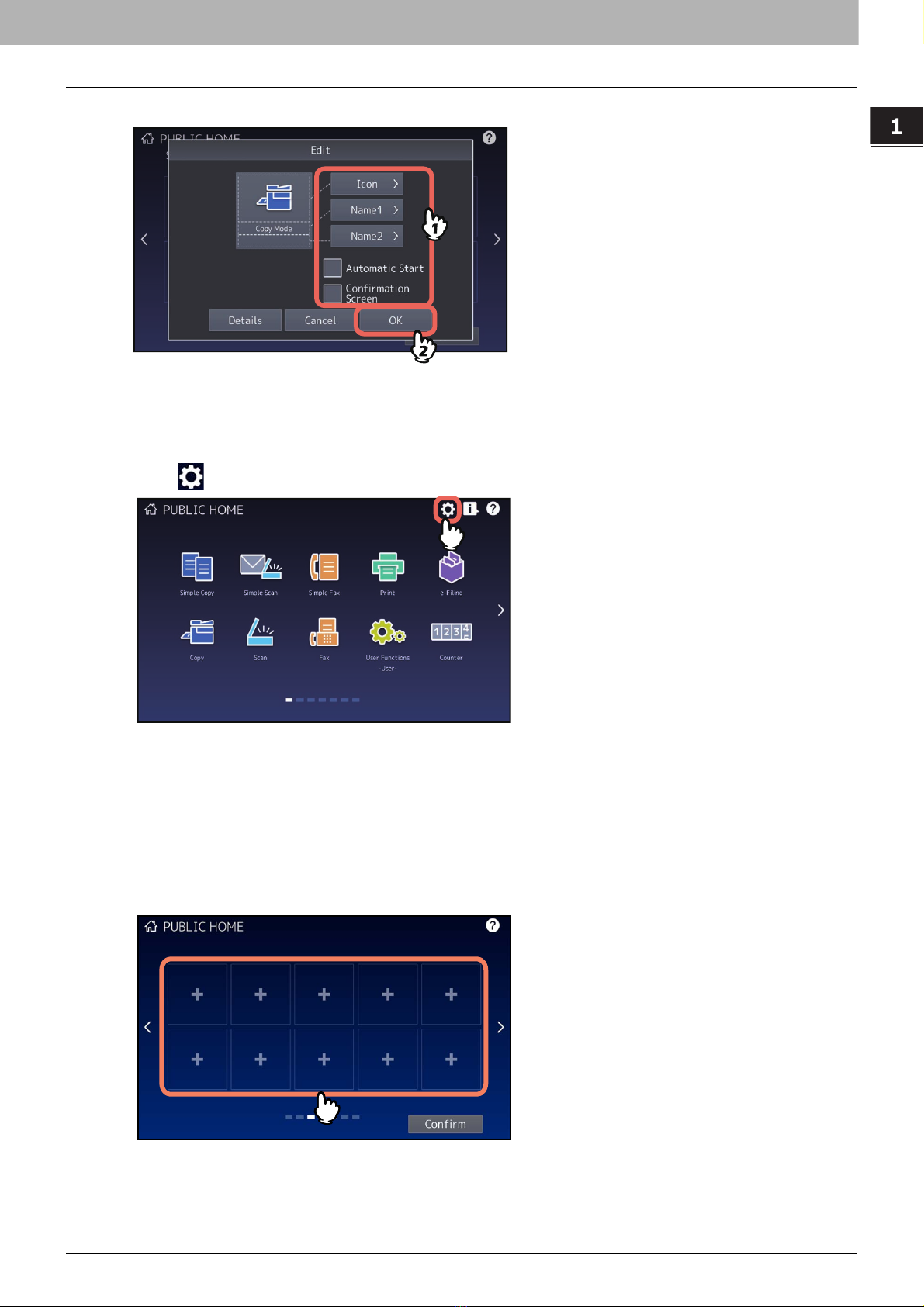

Set the type and name of icon and press [OK].

The icon is registered onto the home screen.

Registering job settings from job history

You can register a job which is in the job history as a button onto the home screen.

Press (Home Setting button) on the home screen.

When the password input screen appears, enter the password for a user who has the privilege to edit the home

screen.

Press [Button Contents].

Select a place (unregistered button or folder) to register the icon onto the home screen.

If there is no unregistered buttons on the home screen, switch the pages.

For the creation method of the folder, see the reference below:

P.11 “Creating a Folder onto the Home Screen”

Press [Register From Job History].

1.REGISTERING JOB SETTINGS ONTO THE HOME SCREEN

10 Registering Job Settings onto the Home Screen

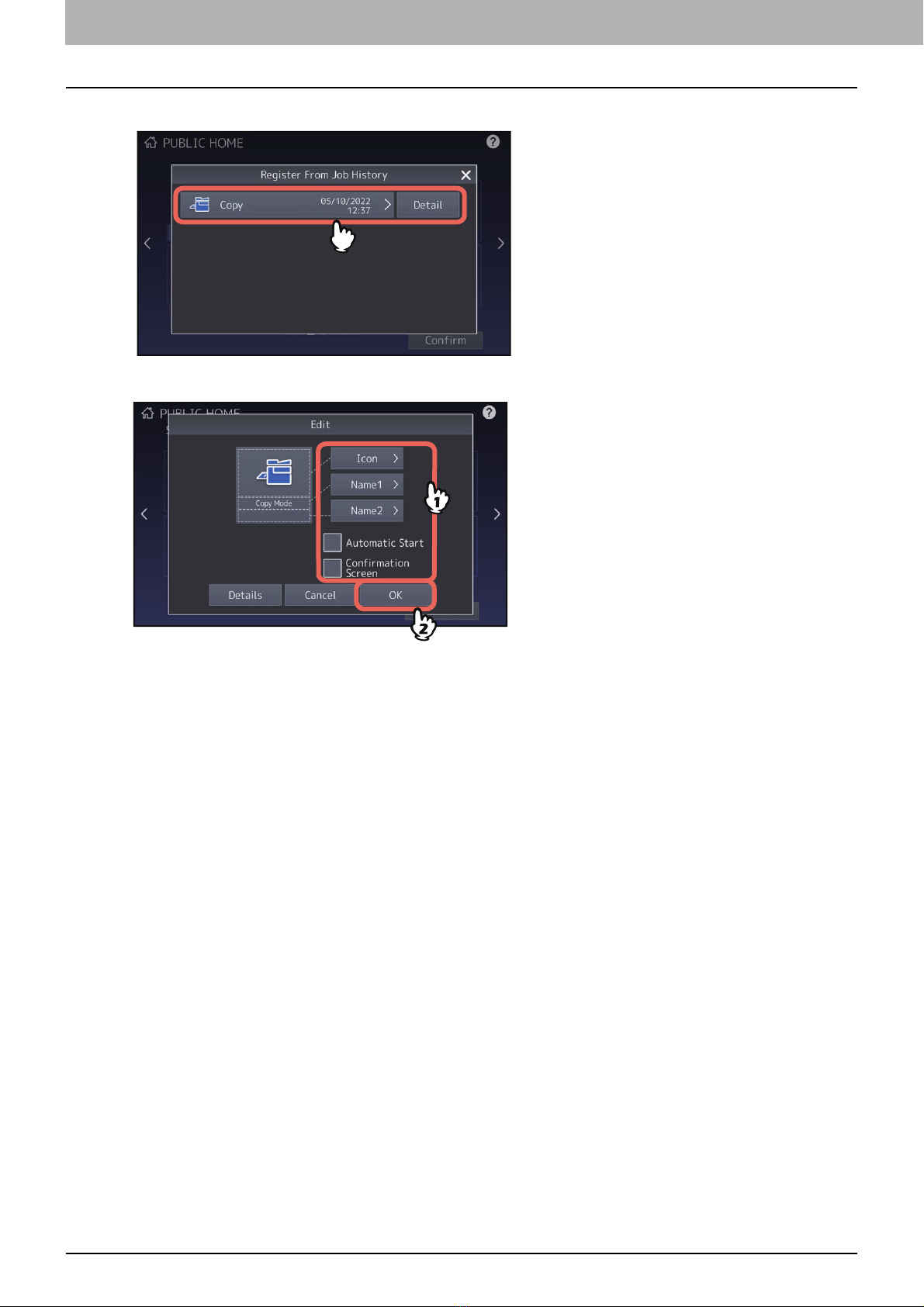

Select a desired job.

Set the type and name of icon and press [OK].

The icon is registered onto the home screen.
