CONTENTS
Contents....................................................................................................................1
Warning.....................................................................................................................2
Safety Instructions ........ ................
Introduction
FRONT SIDE CONNECTIONS OF LCD ................................
Front View..........................................................................................................7
Connection options ................................
.........................................
.......................................
................................................
........................
...................... ......
TV Operation ......
.................... ...... ..
PICTURE MENU ............ ................ ..... ...
............. ...... ..
................
......................................................................................25
... ............................. ..
....................................................... ..
DVD Operation.........................................................................................................32
..................................................................................32
...........................................................................32
...............................................................................................
LANGUAGE SETUP..........................................................................................35
AUDIO SETUP...................................................................................................36
................................................................................................36
Trouble Shooting......................................................................................................38
.................. .. .............................................4
...........................................................................................6
............................ .........7
................... .......................................8
Remote control.......... ...............................................9
Power Cord Connection..... ........................................11
AV INPUT Connection..... ..................................12
PC Connection...................... ...................................................13
.......................................... .......... .....14
........................................................................ ..............................15
.......... .... ...... ..................................15
................... . ... ...................................16
SOUND MENU................................ .... .... ....................................19
........................................... ...................................21
.... ................. ....................... .....................28
.... ...... .............................31
,,
Headphone Connection
Dimensions & Specifications.......................................................................37
SELECT INPUT SOURCE
CHANNEL MENU
PARENTAL CONTROL
SETUP MENU
OTHERS MENU
Using built-in DVD Player
Playback of media files in disc
SYSTEM SETUP 33
DIGITAL SETUP
Warning
2
WARNING
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR
BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated”dangerous
voltage”within the products enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and
maintenance(servicing)instructions in the literature accompanying the
appliance.
REGULATORY INFORMATION
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user encouraged to try to correct the
interference by one or more of the following measures:
- Relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTIFICATION
FCC Class B radio frequency Interference Statement
Warning: ( )
,.
.
,
,.
,
.
,
,
:
.
.
.
/.
for FCC CERTIFIED MODELS
This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules
These limits are designed to provide reasonable protection against harmful
interference in a residential installation This equipment generates uses and can
radiate radio frequency energy and if not installed and used in accordance with
the instructions may cause harmful interference to radio communications
However there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or
television reception which can be determined by turning the equipment off and
on the user is encouraged to try to correct the interference by one or more of the
following measures
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
Consult the dealer or an experienced radio TV technician for help
-
-
-
-
Pursuant to FCC regulations, you are cautioned that any changes or
modifications not expressly approved in this manual could void your
authority to operate this equipment.
Warning
3
DO not attempt to modify this product in any way without written authorization
from supplier. Unauthorized modification could void the user’s authority to
operate this product.
CAUTION:
4
Safety instructions
SAFETY INSTRUCTIONS
TO Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain
Or Moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation
openings. Install in accordance with the
manufacturer’s instructions.
WARNING:
Owner'sManual
8. Do not install near any heat source such as
radiators, heat registers, stoves, or other
Apparatus(including amplifiers)that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding type plug. A polarized
plug has two blades with one wider than
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong is provided for your safety
When the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11. Only use the attachments / accessories
specified by the manufacturer.
12. Use only cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the
apparatus
.
13. Unplug this apparatus during
lightning storms or when unused for
a long time.
5
SAFETY INSTRUCTIONS CONTINUED
Safety instructions
14. Refer all servicing to qualified
service personnel.
Servicing is required when the
apparatus has been damaged in any
way.
Note
- If the TV is cold, there may be a small “flicker” when you turn it on.
- Avoid touching the LCD screen or holding your finger(s) against it.
CAUTION connecting the Power Cord
Do not overload wall outlets. Overloaded wall outlets could damage the TV and could
result to electric shock or fire. Periodically examine the cord of your appliance; if its
appearance indicates damage or deterioration, unplug it. Stop using it until you have it
replaced with a cord authorized by your dealer. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked or pinched.
On Disposal
- The fluorescent lamp used in this product contains a small amount of mercury
- Disposal of this product must be carried out in accordance to the regulations of your
local authority.
6
Installing Batteries

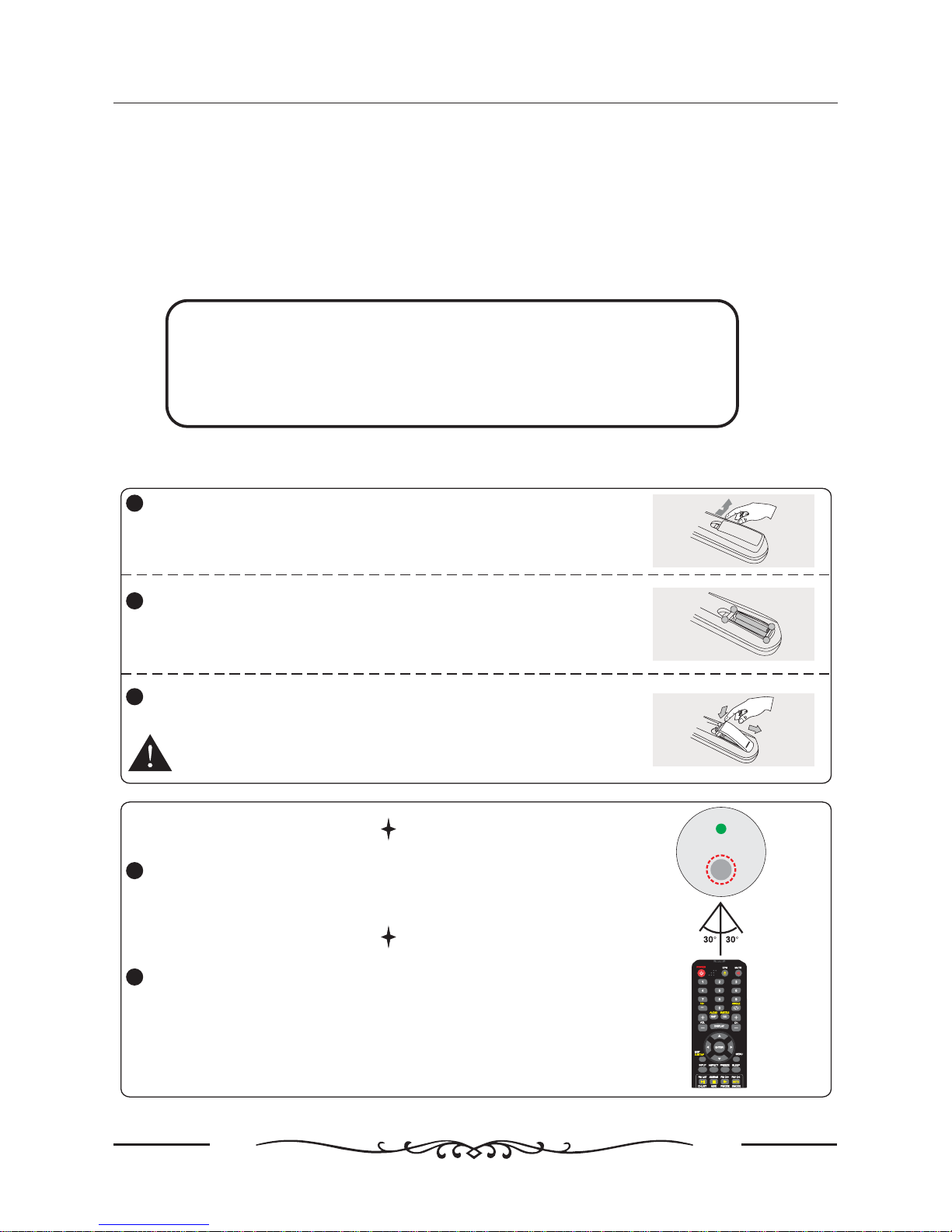

Open the battery compartment cover on the back
side.
Insert two 1.5V AAA size batteries in correct polarity.
Don’t mix old or used batteries with new ones.
Close the cover.
1
2
3
-
+
+
-
Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat such as sunshine, fire
or the like.
Point the remote towards the remote control sensor
of the wireless TV and use it within 7 meters.
Put the used batteries into the recycling bin since it
can negatively affect the environment.
Ensure that the following accessories are included with your TV. If any
accessory is missing, please contact the dealer from where you purchased the
product.
ACCESSORIES
1
2
Introduction
Power Cable x 1
Remote Control
AAA Battery x 2
User Manual
x 1
x 1
Quick Start Guide x 1
Warranty Card x 1
Video cable x 1
Accessories List
7
Introduction
SOURCE MENU V V-+
CH CH STANDBY-+

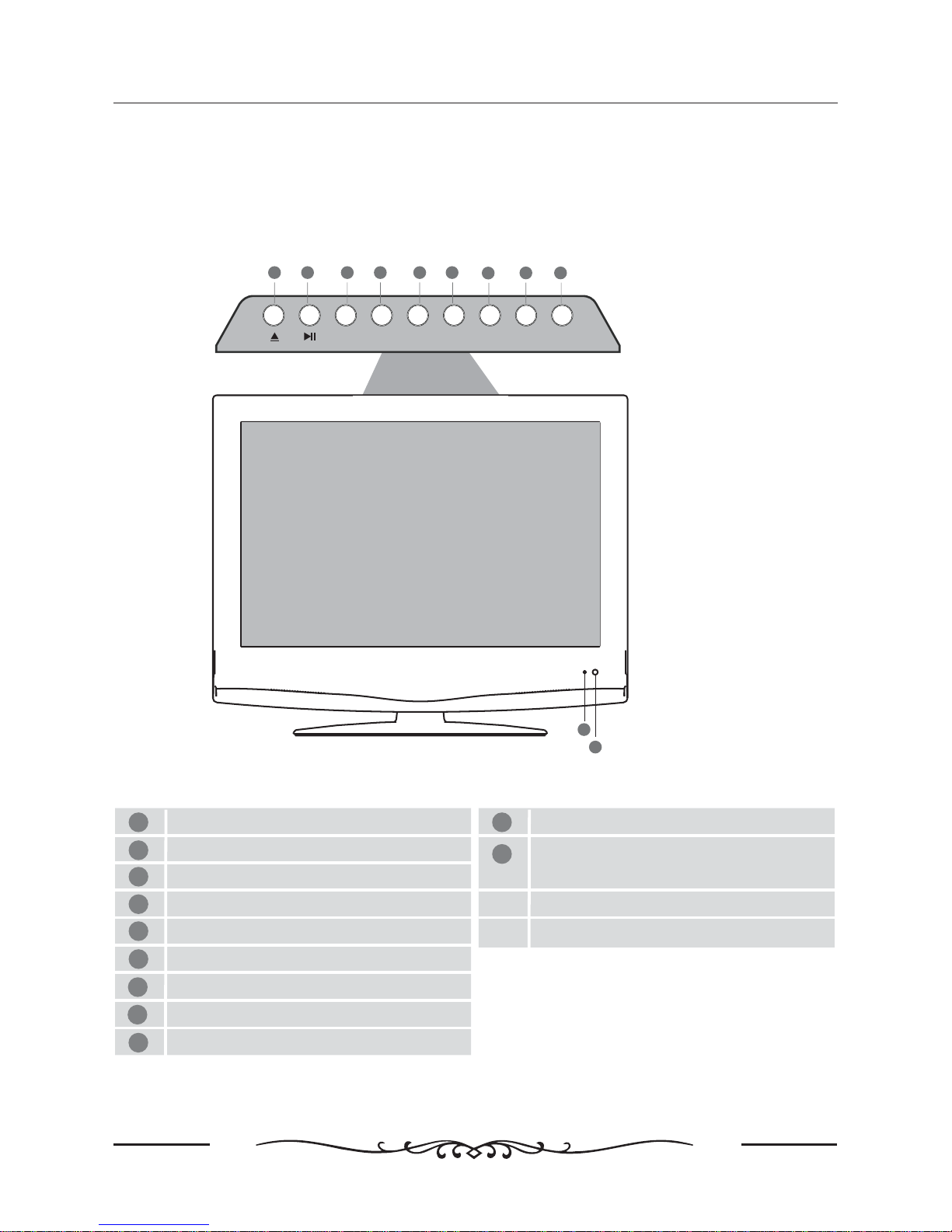

FRONT , SIDE , CONNECTIONS OF LCD
Front View
NOTE:In this manual, the colour of the TV may be different from your
TV, because this is just a kind of colour in the TV series.
12 34 56 789
Select the input source
Displays Menu OSD/
Volume down and menu down
Volume up and menu up
Program Channel down and menu down/
Program Channel up and menu up/
Standby ON OFF/
1
2
3
4
5
6
7
8
9
Eject
Play Pause/11
Infrared sensor for the remote control.
Switch ON the LCD TV when at standby
mode or vice versa.
10
10
11
8
Introduction

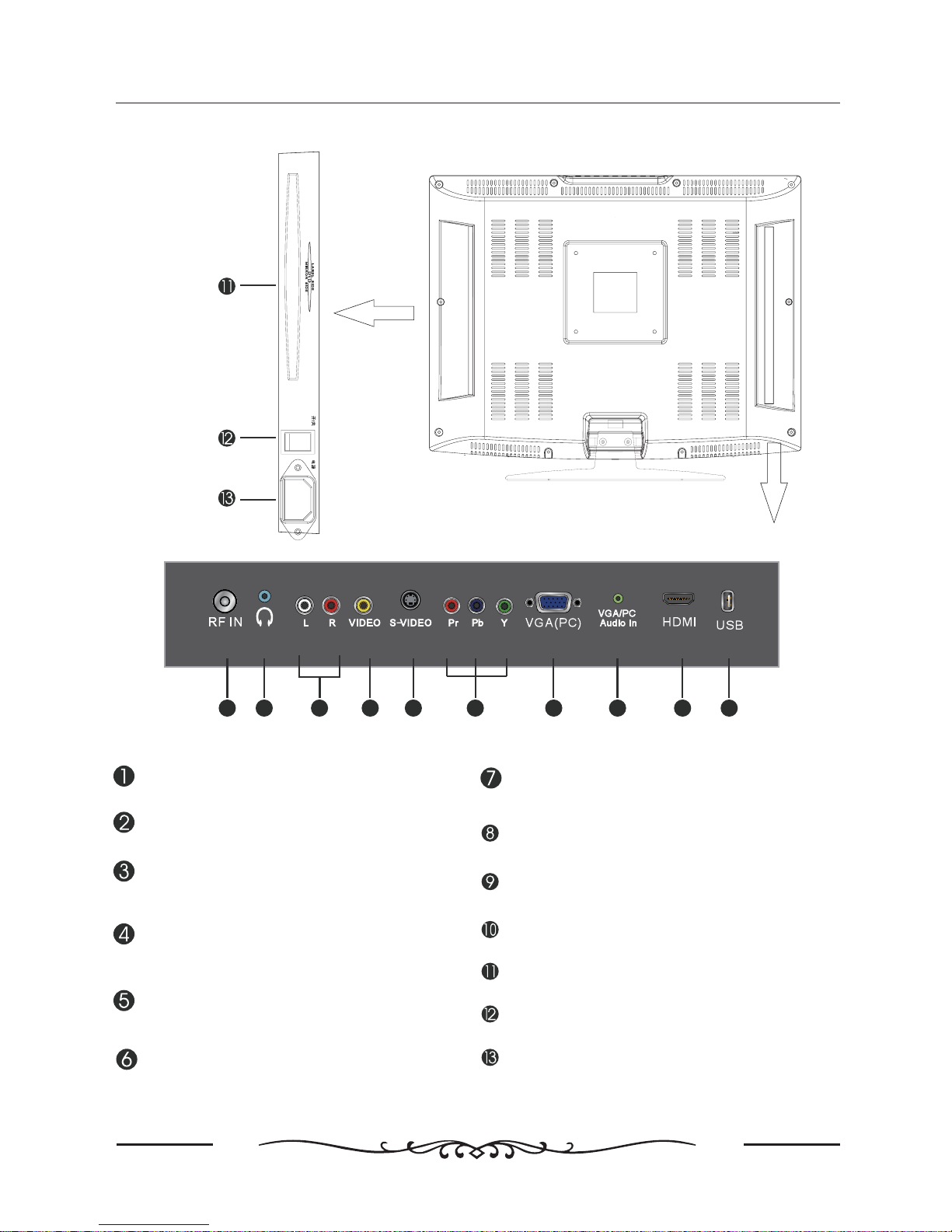

CONNECTION OPTIONS
DVD
Insert and exit the DVD disc
TV SIGNAL IN
Connect the antenna
PC AUDIO INPUT
Connect the Audio output jack of PC
AUDIO INPUT
Connect the Audio output jack of DVD
or VCR for CVBS/S-VIDEO
VIDEO INPUT
Connect the Video output jack of DVD or
VCR
S-VIDEO INPUT
Connect the S-VIDEO output jack of DVD
or VCR
YPbPr INPUT
Connect YPbPr output jack of DVD or VCR
PC-RGB INPUT
Connect the PC-RGB output jack of PC
HDMI INPUT
Connect the HDMI output jack of DVD
USB SLOT
Can be used for software updating.
HEADPHONE
Connect the headphone
POWER
The Power on/off
AC IN
Connect the Power supply cable
1 2 3 4 5 6 7 8 9 10
9

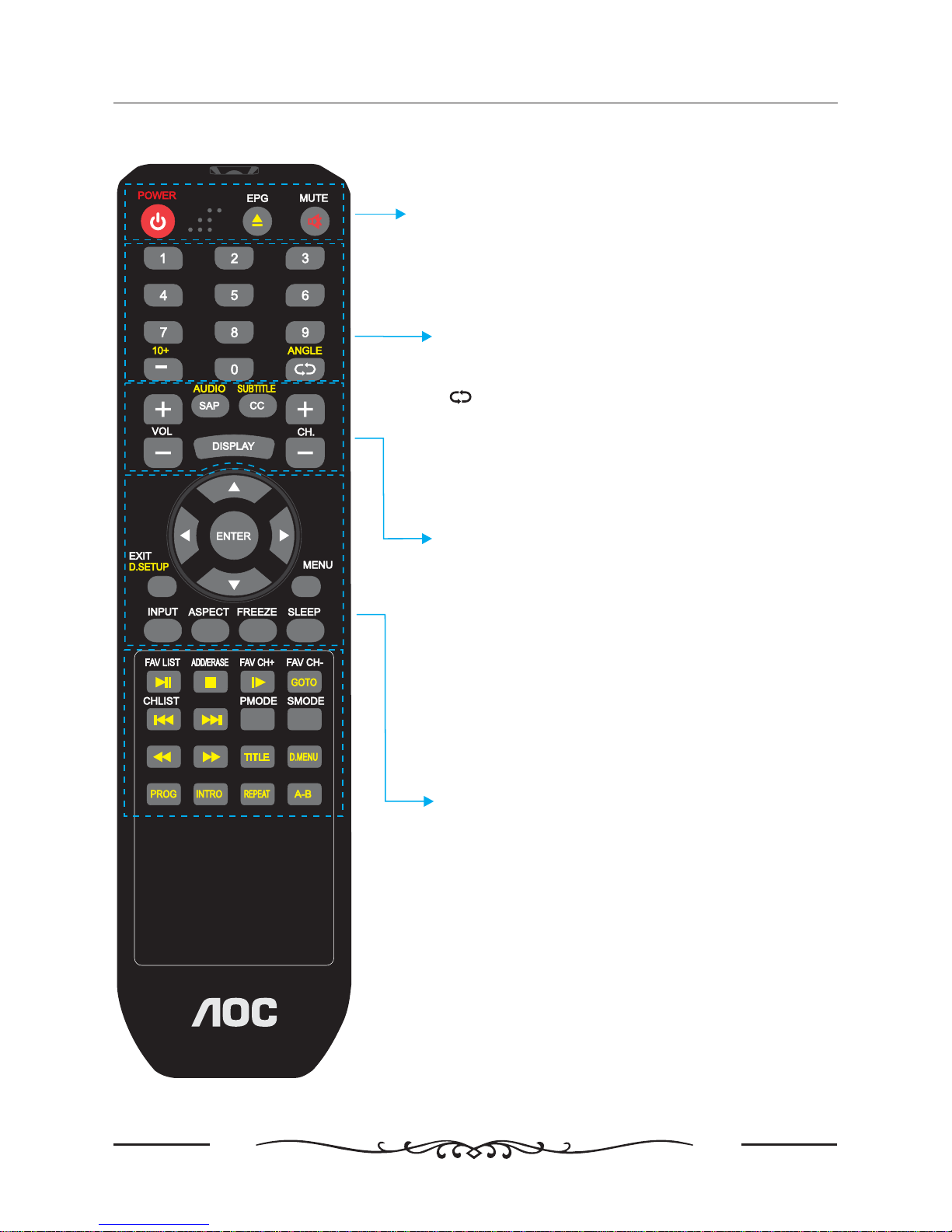

REMOTE CONTROL KEY FUNCTIONS
Introduction
POWER
Turn the LCD TV ON or OFF.
EJECT/EPG
MUTE
DVD mode: Press to eject the disc.
EPG:To show the Electronic Program
Guide during no menu state only
Press to mute the sound. Press again or press
V+ to recover the volume.
-.
NUMBER BUTTONS
ANGLE
Press 0-9 to select a TV channel directly when you are
watching TV. The channel change after 2 seconds.
Press to return to the previous channel that was viewed.
DVD mode: Press to select different angle of
DVD when available on disc
VOL+/-
SAP/AUDIO
Press to increase/decrease the sound level.
DISPLAY
SUB-T/CC
CH+/CH-
Press SAP to show the list of audio languages
available for current in TV mode.
Press to display the source or DVD program
information.
DVD mode:Press to switch between the
different subtitle languages.
TV mode: Press to display close caption cc
function needs support of the broadcast system
Press to select the next/previous channel.
.(
)
the
AUTO
EXIT/D.SETUP
INPUT
ASPECT
FREEZE
SLEEP
Press to exit the menu on the screen.
Access
Press to access the source menu
Press to change aspect ratio of the picture.
Allows you to select the amount of time before
your TV turn itself off automatically.
Main menu for DVD
To make pictures static
THUMBSTICK( ◄ / ►/ OK ENTER )
MENU
Allows you to navigate the on-screen menus and
adjust the system settings to your preference.
the main TV menu to the screen.
▲/▼/
Autres manuels pour LC19W060C
2
Table des matières
Autres manuels AOC Combo TV DVD
