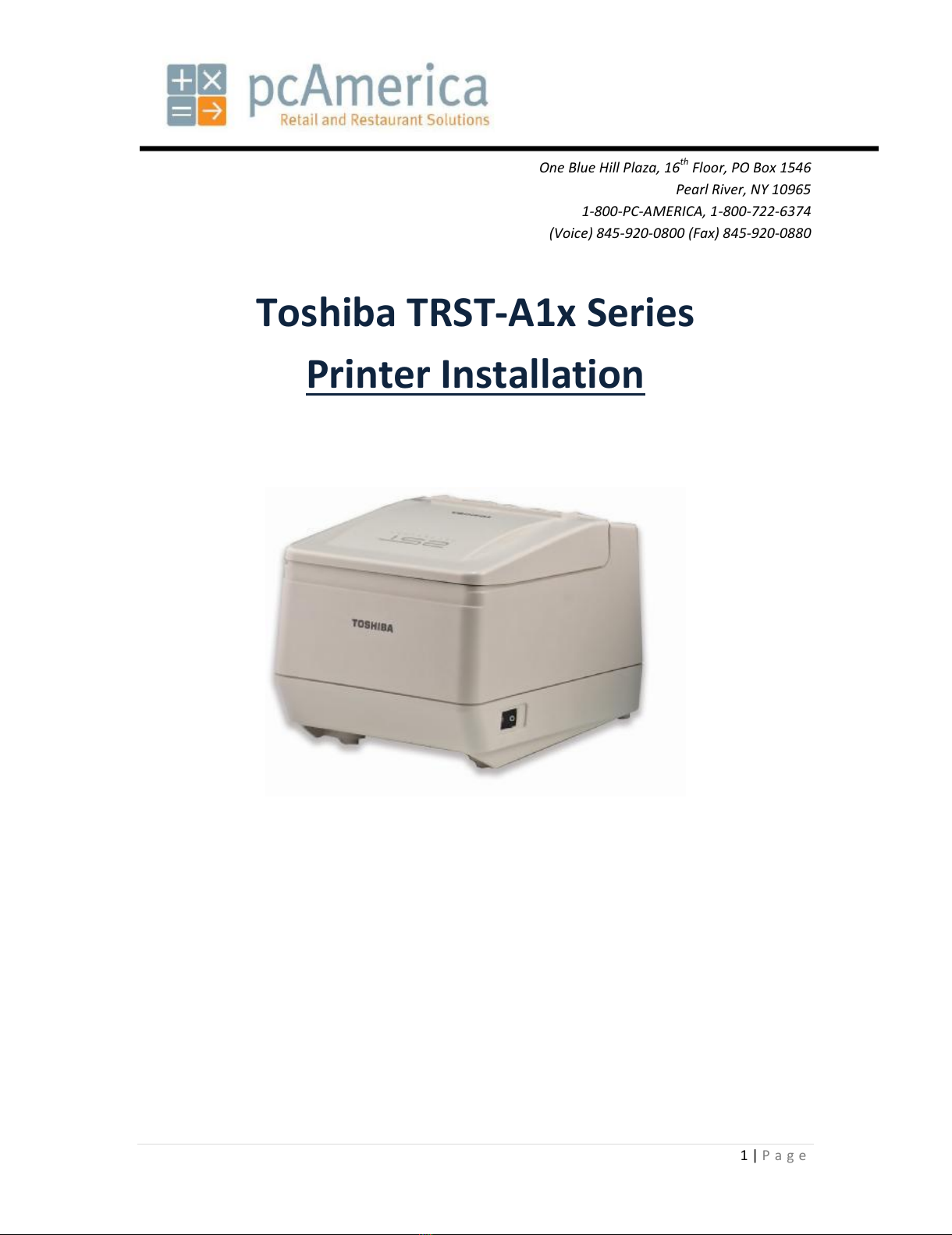

Toshiba TRST-A1x Series

Printer Installation

All manuals and user guides at all-guides.com

2 | P a g e

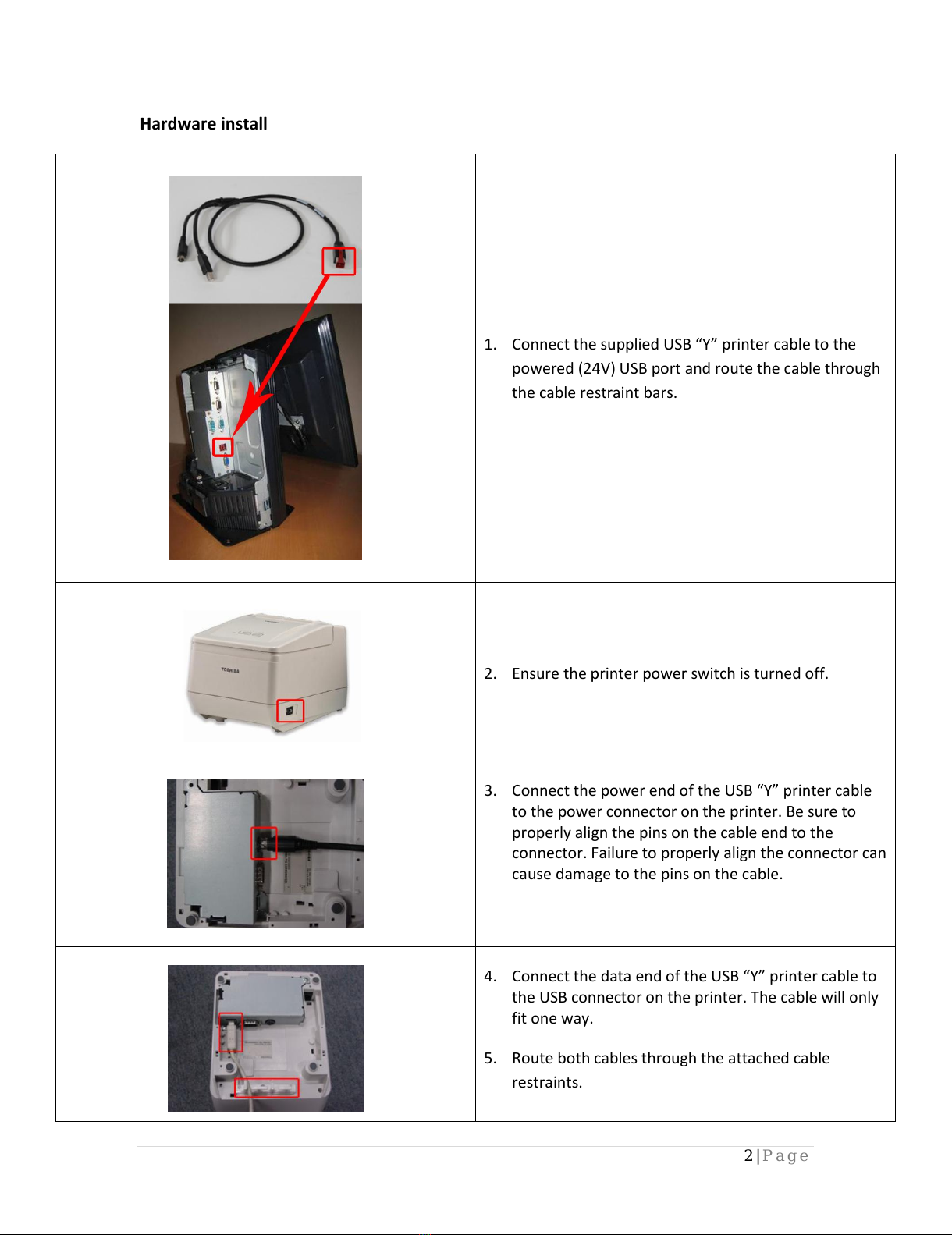

Hardware install

1. Connect the supplied USB “Y” printer cable to the

powered (24V) USB port and route the cable through

the cable restraint bars.

2. Ensure the printer power switch is turned off.

3. Connect the power end of the USB “Y” printer cable

to the power connector on the printer. Be sure to

properly align the pins on the cable end to the

connector. Failure to properly align the connector can

cause damage to the pins on the cable.

4. Connect the data end of the USB “Y” printer cable to

the USB connector on the printer. The cable will only

fit one way.

5. Route both cables through the attached cable

restraints.

All manuals and user guides at all-guides.com

3 | P a g e

Loading Paper in the TRST-A1x Printer

When you use this printer for the first time or when the receipt paper has been used up, load a

receipt roll in, following the procedures listed below while the printer power is set to ON. A

thermal printer prints thermal receipt paper by applying heat to the paper to react with the

chemicals on the paper surface. A red line which appears on the reverse side of the receipt

paper indicates that the paper is almost used up.

1. Turn the printer power ON.

2. Hold the raised sides firmly and lift upwards to unhook the printer cover.

Note: On some of the newer models there is a lever that you can push to open the printer.

3. Hold both sides of the printer cover and open it until it stops.

4. Check for the correct orientation of the receipt roll, and put it into the paper holder.

5. Pull the receipt paper until it extends past the paper outlet (about 2 inches), and then close the printer cover by

pressing its front center gently until a positive lock is felt.

All manuals and user guides at all-guides.com

4 | P a g e

Printer Configuration

1. Turn the printer off.

2. Turn the printer over and the back of the printer is

facing up. You will see the number 12 at the bottom

right hand corner.

3. In that space below the number there is two dip

switches. Flip the #1 dip switch to the on position

(down).

4. Press and Hold the feed button while turning on the

printer, putting the printer in config mode. When the

printer first comes on it will print a piece of paper

(Diagnostics Form) and then print the Printer Config

Menu.

By default under Communication Interface the USB

TYPE is set to Vendor Specific Class. We will now

change that to Printer Class.

5. At the Main Menu we need to select Set

Communication Interface by clicking the feed button

3 times (3 short clicks) then press and hold it down,

you will hear beeps to confirm.

6. It Prints the Communication Interface Menu. It will

ask you what you would like to edit. As we need to

set only the USB interface type, Short Click the feed

button (no) 8 times until you get to set USB interface

type? Where you will hold down the feed button to

select YES.

All manuals and user guides at all-guides.com

5 | P a g e

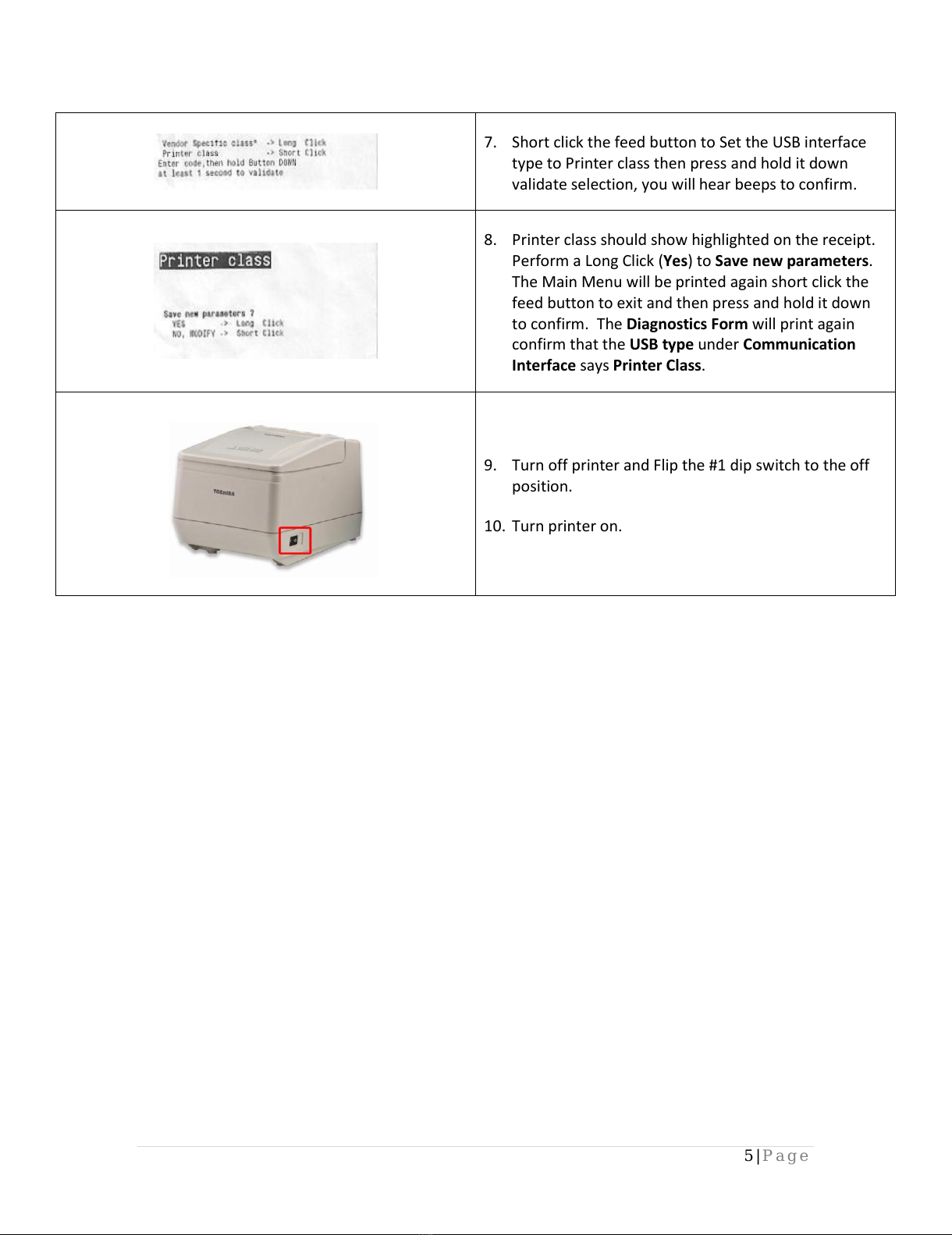

7. Short click the feed button to Set the USB interface

type to Printer class then press and hold it down

validate selection, you will hear beeps to confirm.

8. Printer class should show highlighted on the receipt.

Perform a Long Click (Yes) to Save new parameters.

The Main Menu will be printed again short click the

feed button to exit and then press and hold it down

to confirm. The Diagnostics Form will print again

confirm that the USB type under Communication

Interface says Printer Class.

9. Turn off printer and Flip the #1 dip switch to the off

position.

10. Turn printer on.

All manuals and user guides at all-guides.com

6 | P a g e

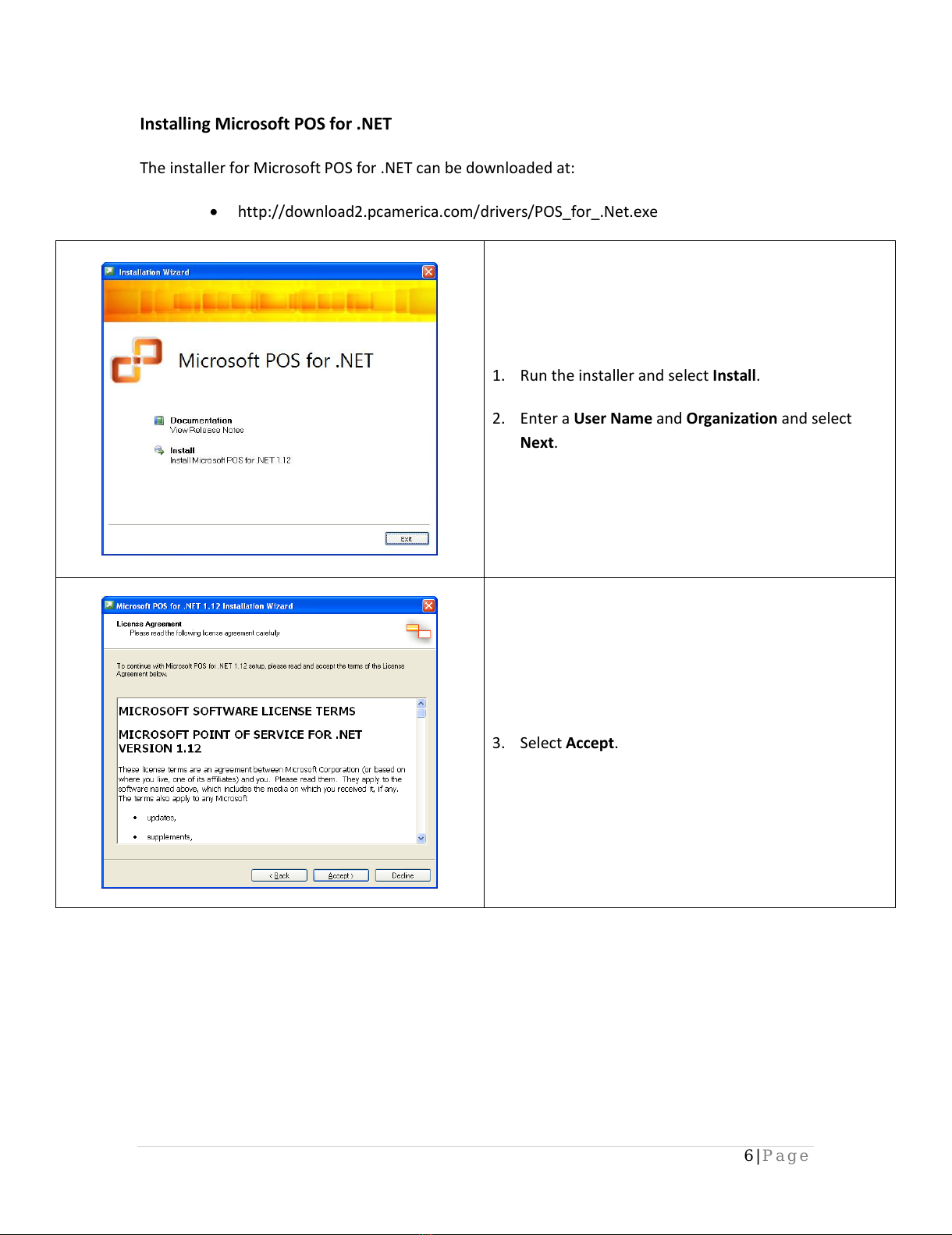

Installing Microsoft POS for .NET

The installer for Microsoft POS for .NET can be downloaded at:

http://download2.pcamerica.com/drivers/POS_for_.Net.exe

1. Run the installer and select Install.

2. Enter a User Name and Organization and select

Next.

3. Select Accept.

All manuals and user guides at all-guides.com

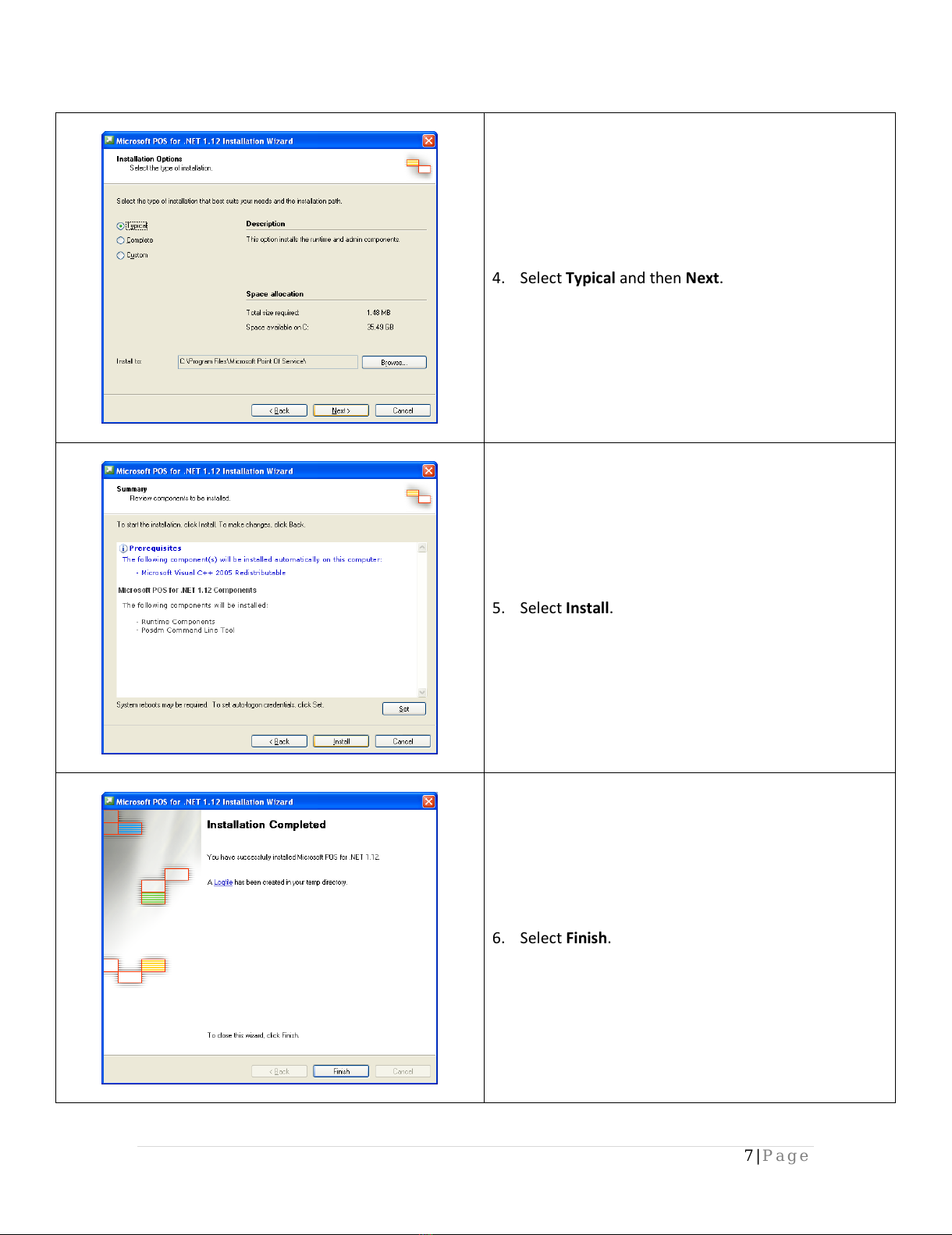

7 | P a g e

4. Select Typical and then Next.

5. Select Install.

6. Select Finish.

All manuals and user guides at all-guides.com

8 | P a g e

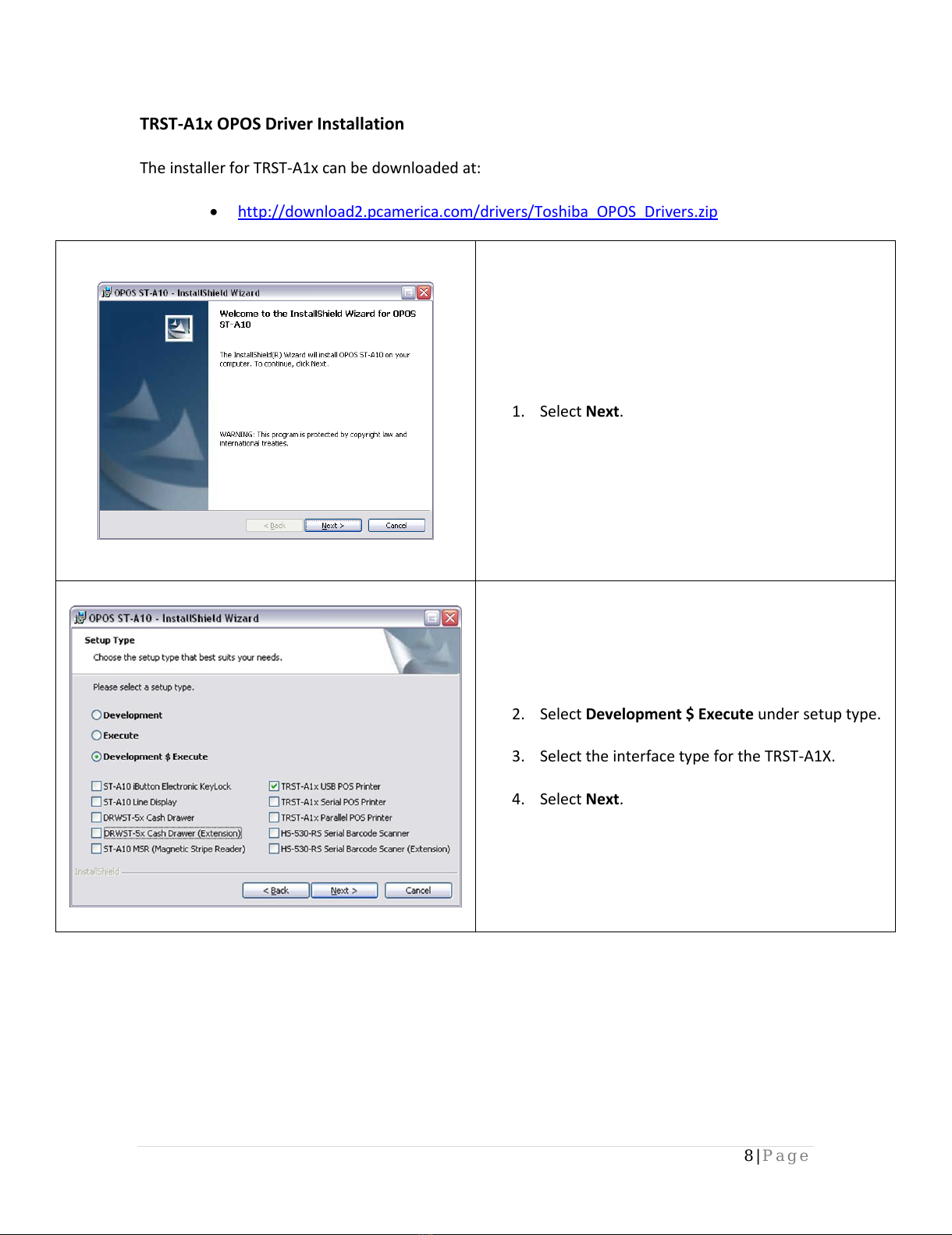

TRST-A1x OPOS Driver Installation

The installer for TRST-A1x can be downloaded at:

http://download2.pcamerica.com/drivers/Toshiba_OPOS_Drivers.zip

1. Select Next.

2. Select Development $ Execute under setup type.

3. Select the interface type for the TRST-A1X.

4. Select Next.

All manuals and user guides at all-guides.com

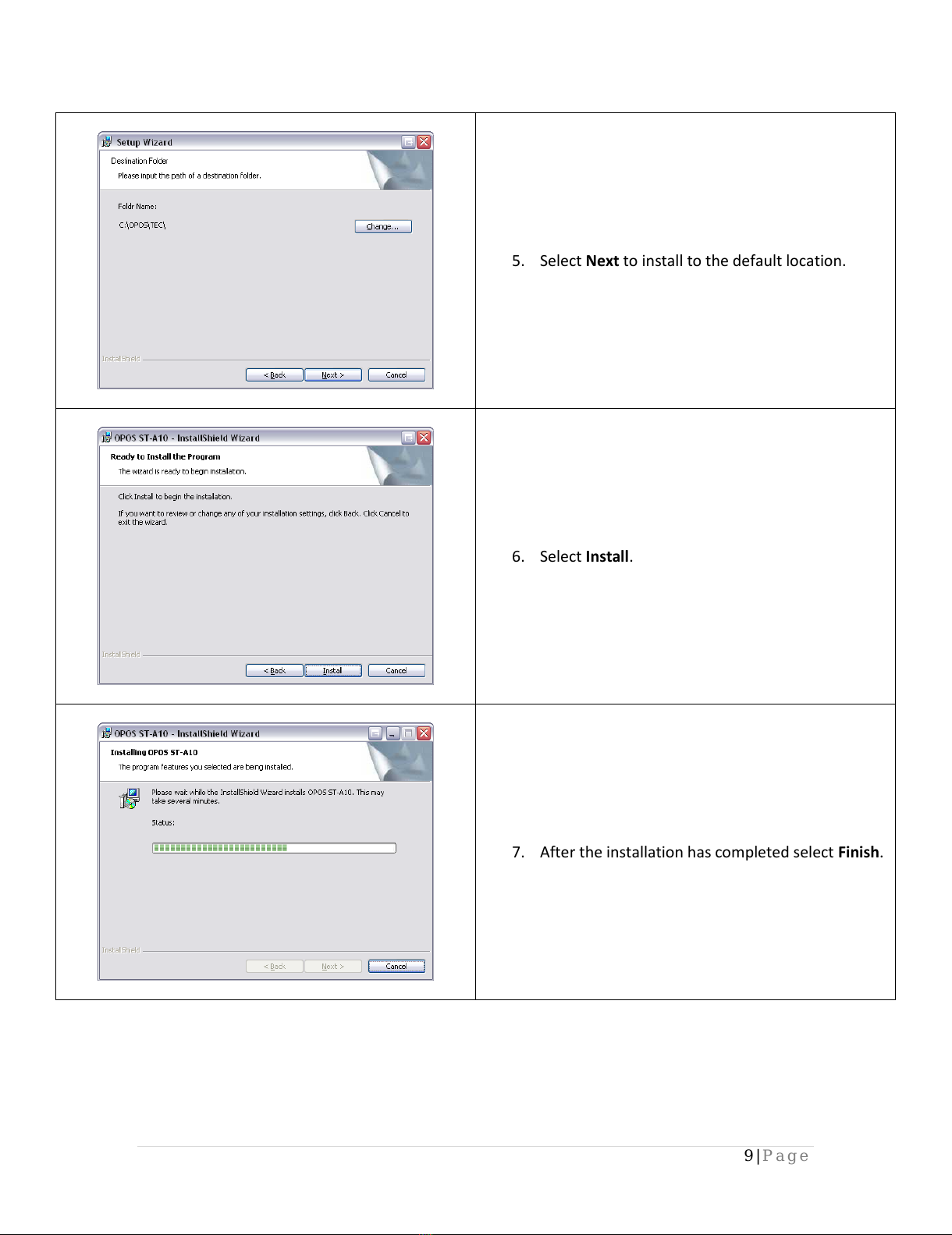

9 | P a g e

5. Select Next to install to the default location.

6. Select Install.

7. After the installation has completed select Finish.

All manuals and user guides at all-guides.com

10 | P a g e

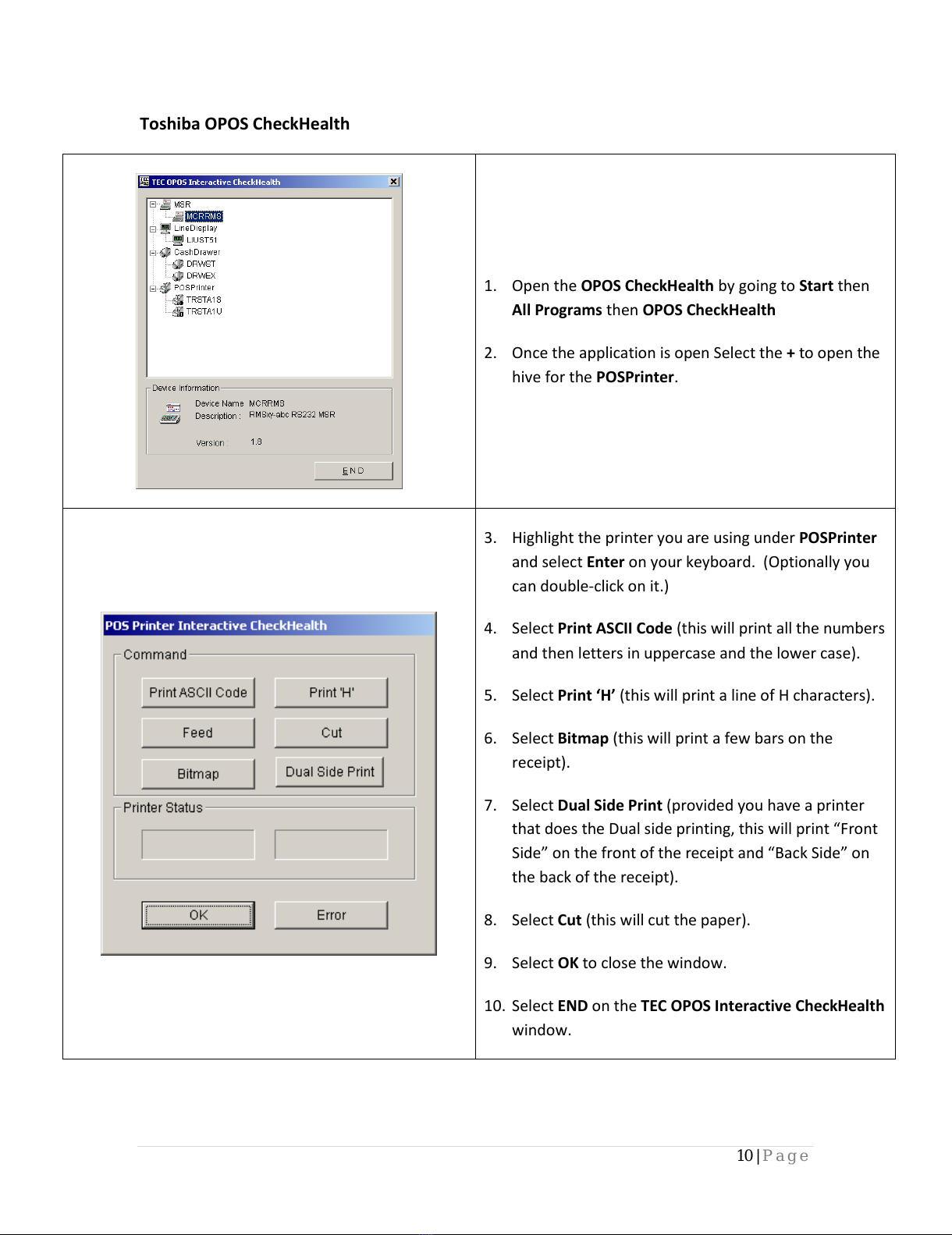

Toshiba OPOS CheckHealth

1. Open the OPOS CheckHealth by going to Start then

All Programs then OPOS CheckHealth

2. Once the application is open Select the +to open the

hive for the POSPrinter.

3. Highlight the printer you are using under POSPrinter

and select Enter on your keyboard. (Optionally you

can double-click on it.)

4. Select Print ASCII Code (this will print all the numbers

and then letters in uppercase and the lower case).

5. Select Print ‘H’ (this will print a line of H characters).

6. Select Bitmap (this will print a few bars on the

receipt).

7. Select Dual Side Print (provided you have a printer

that does the Dual side printing, this will print “Front

Side” on the front of the receipt and “Back Side” on

the back of the receipt).

8. Select Cut (this will cut the paper).

9. Select OK to close the window.

10. Select END on the TEC OPOS Interactive CheckHealth

window.

All manuals and user guides at all-guides.com
