Toshiba IK-WB01A Manuel utilisateur

QuickStartGuideforNetworkconnection



Thefollowingsoftwaremustbedownloadedandinstalledbeforeinstalling

theIK-WB01A/11A:



・SunMicrosystemsJAVATMsoftware

ohttp://www.java.com

・InternetExplorerTMVersion6.0

ohttp://www.microsoft.com/windows/ie

・orNetscapeTMVersion7.0

ohttp://channels.netscape.com/ns/browsers

・ToshibaCameraFindersoftware

ohttp://www.netcam.toshiba.com



1)ConnecttheIK-WB01A/11AtoyournetworkusingaCat5/Ethernetcable

BEFOREpoweringonyourcamera.Repeatthisstepforanyadditional

cameras.



2)Poweronyourdevicesinthefollowingorder:cableorDSLmodem,router

orhub,PCs.

3)PowerontheIK-WB01A/11A.

4)RuntheToshibaCameraFindersoftwaretoautomaticallydetectyour

cameras.RefertoboththeBasicandAdvancedUser'sGuidesformore

details.

5)Ifthecameraisnotfound,poweroffthecameraandrepeattheabove

steps.

6)ClickonUsertoviewvideo,orAdministratortochangethesettings.



IfyoudonothaveastaticIPaddressforyourInternetconnection,Toshiba

offersaDDNSservicethatwillallowyoutohaveanInternetaddressforyour

camera.

1)RegisterforToshiba'sDDNSservicebyclickingonthelinkIK-WB11A

settingsunderNetworkSettings>DDNS

2)Followtheinstructionstosetupyouraccount.

Networkcamera  Personalcomputer



ObtainedIPaddressdepends

onDHCPorStaticIPaddressIf

192.168.0.30

Ethernetcable(straight-throughcable) Ethernetcable(straight-throughcable)

Router

STOP!



BEFOREINSTALLINGORCONNECTINGIK-WB01A/IK-WB11ATO

YOURPC,READTHISQUICKSTARTGUIDE



THANKYOU



TOSHIBA

Internet

All manuals and user guides at all-guides.com

all-guides.com

OtherSettings

●

FromtheAdminmenu,clickAdministratorFunctionsandthenselect

ChangingthePassword.

Enter"root"intheCurrentLoginIDfieldand"ikwb"intheCurrentPasswordfield.

EnteranewloginIDintheNewLoginIDfieldandanewpasswordintheNew

PasswordfieldandNewPassword(Confirm)field.

ClicktheSavebutton.

Fordetailsonothersettings,refertoDoththeBasicandAdvanced

User'sGuides.

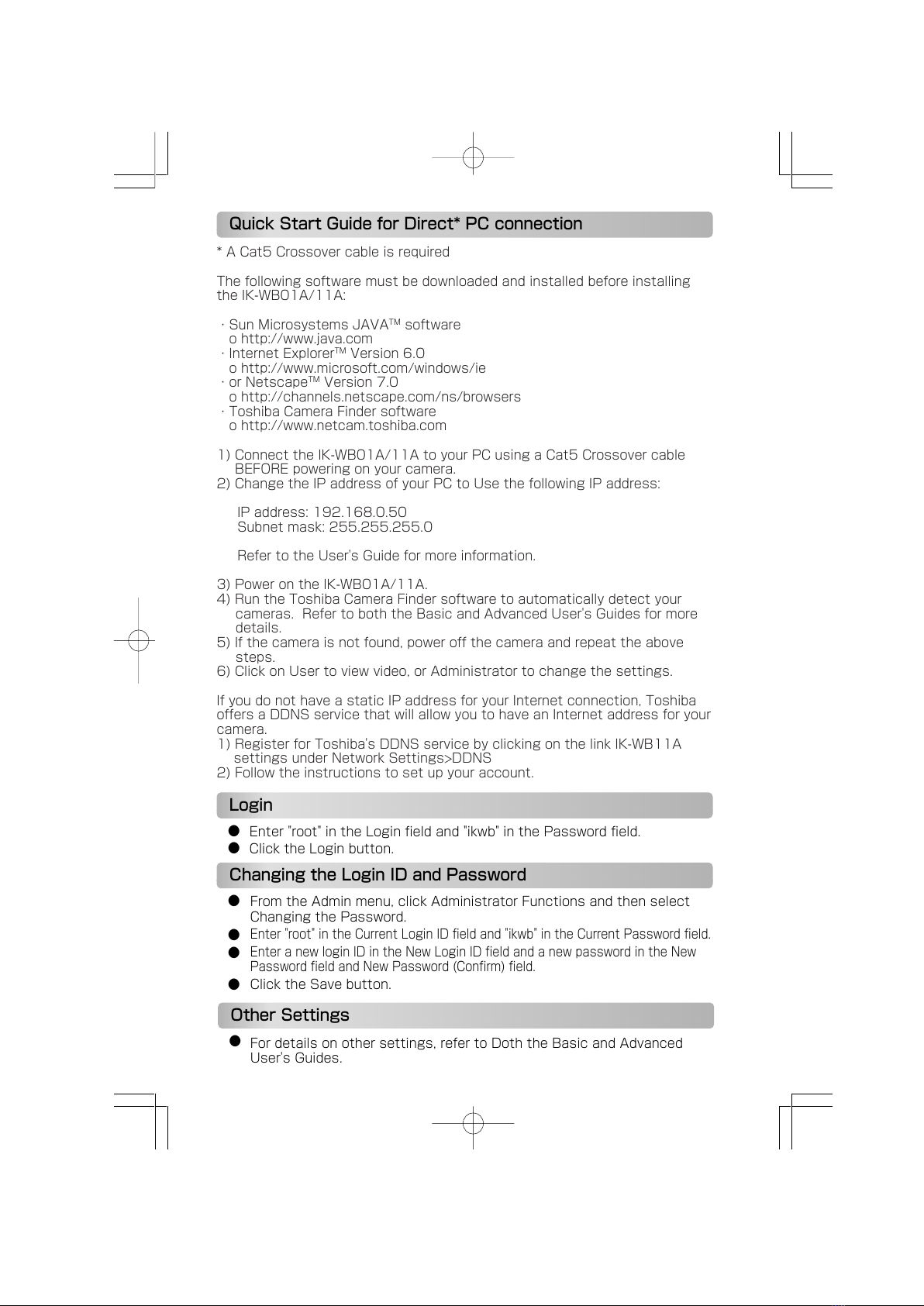

QuickStartGuideforDirect*PCconnection

●

Enter"root"intheLoginfieldand"ikwb"inthePasswordfield.

●

ClicktheLoginbutton.

ChangingtheLoginIDandPassword

●

*ACat5Crossovercableisrequired



Thefollowingsoftwaremustbedownloadedandinstalledbeforeinstalling

theIK-WB01A/11A:



・SunMicrosystemsJAVATMsoftware

ohttp://www.java.com

・InternetExplorerTMVersion6.0

ohttp://www.microsoft.com/windows/ie

・orNetscapeTMVersion7.0

ohttp://channels.netscape.com/ns/browsers

・ToshibaCameraFindersoftware

ohttp://www.netcam.toshiba.com



1)ConnecttheIK-WB01A/11AtoyourPCusingaCat5Crossovercable

BEFOREpoweringonyourcamera.

2)ChangetheIPaddressofyourPCtoUsethefollowingIPaddress:



IPaddress:192.168.0.50

Subnetmask:255.255.255.0



RefertotheUser'sGuideformoreinformation.



3)PowerontheIK-WB01A/11A.

4)RuntheToshibaCameraFindersoftwaretoautomaticallydetectyour

cameras.RefertoboththeBasicandAdvancedUser'sGuidesformore

details.

5)Ifthecameraisnotfound,poweroffthecameraandrepeattheabove

steps.

6)ClickonUsertoviewvideo,orAdministratortochangethesettings.



IfyoudonothaveastaticIPaddressforyourInternetconnection,Toshiba

offersaDDNSservicethatwillallowyoutohaveanInternetaddressforyour

camera.

1)RegisterforToshiba'sDDNSservicebyclickingonthelinkIK-WB11A

settingsunderNetworkSettings>DDNS

2)Followtheinstructionstosetupyouraccount.

All manuals and user guides at all-guides.com

Cameraname

Mainmenus Submenus Resetbutton

Restoresthe

previous

configuration.

Livebutton

Displaysimagesfromthecamerainsingleview.

Exitbutton

Closesthesettingsscreen.

Savebutton

Savesthechanges.

●AdminMenuScreen

●SingleView ●MultiView

Allthebuttonsandicons,exceptthe

buttonforswitchingviews,function

thesameasthoseofsingleview.

Cameraname

AlarmNotification

Displayedwhenan

alarmisdetected.

MultiViewbutton

Switchesthedisplay

tomultiview.

Controller

button

Displaysthe

controller.

Image

magnification

Indicatesthe

magnification

ofcamera

images.

Soundbutton

Switchessoundon/off.

Timeanddate

Displaysthecurrenttime

anddateofthenetwork

camerabeingaccessed.

SingleViewbutton

Displaystheupperleft

screeninsingleview.

All manuals and user guides at all-guides.com

AlarmRecordingPlaybutton



Displaystheimages

recordedatthetime

thealarmwas

generated.

Displaysnext10

alarms.

Displaysprevious10

alarms.

Alarmtype

Alarmnumber

Playbutton

Displaystheimages

recordedatatime

whenthingsare

normal.

Displaysnext10

recordings.

Displaysprevious10

recordings.

Listnumber

PresetAvailable/UnavailableIcon



Displayswhetherthepreset

isconfigured.

PresetSelectionbutton

Specifiespreset.

Gobutton

Movesthelenstothe

preset.

Setbutton

Setsspecifiedpreset.

Clearbutton

Deletessettingsof

specifiedpreset.

Namebutton

Changesthenameof

thespecifiedpreset.

Presetname Timeanddatealarmgenerated Timeanddateofrecording

●AdministratorController

●Presetcontroller ●Alarmlistcontroller ●Recordlistcontroller

(IK-WB11)

Closebutton

Closesthecontroller.

Cameraname

Oneshot

Capturesoneimage

fromcamera.



BackLightbutton

Performsbacklight

compensation.



Zoominbutton



Enlargesthecamera

images.



Zoomoutbutton

Reducesthecamera

images.



LIVEbutton

Displaysthecurrent

cameraimages.

Scanbutton

Movesthelenshorizontally

backandforth.



AutoPatrolbutton

Movesthelens

automaticallyatapreset

angle.



Controllerbuttons

Adjuststhedirectionofthe

lensbypanning(left/right)

andtilting(up/down).The

centerbuttonmovesthe

lenstothecenterposition.



Controlbuttonsfor

playingrecordings

All manuals and user guides at all-guides.com
