TOSHIBA Barcode Printer

B-EX4T2/D2 SERIES

Owner's Manual

Precautions for the handling of Wireless Communication Devices

Wireless LAN Module: SD-Link 11g (B-EX700-WLAN-QM-R), SX-590 (B-EX700-WLAN3-QM-S)

For Europe

This device was tested and certified by Notified Body.

Hereby, Toshiba TEC Corporation declares that this device is in compliance with the essential

requirements and other relevant provisions.

This equipment uses the radio frequency band which has not been standardized throughout the EU and

EFTA countries.

For Europe

This device was tested and certified by Notified Body.

Hereby, Toshiba TEC Corporation, declares that this device is in compliance with the essential requirements and

other relevant provisions.

This equipment uses the radio frequency band which has not been harmonized throughout all EU and EFTA

countries.

For Taiwan

Caution

根據低功率電波輻射性電機管理辦法

For safety

Do not operate this product in locations where its use may be prohibited. For example, in an aeroplane or hospital.

If you are unsure whether operation is permitted, please refer to and follow the airline company or medical

institution guidelines.

Otherwise, flight instrument or medical equipment may be affected, causing a serious accident.

This product may affect the operation of some implanted cardiac pacemakers and other medically implanted

equipment. Pacemaker patients should be aware that the use of this product in close proximity to a pacemaker

might cause the device to malfunction.

If you have any reason to suspect that interference is taking place, immediately turn off the product and contact

your TOSHIBA TEC sales agent.

Do not disassemble, modify, or repair the product as doing so may cause injury.

Modification is also against the Laws and Regulations for Radio Equipment. Please ask your TOSHIBA TEC sales

agent for repair.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away

from windows to provide maximum shielding. Equipment that is installed outdoors is subject to licensing.

This equipment should be installed and operated with at least 20cm and more between the radiator and person’s

body (excluding extremities: hands, wrists, feet and legs).

Do not use the 5GHz band for communication outdoors. Using wireless devices outdoors on the 5GHz band is

prohibited. To operate the wireless LAN of this product outdoors, only use the 2.4GHz band.

Precaution in use

This product communicates with other devices by radio. Depending on the installation location, orientation,

environment, etc., its communication performance may deteriorate or devices installed near by may be affected.

Keep away from a microwave.

Communication performance may deteriorate or a communication error may occur due to the radio emitted from

a microwave.

PRODUCT OVERVIEW
1 Introduction

TABLE OF CONTENTS

PRODUCT OVERVIEW ....................................................................................................................1
1 Introduction ..................................................................................................................................1
2 Features.........................................................................................................................................1
3 Unpacking.....................................................................................................................................1
4 Accessories....................................................................................................................................2
5 Appearance...................................................................................................................................3
5.1 Dimensions ............................................................................................................................3
5.2 Front View..............................................................................................................................3
5.3 Rear View...............................................................................................................................3
5.4 Operation Panel.....................................................................................................................4
5.5 Interior....................................................................................................................................4
6 Option ...............................................................................................................................................5
PRINTER SETUP ...................................................................................................................................5
1 Installation ....................................................................................................................................7
1.1 WLAN Module Installation ........................................................................................................8
2Connecting the Power Cord .........................................................................................................9
3 Loading Supplies.........................................................................................................................10
3.1 Loading the Media...............................................................................................................11
3.2 Loading the Ribbon..............................................................................................................16
4 Connecting the Cables to Your Printer ......................................................................................18
5Turning the Printer ON/OFF ....................................................................................................19
5.1 Turning ON the Printer.......................................................................................................19
5.2 Turning OFF the Printer.....................................................................................................19
6 OUTLINE OF EACH
MODE
.........................................................................................................20
6.1 ONLINE MODE ......................................................................................................................20
6.2 Threshold setting mode........................................................................................................20
6.3 Information mode..................................................................................................................20

PRODUCT OVERVIEW
1 Introduction

6.4 USER SYSTEM MODE............................................................................................................21
6.5 SYSTEM MODE.......................................................................................................................21
6.6 DOWNLOAD MODE..............................................................................................................21
6.7 AUTO CONFIGURATION MODE ...................................................................................21
6.8 GENERAL VIEW OF KEY OPERATION ...............................................................................22
6.9 Initial Setting Wizard................................................................................................................24
7 Printer Drivers ...............................................................................................................................27
8 Print Test After your drivers have been installed, perform a print test............................................28
ONLINE MODE ...............................................................................................................................29
1 Key Functions .............................................................................................................................29
2LCD ............................................................................................................................................30
3Operation Example.....................................................................................................................31
4Power Save Function ..................................................................................................................34
4.1 Entering the Power Saving Mode ........................................................................................34
4.2 Exiting the Power Saving Mode...........................................................................................34
5 USER SYSTEM MODE ..................................................................................................................35
5.1 OUTLINE OF USER SYSTEM
MODE
...................................................................................35
5.2 EXIT..........................................................................................................................................35
MAINTENANCE ..............................................................................................................................36
1 Cleaning......................................................................................................................................36
1.1 Print Head/Platen/ Sensors.................................................................................................36
1.2 Covers and Panels................................................................................................................37
1.3 Optional Cutter Module ......................................................................................................38
TROUBLESHOOTING....................................................................................................................39
1 Error Messages............................................................................................................................39
2 Possible Problems.......................................................................................................................42
3 Removing Jammed Media...........................................................................................................43
PRINTER SPECIFICATIONS..........................................................................................................44
SUPPLY SPECIFICATIONS............................................................................................................46

1. PRODUCT OVERVIEW
1.1 Introduction

7.1 Media ..........................................................................................................................................46
7.1.1 Media Type..........................................................................................................................46
7.1.2Detection Area of the Transmissive Sensor.........................................................................48
7.2 Ribbon.........................................................................................................................................51
7.3 Recommended Media and Ribbon Types...................................................................................51
7.4 Care/Handling of Media and Ribbon .........................................................................................52
APPENDIX 1 MESSAGES AND LEDS..................................................................................................53
APPENDIX 2 INTERFACE ....................................................................................................................56
APPENDIX 3 GLOSSARIES...................................................................................................................63


WARNING!

 This is a Class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
 CAUTION!
1. This manual may not be copied in whole or in part without prior written permission of TOSHIBA TEC.
2. The contents of this manual may be changed without notification.
3. Please refer to your local Authorized Service representative with regard to any queries you may have
in this manual.


1. PRODUCT OVERVIEW

1.1 Introduction

1.2 Features

1.3 Unpacking

Thank you for choosing the TOSHIBA B-EX4T2/D2 series bar

code printer. This Owner’s Manual contains from general set-up

through to how to confirm the printer operation using a test print,

and should be read carefully to help gain maximum performance

and life from your printer. For most queries please refer to this

manual and keep it safe for future reference. Please contact your

TOSHIBA TEC representative for further information concerning

this manual.

This printer has the following features:

The print head block can be opened providing smooth loading

of media and ribbon.

Various types of media can be used as the media sensors can

be moved from the center to the left edge of the media.

Web based functions such as remote maintenance and other

advanced network features are available.

Superior hardware, including the specially developed 8

dots/mm (203 dots/inch) thermal print head which will allow very

clear print at a printing speed of 3, 6, 10, or 12 inches/sec. and

3, 5, 8, 10, or 12 inches/sec. with 11.8 dots/mm (300 dots/inch)

thermal head. 23.6 dots/mm (600 dpi) thermal print head which

will allow very clear print at a printing speed of 2, 3, 4, 5, or 6

inches/sec.

B-EX4T2/D2

B-EX4T2

203dip

300dpi

600dpi

3ips

2ips

6ips

5ips

3ips

10ips

8ips

4ips

12ips

10ips

5ips

12ips

6ips

Besides the optional Cutter Module, there is also an optional

Peel off Module, RS-232C I/F card, Centronics I/F card,

Expansion I/O Card, Wireless LAN I/F card, the RTC/USB host

I/F card.

Unpack the printer as per the Unpacking Instructions supplied with

the printer.

NOTES:

1. Check for damage or scratches

on the printer. However,

please note that TOSHIBA TEC

shall have no liability for any

damage of any kind sustained

during transportation of the

product.

2. Keep the cartons and internal

packing for future

transportation of the printer.

1. PRODUCT OVERVIEW

1.4 Accessories

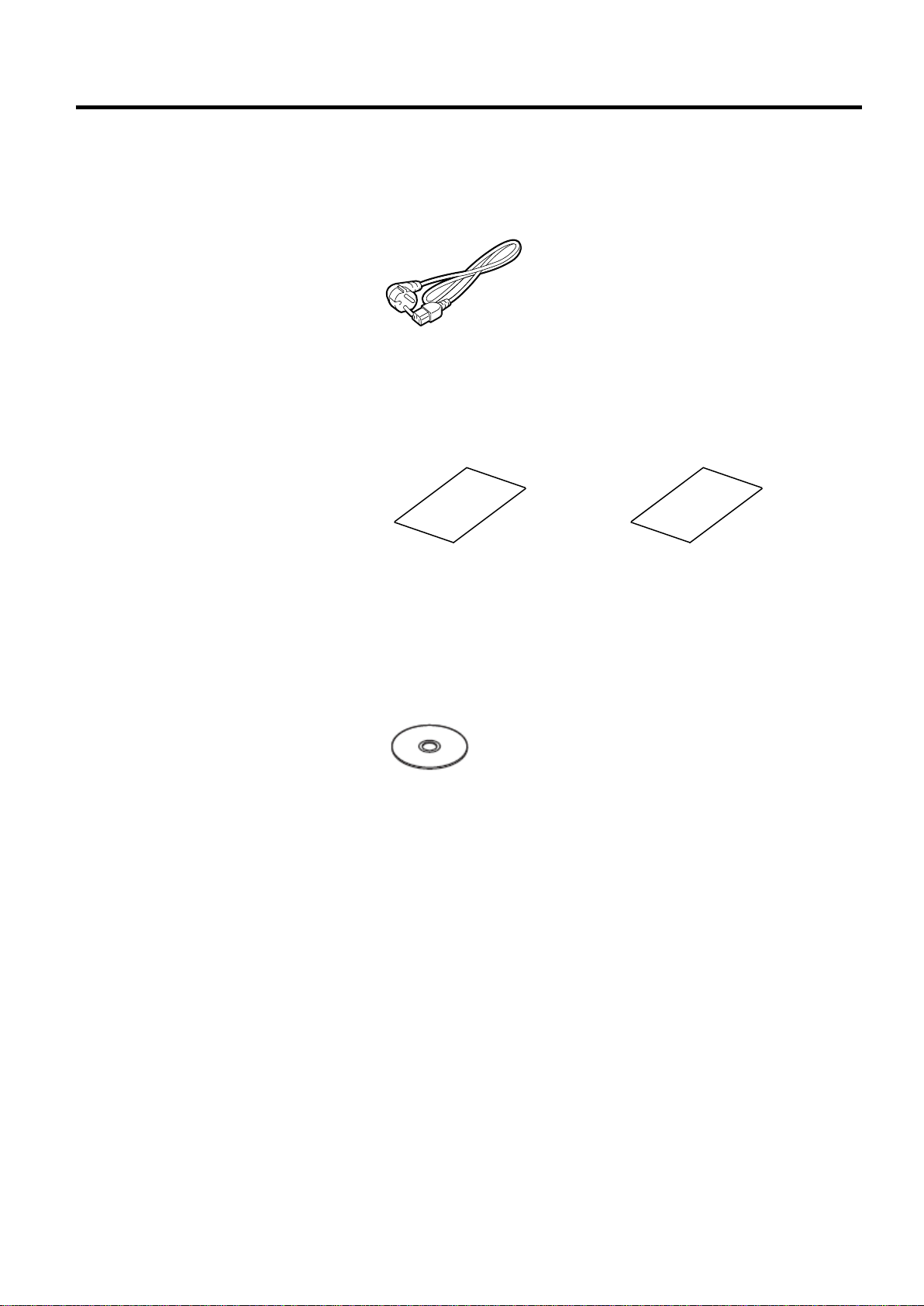

When unpacking the printer, please make sure all the following

accessories are supplied with the printer.

Power cord

Safety precautions Quick installation manual

CD-ROM(1pc.)

1. PRODUCT OVERVIEW

1.5 Appearance

1.5.1 Dimensions

1.5.2 Front View

1.5.3 Rear View

The names of the parts or units introduced in this section are used in the

following chapters.

278 (10.9)

291 (11.5)

460 (18.1)

Dimensions in mm (inches)

310

(12.2)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

308

(12.1)

Top Cover

Media Outlet

Supply Window

LCD Message Display

Operation Panel

Reserved for Serial Interface or

WLAN Interface

LAN Interface

AC Power Inlet

Reserved for Expansion I/O

interface

Reserved for Parallel Interface

Power Switch

USB Interface

Reserved for USB Host

Interface

1. PRODUCT OVERVIEW

1.5.4 Operation Panel

1.5.5 Interior

Please see Section 3 for further information about the Operation Panel.

LCD

ERROR LED

PAUSE

RESTART

RIGHT

ENTER

DOWN

CANCEL

MODE

LEFT

FEED

ONLINE LED

Print Head

Platen

Head Lever

Ribbon Shaft

( Not available for D2 model )

Print Head Block

Paper Guide R

1. PRODUCT OVERVIEW

1.6 Option

Option Name

Type

Description

Disc cutter module

B-EX204-QM-R

Disc cutter

Each time media is cut, the media feed is

stopped.

Strip module

B-EX904-H-QM-R

This allows use of on-demand (peel-off)

operation or to take-up labels and backing

paper together when using the rewind

guide plate. To purchase the strip module,

please inquire with your local distributor.

203-dpi print head

B-EX704-TPH2-QM-R

This print head enables a conversion of a

300dpi print head of the B-EX4T2-TS

model into 203dpi print head.

300-dpi print head

B-EX704-TPH3-QM-R

This print head enables a conversion of a

203dpi print head of the B-EX4T2-GS

model into 300dpi print head.

600-dpi print head

B-EX704-TPH6-QM-R

Only with B-EX4T2-HS Model

Note: 600-dpi print head is only with B-

EX4T2-HS Model.

RTC & USB host

interface card

B-EX700-RTC-QM-R

This card holds the current time: year,

month, day, hour, minute, second and

provides a USB host interface.

Expansion I/O

interface card

B-EX700-IO-QM-R

Installing this card in the printer allows

connection to an external device with the

exclusive interface.

Parallel interface

card

B-EX700-CEN-QM-R

Installing this card provides a Centronics

interface port.

Serial interface card

B-EX700-RS-QM-R

Installing this card provides an RS-232C

interface port.

Wireless LAN

interface card

B-EX700-WLAN-QM-R

B-EX700-WLAN3-QM-S

Installing this card provides Wireless LAN

communication.

NOTE1

To purchase the optional kits, please contact the nearest authorised TOSHIBA TEC representative or

TOSHIBA TEC Head Quarters.

Autres manuels pour B-EX4T2 SERIES

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Toshiba Lecteur de codes-barres

Toshiba

Toshiba BA410T Series Manuel utilisateur

Toshiba

Toshiba B-EX6T Series Instructions d'utilisation et d'entretien

Toshiba

Toshiba B-SX4T Series Manuel utilisateur

Toshiba

Toshiba B-443 Manuel utilisateur

Toshiba

Toshiba BV420D-GL02-QM-S Manuel utilisateur

Toshiba

Toshiba B-492L Manuel utilisateur

Toshiba

Toshiba B-SV4T Manuel utilisateur

Toshiba

Toshiba B-FV4D SERIES Instructions d'utilisation et d'entretien

Toshiba

Toshiba B-SX4T Series Manuel utilisateur

Toshiba

Toshiba B-EX4 SERIES Instructions d'utilisation et d'entretien

Toshiba

Toshiba TEC B-SX4T Series Manuel utilisateur

Toshiba

Toshiba B-EX6 Series Manuel utilisateur

Toshiba

Toshiba B-EX4 T1 Series Manuel utilisateur

Toshiba

Toshiba B-SX8T SERIES Manuel utilisateur

Toshiba

Toshiba B-FV4D SERIES Manuel utilisateur

Toshiba

Toshiba B-EX Series Manuel utilisateur

Toshiba

Toshiba B-SX600 SERIES Instructions d'installation

Toshiba

Toshiba BA400 Series Manuel utilisateur

Toshiba

Toshiba B-EX Series Manuel utilisateur

Toshiba

Toshiba B-FV4D-GL Manuel utilisateur

Toshiba

Toshiba B-SX4 Series Manuel utilisateur

Toshiba

Toshiba B-EV4T SERIES Manuel utilisateur

Toshiba

Toshiba B-SV4T Manuel utilisateur

Toshiba

Toshiba BA420T Series Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
