Sand ProR2020/3020/5020

Preface

The purpose of this publication is to provide the service

technician with information for troubleshooting, testing,

and repair of major systems and components on the

Sand Pro 2020/3020/5020.

REFER TO THE OPERATOR’S MANUALS FOR OP-

ERATING, MAINTENANCE AND ADJUSTMENT

INSTRUCTIONS. Space is provided in Chapter 2 of this

book to insert the Operator’s Manuals and Parts Cata-

logs for your machine. Replacement Operator’s Manu-

als are available by sending complete Model and Serial

Number to:

The Toro Company

8111 Lyndale Avenue South

Bloomington, MN 55420–1196

The Toro Company reserves the right to change product

specifications or this publication without notice.

or CAUTION, PERSONAL SAFETY INSTRUC-

This safety symbol means DANGER, WARNING,

TION. When you see this symbol, carefully read

the instructions that follow. Failure to obey the

instructions may result in personal injury.

NOTE: A NOTE will give general information about the

correct operation, maintenance, service, testing, or re-

pair of the machine.

IMPORTANT: The IMPORTANT notice will give im-

portant instructions which must be followed to pre-

vent damage to systems or components on the

machine.

EThe Toro Company – 1998, 2003, 2006

Sand Pro 2020/3020/5020

Table Of Contents

Chapter 1 – Safety

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 1 – 1

Jacking Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 1 – 4

Safety and Instruction Decals . . . . . . . . . . . . . . . . 1 – 5

Chapter 2 – Product Records and Manuals

Product Records . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 – 1

Equivalents and Conversions . . . . . . . . . . . . . . . . 2 – 2

Torque Specifications . . . . . . . . . . . . . . . . . . . . . . . 2 – 3

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 – 4

Operation and Service History Reports . . . . . . . . 2 – 7

Chapter 3 – Engine

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 3

General Information . . . . . . . . . . . . . . . . . . . . . . . . 3 – 4

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 7

Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . . 3 – 8

Briggs & Stratton Vanguard Service and Repair Manual

for 4–Cycle V–Twin Cylinder OHV Engines

Chapter 4 – Hydraulic Systems

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 2

General Information . . . . . . . . . . . . . . . . . . . . . . . . 4 – 3

Hydraulic Schematics . . . . . . . . . . . . . . . . . . . . . . . 4 – 6

Hydraulic Flow Diagrams . . . . . . . . . . . . . . . . . . . . 4 – 8

Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 14

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 16

Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 19

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 28

Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . 4 – 31

Chapter 5 – Electrical Systems

Electrical Schematics and Diagrams . . . . . . . . . . 5 – 2

Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 – 6

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 – 7

Electrical System Quick Checks . . . . . . . . . . . . . . 5 – 9

Component Testing . . . . . . . . . . . . . . . . . . . . . . . . 5 – 10

Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . 5 – 13

Chapter 6 – Wheels, Brakes, and Miscellaneous

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 – 2

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 – 3

Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . . 6 – 5

SafetyProduct Records

and Manuals

Engine

Hydraulic

Systems

Electrical

Systems

Wheels, Brakes

and Miscellaneous

Sandpro 2020/3020/5020

Sand Pro 2020/3020/5020

Chapter 1

Safety

Table of Contents

GENERAL SAFETY INSTRUCTIONS . . . . . . . . . . . . 1

Before Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

While Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Maintenance and Service . . . . . . . . . . . . . . . . . . . . 3

General Safety Instructions

TheSandPro2020/3020/5020weretestedandcertified

byTOROforcompliancewiththeB71.4–1984specifica-

tions of the American National Standards Institute. Al-

though hazard control and accident prevention partially

aredependentuponthedesignandconfigurationofthe

machine, these factors are also dependent upon the

awareness, concern, and proper training of the person-

nel involved in the operation, transport, maintenance,

and storage of the machine. Improper use or mainte-

nance of the machine can result in injury or death.

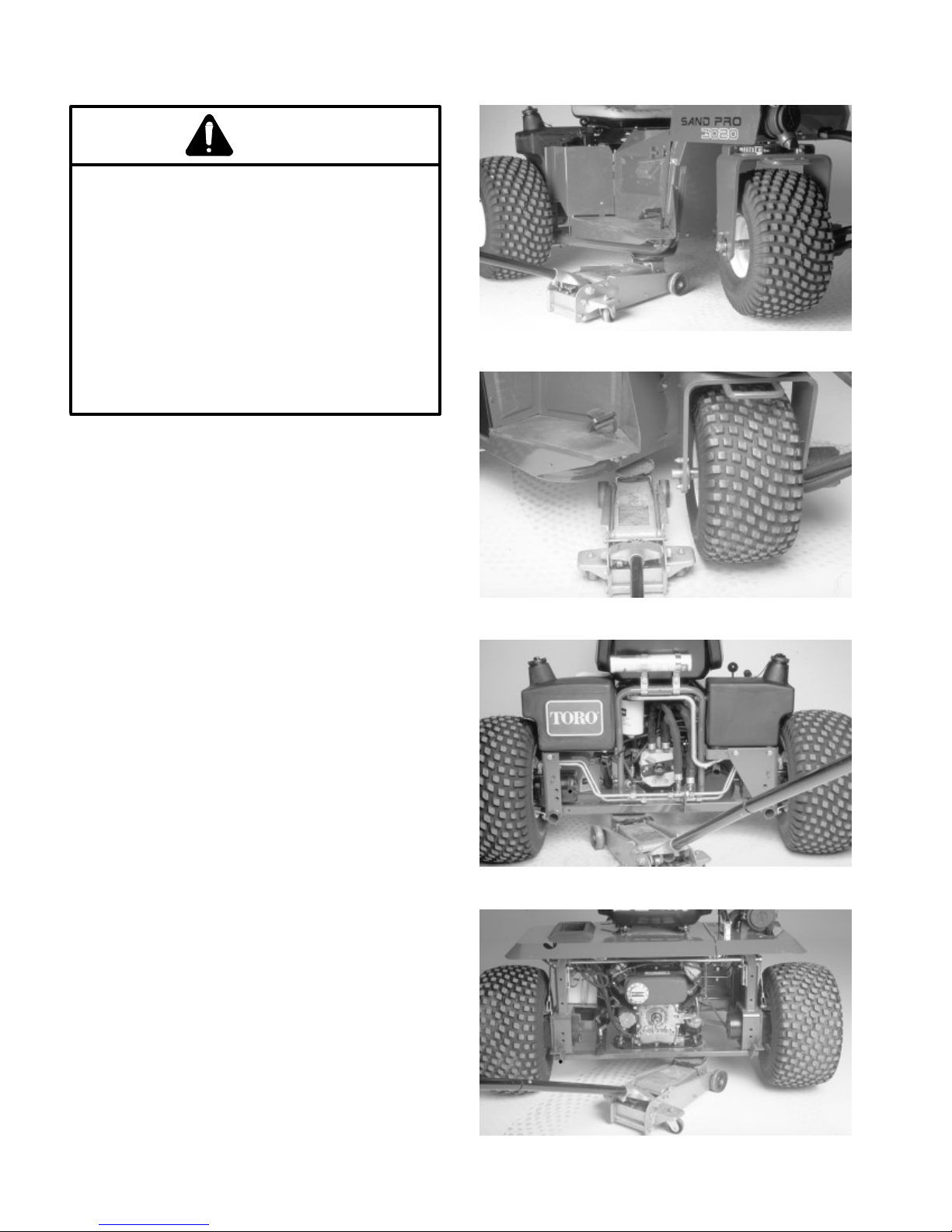

JACKING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . 4

SAFETY AND INSTRUCTION DECALS . . . . . . . . . . 5

Sand Pro 2020/3020 . . . . . . . . . . . . . . . . . . . . . . . . 5

Sand Pro 5020 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

comply with the following safety instructions.

WARNING

To reduce the potential for injury or death,

Safety

Before Operating

1. Operate machine only after reading and under-

standing the contents of this manual. A replacement

manualis available by sending complete model and se-

rial number to:

The Toro Company

8111 Lyndale Avenue South

Minneapolis, Minnesota 55420–1196

2. Never allow children to operate the machine or

adults to operate it without proper instructions.

3. Become familiar with the controls and know how to

stop the engine quickly.

4. Keepallshields,safetydevicesanddecalsinplace.

Ifashield,safetydeviceordecalismalfunctioning,illeg-

ible, or damaged, repair or replace it before operating

the machine.

5. Alwayswearsubstantial shoes.Donotoperate ma-

chine while wearing sandals, tennis shoes or sneakers.

Donotwearloosefittingclothingwhichcouldgetcaught

in moving parts and cause personal injury.

6. Wearing safety glasses, safety shoes, long pants

and a helmet is advisable and required by some local

safety and insurance regulations.

7. Ensuretractioninterlockswitchisadjustedcorrectly

so engine cannot be started unless traction pedal is re-

leased and in neutral position.

8. Keep everyone, especially children and pets away

from the areas of operation.

9. Gasoline is highly flammable; handle it carefully.

A. Use an approved gasoline container.

B. Donotremovecapfromfueltankwhenengineis

hot or running.

C. Do not smoke while handling gasoline.

D. Fill fuel tank outdoors to about one inch below

top of tank, (bottom of filler neck). Do not overfill.

E. Wipe up any spilled gasoline.

10. Check the safety interlock system daily for proper

operation (see Check Interlock System in Chapter 5 –

ElectricalSystems).Iftheswitchshouldmalfunction,re-

placeswitchbeforeoperatingmachine.(Aftereverytwo

years, replace interlock switch in the safety system,

whether it is working properly or not.)

Sand Pro 2020/3020/5020 Page 1 – 1 Safety

While Operating

11. Exhaust fumes are hazardous and could be deadly,

so do not run the engine in a confined area without ade-

quate ventilation.

12. Sit on seat when operating the machine. Never

carry passengers.

13. When starting the engine:

A. Make sure traction pedal is released.

B. After the engine is started, keep foot off traction

pedal. Machine must not move. If movement is evi-

dent, the neutral return mechanism is adjusted in-

correctly; therefore, shut engine off and readjust

mechanism so machine does not move when in

neutral position. If engine does not start, check in-

terlock switch connections.

14. Using the machine demands attention. To prevent

tipping or loss of control:

A. Use care when entering and leaving sand traps.

Use extreme caution around ditches, creeks or oth-

er hazards.

B. Watch for holes or other hidden hazards.

C. Usecautionwhenoperatingmachine onasteep

slope. Reduce speed when making sharp turns or

when turning on hillsides.

D. Avoid sudden stops and starts. Do not go from

reversetofullforwardwithout first coming toacom-

plete stop.

E. Before backing up, look to the rear and assure

no one is behind the machine.

F. Watchoutfortrafficwhennearofcrossingroads.

Always yield the right of way.

15. If optional Draw Bar (Part No. 92–2330) or Hitch Kit

(ModelNo. 08833) is installed on machine, vertical load

on hitch should not exceed 200 lbs.

16. Do not touch engine, muffler or exhaust pipe while

engine is running or soon after it has stopped because

these areas are hot enough to cause burns.

17. If the machine ever vibrates abnormally, stop im-

mediately, turn engine off, wait for all motion to stop and

inspect for damage. Repair all damage before com-

mencing operation.

18. Before getting off the seat:

A. Stop movement of the machine.

B. Set parking brake and lower attachments to the

ground. Take precautions to prevent accidental

starts, rolling away, etc.

19. Whenever machine is left unattended, be sure en-

gine is stopped, parking brake is set, attachments are

loweredtotheground,andkeyisremovedfromignition.

Safety Page 1 – 2 Sand Pro 2020/3020/5020

Maintenance and Service

20. Before servicing or making adjustments to the ma-

chine, stop engine, remove key from the ignition, and

pull the spark plug wire off spark plug to prevent acci-

dental starting of the engine.

21. Makesureallhydrauliclineconnectorsaretight,and

all hydraulic hoses and lines are in good condition be-

fore applying pressure to the system.

22. Keep body and hands away from pin hole leaks or

nozzles that eject hydraulic fluid under high pressure.

Use paper or cardboard, not hands, to search for leaks.

Hydraulic fluid escaping under pressure can have suffi-

cient force to penetrate skin and do serious damage. If

fluid is injected into the skin it must be surgically re-

moved within a few hours by a doctor familiar with this

form of injury or gangrene may result.

23. Beforedisconnectingorperforminganyworkonthe

hydraulic system, all pressure in system must be re-

lieved by stopping engine, engaging parking brake and

lowering attachments to the ground.

24. To make sure entire machine is in good condition,

keep all nuts, bolts and screws properly tightened.

25. Ifmajorrepairsareever needed or assistanceisre-

quired, contact an Authorized TORO Distributor.

26. To reduce potential fire hazard, keep the engine

area free of excessive grease, grass, leaves and accu-

mulation of dirt.

27. If the engine must be running to perform a mainte-

nance adjustment, keep hands, feet, clothing, and any

parts of the body away from the engine and any moving

parts. Keep everyone away.

28. Donotoverspeedenginebychanginggovernorset-

tings. Maximum engine speed is 3200 rpm. To assure

safety and accuracy, have an Authorized Toro Distribu-

tor check maximum engine speed with a tachometer.

29. Engine must be shut off before checking oil or ad-

ding oil to the crankcase.

30. To be sure of optimum performance and safety, al-

ways purchase genuine TORO replacement parts and

accessories.Replacementpartsandaccessoriesmade

by other manufacturers could be dangerous. Such use

could void the product warranty of The Toro Company.

31. When changing attachments, tires, or performing

other service, use correct blocks, hoists, and jacks.

Make sure machine is parked on a solid level floor such

asaconcrete floor.Priortoraisingthemachine,remove

any attachments that may interfere with the safe and

proper raising of the machine. Always chock or block

wheels. Used jack stands or solid wood blocks to sup-

port the raised machine. If the machine is not properly

supported by blocks or jack stands, the machine may

move or fall, which may result in personal injury.

Safety

Sand Pro 2020/3020/5020 Page 1 – 3 Safety

Jacking Instructions

Figure 1

Use the following positions when jacking up the ma-

chine:

Jacking the Front End

1. On the SP 2020/3020, jack from below the front

crosssupportthatisabovetheretainingstripfortherub-

ber shield (Fig. 1).

2. On the SP 5020, jack from below the front cross Figure 2

support tube on the bottom of the frame (Fig. 2).

CAUTION

forming other service, use correct blocks,

hoists, and jacks. Make sure machine is

parkedonasolidlevel floorsuchasaconcrete

attachments that may interfere with the safe

and proper raising of the machine. Always

chock or block wheels. Used jack stands or

solid wood blocks to support the raised ma-

chine.If themachineisnotproperlysupported

by blocks or jack stands, the machine may

moveorfall, whichmayresult in personalinju-

When changing attachments, tires, or per-

floor. Prior to raising the machine, remove any

ry.

Jacking the Rear End

1. On the SP 2020/3020, jack from below the square

tube of the frame (Fig. 3).

2. OntheSP 5020,jackfrombelow the square tube of

the frame (Fig. 3).

Figure 3

Figure 4

Safety Page 1 – 4 Sand Pro 2020/3020/5020

Safety and Instruction Decals

The following safety and instruction decals are installed on the Sand Pro 2020/3020. If any become damaged

or illegible, replace them. Decal part numbers are listed below and in the parts catalog. Order replacements

from your Authorized Toro Distributor.

ON ENGINE SHIELD

(Part No. 95–0647)

(Part No. 95–0646)

ON NEUTRAL ADJUST

MECHANISM

(Part No. 93–9051)

93–9051

ON VALVE SHROUD

UNDER SEAT PLATE

(Part No. 92–8985) ON ENGINE SHIELD

(Part No. 95–0645)

Safety

ON DASH PANEL

(Part No. 95–0648)

Sand Pro 2020/3020/5020 Page 1 – 5 Safety

Safety and Instruction Decals

The following safety and instruction decals are installed on the Sand Pro 5020. If any become damaged or

illegible,replacethem.Decalpartnumbersarelistedbelowandinthepartscatalog.Orderreplacementsfrom

your Authorized Toro Distributor.

ON NEUTRAL ADJUST

MECHANISM

ON BOTH SIDES OF FAN SHROUD (2)

(Part No. 93–7272) (Part No. 93–9051) ON MUFFLER SHIELD

(Part No. 95–0645)

ON RIGHT FENDER

(Part No. 98–0975)

UNDER SEAT PLATE

(Part No. 98–0977)

ON FRAME & BOTH SIDES

OF CENTER PANEL (3)

(Part No. 93–9052)

ON LEFT FENDER

(Part No. 93–9053) ON BATTERY

(Part No. 93–7276)

ON CENTER PANEL

(Part No. 93–9050) ON RIGHT FENDER UNDER BATTERY

(Part No. 93–7442) (Part No. 93–6668)

Safety Page 1 – 6 Sand Pro 2020/3020/5020

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Toro Tondeuse à gazon

Toro

Toro Z255 Z-Master Manuel utilisateur

Toro

Toro Reelmaster 450-D Manuel utilisateur

Toro

Toro TimeCutter 74750 Manuel utilisateur

Toro

Toro Groundsmaster 3280-D Manuel utilisateur

Toro

Toro 74855 Manuel utilisateur

Toro

Toro 30607A Manuel utilisateur

Toro

Toro 74923TE Manuel utilisateur

Toro

Toro 74408TE Manuel utilisateur

Toro

Toro 74923 Z Master 6000 Manuel utilisateur

Toro

Toro Groundsmaster 4100-D Manuel utilisateur

Toro

Toro 4357 Manuel utilisateur

Toro

Toro Recycler 21030 Manuel utilisateur

Toro

Toro 30881 Manuel utilisateur

Toro

Toro 78261 Manuel utilisateur

Toro

Toro Z Master Professional 7500-DSeries Manuel utilisateur

Toro

Toro Flex-Force Power System 20367 Manuel utilisateur

Toro

Toro TITAN ZX 5400 Manuel utilisateur

Toro

Toro 74425 Manuel utilisateur

Toro

Toro GrandStand TURBO FORCE 74513 Manuel utilisateur

Toro

Toro Recycler 20961 Manuel utilisateur

Toro

Toro Recycler 20373 Manuel utilisateur

Toro

Toro Groundsmaster 3300 Manuel utilisateur

Toro

Toro Groundsmaster 3500-D Manuel utilisateur

Toro

Toro Z Master Professional 7500-DSeries Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur

Yard-Man

Yard-Man 3700-0 Manuel utilisateur
