Toro TEMPUS DC LCD Manuel utilisateur

TEMPUS DC LCD Controller 1_2_4_6

Residential Controller

User’s Guide

Toro TEMPUS DC LCD Controller 1_2_4_6

TEMPUS DC LCD Controller Features

• Large Display and Easy programming

• 1 to 6 valves output

• 4 Independent Watering Programs, A, B, C, D

• Watering Schedule by 7 Day Calendar, Day Interval or Odd/Even

Days

• 3 Start Times per Program

• Run Time up to 8 hours with 1 min increment

• User Set Budget

• Permanent programs retention in memory without Battery

• 100% Waterproof (IP68)

• Bluetooth connection

TEMPUS DC LCD Controller 1_2_4_6

Toro TEMPUS DC LCD Controller 1_2_4_6

INTRODUCTION

Remotely controlled system, TEMPUS DC LCD is a

Bluetooth® and waterproof irrigation controller.

TEMPUS DC LCD is the ideal solution for all those

applications where there is no power supply.

Control your irrigation through the large LCD display or the

intuitive TEMPUS DC Mobile App.

DIMENSIONS

• 4.1 inches W

• 6.1 inches H

• 1.9 inches D

• Weight: 0.57 pounds

POWER

• Power Supply: 9 VDC or 4 x 1.5V AAA battery pack

• Output: 9 VDC solenoid (latch type)

• Maximum 1 output ON at a time.

WORKING PRESSURE

• Qualied for up to 87 psi with Toro®DCLS-P and Irritrol®

DCL solenoids

WORKING TEMPERATURE

• From 14°F to 122°F

MODELS

• TEMP-1-DC-L 1 Station plus MV

• TEMP-2-DC-L 2 Station plus MV

• TEMP-4-DC-L 4 Station plus MV

• TEMP-6-DC-L 6 Station plus MV

SPECIFICATIONS

Toro TEMPUS DC LCD Controller 1_2_4_6

WIRING

STEP 1

+S- C P 1 2 3 4 5 6 C

2. You can connect on the P output a master valve. The

output will automatically start 2s before each station and

during the watering of each stations.

+S- C P 1 2 3 4 5 6 C

3. (Option) If you want to install a rain sensor, cut the yellow

wire of the TEMPUS DC LCD and connect it to the sensor.

When connected, the rain sensor will a󰀨ect all four

programs. With the rain sensor active, programs A, B,

C, and D will be suspended in the event of rain. Normal

irrigation will not resume until after the rain sensor has

completely dried out. Manually starting a station or program

will override the rain sensor.

+S- C P 1 2 3 4 5 6 C

1. Connect the TEMPUS DC LCD to the solenoids as described

below. Use 9VDC solenoid (latch type).

APP DOWNLOAD

1. The mobile app is available free of charge on the Apple App

Store and Google Play Store.

2. Search for The Toro Company in the search bar.

3. Locate and download the Tempus DC app.

To operate properly, your Android device should be running

Android 4.3 or greater and feature Bluetooth Smart 4.0 or

greater, while Apple devices should be running iOS 9.0 or

greater and feature Bluetooth Smart 4.0 or greater.

4. Once installed, activate the Bluetooth® of your smartphone

or tablet.

Developer

The Toro Company

STEP 2

Sensor

wire

Sensor

wire

Toro TEMPUS DC LCD Controller 1_2_4_6

STEP 3

Thanks to its large display and keys, the Tempus DC LCD

can be programmed in absence of a smart device and app.

OPERATION WITH BUTTONS

Display

Main Menu

Battery level indicator

HOME/Menu

ENTER/Conrm button

Setting button + or -

PAIRING

1. Unscrew the TEMPUS DC LCD’s cap.

2. Install the 9V alkaline battery or the 4 x 1.5V AAA battery

pack. Ensure the gasket is in place and tighten the battery

compartment cap to hand tight. Be careful to not over

tighten the cap.

Starting Display

3. Launch the TEMPUS DC App.

4. Tap on the «Add a module» button or on the «+»

button.

5. Choose the TEMPUS DC LCD from the list of nearby

controllers.

6. To nish the pairing of your TEMPUS DC LCD, follow

the next steps described in the app.

7. After pairing, select the “Power source” (9V or AAA) in

the APP, Information Menu .

Toro TEMPUS DC LCD Controller 1_2_4_6

STEP 4 - SETTING UP CONTROLLER WITHOUT MOBILE APP

INITIALIZING

PHASE 1 - TURN ON THE DISPLAY LCD

PHASE 2 - SET DATE & TIME AND POWER SOURCE

TURN ON THE LCD DISPLAY

PRESS THE HOME BUTTON TO “DATE”

1. PRESS THE ENTER BUTTON AND SET THE “DATE”

2. SET 12H OR 24H TIME FORMAT

3. SET THE YEAR

4. SET THE MONTH

Note: In 24H Time format the Date format is dd/mm/yy

In 12H AM/PM Time format the Date format is mm/dd/yy

Toro TEMPUS DC LCD Controller 1_2_4_6

STEP 4 - SETTING UP CONTROLLER WITHOUT MOBILE APP

5. SET THE DAY

INITIALIZING

6. SET THE TIME (HOURS)

7. SET THE TIME (MINUTES)

8. SET POWER SOURCE (9V or AAA)

Note: In 24H Time format the Date format is dd/mm/yy

In 12H AM/PM Time format the Date format is mm/dd/yy

Toro TEMPUS DC LCD Controller 1_2_4_6

STEP 5

MAIN MENU

1. DISPLAY INFORMATION

2. MANUAL MODE

3. PROGRAM MODE

4. PAUSE, ON/OFF MODE

5. DATE & TIME MODE

Run or stop manual command:

- Allows to manually turn on a

station or a program A,B,C,D

- Allows to manually shutdown the

watering in progress.

Set the irrigation program:

Allows to set the custom

programs that will be started

automatically.

ON/OFF Command:

Disable all current or

future programs.

Set Date, Time & Source Power:

Allows to set the date and time of

the current day in 12 or 24 hour

format.

Allows to set the Source Power in

9V or AAA.

Toro TEMPUS DC LCD Controller 1_2_4_6

STEP 6

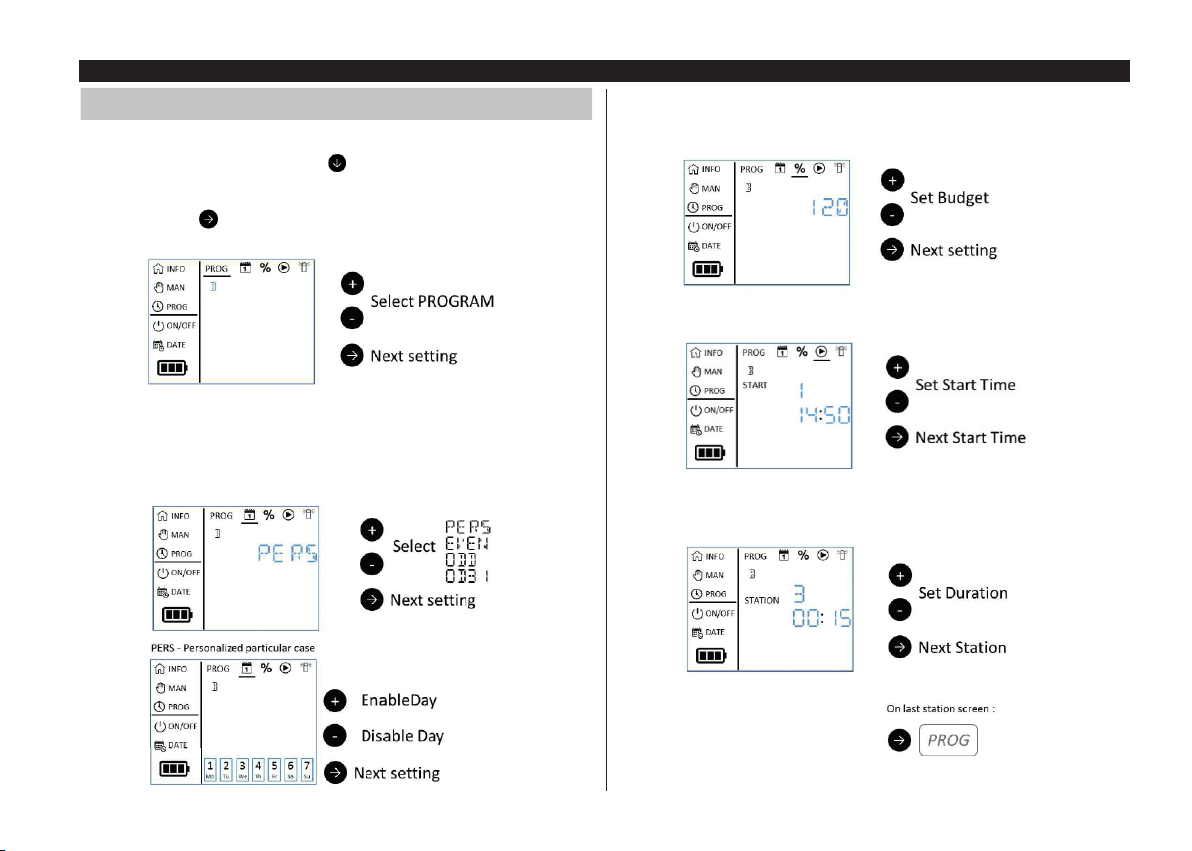

PROGRAMMING

1. SELECT PROGRAM

3. SET THE WATER BUDGET (BETWEEN 0% AND 200%)

4. SET PROGRAM START TIME (3 PER PROGRAM)

5. SET STATION RUN TIME DURATION

(UP TO 8H WITH 1 MIN INCREMENT)

TURN ON THE LCD DISPLAY

PRESS THE HOME BUTTON TO “PROG”

a. PRESS THE BUTTON AND SELECT THE PROGRAM

(A, B, C,D)

2. SELECT A DAY INTERVAL SCHEDULE

a. PERS: TO SET INDIVIDUAL DAYS OF THE WEEK

b. EVEN: TO SET EVEN DAYS OF THE MONTH

c. ODD: TO SET ODD DAYS OF THE MONTH WITH 30 DAYS

d. OD31: TO SET ODD DAYS OF THE MONTH WITH 31 DAYS

Note: Use the Tempus DC App to select the Period Mod

(to set a day interval from 1 to 31 days)

Toro TEMPUS DC LCD Controller 1_2_4_6

STEP 7

CONTROL OPERATIONS

TURN CONTROLLER ON/OFF, AND SET NUMBER OF DAYS

WATERING IS SUSPENDED

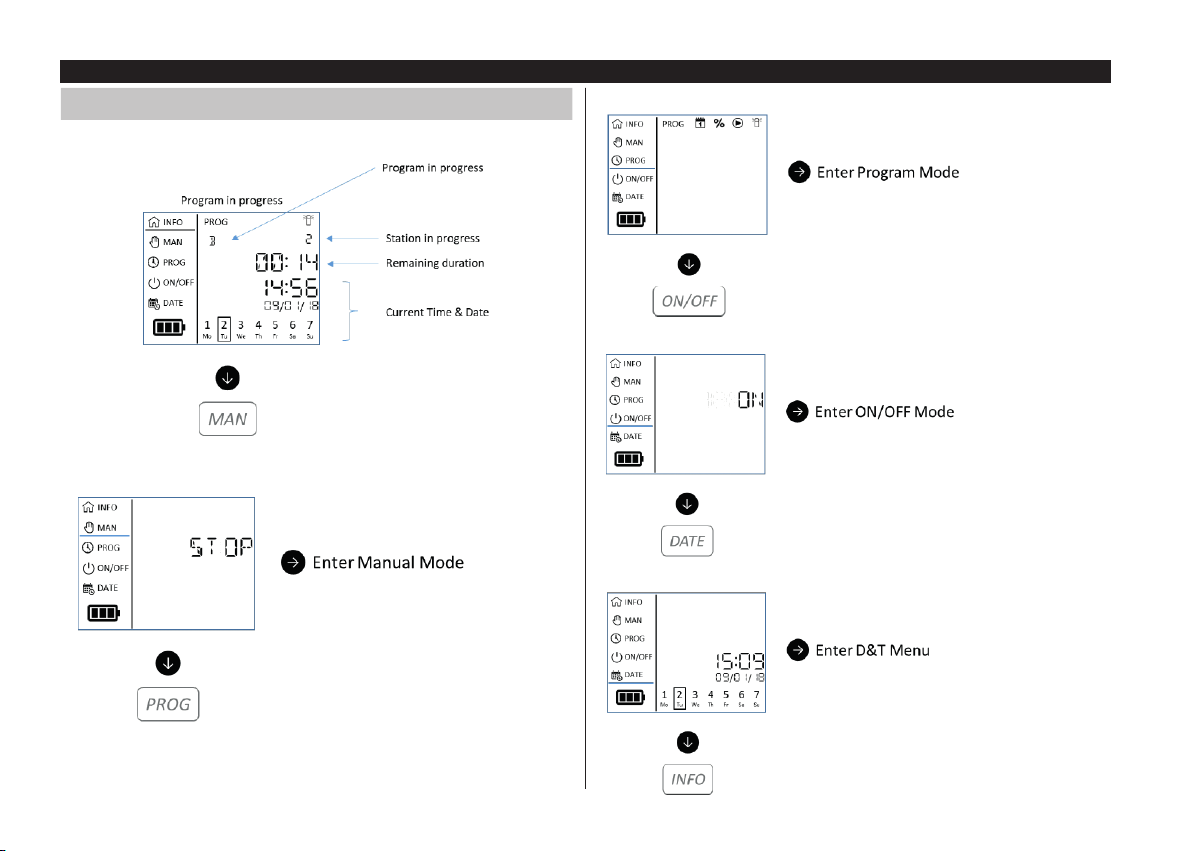

SET MANUAL OPERATION

TURN ON THE LCD DISPLAY

PRESS THE HOME BUTTON TO “MAN”

a. STOP: STOP MANUAL WATERING

b. PROG: FOR MANUAL PROGRAM OPERATION

c. STAT: FOR MANUAL STATION OPERATION

1. PRESS THE ENTER BUTTON AND SELECT THE

DESIRED MANUAL OPERATION (STOP, STATION,

PROGRAM) WITH +/-BUTTONS.

TURN ON THE LCD DISPLAY

PRESS THE HOME BUTTON TO “ON/OFF”

1. PRESS THE ENTER BUTTON AND SELECT ON, OFF,

OR OFF FOR THE NUMBER OF DAYS SUSPENDED

WITH +/-BUTTONS. PRESS ENTER BUTTON TO

CONFIRM. WATERING CAN BE SUSPENDED FOR UP TO

15 DAYS.
