Toro 81801 Manuel utilisateur
FormNo.3455-226RevA
Flex-ForcePowerSystem™
60VMAXBatteryCharger
ModelNo.81801—SerialNo.323000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3455-226*
Introduction
Thisbatterychargerisintendedtobeusedbyresidentialhomeowners.
ThischargerisdesignedtochargeonlyToro60Vlithium-ionbatterypacks.
Itisnotdesignedtochargeanyotherbatteries.Usingthisproductfor
purposesotherthanitsintendedusecouldprovedangeroustoyouand
bystanders.
Readthisinformationcarefullytolearnhowtooperateandmaintain
yourproductproperlyandtoavoidinjuryandproductdamage.Youare
responsibleforoperatingtheproductproperlyandsafely.
Visitwww.Toro.comformoreinformation,includingsafetytips,training
materials,accessoryinformation,helpndingadealer,ortoregisteryour
product.
Wheneveryouneedservice,genuineT oroparts,oradditionalinformation,
contactanAuthorizedServiceDealerorT oroCustomerServiceandhave
themodelandserialnumbersofyourproductready.Figure1identies
thelocationofthemodelandserialnumbersontheproduct.Writethe
numbersinthespaceprovided.
Important:Withyourmobiledevice,youcanscantheQRcodeon
theserialnumberdecal(ifequipped)toaccesswarranty,parts,and
otherproductinformation.

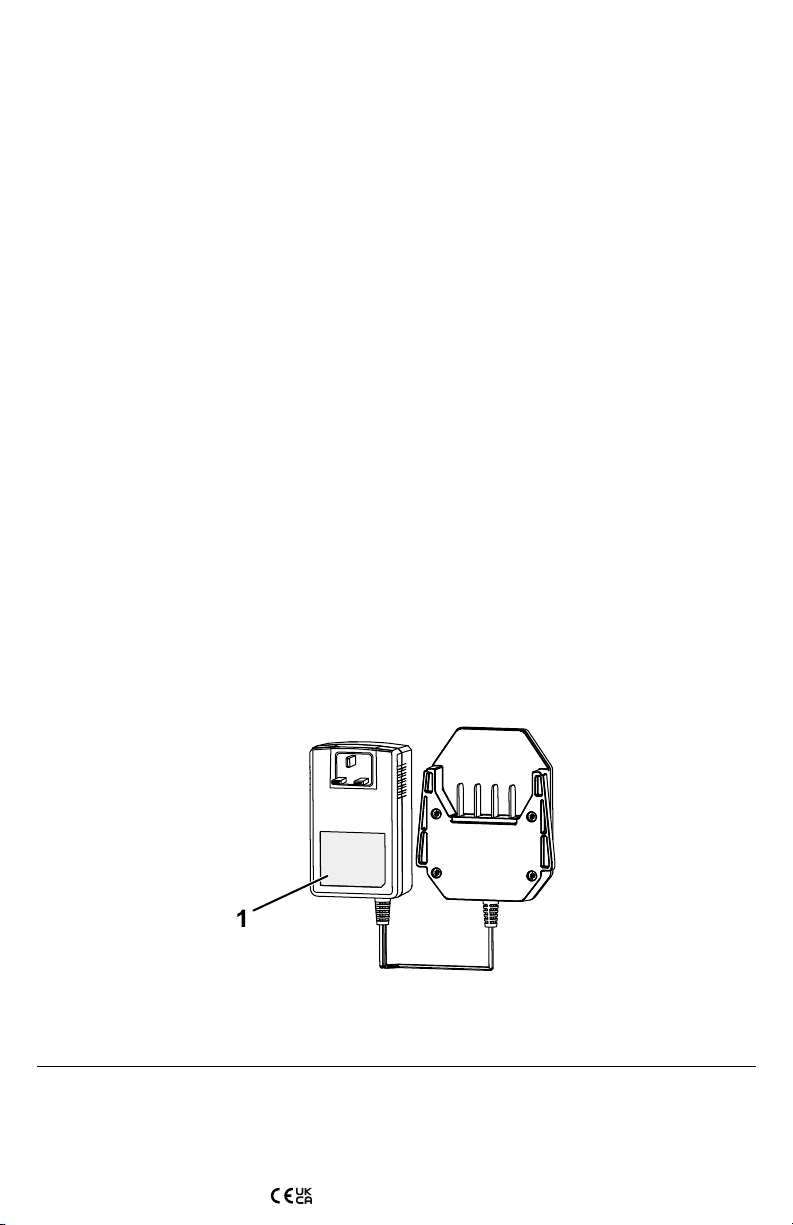

g400607
Figure1
1.Modelandserialnumberlocation.
©2022—TheToro®
Company
8111LyndaleAvenue
South
Bloomington,MN
55420
Registerat
www.Toro.com.
OriginalInstructions
(EN)
PrintedinChina
AllRightsReserved*3455-226*
ModelNo.
SerialNo.
Safety-AlertSymbol
Thesafety-alertsymbol(Figure2)showninthismanualandonthe
machineidentiesimportantsafetymessagesthatyoumustfollowto
preventaccidents.
g000502
Figure2
Safety-alertsymbol
Thesafety-alertsymbolappearsaboveinformationthatalertsyouto
unsafeactionsorsituationsandisfollowedbythewordDANGER,
WARNING,orCAUTION.
DANGERindicatesanimminentlyhazardoussituationwhich,ifnot
avoided,willresultindeathorseriousinjury.
WARNINGindicatesapotentiallyhazardoussituationwhich,ifnot
avoided,couldresultindeathorseriousinjury.
CAUTIONindicatesapotentiallyhazardoussituationwhich,ifnotavoided,
mayresultinminorormoderateinjury.
Thismanualusestwootherwordstohighlightinformation.Importantcalls
attentiontospecialmechanicalinformationandNoteemphasizesgeneral
informationworthyofspecialattention.
3
Safety
IMPORTANTSAFETYINSTRUCTIONS
1.SAVETHESEINSTRUCTIONS—Thismanualcontainsimportant
safetyandoperatinginstructionsforT oro60Vlithium-ionbattery
packsandToro60Vlithium-ionbatterychargers.
2.Beforeusingthebatterycharger,readalltheinstructionsand
cautionarymarkingsonthebatterycharger,batterypack,and
productusingthebatterypack.
3.CAUTION—Toreduceriskofinjury,chargeT oro60Vlithium-ion
batterypackswithToro60Vlithium-ionbatterychargersonly.Other
brandsofbatterypacksmayburst,causingpersonalinjuryand
damage.
4.WARNING—Pluggingthebatterychargerintoanoutletthatisnot
220to240Vcancauseareorelectricshock.Donotplugthe

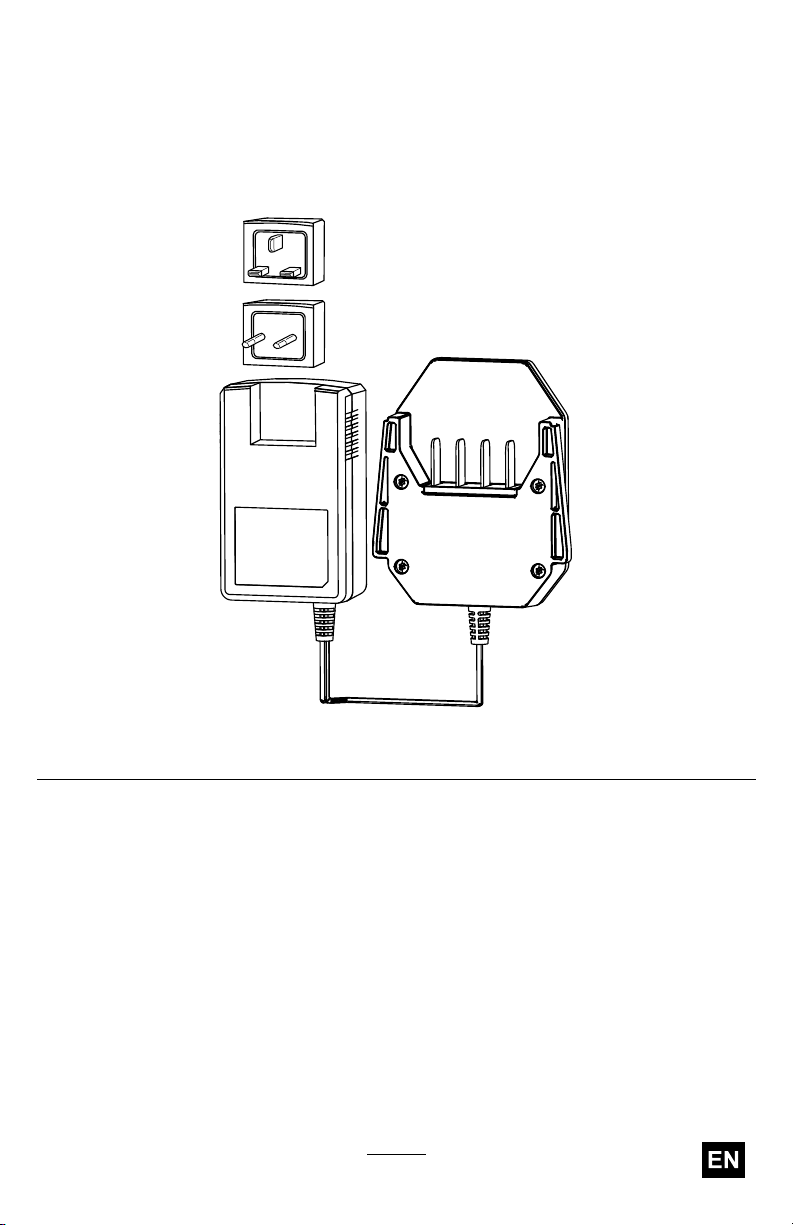

batterychargerintoanoutletotherthan220to240V.Foradifferent
styleofconnection,useanattachmentplugadapteroftheproper
congurationforthepoweroutletifneeded.
I.Training
1.Donotallowchildrenoruntrainedpeopletooperateorservicethis
device.Allowonlypeoplewhoareresponsible,trained,familiarwith
theinstructions,andphysicallycapabletooperateorservicethe
device.
2.Donotallowchildrentouseorplaywiththebatterypackorbattery
charger;localregulationsmayrestricttheageoftheoperator.
II.Preparation
1.Useappliancesonlywithspecicallydesignatedbatterypacks.
Usingothertypesofbatterypacksmaycreateariskofinjuryand/or
re.
2.Donotuseadamagedormodiedbatterypackorbatterycharger.
Itmayexhibitunpredictablebehavior,resultinginre,explosion,
orriskofinjury.
3.Ifthesupplycordtothebatterychargerisdamaged,contactan
AuthorizedServiceDealertoreplaceit.
III.Operation
1.Chargethebatterypackwithonlythebatterychargerspeciedby
Toro.Achargersuitablefor1typeofbatterypackmaycreatearisk
ofrewhenusedwithanotherbatterypack.
4
2.Chargethebatterypackinawell-ventilatedareaonly.
3.Followallcharginginstructionsanddonotchargethebatterypack
outsideofthetemperaturerangespeciedintheinstructions.
Otherwise,youmaydamagethebatterypackandincreasetherisk
ofre.
4.Underabusiveconditions,thebatterypackmayejectliquid;avoid
contact.Ifyouaccidentlycomeintocontactwiththeliquid,ushwith
water.Iftheliquidcontactsyoureyes,seekmedicalhelp.Liquid
ejectedfromthebatterypackmaycauseirritationorburns.
5.Donotexposeabatterypackortooltoreorexcessivetemperature.
Exposuretoreortemperatureabove130°C(265°F)maycause
explosion.
6.CAUTION—Amistreatedbatterypackmaypresentariskofre,
explosion,orchemicalburn.
•Donotdisassemblethebatterypack.
•ReplacethebatterypackwithagenuineTorobatterypackonly;
usinganothertypeofbatterypackmaycauseareorriskof
injury.
•Keepbatterypacksoutofthereachofchildrenandintheoriginal
packaginguntilyouarereadytousethem.
IV.MaintenanceandStorage
1.Donotallowchildrentocleanormaintainthebatterycharger.
2.Whenthebatterypackisnotinuse,keepitawayfrommetalobjects
suchaspaperclips,coins,keys,nails,andscrewsthatcanmakea
connectionfrom1terminaltoanother.Shortingthebatteryterminals
maycauseburnsorare.
3.Donotattempttorepairthebatterypackorbatterycharger.Have
anAuthorizedServiceDealerperformserviceonthebatterypack
orbatterychargerusingidenticalreplacementpartstoensurethat
theproductissafelymaintained.
4.Checkwithlocalcodesforpossiblespecialbatterydisposal
instructions.
SAVETHESEINSTRUCTIONS
5
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletothe
operatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedormissing.
decal144-6022
144-6022
1.Readthe
Operator’s
Manual.
3.Double
insulated
2.Forindooruse4.Donotdispose
improperly
decal144-3094
144-3094
1.Thebattery
packis
charging.
3.Thebattery
packisover
orunderthe
appropriate
temperature
range.
2.Thebattery
packisfully
charged.
4.Batterypack
chargingfault
6
ProductOverview
Specications
BatteryCharger
Model81801
Type60VMAXLithium-IonBatteryCharger
Input220to240VAC50-60HzMax2.0A
Output60VMAXDC1.0A
BatteryPack
Model818208182581850818608187568810
2.0Ah2.5Ah4.0Ah6.0Ah7.5Ah10.0Ah Battery
pack
capacity108Wh135Wh216Wh324Wh405Wh540Wh
Batterymanufacturerrating=60Vmaximumand54Vnominal.Actualvoltagevaries
withload.
AppropriateTemperatureRanges
Chargebatterypackat5°C(41°F)to40°C(104°F)*
Usebatterypackat-30°C(-22°F)to49°C(120°F)
Storebatterypack/chargerat5°C(41°F)to40°C(104°F)*
*Chargingtimewillincreaseifyoudonotchargethebatterywithinthis
range.Storethetool,batterypack,andbatterychargerinanenclosed
clean,dryarea.
Storethemachine,batterypack,andbatterychargerinanenclosed
clean,dryarea.
8
Operation
ChargingtheBatteryPack
Important:Chargethebatterypackonlyintemperaturesthatare
withintheappropriaterange;refertoSpecications(page8).
Note:Atanytime,pressthebattery-charge-indicatorbuttononthe
batterypacktodisplaythecurrentcharge(LEDindicators).
1.Ensurethattheventsonthebatteryareclearofanydustanddebris.

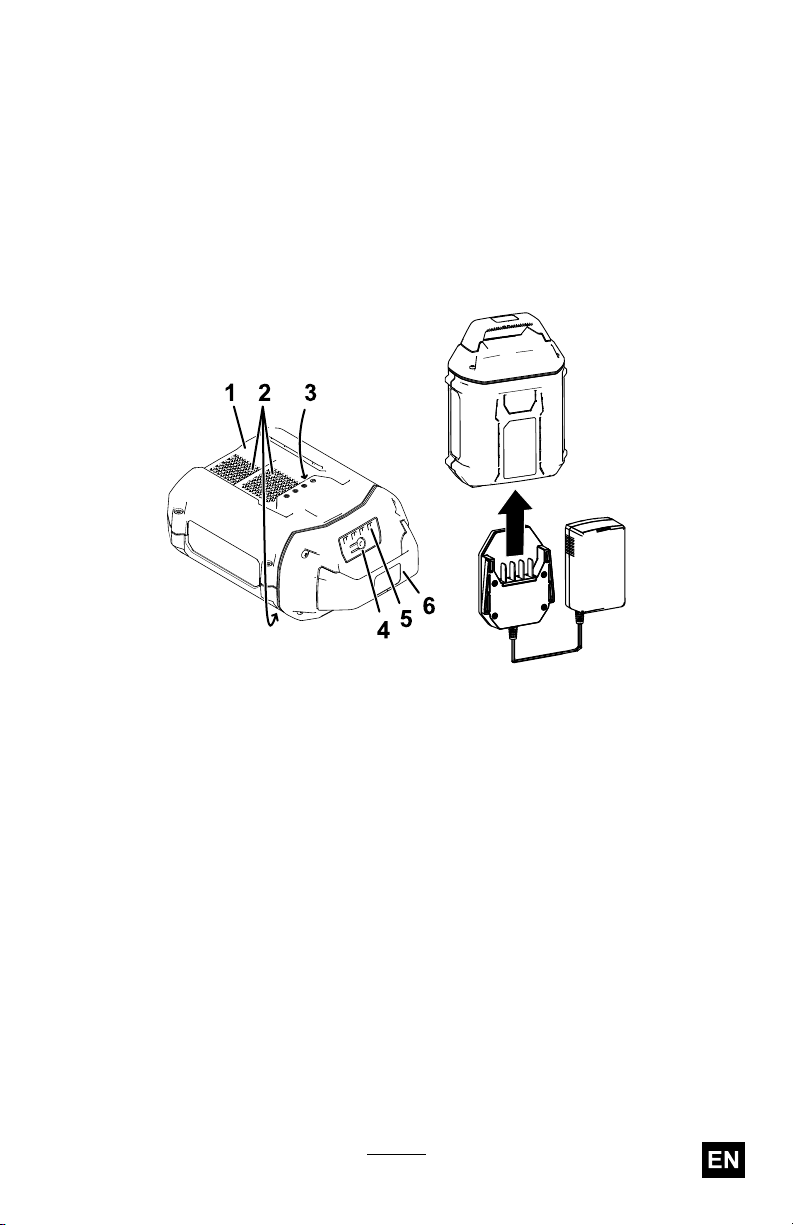

g347460
Figure4
1.Batterypackcavity4.Battery-charge-indicatorbutton
2.Batterypackventingareas5.LEDindicators(currentcharge)
3.Batterypackterminals6.Handle
2.Lineupthecavityinthebatterypack(Figure4)withthetongueon
thecharger.
3.Slidethechargerintothebatterypackuntilitisfullyseated(Figure4).
4.Toremovethebatterypack,slidethechargerbackwardoutofthe
batterypack.
9
5.RefertothefollowingtabletointerprettheLEDindicatorlighton
thebatterycharger.
Indicator
light
Indicates
OffNobatterypackinserted
Green
blinking
Batterypackischarging
GreenBatterypackischarged
RedBatterypackand/orbatterychargerisoverorundertheappropriate
temperaturerange
RedblinkingBatterypackchargingfault*
*RefertoTroubleshooting(page12)formoreinformation.
Important:Thebatterycanbeleftonthechargerforshortperiods
betweenuses.
Ifthebatterywillnotbeusedforlongerperiods,removethebattery
fromthecharger;refertoStorage(page11).
10
