PURPOSE
PURPOSE
This document gives instructions on assembling the PCNC 440 Stand.
PRODUCT INFORMATION
Product: PCNC 440 Stand (PN51497)
ID Description Quantity
1 PCNC 440 Machine Stand, Back Panel (PN51484) 1
2 PCNC 440 Machine Stand, Right Side Panel (PN51483) 1
3 PCNC 440 Machine Stand, Leg Weldment (PN51493) 4
4 PCNC 440 Machine Stand, Bottom Shelf (PN51485) 1
5 PCNC 440 Machine Stand, Upper Shelf (PN51486) 1

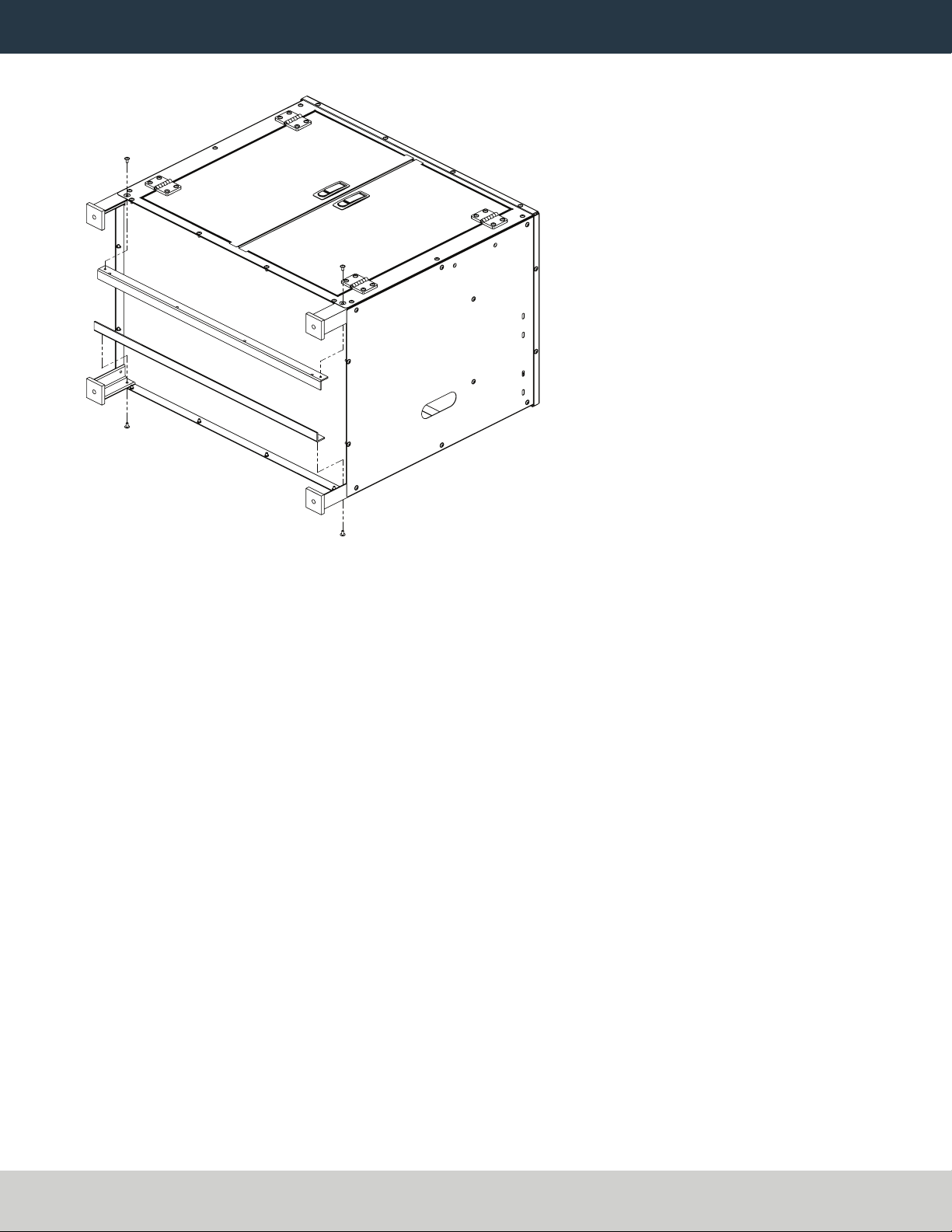

6 PCNC 440 Machine Stand, Bottom Stiffener (PN51494) 2
7 PCNC 440 Machine Stand, Door Latch (PN51495) 2
8 Leveling Foot, M12 × 1.75 - 100 mm STUD. 60 mm Dia Foot (PN36034) 4

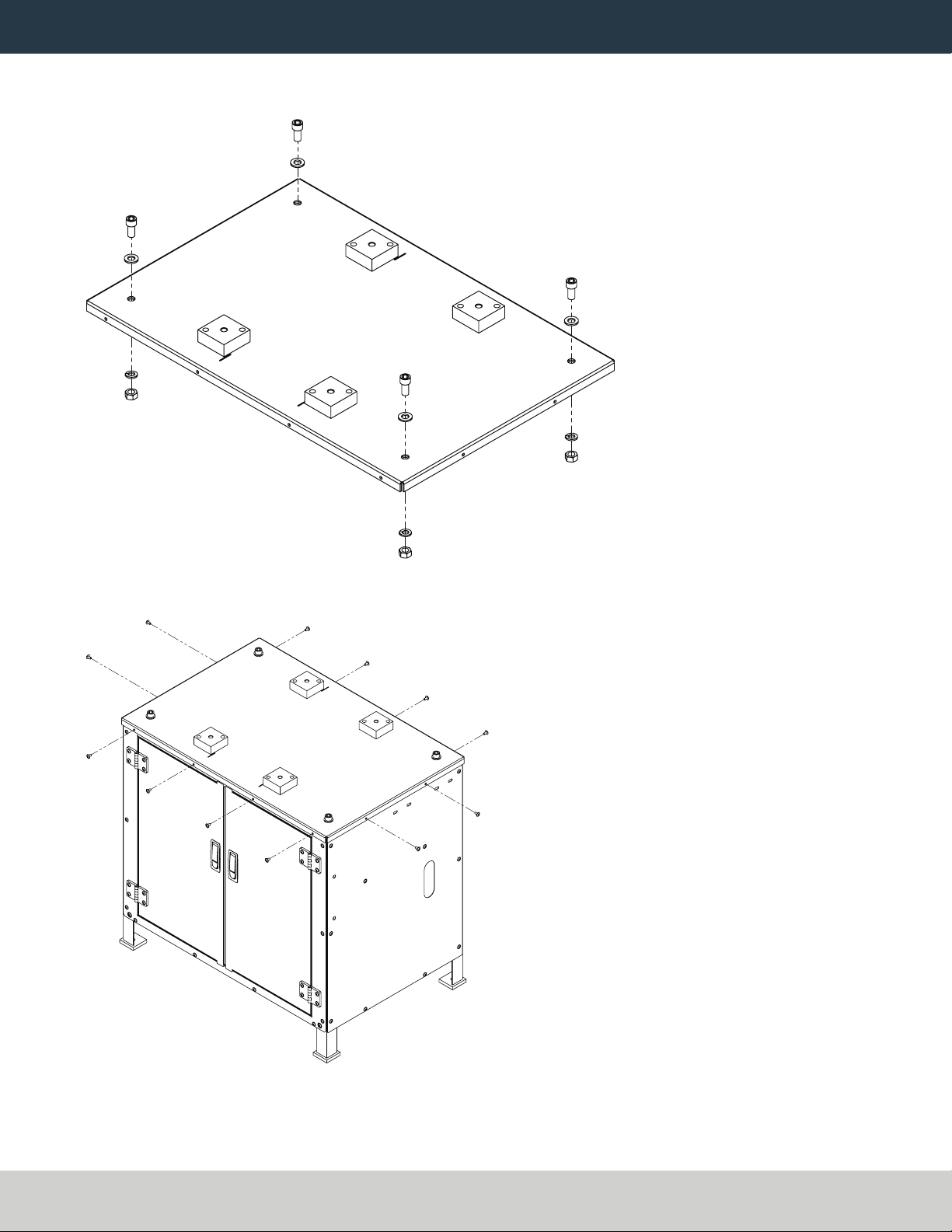

9 PCNC 440 Machine Stand, Top Cover Assembly (PN35700) 1
10 PCNC 440 Machine Stand, Top Cover (PN51490) 1
11 PCNC 440 Machine Stand, Top Cover Stiffener (PN51492) 2
12 PCNC 440 Machine Stand, Top Cover Block (PN51491) 4
13 Screw, Socket Head Cap, M12 × 1.75 × 020 (PN51503) 8
14 Nut, Hex, M12, Zinc Plated (PN35283) 4
15 Washer, Split Lock, M12 (PN30321) 4
16 Screw, Socket Head Cap, M12 × 1.75 × 025 (PN51504) 4
17 Washer, Flat, M12 (PN32473) 12
18 PCNC 440 Machine Stand, Front Panel (PN51487) 1
19 PCNC 440 Machine Stand, Left Door (PN51488) 1
20 PCNC 440 Machine Stand, Right Door (PN51489) 1
21 PCNC 440 Machine Stand, Left Side Panel (PN51498) 1
22 PCNC 440 Machine Stand, Door Hinge Assembly (PN51496) 4
23 Screw, Button Head Cap, Flanged M05× 0.8 × 010, 18-8 Stainless (PN38205) 76
Note: If any items are missing, we can help. Create a support ticket with Tormach Technical Support at
tormach.atlassian.net/servicedesk for guidance on how to proceed.
