IMPORTANT OWNER-OPERATOR INSTALLATION

INSTRUCTIONS

A7710R / A7710RS

Warning!!

This battery box is made of aluminum and is

Conductive! Do not allow the battery terminals to touch the aluminum

Battery Box. Be careful not to touch the battery box with a wrench while

tightening the battery terminals, as this could cause a short!

REVISED version 6 BY: DK 11/24/2015

TECH SUPPORT (800) 246-8132

Warning!! Improper installation of

Solar Equipped Power Armors may

result in battery over-charging!

Single Solar Panel Option 1:

If you plan to use two or more batteries with a single 10-

Watt Solar Panel, you will NOT need to purchase any

additional parts.

Single Solar Panel Option 2:

If you plan to use one battery with a single 10-Watt Solar

Panel, it is required that you use a 6 Amp Regulator (PN

A7715) to prevent your battery from gassing and over

charging.

Double Solar Panel Option 1:

If you plan to use 4 or more batteries with two 10-Watt

Solar Panels, you will need to purchase a second solar

panel (A7713) and either the Y-Harness adapter (A7714) or

optionally a 6-amp regulator (A7715)

Double Solar Panel Option 2:

If you plan to use less than 4 batteries with two 10-Watt

Solar Panels, you will need to purchase a second solar

panel (A7713) and a 6-amp regulator (A7715)

Optional Solar Parts

PN - A7713 - Additional 10-Watt Solar Panel (Requires the

use of A7714 or A7715 when installed as a second solar

panel)

PN - A7714 - Y-Harness Adapter (Connects Two 10-Watt

solar panels, not needed if using A7715)

PN - A7715 - 6-amp regulator required when using less

than two batteries per solar panel (Regulates amperage to

prevent gassing and over charging, will work with one or

two 10-Watt Solar Panels, A7714 not required)

Replacement Battery Mats

The battery mat included with the Power Armor Battery

Box is acid neutralizing, and will help reduce any corrosion

from spilled battery acid. It is a “wear”item and may

eventually need to be replaced. New battery mats are

available through Torklift International. Part numbers

below.

PN: A7717- A7710RS/A7710RS Battery Mat

Inventory List

A7710R / A7710RS

Item:

Quantity:

Power Armor Max Battery Box

Power Armor Max Lid

Two Piece Divider Half

Drop In Stiffener

Battery Mat 58”

Battery Strap

1/4" x 1” SS Self-Drilling Screw

7/16” Square Profile O-ring

1/4"-20 x 1” SS Hex Bolt

1/4" SS SAE Flat Washer

1/4"-20 SS Hex Nut

1/4" Lock Washer

1/4"-20 SS Wing Nut

1/4"-20 x SS 3/4" Carriage Bolt

10 Watt Solar Panel (A7710RS Only)

15A Fuse Holder (A7710RS Only)

Positive Wire Female to Male Extension

(A7710RS Only)

Step 1:

Remove the Power Armor Max Lid by sliding the lid away from the side

of the box with the lock; then lifting the front edge and unhooking the lid

from the tabs on the rear of the box.

Step 2:

Test fit your batteries in the Power Armor Max Battery Box. If you plan

on using the Two Piece Divider, all of the batteries will need to be on the

same side of the box. The battery terminals should face the side of the box

with the 2” holes. For solar models, the batteries should be closest to the

side of the box with the lock. There are a series of slots cut into the bottom

of the Power Armor Battery Box for the included Battery Straps. Make

an incision in the Battery Mat over each of the slots you will need for the

Battery Straps. Install the non-buckled end of the Battery Straps down

through one of the slots and back up through the bottom of the Power

Armor Max Battery Box. Use the straps to secure the batteries and ensure

that they are situated correctly for your application. Once the battery box is

installed, the straps will be difficult to adjust. Remove the batteries and

Battery Mat before proceeding.

Step 3:

The two 2” holes in the front/back panel of the Power Armor Max Battery

Box are used to allow the battery cables to enter the battery box. They can

be mounted to either the front or rear of the trailer as long as there is

sufficient room to open and remove the Power Armor Max Lid.

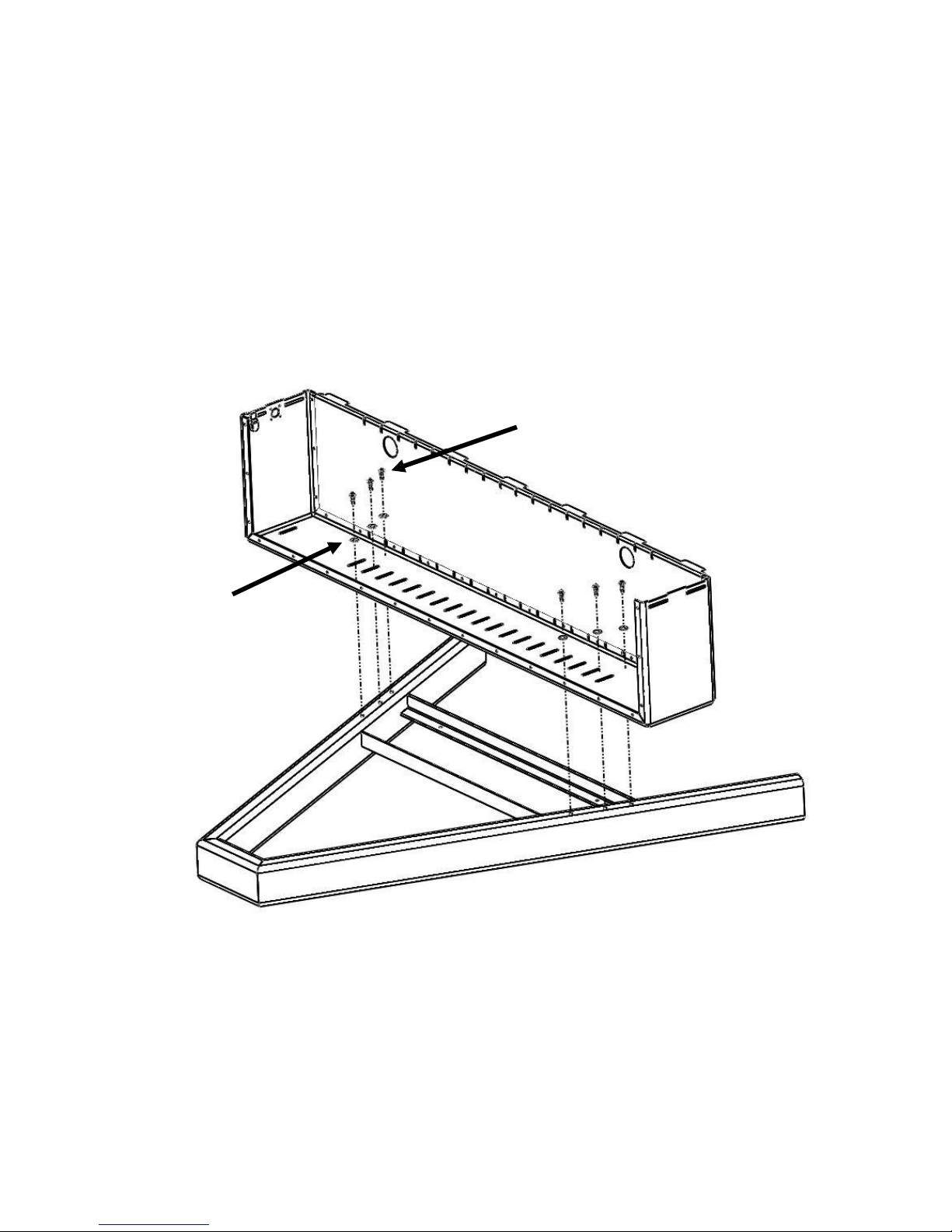

Place the Power Armor Max Battery Box where it is to be mounted. If the

battery box is being installed on an open frame trailer, drill three ¼” holes

per side through the bottom of the battery box and into the trailer. Secure

the battery box as seen in figure 3.1

1/4"-20 x 1” SS Hex Bolt

1/4" SS SAE Flat Washer

1/4" Lock Washer

1/4"-20 SS Hex Nut

Figure 3.1

If the battery box is being installed on a boxed frame trailer, install three

1/4" x 1” SS Self-Drilling Screws per side through the bottom of the

battery box and into the trailer frame. Place a 7/16” square profile O-ring

around the head of each screw/bolt to protect the battery mat from abrasion.

See figure 3.2

Figure 3.2

Step 4

Reinstall the Battery Mat and Batteries. To prevent any possible contact

between the battery terminals and lock, the battery terminals should be

oriented towards the side of the box with the 2” holes. Tightly secure the

batteries with the battery straps.

1/4" x 1” SS

Self Drill Screw

1/4" SS Flat

Washer

Step 5:

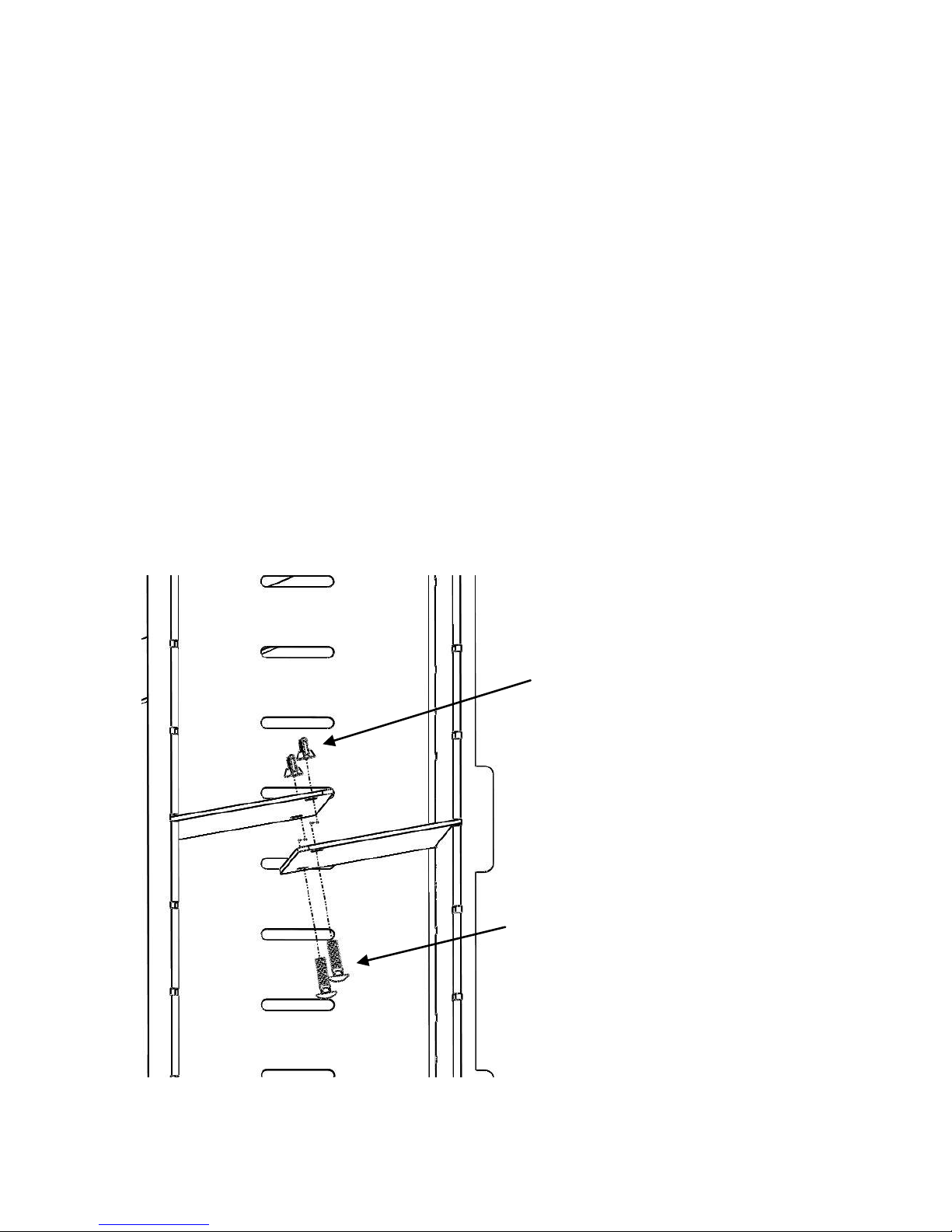

If desired, a Two Piece Divider can be installed into the battery box. To

install the Two Piece Divider, place the tabbed end of one of the Two Piece

Divider Halves into the slots in the side of the battery box. Use the other

Two Piece Divider Half to tab into the opposite side of the box. Bolt the

two divider halves together using the supplied 1/4"-20 x 3/4" SS Carriage

Bolts and 1/4"-20 SS Wing Nuts. The wing nuts should be on the opposite

side of the divider from the batteries to avoid abrasion. See figure 5.1

Figure 5.1

1/4"-20 x 3/4" SS Carriage

Bolts

1/4"-20 Wing Nuts

Step 6:

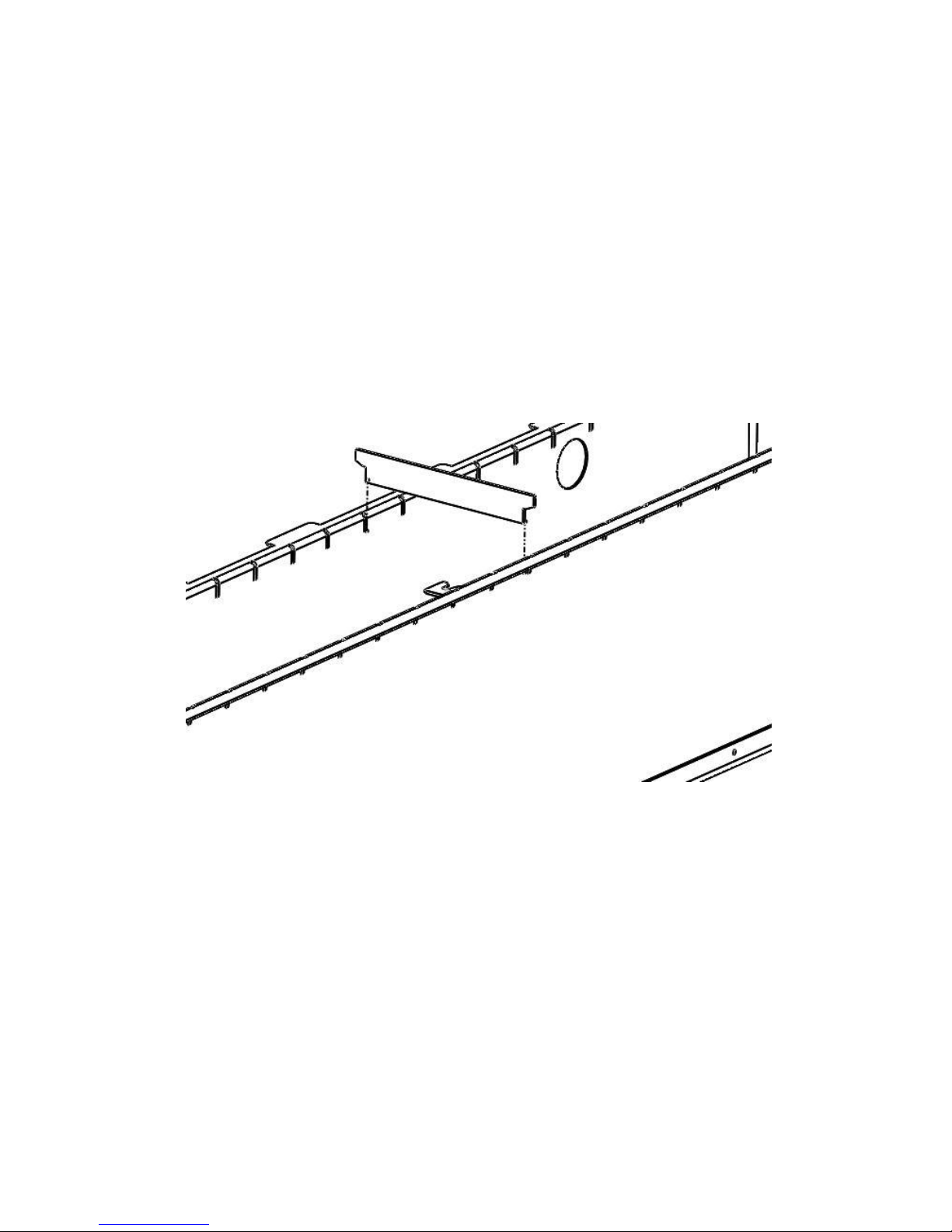

While flexing the front and back side of the battery box slightly apart, install

the Drop in Stiffener into one of the four middle upper slots in the battery

box as shown in figure 6.1. If the Two Piece Divider is already installed in

one of these slots, the battery box stiffener will not be needed.

Figure 6.1

Step 7:

The Power Armor Max and Power Armor Max Solar battery boxes are

capable of supporting multiple battery configurations. Depending on the

configuration, additional battery cables may be required but are not

included.

------------------------------ 12-VOLT BATTERIES ------------------------------

Wiring for ONE 12v battery: Figure 7.1

Wiring for TWO 12v batteries: Figure 7.2

Wiring for THREE 12v batteries: Figure 7.3

Wiring for FOUR 12v batteries: Figure 7.4

Wiring for FIVE 12v batteries: Figure 7.5

------------------------------ 6-VOLT BATTERIES -------------------------------

Wiring for TWO 6v batteries: Figure 7.6

Wiring for FOUR 6v batteries: Figure 7.7

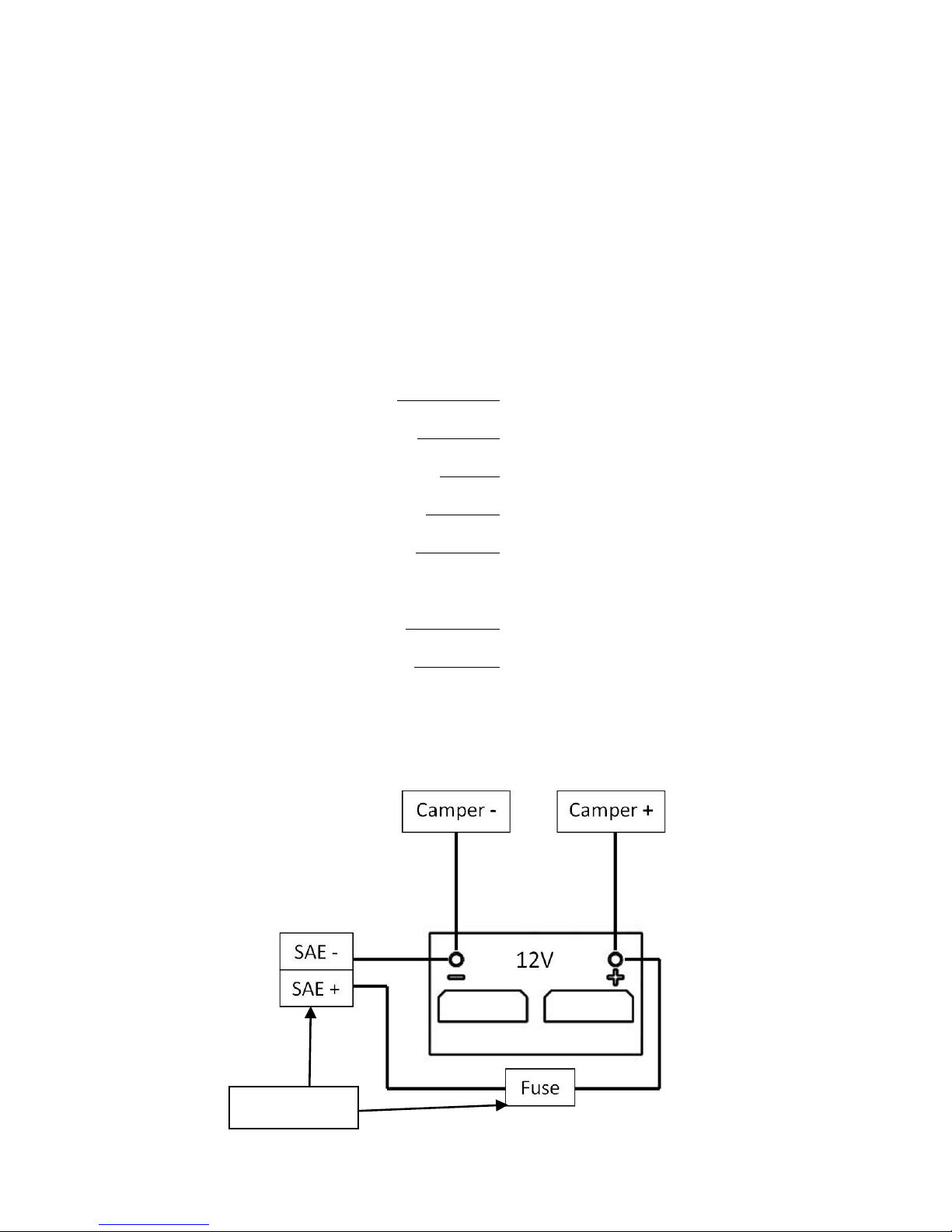

ONE 12v Battery Wiring Diagram (Figure 7.1)

Solar Only
