TorcUP TX LINK Series Manuel d'utilisation
Maintenance
Supplies
1. TX Link 2. Marine moly 3. 5/32” allen wrench 4. 3/16” allen wrench
1.
2.
3.
4.

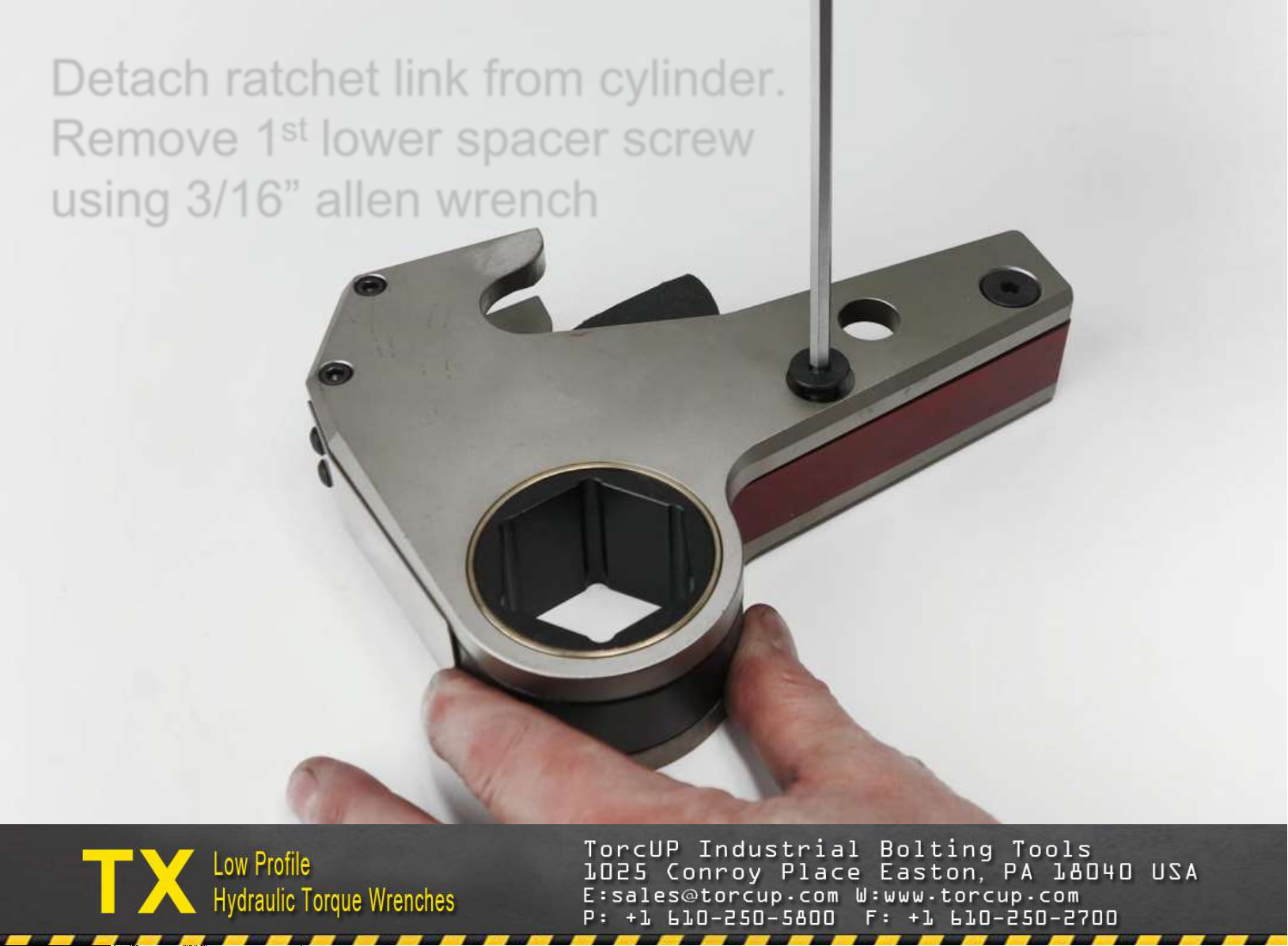

Detach ratchet link from cylinder.
Remove 1st lower spacer screw
using 3/16” allen wrench
Remove 2nd lower
spacer screw using 3/16”
allen wrench
Remove 1st upper
spacer screw using
5/32” allen wrench
Remove 2nd upper
spacer screw
using 5/32”
allen wrench
Remove ratchet link sideplate
Remove ratchet link sideplate
Image shown illustrates
factory assembly using
Mobil 1 synthetic grease
Remove ratchet, drive plate
and drive segment
Slide ratchet
from drive
plate
Be aware of tension on segment spring
to prohibit spring ejection
