Topshine PT30 Manuel utilisateur

GPS Personal Tracker

USER MANUAL (Model:PT30)

Please read carefully before operation

ontents

1. Product Overview ........................................................................................................................................... - 3 -

2. Applications .................................................................................................................................................... - 3 -

3. Product Function and Sp

ifi

ions............................................................................................................... - 3 -

3.1 Product Fun

ion...................................................................................................................................... - 3 -

3.2 Specifications ........................................................................................................................................... - 3 -

4. PT30 and

Accessories .......................................................................................................................................

- 4 -

5. First

Use

......................................................................................................................................................... - 5 -

5.1 Install SIM Card ....................................................................................................................................... - 5 -

5.2 Charging ................................................................................................................................................. - 5 -

5.3 LED

Indications .................................................................................................................................. ......

- 5 -

6. Basic SMS commands........................................................................................................................................ - 6 -

6.1 Position report .............................................................................................................................................. - 6-

6.2 Set function of receiving actual address name via SMS....................................................................................... - 7 -

6.3 Get location in google map link format ........................................................................................................... - 7 -

6.4 Set over speed alarm.............................................................................................................................. - 8 -

7. Set SMS for GPRS tracking.................................................................................................................... - 8 -

7.1 Set ID by SMS ......................................................................................................................................... - 8 -

7.2 Configure by

Computer

.......................................................................................................................... - 8 -

7.3 Set IP Address and Port by SMS ............................................................................................................. - 9 -

7.4 Enable GPRS Function ............................................................................................................................ - 9 -

7.5 Set Time Interval for Sending GPRS Packet……………………………………………………………..…………………..…... - 9 -

8. Troubleshooting…………………........................................................................................................................... - 9 -

Appendix 1: Configure by Computer…………………………………………………………………………………………………………… - 11 -

APPENDIX 2: SMS Command List……………………………………………………………………………………………………………….…- 16 -

1. Product Overview

PT30 provides an easy way to track your targets and provides peace of mind by showing you with your mobile phone

or PC the location of your targets via SMS or GPRS.

2. Applications

 People tracking & security, like the Kids, the Elderly, the tourists

 Assets tracking & security

 Pets tracking & Security

3. Product Function and Specifications

3.1 Product Function

 No installation, mini size, easy taken

 Track by SMS/GPRS (TCP/UDP)

 Track on Demand

 Track by time Interval

 Two-way conversation

 Tracking online from website

 SOS panic button

 Geo-fence Alarm

 Built-in sensor for power saving

 Speeding Alarm

GOOGLE map URL for location via SMS, which shows you location on map via mobile phone.

Get the physical address name via SMS.

 Three buttons for making phone call and/ or sending message

3.2 Specifications

Items Specifications

Dimension 77*51*25mm

Weight 96g

Charging Voltage DC 4.5V~5.5V/400mA(Mini USB port)

SIM card type 3V

Power

consumption

Active mode(peak) < 1.0A

Active mode(avg.) < 300mA

Operating

Temperature

℃~+ 75℃

Humidity Up to 75% non-condensing

External Antenna Connected via 50Ω coax connector

External SIM Card

Connected via SIM card connector

Button 1 SOS and 1 power on/off

Microphone Optional

Transmit Power

Class 4(2W) for E-GSM 900 and 850

Class 1(1W) for DCS 1800

Class 1(1W) for PCS 1900

Sensitivity -104dBm minimum for E-GSM 900 AND 850

-102dBm minimum for DCS 1800

-102dBm minimum for PCS 1900

GPS Chip Latest GPS SIRF-Star III chipset

GPRS Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)

Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)

Maximum download speed is 85.6kbps

Maximum upload speed is 21.4kbps

Speech Codec Triple rate Codec

Half rate—ETS 06.20

Full rate—ETS 06.10

Enhance full rate—ETS 06.50/06.06/06.08

4. PT30 and Accessories

PT30 Main Unit

arphone

USB Cable

Car Charger

Travel Charger

5 First Use

5.1Install SIM Card

Check that the SIM has not run out of credit

(test the SIM in a phone to make sure it can

send and receive SMS);

Before installing the SIM card, turn off the

power for PT30

Then install the SIM card as following

5.2 Charging

Connect the device with suitable power source via its charger, and turn on its power switch, and it

will do charging automatically.

5.3 LED Indications

Your PT30 has four buttons and three LED lights with three different

colors

to indicate the status of the

unit.

Power (Red)

Flashing ( every 0.1 second) Initializing or back-up battery power is low

Flashing (0.1 second on and 2.9 seconds off) PT30 has a GPS fix

Flashing (1 second on and 2 seconds off) PT30has no GPS fix

GSM LED (Green)

Flashing ( every 0.1 second) Initializing

Flashing (0.1 second on and 2.9 seconds off) PT30 is connected to the GSM network

Flashing (1 second on and 2 seconds off) PT30 is not connected to the GSM network

Power Button To turn on/off PT30

SOS Button Press SOS button to make a phone call and/or send

an SMS to the

preprogrammed

phone number.

Press it to receive an

incoming

call.

Press it to

increase

volume during conversation.

Call B Press B button to make a phone call and/or send an

SMS to the

preprogrammed

phone number.

Press it to reject a call, cancel calling or complete a

conversation.

Call C Press C button to make a phone call and/or send an

SMS to the

preprogrammed

phone number.

Press it to

decrease

volume during conversation.

6. Basic SMS Commands:

6.1 Track on command

Command: W<password>,000

For example: send SMS W000000,000

Remark: The default password is 000000

Item Description

ID: 5128250763 The tracker’s ID number

ACC=OFF The engine is turned off

Latitude=23 08 56.71N, longitude=113 18 57.78E Latitude and longitude information, “N” in latitude

means North,”E” in longtitute means East,

Speed=0.00Km/h Speed information

Odometer=0.010km/h Odometer information

2012-08-24,03:12 System gps timing

You can copy this coordinate get from the SMS into http//:maps.google.com and see its location as below:

6.2 Set receiving actual address name via SMS

Description: To know specific address of your PT30, send an SMS and you will receive an SMS with its location

Command:W<password>,<111>

Example:

SMS send: W000000,111

SMS receive: Xinfu 1st Rd, Maonan, Maoming, Guangdong, China

6.3 Get GoogleMap’s link via

SMS

Command: W<password>,100

For example: send SMS W000000,100

SMS Get: as following picture P1

Note: by click the link,you can get the location in Google map from your mobile phone, see bellowing P2

6.4 Set over speed alarm

Description: XX(the speed preset value) XX=00, disable XX=[01<XX<20](unit:10Km)

Command :W<password>,005,XX

Example:

SMS send:W000000,005,10

SMS receive:SET OK! SPEED LIMIT:100Km/h

Meaning: If your speed is over 100Km/h, an alarm SMS will send to your phone to warn you.

7.Presenting by SMS for GPRS tracking

7.1 Set ID by SMS

Description: every tracker have a unique ID. Tracker ID must be less than 14 digitals

Command : W<password>,010,ID

Example:

SIM send:W000000,010,20120823

Meaning: this tracker’s ID is 20120823

7.2 Set APN by SMS

Description: APN Name, APN username, APN password

if no password required, just insert APN name only

Command: W<password>,011,APN,APN username, APN password

7.3 Set IP Address and Port by SMS

Description: IP address is 210.209.68.180 Port is 9500

SMS command: W<password>,012,<IP>,<port>

Example:

SMS send: W000000,012, 210.209.68.180,9500

We support domain name instead of IP address:

Example: W000000,012,www.global-track.net,9500

7.4 Enable GPRS Function

Command :W<password>,013,X

Description: X=0,close GPRS(Default)

X=1,enable TCP

X=2,enble UDP

7.5 Set Time Interval for Sending GPRS Packet

Command :W<password>,014,XXXXX

Description: XXXXX should be in five digitals and in unit of 10 seconds.

XXXXX =00000, to disable this function

XXXXX =00001~65535, time interval for sending GPRS packet and in unit of 10 seconds

8. Troubleshooting

Problem: Unit will not turn on when

pushing

the power switch to On side

Possible

Cause: Resolution:

Power switch was not pushed properly Check and make sure the power button is pushed to

On side.

Battery

needs charging

Recharge

battery f or 3 hours

Problem: Unit will not reply with SMS

Possible

Cause: Resolution:

Green LED is

flashing

(on f or 1 second and off for 2 Make PT30

connected

to GSM network.

seconds)

GSM

Network

is slow W ait for SMS. Some GSM

networks

slow down during

peak time or when they have

equipment

problems.

Unit is sleeping

Cancel

sleeping mode

Wrong password in your SMS or wrong SMS format

Write

correct password or SMS format

The SIM in PT30 has run out of credit

Replace

or top up the SIM card

Problem:

Green LED is

Flashing

(on for 1 second and off for 2 seconds)

Possible

Cause: Resolution:

No GSM signal Check with a mobile phone to see if there is a signal

in the area or try to call the unit to see if you hear a

ring tone.

No SIM card Insert a working SIM card. Check in phone that the

SIM can send SMS message.

SIM card has expired Check in phone that the SIM can send SMS

message. Replace

SIM card if needed.

SIM has PIN code set Remove PIN code by inserting SIM in you phone and

deleting

the code.

SIM is warped or damaged Inspect SIM, clean the contacts. If re-inserting does

not help try another to see if it will work.

Roaming not enabled If you are in a different country your SIM account

must have roaming enabled.

Battery

is low

Recharge

the unit and the GSM will start working.

Problem: Blue LED is

Flashing

(on for 1 second and off for 2

seconds)

or the SMS received starts with

‘Last…’

Possible

Cause: Resolution:

Unit does not have clear view of the sky Move the unit to a location where the sky is visible.

Tall buildings, trees, heavy rain, can cause problems

with the GPS reception.

Bad GPS reception Place the front side of PT30 towards sky

Battery

is low

Recharge

the unit and the GPS will start working.

Appendix 1

Configure by Computer

This part shows the basics of how to use the TOPSHINE Parameter Editor.

Note: Don’t connect PT30 to external battery when configuring.

How to Edit the Parameters of PT30

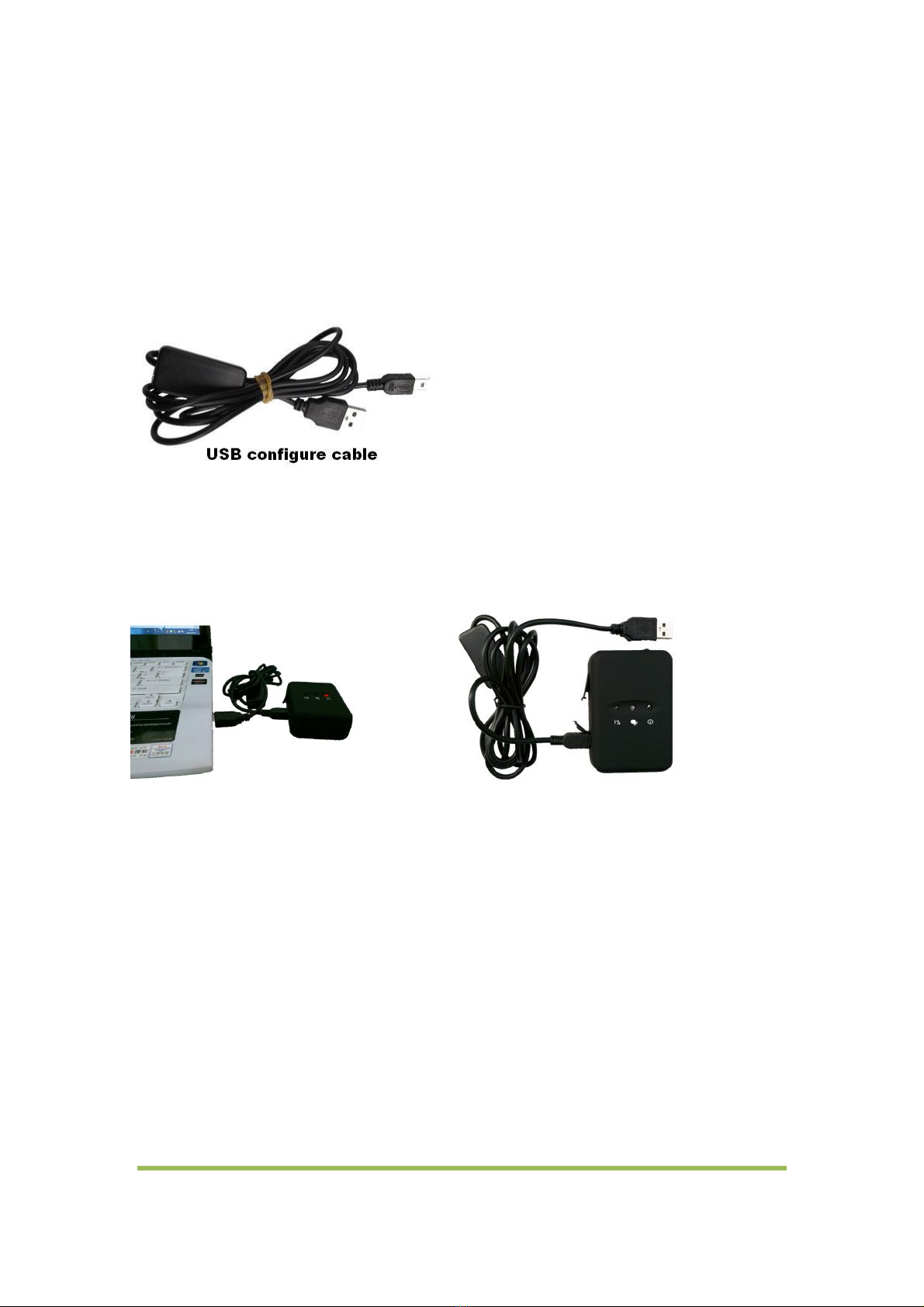

Step 1 Buy one specific USB cable for configuration from Our Company

Step2 . Install USB driver program for the configuration USB cable

1. Run ‘PL2303_Prolific_DriverInstaller’ to install the driver for the USB data cable.

Note: PL2303_Prolific_DriverInstaller is in the folder ‘USB-232 Driver’ in the CD.

Connect the USB Data Cable between PT30 and PC.

2.Connect the configuration cable with PC, open device management of your computer,

you can find “Prolific USB-to-Serial COM Port “ ,as following picture shows.

Autres manuels pour PT30

Table des matières

Autres manuels Topshine GPS

Topshine

Topshine VT310N Manuel utilisateur

Topshine

Topshine MT08B Manuel utilisateur

Topshine

Topshine MT06 Manuel utilisateur

Topshine

Topshine MT100 Manuel utilisateur

Topshine

Topshine MT01 Manuel utilisateur

Topshine

Topshine PT90 Manuel utilisateur

Topshine

Topshine GT103 Manuel utilisateur

Topshine

Topshine PT30 Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
