TOPMAQ MS3840 Manuel utilisateur

MS3840 MORTISING MACHINE １

HEAVY-DUTY MORTISER

Model MS3840

Instruction Manual & Parts List

MS3840 MORTISING MACHINE２

This manual has been prepared for the owner and operators of Model MS3840 Mortiser.

Its purpose, aside from proper machine operation, is to promote safety through the use of

accepted correct operating and maintenance procedures. Completely read the safety and

maintenance instructions before operating or servicing the machine. To obtain maximum

life and efficiency from your mortiser, and to aid in using the machine safely, read this

manual thoroughly and follow all instructions carefully.

TABLE OF CONTENTS

Safet

Rules 2

Specifications 5

Receivin

the Mortise

Installation 5

Adjustments Installin

Chisel & Bit 6

Work Stop 6

Operation 7

Maintenance/ Sharpenin

Chisel & Bit 9

Parts Lists & Exploded Views

Mortiser 12

Stand Assembly 15

Clamping Bar Assembly 16

Work Stop 17

SAFETY RULES

As with all power tools there is a certain amount of hazard involved with the operation and use of

the Mortiser. Use the tool with the respect and caution demanded where safety precautions are

concerned. This will considerably lessen the possibility of personal injury. When normal safety

precautions are overlooked or completely ignored, personal injury to the operator can result.

Know your tool. Read the owner’s manual carefully. Learn the tools applications and limitations,

as well as the specific potential hazards peculiar to it.

Keep guards in place and maintained in working order.

Ground all tools. If tool is equipped with three-prong plug, it should be plugged into a three-hole

electrical receptacle. If an adapter is used to accommodate a two-prong receptacle, the adapter

plug must be attached to a known ground. Never remove the third prong.

Remove adjusting keys and wrenches. Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

Keep work area clean. Cluttered areas and benches invite accidents.

Avoid dangerous environment. Don’t use power tools in damp or wet locations, or expose them

to rain. Keep work area well lighted.

Keep children and visitors away. All children and visitors should be kept a safe distance from

work area.

Make workshop childproof - with padlocks, master switches, or by removing starter keys.

Don't force tool. It will do the job better and be safer at the rate for which it was designed.

MS3840 MORTISING MACHINE ３

Use proper tool. Don’t force tool or attachment to do a job for which it was not designed.

Wear proper apparel. Do not wear loose clothing, gloves, neckties, or jewelry that can get caught

in moving parts. Nonslip footwear is recommended. Wear protective hair covering to contain long

hair

Use safety glasses. Also use face or dust mask if cutting operation is dusty.

Secure work. Use clamps or a vise to hold work when practical. It’s safer than using your hand

and frees both hands to operate tool.

Don't overreach. Keep your proper footing and balance at all times.

Maintain tools in top condition. Keep tools sharp and clean for best and safest performance.

Follow instructions for lubricating and changing accessories.

Disconnect tools before servicing and when changing accessories such as chisel and bit.

Use recommended accesories. Consult the owner’s manual for recommended accessories. The

use of improper accessories may cause hazards.

Avoid accidental starting. Make sure switch is in “OFF” position before plugging in cord.

Never stand on tool. Serious injury could occur if the tool is tipped or if the cutting tool is

accidentally contacted.

Check damaged parts. Before further use of the tool, a guard or other part that is damaged

should be carefully checked to ensure that it will operate properly and perform its intended function

- check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and

any other conditions that may affect its operation. A guard or other part that is damaged should be

properly repaired or replaced.

Never leave tool running attended. Turn power off. Don’t leave tool until it comes to a complete

stop.

Drugs, alcohol, medication. Do not operate tool while under the influence of drugs, alcohol, or

any medication.

Health hazards. Some dust created by power sanding, sawing, grinding, drilling and other

construction activities contains chemicals known to cause cancer, birth defects or other

reproductive harm. Some examples of these chemicals are:

- Lead from lead-based paint.

- Crystalline silica from bricks and cement and other masonry products.

- Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To

reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved

safety equipment, such as those dust masks that are specifically designed to filter out microscopic

particles.

MS3840 MORTISING MACHINE４

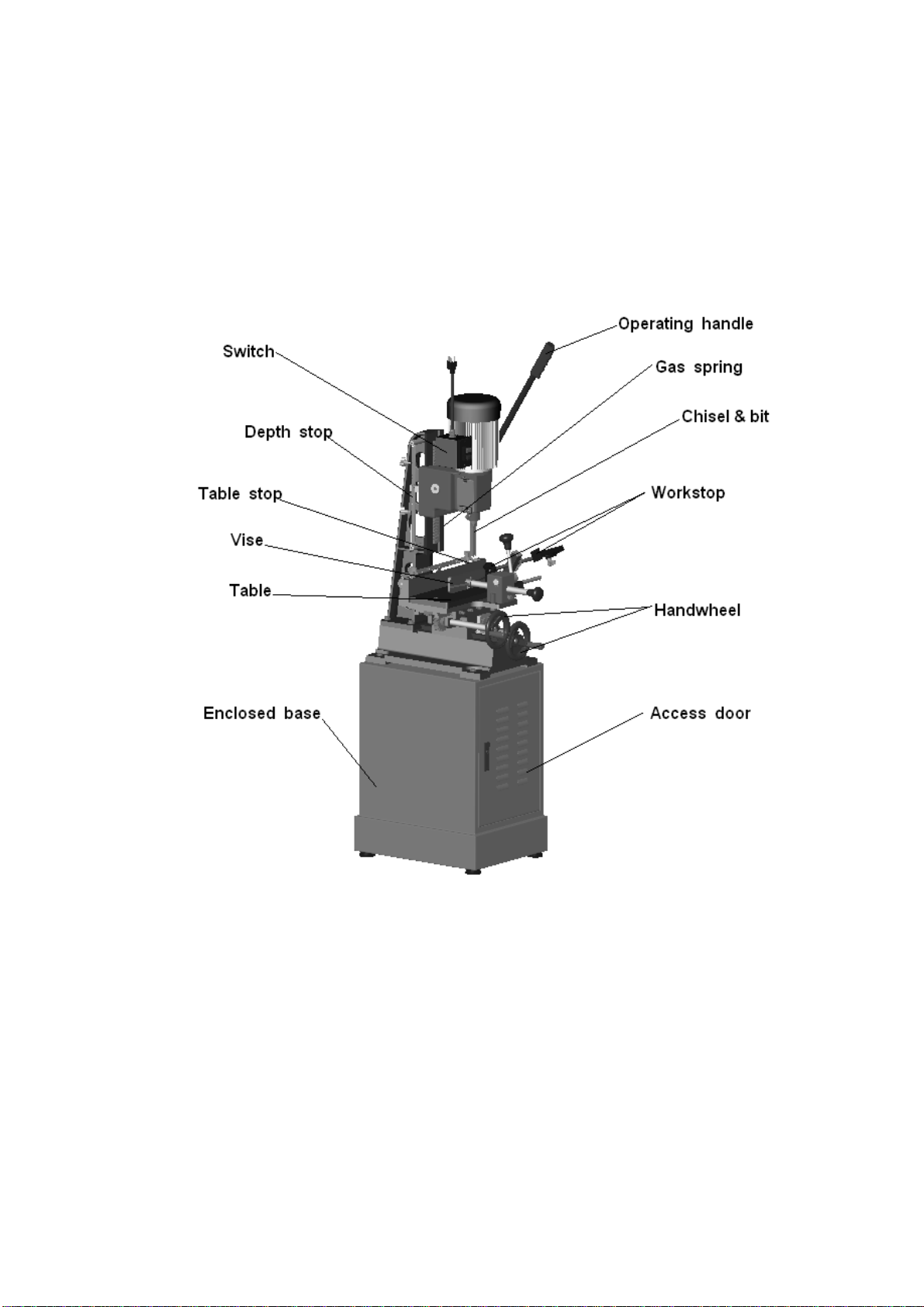

MODEL MS3840 MORTISER

MS3840 MORTISING MACHINE ５

SPECIFICATIONS

Motor See Nameplate 750w (input), 1PH, (220 V,50 Hz)

Spindle speed See Nameplate ( 1400 rpm )

Chisel capacity 6.35—25.4mm

Chisel shank 19.05mm

Maximum chisel stroke 220mm

Distance, fence to center chisel 140mm

Chuck capacity 16mm

Bushing size 19.05mm

Table movement Long-ways 170mm

Cross-ways 140mm

Table size 400x150mm

RECEIVING THE MORTISER

Remove mortiser and stand from the shipping cartons. Check for damage and ensure all parts are

intact. Any damage should be reported immediately to your distributor and shipping agent. Before

assembling, read the manual thoroughly, familiarizing yourself with correct assembly and

maintenance procedures and proper safety precautions.

Contents of shipping cartons:

Stand carton

1 Stand

1 Hardware package

Mortiser carton

1 Mortiser with motor

1 Operating handle

2 Handwheel handles

1 Chuck key

1Chisel

1 Wooden table

INSTALLATION

The mortiser should be secured to the stand with four M12 x 120 hex head screws (provided)

using the holes in the base. Make sure there is enough room on each side of the mortiser for the

size stock you plan to use.

WARNING: The mortiser has a two-prong plug and requires a grounded outlet.

In the event of a malfunction or breakdown, grounding provides a path of least resistance for

electric current to reduce the risk of electric shock. If you are not sure whether your outlet is

properly grounded, consult a qualified electrician.

MS3840 MORTISING MACHINE６

ADJUSTMENTS

INSTALLING CHISEL & BIT

1. Loosen lock screw, shown in Fi

ure 2.

2. Insert chisel bushing (with the hole facing forward) into the head. Tighten the screw just

enough to hold the chisel in place.

NOTE: Set the slot in the side of the chisel to the left or right, NOT to the front or back. This will

allow chips to escape when cutting mortises.

3. Push the chisel up as far as possible into the head. Then lower the chisel approximately 0.8mm

to 1.6mm, depending on the type of wood being worked. Tighten the screw

to hold chisel in place.

4. Push bit up through the chisel opening as far as it will go. Lock the drill bit in place with the

chuck key.

5. Loosen screw and push chisel up against the bushing, then tighten screw. This should provide

the proper distance between the points of the chisel and the bit.

WORK STOP

The work stop can be mounted to the table , as shown in Figure 3. It is tightened into place .

MS3840 MORTISING MACHINE ７

OPERATION

1. Set depth stop to the required depth o

cut. See Fi

ure 4.

FIGURE 4

MS3840 MORTISING MACHINE８

2. Place workpiece on table and clamp it with the vise. Use the left handwheel to move table

forward or backward to suit the position of the mortise on the workpiece.

3. Adjust the table stops, Figure 5, according to the length of cut required, then tighten the thumb

screws.

FIGURE 5

4. Turn on machine and feed chisel and bit steadily into workpiece by pulling down the operating

handle.

NOTE: The rate of feed must be fast enough to prevent burning at the tip of the bit, but not so fast

as to cause the machine to slow or stall. The different rates of feed for different woods must be

learned through experience.

5. After the first cut, the workpiece is moved along with the right handwheel for each successive

cut. The direction of movement must allow the chips to clear freely. Move the workpiece so that the

slot in the chisel is releasing chips into the already cut part of the workpiece. See Figure 6.

MS3840 MORTISING MACHINE ９

FIGURE 6

CAUTION: Do not have the chisel slot against the blind end of the mortise, as the chips will

not be able to clear the chisel. This can cause overheating and possible breakage of chisel

or bit.

When cutting deep mortises, make the cut in several stages of approximately 1" each, to allow

chips to clear. To prevent breakout at the back of the workpiece when cutting through mortises,

use a piece of scrap material under the workpiece as support.

MAINTENANCE

The Mortiser requires only minor maintenance, such as cleaning and lubrication and routine

adjustment and sharpening of the chisel and bit.

Dust the machine down after each use and, as necessary, use light applications of oil or grease to

lubricate linkages, moving parts, etc.

SHARPENING CHISEL & BIT

The chisel and bit should be kept sharp for best performance. Blunt edges will give inaccurate

mortises and can lead to overheating and breakage to chisel or bit. If chisel and bit are badly worn

and become difficult to sharpen, they should be replaced.

1. Sharpen the bit by using a small, smooth file, following the original shape of the bit. File the

inside edge of the spur, the sides of the brad point, and the cutting edge inwards toward the flute of

the bit. See Figure 7.

MS3840 MORTISING MACHINE１０

FIGURE 7

Do not file the outside edge of the spur as this will affect the diameter of the bit.

2. Sharpen the chisel with a mortise chisel cutter with the correct size pilot. (Pilot size will differ

depending on the size of your chisel). Two or three turns of the cutter in a carpenter's brace chuck

should be enough to sharpen the chisel, as shown in Figure 8.

FIGURE 8
