Topeak NINJA C Manuel utilisateur

HOW TO REMOVE NINJA C FROM HANDLEBAR

Periodically check that NINJA C is seated in

handlebar properly.

WARNING

PULL OUT

User's Guide

NINJA C GB

HOW TO STORE NINJA C IN HANDLEBAR

LIMITATIONS

Handlebar with minimum 70 mm straight

section end

Fits inner ø 16.5-20 mm tube Fits grips with

end caps

MAINTENANCE

Loosen bolt and remove end cap of grip on both

sides. (Depends on the type of handlebar)

(Example for grips with end caps)

Turn the cap to expand the

rubber ring as little as necessary.

Press to adjust

the shape of

rubber ring as

shown.

Push NINJA C into the end

of handlebar on both sides.

If NINJA C does not ﬁt properly into handlebar, adjust

tension of rubber ring as necessary and reinstall.

PUSH

Rubber Ring Chain Pin x 2

Compartment

• Fits Road handlebar with

minimum 70 mm straight

section end.

• Fits inner ø 16.5-20 mm tube.

• Fits multi-speed chains up to

Campagnolo® 11 speed hollow

pin chain.

• Please read these instructions

before ﬁrst use.

Chain Hook

4 mm Allen Key

(Chain

Pin is not

included)

Adjusting Knob and

Chain Pin Breaker

• Lubricate and maintain tool with Teﬂon®

based lubricant as needed.

• To prevent rusting, keep tool dry.

1STEP 2STEP 3STEP

Cap

Rivet Anvil

of hollow pin

1 2 3

ø 16.5 mm

ø 20 mm

ROAD HANDLEBARS FLAT BARS

70 mm

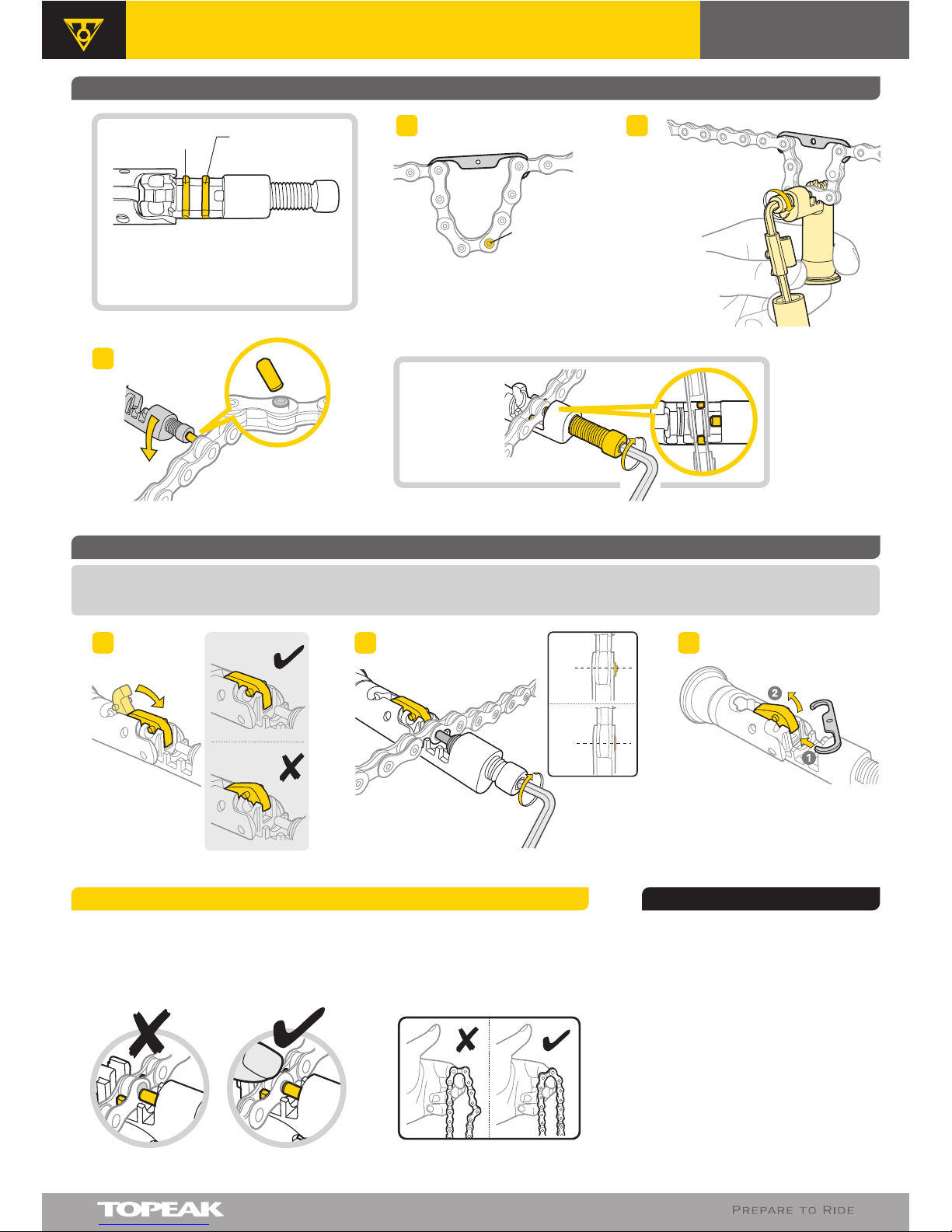

HOW TO REPLACE CHAIN PIN

HOW TO INSTALL CAMPAGNOLO® 11-SPEED HOLLOW CHAIN PIN

WARNING

User's Guide

NINJA C

2-year Warranty: All mechanical components against

manufacturer defects only.

Warranty Claim Requirements

To obtain warranty service, you must have your

original sales receipt. Items returned without a

sales receipt will assume that the warranty begins

on the date of manufacture. All warranties will be

void if the product is damaged due to user crash,

abuse, system alteration, modiﬁcation, or used in

any way not intended as described in this manual.

* The speciﬁcations and design are subject to

change without notice.

Please contact your Topeak dealer with any

questions. For USA customer service,

call: 1-800-250-3068

www.topeak.com

WARRANTY

M-TNJ-C-GB 10/15

After pressing the special replacement pin into Campagnolo® 11- Speed chain and breaking oﬀ the guide portion,

the break oﬀ end of the chain rivet is required to be peened to prevent chain failure.

* Campagnolo® is a registered trademark of Campagnolo S.r.I. * Teﬂon® is a registered trademark of DuPont.

3/4 Turn

Use Primary Chain Link Fence to install

or remove chain pin. Use Secondary

Chain Link Fence to loosen stiﬀ links.

Primary Chain

Link Fence

Secondary Chain

Link Fence

When pressing in the chain pin, push down on

the top of the chain to keep it fully engaged

in the chain tool cradle. Make sure the press

pin of the chain tool is centered against the

chain pin.

Inspect chain rivet again and be

sure chain links can bend freely

after replacement.

Press out old

chain pin and

replace with

new chain pin.

Hook chain and hold the target

chain rivet in center position.

The rivet anvil might be too tight to

release after use. Lift rivet anvil with

chain hook for storage.

Snap oﬀ new chain pin guide.

1 2

Target

chain rivet

Press chain

pin as little

as possible

to loosen

stiﬀ link if

necessary

Before

After

123
