Topcom BR 604 Manuel utilisateur

BR 604

QUICK INSTALLATION GUIDE

INSTALLATIE GIDS

GUIDE D’INSTALLATION RAPIDE

SCHNELLE INSTALLATIONSANLEITUNG

SNABBINSTALLATIONSGUIDE

HURTIG INSTALLATIONSGUIDE

HURTIGINSTALLASJON

UPUTE ZA INSTALACIJU

MANUAL DE USUARIO

MANUAL DO UTILIZADOR

2 Topcom Broadband Router BR 604

1. THE CONNECTION PANEL 3

2. CONFIGURING THE PC TO CONNECT TO THE CABLE/DSL

ROUTER 3

3. VERIFY YOUR PC’S IP CONFIGURATION 4

4. SETUP THE BROADBAND ROUTER 5

5. CONNECTION STATUS 9

6. ROUTER ADVANCED SETTINGS 10

7. FIRMWARE UPDATE 10

8. WARRANTY 11

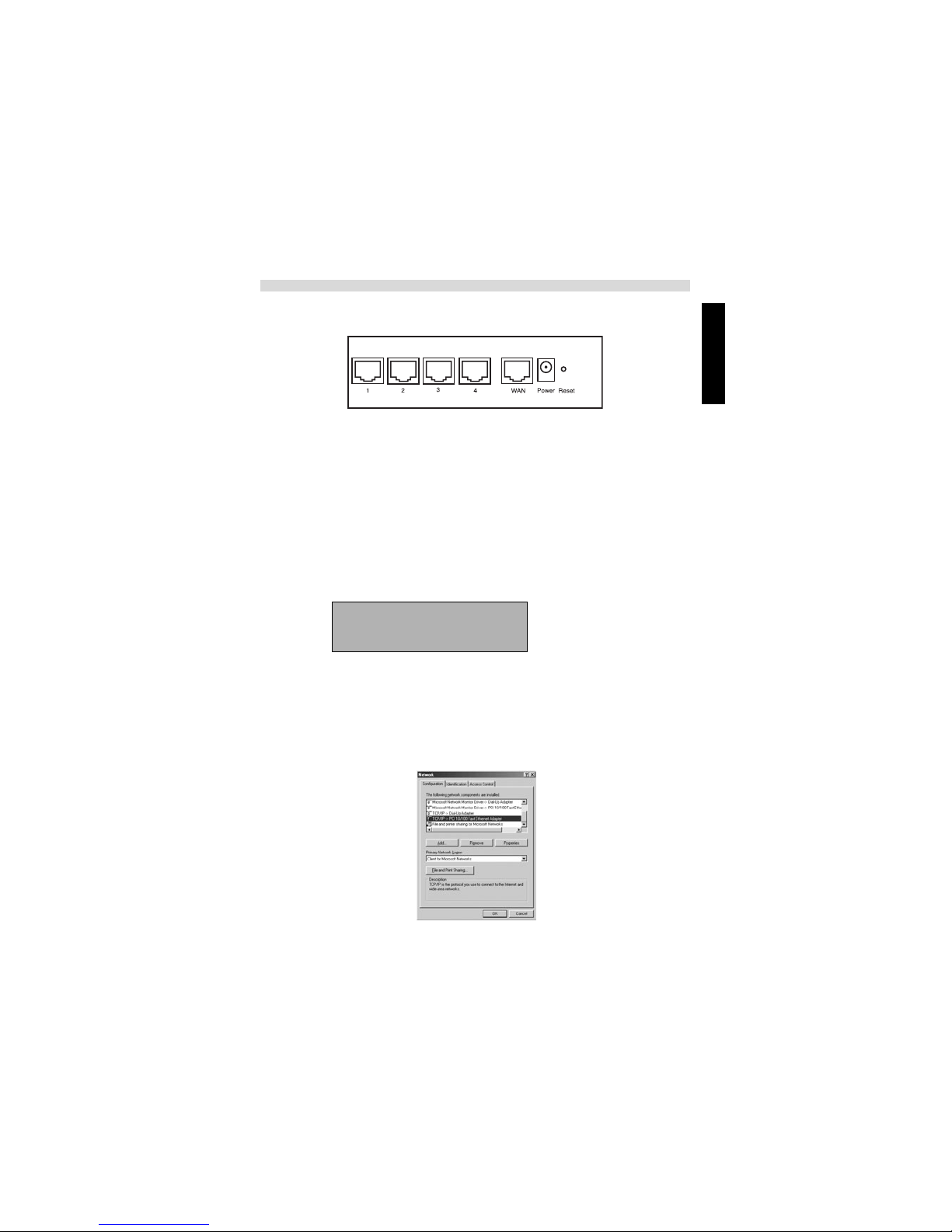

Topcom Broadband Router BR 604 3

ENGLISH

1. THE CONNECTION PANEL

•

POWER

: The power port is to connect the 5V DC power adapter.

- The power LED on the front panel will go ON when the power adapter is connected.

•

WAN

: The WAN Ethernet port is to connect your ASDL/Cable modem.

- The WAN LED will go ON if the network Ethernet cable is properly connected.

•

Ports 1- 4

: This is to connect networked devices, such as PCs, ftp servers or anything else you want to put on

your network.

- The LAN LED’s will indicate the connection status.

•

Reset Button

: If you would like to load default settings, press the reset button and hold it for 5 ~ 6 seconds. It will

load the factory default settings for the device. Do not press the reset button unless you want to clear the current

data.

2. CONFIGURING THE PC TO CONNECT TO THE CABLE/DSL

ROUTER

Remark

- The routers default IP address is: 192.168.1.1

- DHCP server is ON

If you do not wish to set a static IP address on your PC, you will need to configure your PC to accept the IP address

that the router will provide.

1. Click

Start

button, select

Settings

, then

Control Panel

2. Double-click the

Network

Icon

3. In the

configuration

windows, select the

TCP/IP protocol

line that has been associated with your network card/

adapter.

4 Topcom Broadband Router BR 604

4. Click the Properties button, then choose the

IP ADDRESS

tab. Select

Obtain an IP address automatically

5. Then select

DNS configuration

tab to add

DNS IP address

. Select

Disable DNS function

. Press

. You have

completed the client settings.

6. After clicking

, windows will ask you to restart the PC. Click

Yes

3. VERIFY YOUR PC’S IP CONFIGURATION

There are some tools which are great for finding out a computer’s IP configuration: MAC address and default gateway.

• WINIPCFG (for windows 95/98)

Inside the windows 95/98/ME Start button, select Run and type

winipcfg

. In the example below this computer has a IP

address of 192.168.1.100 and the default gateway is 192.168.1.1. The default gateway should be the broadband router

IP address. The MAC address in windows 95/98 is called the Adapter Address.

NOTE:You can also type winipcfg in the DOS command.

Topcom Broadband Router BR 604 5

ENGLISH

• IPCONFIG (for windows 2000/NT)

In the DOS command type

IPCONFIG

and press

Enter

. Your PC IP information will be displayed as shown below.

IPCONFIG / RENEW

will renew the IP address, gateway and DNS.

• Windows XP

Click the right mouse key on your network adapter and select

Status

The support screen will display the IP information.

4. SETUP THE BROADBAND ROUTER

When your PC has a valid IP address, you should be able to go to the router setup web page.

Open Internet Explorer or Netscape Navigater and goto address:

192.168.1.1

Now the login screen will appear.

6 Topcom Broadband Router BR 604

• Enter the username and password.

- By default the username is

admin

and the password is

admin

Now you enter the web management of your Broadband Router.

• The setup wizard will automatically appear:

- Click

to proceed

• In next screen you can change the login password (admin) to your own password.

- Click

to proceed

• In next screen you can select your Time Zone

- Click

to proceed

Topcom Broadband Router BR 604 7

ENGLISH

• Now you can change the LAN settings:

- The LAN IP address and Subnet mask can be changed.

- The router DHCP server can be Disabled / Enabled

- The DHCP range can be set.

- Click

to proceed

• Now the BR604 will try to detect your broadband connection type

• Depending on your connection type next screen will appear: (for PPPoE, this screen will not appear if the auto

detection has been successful )

- Select your Connection Type

- Click

to proceed

Obtain IP automatilally (DHCP client)

: this connection is mostly used for connecting the BR604 to a cable

modem.

Fixed IP address

: for connections with fixed WAN IP address.

- enter the

WAN IP

Subnet Mask

Gateway

and

DNS

addresses.

- Click

to proceed.

8 Topcom Broadband Router BR 604

PPPoE to obtain IP automatically

: mostly used for connecting the BR604 to an ADSL-Ethernet Bridge with

PPPoE dial up.

- enter username and password (twice)

- Click

to proceed.

PPPoE with a fixed IP address

: PPPoE connection with fixed WAN IP address.

- enter username, password (twice) and WAN IP address

- Click

to proceed.

PPTP

: for setting up a VPN connection: in this case the BR604 WAN port is connected at the LAN site of another

existing network !

- enter the VPN IP address, Subnet Mask and Gateway.

- enter the VPN Server IP address, PPTP Account and Password (twice).

- Click

to proceed.

• Now the setup is complete

- Click

Restart

to save and restart the router.

Topcom Broadband Router BR 604 9

ENGLISH

• When all settings are saved a new screen will pop up:

- Click

• The Setup Wizard is completed !

Remark:

• Next time you go to the router Web page the Setup Wizard will appear again. This can be disabled:

- select

and click

update

- now the wizard will not appear again when you access the router Web page.

5. CONNECTION STATUS

The WAN connection can be checked in the Status screen on the router Web page.

For PPPoE connection:

- The connection can be disconnected by clicking

Disconnect

. You can connect by clicking the

Connect

key

10 Topcom Broadband Router BR 604

For DHCP client:

- The WAN IP address can be released by clicking the

DHCP Release

key.

DHCP Renew

will renew the

IP address.

Remark:

• After each action, the router will jump to following screen:

- The action will be shown.

- please click

Back

to return to menu.

6. ROUTER ADVANCED SETTINGS

You can enter the menu for advanced settings. Please refer to the full user guide on the provided CD for more details.

7. FIRMWARE UPDATE

When a new firmware is released, it will be published on the Topcom website ( www.topcom.net) in the support –>

downloads section. Please download the image and go to

Tools

in the router menu. Now select the

Firmware

page

- click

Browse

to select the downloaded firmware image and click the

Upgrade

key.
