TomTom LINK 201 Manuel utilisateur

TomTom LINK 201

User Manual

Contents

What’s in the box 3

Read me first 4

Congratulations ..................................................................................................................................4

What you need for the installation ....................................................................................................4

Safety first 5

Important safety notices and warnings.............................................................................................5

Preparations 6

Activating the LINK 201......................................................................................................................6

Choosing the correct position ...........................................................................................................6

Connecting the LINK 201 7

Diagnostics 8

Understading your LINK 201..............................................................................................................8

Troubleshooting .................................................................................................................................8

Technical data 9

Addendum 10

TomTom LINK 201

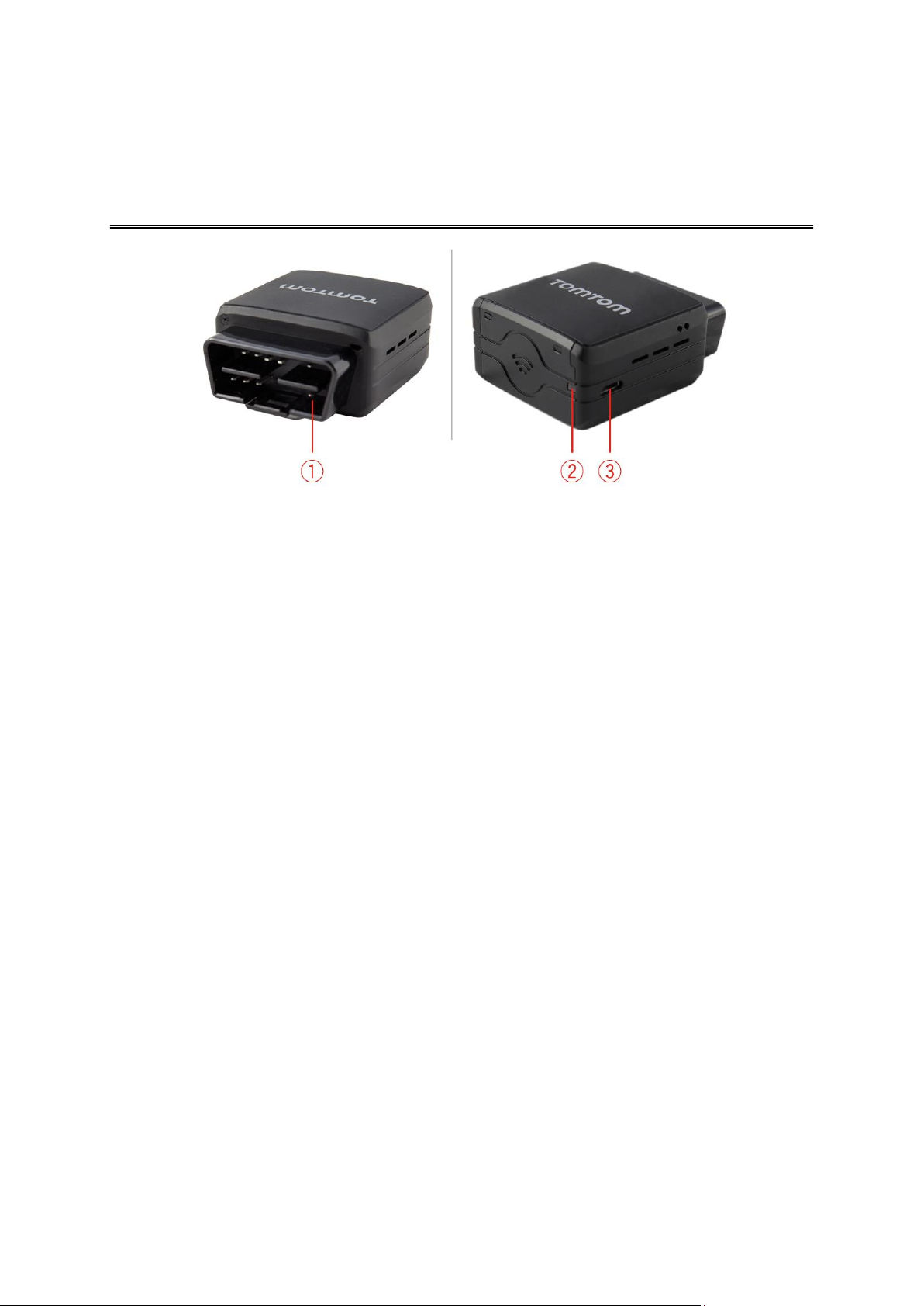

1. OBD-II connector.

2. Bi-colour LED (red/green) - connection and system status indicator.

3. Micro-USB-cable connector for maintenance - for qualified personnel from TomTom

Telematics only

Installation booklet

What’s in the box

Congratulations

You have chosen the TomTom LINK 201, a core hardware component of the WEBFLEET fleet

management solution. With WEBFLEET from TomTom Telematics you are connected to your

people out on the road in a smart and easy way.

TomTom LINK 201 is a GPS receiver and mobile network module in one unit, providing the

vehicle’s current position.

You can use the TomTom LINK 201 in vehicles equipped with an OBD-II port.

What you need for the installation

Before starting the installation of your TomTom LINK 201, read the safety notices and warnings

carefully and make sure you have the following:

A computer or a smartphone with an internet connection.

The WEBFLEET Contract Confirmation letter including the Activation Code and the Customer

Number.

All parts contained in the box.

A vehicle that has an OBD-II port.

A place with a clear view of the sky where you can move your vehicle to check GPS reception

and mobile network coverage.

Read me first

Important safety notices and warnings

Important: Read the following safety instructions carefully.

TomTom Telematics accept no liability for damage that results from disregarding the safety

instructions.

This document is part of the product. Keep it in a safe place. If you pass the unit on to a new user,

make sure you give them this document as well.

Risk of injury in case of accidents

Do not mount the unit or accessories in the inflation area of airbags or in the impact area for the

head or knees. Choose an installation location that will avoid interference with displays, safety

equipment and controls.

Use of this product is restricted in some areas

The TomTom LINK 201 contains a mobile network module which can interfere with electrical

devices such as cardiac pacemakers, hearing aids and aviation equipment. Interference with these

devices may endanger the health or life of you or others. If your device includes a mobile network

module, do not use it near unprotected electrical units or in areas where the use of mobile

telephones is prohibited, such as hospitals and aircraft.

Danger of explosion

Parts of the TomTom LINK 201 can cause sparks that can lead to explosions. This may endanger

human health and life. Do not use the unit in areas with high risk of explosion. When using a

TomTom LINK 201 in a vehicle fuelled by liquefied gas, follow the safety regulations of the country

in which the vehicle is operated.

Repair and replacement

Repairs must be carried out by authorised and qualified personnel only. Never replace damaged

parts of the unit yourself. Send the defective unit to TomTom Telematics for repair. Only the

qualified staff of TomTom Telematics are authorised to repair or replace parts.

Damage to the device

Short-circuits inside the unit can be caused by contact with water or other liquids. The unit may be

damaged by contact with water. Use and store the unit in an area protected from water.

Safety first

Activating the LINK 201

You need to activate the LINK 201 before you can install and use it.

To activate your LINK 201 you need the following:

A computer or a smartphone with internet connection.

The activation code of your LINK 201, which you can find in your WEBFLEET contract

confirmation.

The customer number stated in your WEBFLEET contract confirmation.

The serial number of your LINK 201.

To activate your LINK 201 go to http://telematics.tomtom.com/activation and follow the

instructions.

Choosing the correct position

First you need to choose the correct position in which to install your LINK 201.

Take the following into consideration:

Do not expose the LINK 201 to direct sunlight and/or high temperature for long periods to

ensure proper operation.

To ensure GPS reception using the integrated GPS receiver, the top of the device must not be

obstructed by metal items.

To ensure mobile network reception using the integrated antenna, the device must not be

placed on or surrounded by metal items such as the vehicle’s coachwork closer than 5 cm (2

inches) and the top side must not be obstructed by metal items.

If the OBD-II connector of your vehicle does not provide enough space to insert the LINK 201,

you can use the OBD-II extension cable from TomTom Telematics.

If the OBD-II extension cable is used, make sure it is firmly fixed so it cannot interfere with the

driver's actions.

Preparations

Important: To connect or disconnect the LINK 201, the vehicle ignition must be off.

To connect your LINK 201 to the vehicle and calibrate it do the following.

1. Make sure the ignition of the vehicle is turned off.

2. Find the OBD-II port in your vehicle.

Refer to the manual of your vehicle. In many vehicles you can find the OBD-II port in the

footwell (A), close to the fuse box (B), beneath the dashboard (C), or in the centre console (D).

3. Insert the LINK 201 into the OBD-II port.

If the space surrounding the OBD-II port in your vehicle does not allow the LINK 201 to be

inserted, you can use the OBD-II extension cable from TomTom Telematics. If you use the

OBD-II extension cable, make sure you have firmly fixed it so it cannot drop off. Make sure

the cable does not interfere with the driver's actions.

The bi-colour LED of your LINK 201 is permanent red to show the device is properly connect-

ed to the vehicle.

For some vehicle models, the LINK 201 requires calibration and we recommend to always

follow the instructions provided below.

4. Wait until the LED of your LINK 201 shows that the device has GPS reception.

5. Switch on the ignition and drive with minimum 20 km/h for at least five minutes.

The LINK 201 registers the voltage differences and calibrates to detect ignition on events.

6. Stop driving and turn off the ignition.

7. Wait for minimum five minutes.

The LINK 201 registers the voltage differences and calibrates to detect ignition off events.

If you have disconnected and connected the LINK 201 to the OBD-II port of the same vehicle there

is no need to calibrate it again.

Connecting the LINK 201

Understading your LINK 201

In the following table the different LED modes are explained showing you working stages of your

LINK 201.

Green LED

Red LED

OFF

LINK 201 is booting.

The LINK 201 boots for approximately 30

seconds after you have connected it to the OBD-II

port of the vehicle before it starts establishing

mobile network and GPS reception.

FLASHING - 3 times

short

(repeats every 4

seconds)

Establishing mobile network and GPS reception.

FLASHING - 2 times

short

(repeats every 4

seconds)

Establishing mobile network reception.

GPS reception is established.

FLASHING - 1 time

short

(repeats every 4

seconds)

Establishing GPS reception.

Mobile network reception is established.

ON - 1 second

(repeats every 4

seconds)

System is ready.

Mobile network and GPS reception established.

Troubleshooting

If your LINK 201 does not report trips to WEBFLEET properly anymore, the device may need to be

reset. For this please contact the TomTom Telematics Customer Support.

If you experience technical issues or have frequently asked questions, please go to the Customer

Support Portal on http://telematics.tomtom.com/support/

Diagnostics

Processor

ARM 11 - 500 MHz

RAM

64 MB

NAND Flash

256 MB

Mobile networks

Quad-band GSM/GPRS module

Integrated mobile network antenna

GPS

GPS receiver - Sirf Atlas V

Sensitivity: -161dBm, 64 channels

Integrated GPS antenna

Acceleration sensor

3D accelerometer

+-2g, +-4g,+-8g. In teh V2 it's only +-2g

USB

Micro USB 2.0

Supply voltage

12 V and 24 V (min 8 V to max 32 V)

Connector

OBD-II connector

Temperature

Operation: -25 °C to 60 °C

Dimensions

27 mm x 48 mm x 49.5 mm

Current consump-

tion (average values)

Active: 250 mA

Hibernate: 0.7 mA

Sleep mode: 2 mA

Technical data

Important Safety Notices and Warnings

Global Positioning System (GPS) and Global Navigation Satellite System (GLONASS)

The Global Positioning System (GPS) and Global Navigation Satellite System (GLONASS) systems

are satellite-based systems that provide location and timing information around the globe. GPS is

operated and controlled by the Government of the United States of America, which is solely

responsible for its availability and accuracy. GLONASS is operated and controlled by the

Government of Russia, which is solely responsible for its availability and accuracy. Changes in

GPS or GLONASS availability and accuracy, or in environmental conditions may impact the

operation of this device. TomTom disclaims any liability for the availability and accuracy of GPS or

GLONASS.

Aircraft and hospitals

Use of devices with an antenna is prohibited on most aircraft, in many hospitals and in many other

locations. This device must not be used in these environments.

How TomTom uses your information

Information regarding the use of personal information can be found at tomtom.com/privacy.

Battery and Environmental information

Depending on the hardware version this product uses a non rechargeable Lithium battery that is

not user accessible or user replaceable. Do not open the case or (attempt to) remove the battery.

Substances in the product and/or battery may be harmful to the environment or your health if

disposed of improperly. The battery contained in the product must be recycled or disposed of

properly according to the local laws and regulations and always kept separate from household

waste.

CE marking

This equipment complies with the requirements for CE marking when used in a residential,

commercial, vehicular or light industrial environment, achieving all the appropriate provisions of

the relevant legislation in the EU.

Model numbers: C4DONGLE-2G

Addendum
