Foodservice Equipment

Job ________ Item# ________

1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com

Form 906 Rev 0 (02/05)

Application

The Toastmaster Countertop

Electric Griddle is the most

economical and flexible Countertop

Griddle in the food service industry.

It offers unsurpassed performance,

combining a proven control system

with Toastmaster quality and

durability. Available in three different

sizes: 24", 36", and 48".

Standard Features

•Stainless steel front, top an

sides, including top rail.

•Aluminized steel rear.

•4” steel legs.

•Griddle capacity is 24”W, 36”W,

48”W x 24” depth to 7324,

7336, and 7348 respectively.

•1/2” thick polished rolled steel

plate with 4” high rear and side

splash guards.

•Full width stainless steel grease

trough mounted at the front of

the cooking surface.

•Griddle temperature controlled

by thermostat adjustable from

150oF to 450oF, with indicator

light per thermostat.

Electrical

All electrical connections are made

to terminal block in compartment at

rear. Knockouts located adjacent to

terminal block. Available 208/240V

AC 1-phase or 480V AC 3 phase.

Heating

Heating is accomplished by

performed tubular heating elements

that are pressure clamped to the

underside of the griddle surface.

The heaters are designed to

provide perimeter heat to assure

even heating.

Countertop Electric Griddle

Models TECG7324, 7336, 7348

COUNTERTOP ELECTRIC GRIDDLE - MODELS TECG7324, 7336, 7348

TECG7324

Controls

Temperature is controlled by

thermostat adjustable from 150oF to

450oF with a positive “OFF”

position. A cycle light is associated

with each thermostat.

Warranty

Product warranty includes one year

parts and labor. (USA only)

Approximate Weights

TECG7324 - 162 lbs. shipping.

TECG7336 - 230 lbs. shipping.

TECG7348 - 340 lbs. shipping.

Cleanability

!Full with stainless steel grease

trough mounted in front of the

unit.

!Grease trough drains through

grease chutes into drawer type

receptacle.

INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.

Toastmaster, in line with its policy to continually improve its product, reserves the right to change materials or specifications without notice. Such

revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.

1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com

Countertop Electric Griddle

Models TECG7324, 7336, 7348

Form 906 Rev 0 (02/05)

COUNTERTOP ELECTRIC GRIDDLE - MODELS TECG7324, 7336, 7348

Ce manuel convient aux modèles suivants

Autres manuels Toastmaster Plaque

Toastmaster

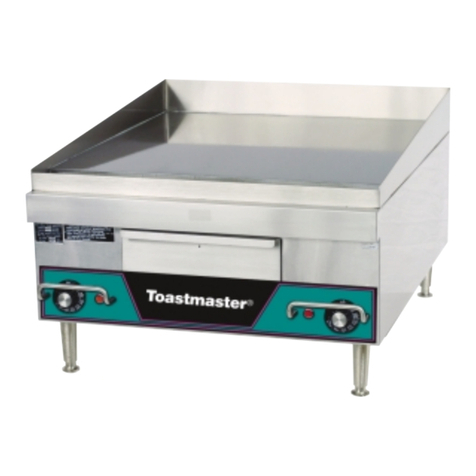

Toastmaster TECG732467 Manuel utilisateur
