Toastmaster ACCU-MISER AM24 Fiche technique

Toastmaster®

A Middleby Company

OWNER'S OPERATING

& INSTALLATION

MANUAL

AM24, AM36 & AM48

ACCU-MISER GRIDDLES

Part No. 32025

Price $15.00

P 2/95

Toastmaster® • 1400 Toastmaster Drive • Elgin, IL 60120 • (708)741-3300 • FAX (708)741-4406

Middleby Corp 24 Hour Service Hotline 1-800-238-8444

A Middleby Company

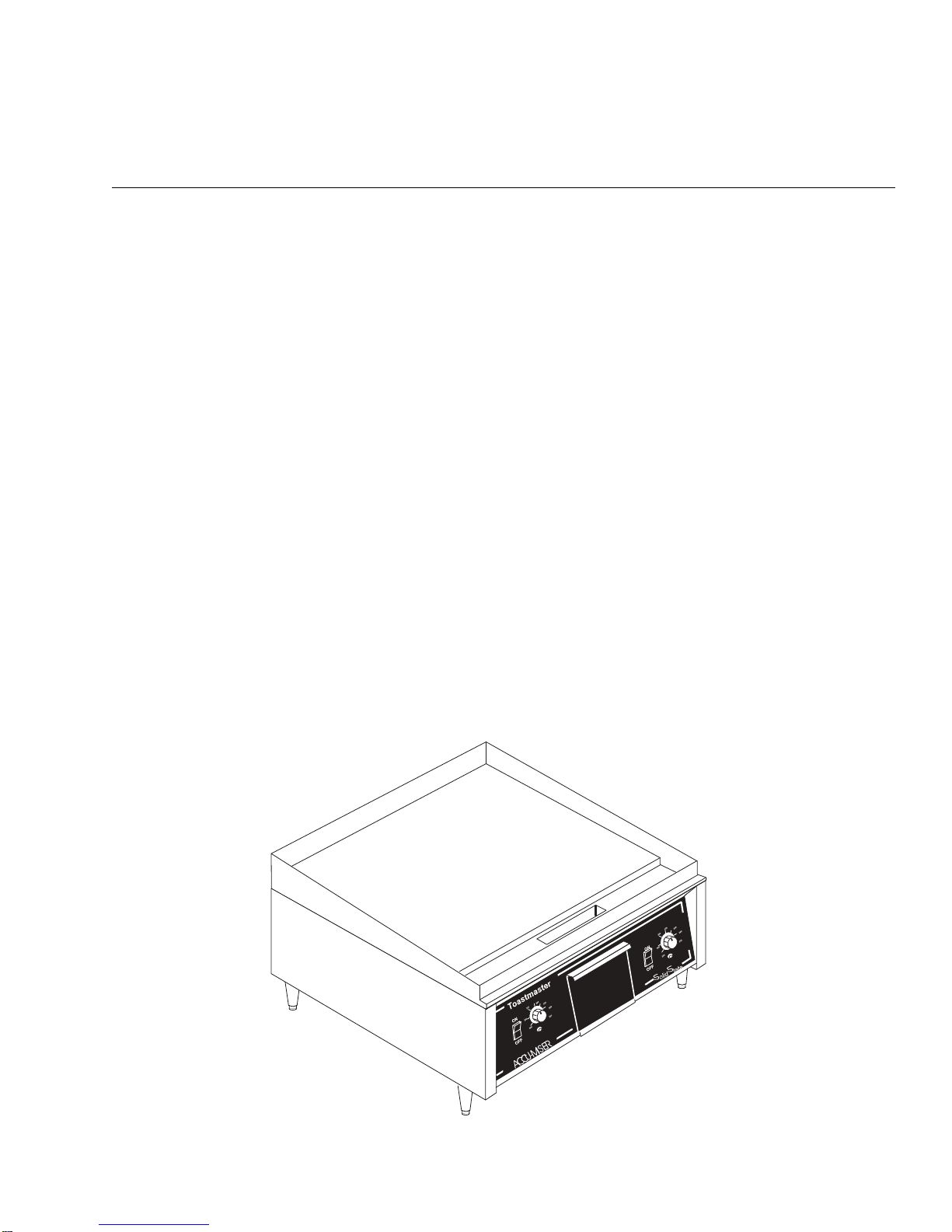

AM24

Toastmaster • 1400 Toastmaster Dr. • Elgin, IL 60120-9272 • (708) 741-3300 • FAX (708) 741-4406

Middleby Corp 24 Hour Service Hotline 1-800-238-8444

Toastmaster®

GRIDDLE LIMITED WARRANTY

All equipment manufactured by Toastmaster Commercial which is sold under the “Toast-

master” trademark and used for commercial purposes is warranted against defects in

materialsandworkmanship.Thewarrantyperiodruns12monthsfromtheoriginaldateof

installation.This12monthwarrantyperiodmaynotrunbeyond18monthsfromtheoriginal

date of purchase and is for the benefit of the original purchaser only. ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, INCLUDING

WITHOUT LIMITATION ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FIT-

NESS FOR PURPOSE ARE EXCLUDED. Seller shall in no event be liable for direct,

indirectorconsequentialdamagesin connectionwithToastmasterCommercialproducts.

Seller’s obligation under this warranty is limited to the repair of defects without charge, by

afactoryauthorizedserviceagencyoroneofitssub-serviceagencies.Suchrepairservice

will be provided on customer’s premises except in the case of portable products.

Models that are considered portable (devices with cord and plugs) including conveyor

toastersmustbetakenorshippedtotheclosestauthorizedserviceagency,transportation

charges prepaid.

This warranty is not effective if damage occurs because of accident, carelessness,

improper installation, lack of proper set-up supervision when required or because

equipmentis installedon adifferent voltage,steam orgas servicethen designatedon the

equipmentnameplate,orif the equipmentisinstalled or operated inanymannercontrary

to the installation and operation instructions. In these cases, repairs will be made at a

reasonable cost. Work performed by unauthorized personnel or service agencies voids

this warranty.

Authorized service agencies are located in principal cities throughout the world. Please

consult your classified telephone directory, your food service equipment distributor, or

write the Factory Service Department, Toastmaster®, 1400 Toastmaster Drive, Elgin,

Illinois 60120, for information and other details concerning service of this warranty.

IN CASE OF FIRE

1. De-energize griddle at disconnect switch. This will cut off power to the heating elements allowing

griddle to cool. This reduces the flash point temperature making it easier to stop the fire.

2. Cover the affected area with a heavy blanket or canvas. Play the fire extinguisher nozzle over the

blanket or cover to seal off air thus smothering the fire.

CAUTION:

Do not attempt to fight a grease fire by playing the nozzle of the fire extinguisher directly on the

burning grease. The force will cause the burning grease to be sprayed to adjoining equipment

making it difficult to contain the fire. Only use a fire extinguisher filled with CO2which is for liquids

and oils and suitable for electric powered equipment.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

Thismanual provides detailedinformation forinstallation and operationof yournew Accu-Miser griddle.

It also contains some information to assist the operator in diagnosing problems in the event of a

malfunction. This manual is an important tool for the operator and should be kept readily available.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS OR LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE

NOTICE

Toastmaster (Manufacturer) reserves the right

to change specifications and product design

without notice. Such revisions do not entitle

the buyer to corresponding changes, im-

provements, additions or replacements for

previously purchased equipment.

NOTICE

Using any parts other than

genuine Toastmaster factory

parts relieves the

manufacturer of all liability.

iii

TABLE OF CONTENTS

SECTION 1

DESCRIPTION ........................................................................................ 1

Component Location ................................................................................. 2

Specification Chart .................................................................................... 3

Electrical Specification Chart..................................................................... 4

Dimension Drawing ................................................................................... 5

SECTION 2

INSTALLATION ........................................................................................ 7

A. Inspect For Shipping Damage .............................................................. 7

B. Unpacking Griddle ................................................................................ 7

C. Installing Griddle on Counter ................................................................ 7

D. Installing Griddle on Accessory Stand .................................................. 8

E. Electrical Connection ............................................................................ 10

F. Initially Clean the Griddle ...................................................................... 11

G. Test the Installation .............................................................................. 11

SECTION 3

OPERATION ........................................................................................ 13

Location and Function of Controls............................................................. 13

A. Controls ........................................................................................ 14

B. Seasoning the Griddle.................................................................... 15

C. Operating Hints and Safety ............................................................ 15

D. Daily Operation and Maintenance .................................................. 15

E. Operation Troubleshooting ............................................................. 16

F. Time and Temperature Guide......................................................... 17

G. Cooking Capacities ........................................................................ 18

SECTION 4

PARTS LIST ........................................................................................ 19

Overall Parts List....................................................................................... 20

SECTION 5

ELECTRICAL SCHEMATIC............................................................................ 23

AM24 Wiring Diagram & Schematic .......................................................... 24

AM36 Wiring Diagram & Schematic .......................................................... 26

AM48 Wiring Diagram & Schematic .......................................................... 28

SECTION 1 - DESCRIPTION

SECTION 1

DESCRIPTION

ACCU-MISER (AM) SERIES GRIDDLES ARE:

• Electrically heated • Heated by infrared emitter panels

• Counter top mounted • Thermostat solid state controller

MODELS:

• AM24 (24" wide)

• AM36 (36" wide)

• AM48 (48" wide)

INFRARED HEAT PANELS.

The griddle employs infrared cooking technology. Infrared heat panels are placed below the griddle plate. These

panels are 12" wide, which means an AM24 will accommodate 2 panels, an AM36 will accommodate 3 panels and

etc. A thermostatic solid state controller for each 12" zone accurately maintains set griddle cooking temperatures for

consistent and repeatable results. The thermostats have a range of 150°F (83°C) to 450°F (232°C). The griddle

provides uniform heat distribution across the griddle surface.

FEATURES:

• Griddle On/Off switch.

• Thermostat Control with Heating Indicator Light (Red).

• The griddle features stainless steel front, sides and back.

• The griddle is equipped with a grease trough and a large grease drawer.

• The Toastmaster® AM Series Griddles are supplied with four 4" adjustable legs.

IMPORTANT!: For all installations the legs or the optional stand must be used to validate the warranty.

Figure 1-1

SECTION 1 - DESCRIPTION

Component Location

Figure 1-2

SECTION 1 - DESCRIPTION

NOTICE

Toastmaster (Manufacturer) reserves the right to change specifications and product design

without notice. Such revisions do not entitle the buyer to corresponding changes, improve-

ments, additions or replacements for previously purchased equipment.

AM Series Griddles Specification Chart

Griddle Plate Dimensions - AM24 23-7/8" (606 mm) W x 24" (610 mm) D

AM36 35-7/8" (911 mm) W x 24" (610 mm) D

AM48 47-3/4" (1213 mm) W x 24" (610 mm) D

Overall Dimensions - AM24 24" (610 mm)W x

28-1/2" (724 mm)D x 15" (381 mm)H

AM36 36" (914 mm)W x

28-1/2" (724 mm)D x 15" (381 mm) H

AM48 47-15/16" (1218 mm)W x

28-1/2" (724 mm)D x 15" (381 mm) H

Net Weight - AM24 120 lbs. (54 kgm)

AM36 222 lbs. (101 kgm)

AM48 275 lbs. 125 kgm)

Shipping Weight - AM24 140 lbs. (63 kgm)

AM36 242 lbs. (110 kgm)

AM48 300 lbs. (136 kgm)

Shipping Dimensions - AM24 28-1/2" (724 mm)W x

33-1/2" (851 mm)D x 17-1/2" (445 mm)H

AM36 40-1/2" (1029 mm)W x

33" (838 mm)D x 16-1/2" (419 mm) H

AM48 52-1/2" (1334 mm)W x

31-1/2" (800 mm)D x 16-1/2" (419 mm) H

Average Operating kw Refer to Electrical Data Chart on following page

Allowable Temperature Ranges 150°F (83°C) to 450°F (232°C)

Heat Source Infrared heat emitter panels

One 12" emitter panel for each 12" of griddle width

Griddle 3/8" thick, uniform heat distribution design

Grease Trough 3-1/2"

Outer Body Steel Front, 16 gauge stainless steel

Sides, 20 gauge stainless steel

SECTION 1 - DESCRIPTION

Griddle Electrical Specification Chart

Voltage Total Loading kW/Phase Nominal Amps/Line Wire Minimum Breaker

Supply Wire Rating*

(AWG) Gauge*

kW 3 Ph 3 Ph 1 Ph 3 Ph 1 Ph 3 Ph 1 Ph

X-Y Y-Z X-Z X Y Z

AM24 208 6.2 3.1 3.1 -- 15.0 26.0 15.0 30.0 10 8 25 30

240 6.2 3.1 3.1 -- 13.0 22.5 13.0 26.0 10 10 30 30

AM36 208 9.3 3.1 3.1 3.1 26.0 26.0 26.0 45.0 10 6 25 40

240 9.3 3.1 3.1 3.1 22.5 22.5 22.5 39.0 10 8 30 45

AM48 208 12.5 6.2 3.1 3.1 39.7 39.7 26.0 60.1 8 4 35 50

240 12.5 6.2 3.1 3.1 35.9 35.9 22.5 52.0 8 6 40 60

* Provided for reference only. Consult national or local electrical codes.

SECTION 1 - DESCRIPTION

Griddle Dimension Drawing

SECTION 1 - DESCRIPTION

NOTES
