Thank you for purchasing TOA's Wide Range Speaker.

Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of

your equipment.

CS-304U

WIDE RANGE SPEAKER

INSTRUCTION MANUAL

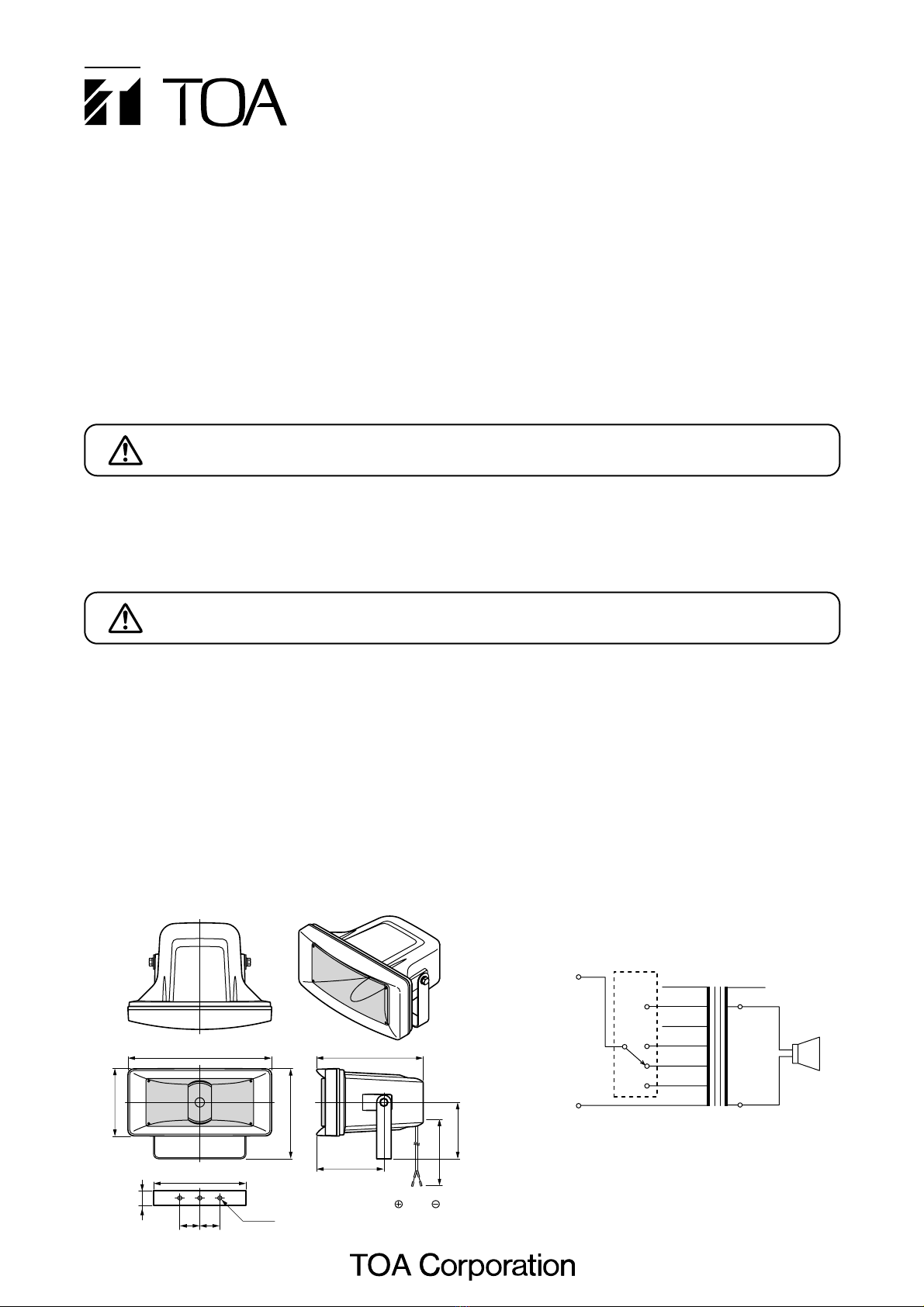

3. APPEARANCE AND DIMENSIONS

51 51 3-ø11

236

366

230

172

Unit: mm

144

600

272

Black White

16 Ω

8 Ω

Black (+)

White (–)

2 kΩ

1 kΩ

670 Ω

500 Ω

330 Ω

170 Ω

Rotary switch

Matching

transformer

MT-502D

Speaker

component

BST-234

Note

The rotary switch is factory-preset to 330 Ω.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read all the instructions in this section for correct and safe

operation.

•Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or

cautions regarding safety.

•After reading, keep this manual handy for future reference.

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

•Install the speaker only in a location that can structurally support the weight of the speaker and the mounting

bracket. Doing otherwise may result in the speaker falling down and causing personal injury and/or property

damage.

•Do not stand or sit on, nor hang down from the speaker as this may cause it to drop, resulting in personal

injury and/or property damage.

•Do not operate the speaker for an extended period of time with the sound distorting. This is an indication of a

malfunction, which in turn can cause heat to generate and result in a fire.

4. WIRING DIAGRAM

2. GENERAL DESCRIPTION AND FEATURES

TOA's CS-304U outdoor speaker features a resin enclosure and stainless steel hardware for all-weather

durability. It is designed to offer the weather resistance and high efficiency of horn speakers combined with

the high sound quality of cone speakers. The CS-304U also employs a constant directivity horn for clear

sound output over the limited horizontal range of dispersion.

Printed in Indonesia

533-06-112-90

5. IMPEDANCE CHANGE

Input impedance is factory-preset to 330 Ω.

To change the impedance, change the rear

panel-mounted rotary switch position to the

desired impedance (wattage) using a standard

screwdriver.

Notes

•This speaker is designed to operate on a 70

V or 100 V line. Do not connect it to the

amplifier's low impedance line.

•No sound is output when the switch is set to

the OFF position.

Caution

Never set the switch to "

–

" position for 100 V

line operation, as doing so may result in

damage to the speaker.

8. SPECIFICATIONS

* Impedance for 70 V line

Note

The design and specifications are subject to

change without notice for improvement.

20W 500Ω

30W 330Ω

OFF

5W 1kΩ

70V LINE

100V LINE

10W 1kΩ

OFF

30W 170Ω

15W 330Ω

10W 500Ω

Line Voltage Imp.

70 V 100 V

30 W –170 Ω

15 W 30 W 330 Ω

10 W 20 W 500 Ω

5 W 10 W 1 kΩ

← Factory-preset values

Speaker Component 12 cm cone speaker

Rated Input 30 W

Impedance (170 Ω)*, 330 Ω, 500 Ω, 1 kΩ

Frequency Response 120 –15,000 Hz

Sensitivity 98 dB (1 W, 1 m)

Finish Body ABS resin, off-white, paint

Bracket Stainless steel

Net Aluminum, gray, paint

Dimensions 366 (w) x 230 (h) x 272 (d) mm

Weight 3.1 kg

Wall surface

Ceiling surface

•Be sure to direct the speaker down

towards the ground. Otherwise, rain

floods the speaker, causing its failure.

•No mounting hardware such as bolts

and nuts is supplied with the speaker.

Use commercial mounting hardware

appropriate for the installation

environment.

•Please install only with either flexible

conduit or flexible wiring.

7. INSTALLATION

[Mounting on the wall][Mounting under the eaves

or on the ceiling]

6. CONNECTION

Make the connections using marrets (wire nuts)

inside a UL Listed junction box.

Note

This product shall be installed in accordance with

the National Electrical Code, ANSI/NFPA 70.

UL Listed Junction Box

(–)

(–)(+)

(+)

Marrets (wire nuts)

From Speaker

From Amplifier
