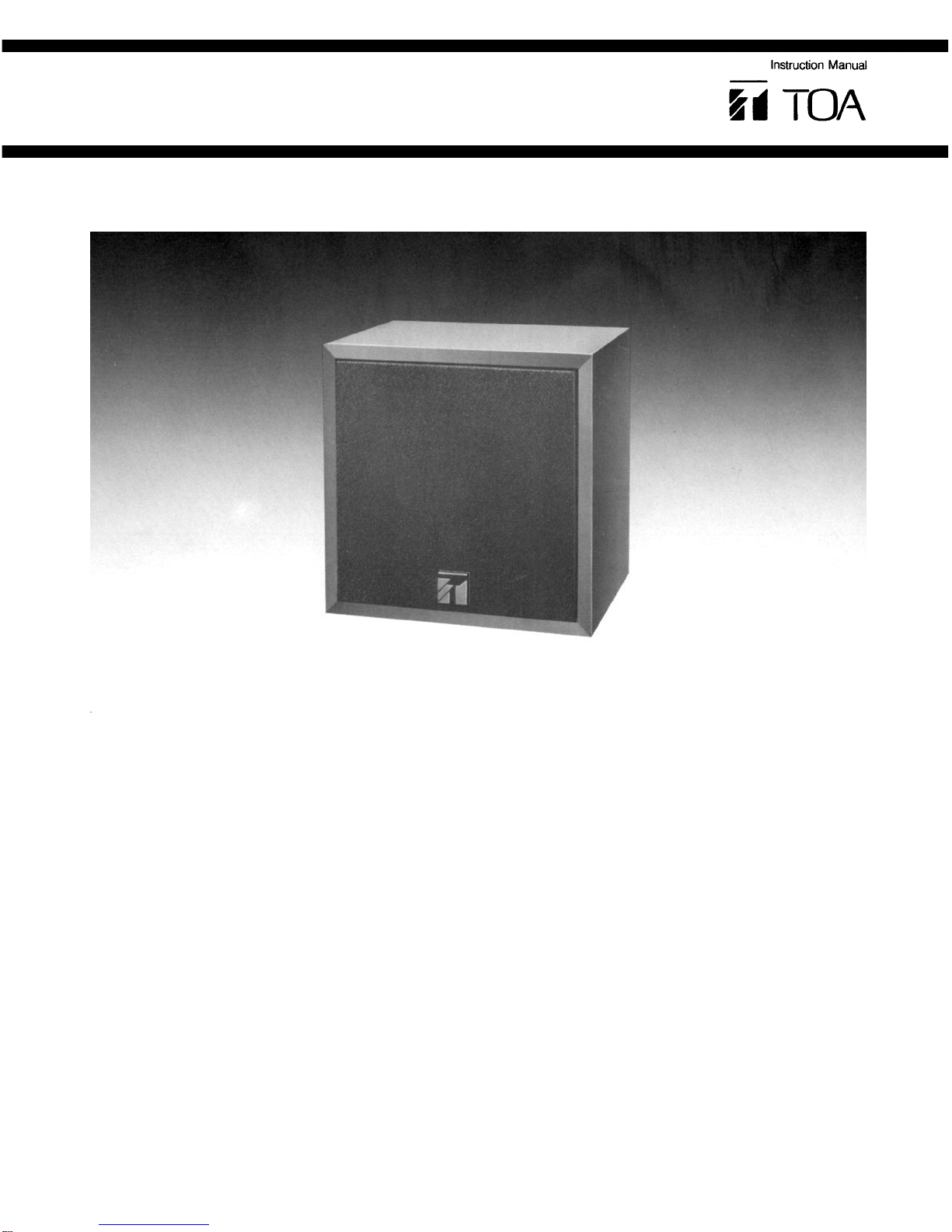

Toa 22-ME-AV Manuel utilisateur

PROFESSIONAL SOUND SYSTEM

Speaker System

Model 22-ME-AV

GENERAL DESCRIPTION

The TOA 22-ME-AV is a Full range reference monitor with

numerous applications in small recording studios, A/V

houses, and control rooms of broadcast facilities. Due to the

magnetically "shielded" component used in the 22-ME-AV,

the speaker enclosure may be physically located adjacent to

color televisions and video monitors with no degradation in

video quality. (Magnetic fields emitted by unshielded

systems may cause distortion and break-up of the video im-

age, when the speaker is placed in close proximity to a video

monitor.)

The 22-ME-AV is a sealed type enclosure, with a 5"(12cm)

full-range cone speaker. Power handling is a maximum of

120 watts of continuous program material. The 22-ME-AV

features push-type input terminals and a removeable front

grille. The wooden enclosure is finished in charcoal gray vinyl

sheeting, and T-nuts are provided on the bottom and back

plate for mounting brackets.

FEATURES

1 Full range system.

2. Smooth frequency response, low distortion, superb tran-

sient response, and wide dispersion.

3. Magnetically "shielded" speaker component for inter-

ference free video monitoring.

4. 5 inch (12cm) cone speaker.

5. Push-type input terminals.

6. Removeable front grille.

7 Compact and rugged.

8. Easily mounted to the wall or ceiling with optional mount-

ing brackets.

.

Specifications

Enclosure:

Sealed type

Speaker:

Magnetically shielded type

5"(12cm) cone

Power Handling Capacity:

Continuous Pink Noise: 40 Watts RMS of band-limited pink

noise (100Hz-20kHz)

Continuous Program: 120 Watts

Impedance:

8 ohms

Sensitivity:

90 dB (1W/1m)

Frequency Response:

100Hz-17kHz

Input Terminal:

Push-type

Dimensions:

6.9"(W)X6.9"(H)X6.1"(D)

175(W)X 175(H)X 154(D) mm

Weight:

5.7

Ibs. (2.6

kg)

Finish:

Charcoal gray

Installation

Using optional mounting bracket this speaker system

can be mounted to the wall or ceiling.

Wall or Ceiling Mounting Bracket: WCB-1

NOTE: Use two screws (M5x25mm) mounted on the

22-ME-AV to secure the bracket to the

enclosure, instead of the screws attached

with the bracket as they are too short.

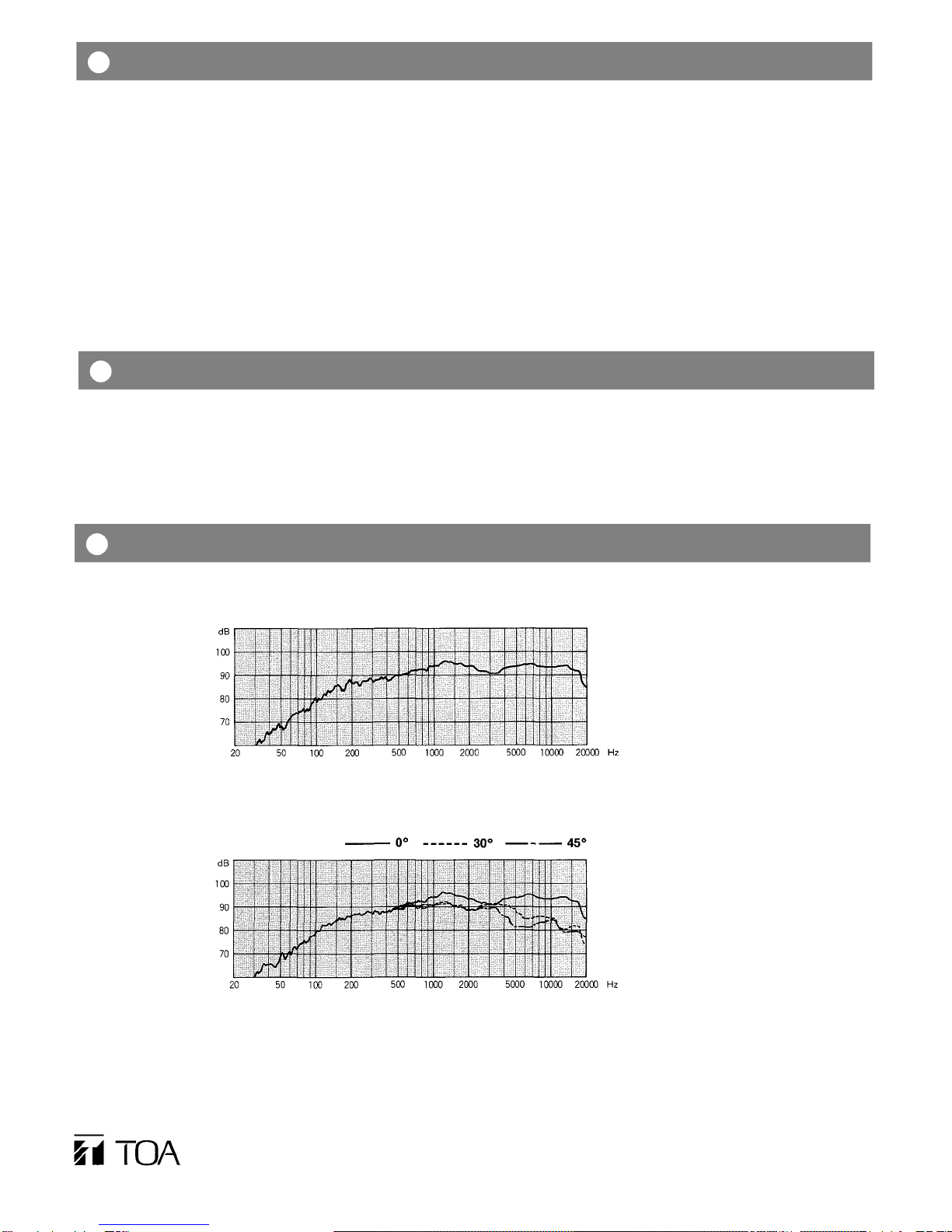

Characteristic Diagram (1W/1m: 1/3 Octave Pink Noise)

Frequency Response

Directional Frequency Response

ToaElectricCo.,Ltd.

Printed in Japan

133-01-205-70
