OPERATING INSTRUCTIONS

TOA INTERCOM SYSTEM

TELEPHONE LINE INTERFACE

Please follow the instru tions in this manual to obtain the optimum results from

this manual.

We also re ommend you to keep this manual handy for future referen e.

TOA Corporation

TD-600

All manuals and user guides at all-guides.com

all-guides.com

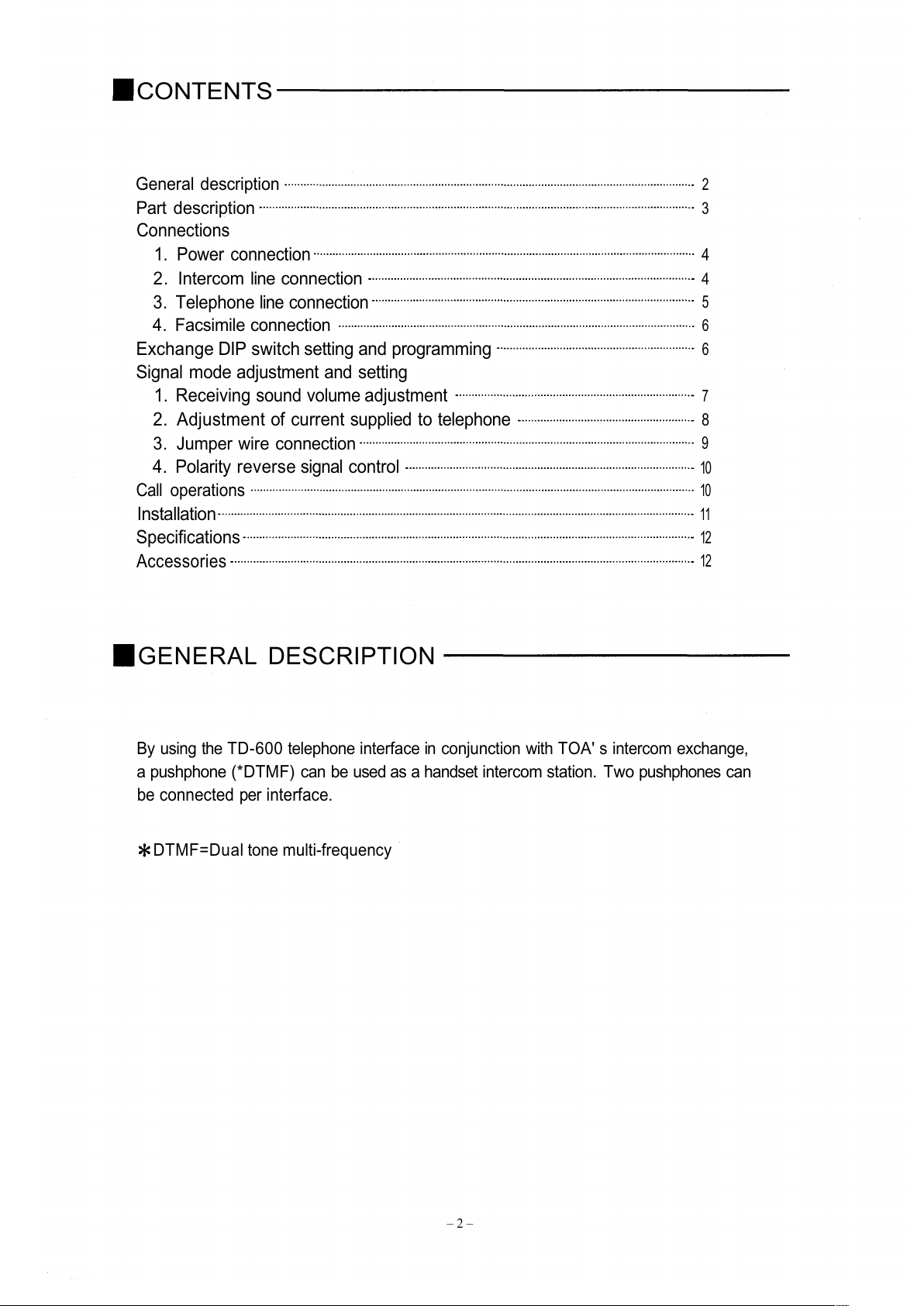

CONTENTS

General des ription

Part des ription

Conne tions

1. Power onne tion

2. Inter om line onne tion

3. Telephone line onne tion

4. Fa simile onne tion

Ex hange DIP swit h setting and programming

Signal mode adjustment and setting

1. Re eiving sound volume adjustment

2. Adjustment of urrent supplied to telephone

3. Jumper wire onne tion

4. Polarity reverse signal ontrol

Call operations

Installation

Spe ifi ations

A essories

GENERAL DESCRIPTION

By using the TD-600 telephone interfa e in onjun tion with TOA' s inter om ex hange,

a pushphone (*DTMF) an be used as a handset inter om station. Two pushphones an

be onne ted per interfa e.

– 2 –

DTMF=Dual tone multi-frequen y

All manuals and user guides at all-guides.com

PART DESCRIPTION

[Front view]

Power indi ator

CH1 telephone

hook-off indi ator

CH2 telephone

hook-off indi ator

[Rear view]

Earth terminal

(Be sure to ground.)

Power supply terminal

CH2 inter om line terminal

CH2 telephone line terminal

CH1 inter om line terminal

CH1 telephone line terminal

– 3 –

All manuals and user guides at all-guides.com

CONNECTIONS

1. Power onne tion

24V DC power supply

[AD-242A (2.5A) et ]

TD-600

2. Inter om line onne tion

2.1 When using EXES-6000 ex hange

CH2 inter om line terminal

CH1 inter om line

terminal

Twisted pair able et .

EXES-6000

series ex hange

BX-610/620

YR-810/801

TD-600

– 4 –

All manuals and user guides at all-guides.com

When using EX-200 ex hange

EX-200 ex hange

CH2 inter om line terminal

TD-600

inter om line

terminal

Twisted pair able et .

LM-20

Perform jumper wire settings as instru ted in page 9.

Telephone line onne tion

CH2 telephone line terminal

TD-600

CH1 telephone line

terminal

DTMF telephone

Usable telephones

1) DTMF type

2) Type with line impedan e of 600

2.2

– 5 –

Note:

All manuals and user guides at all-guides.com

Fa simile onne tion

TD-600

CH1 telephone line terminal

To fa simile line

terminal

Fa simile

CH2 telephone line terminal

Usable fa similes are restri ted that sele ting signal is transmitted a pushphone.

EXCHANGE DIP SWITCH SETTING

AND PROGRAMMING

All the lines or ex hanges to onne t the TD-600 should be set to the ontinuous all tone.

1. When using EX-200 ex hange

Perform the handset station registration with the station No. 24.

Handset station No. Handset station No.

2. When using EX-600 ex hange

Set the DIP swti h (SW-B-1) of CP-60 to ON to sele t the ontinuous all tone.

3. When using EX-610/620/630 ex hange

Set the DIP swti h (SW-E-8) of CP-66 to ON to sele t the ontinuous all tone.

– 6 –

Note:

All manuals and user guides at all-guides.com

all-guides.com

SIGNAL MODE ADJUSTMENT AND SETTING

Perform the signal mode setting before the final installation or wiring work be ause the

setting requires the removal of the top over.

Remove side plate s rews (four pla es).

Deta h the top over.

1. RECEIVING SOUND VOLUME ADJUSTMENT

The re eiving sound volume an be adjusted in 8dB steps by swit hing SW3 setting

as shown in the figure below.

Position of SW3 is fa tory-preset to "1".

Note:

Position of SW3

Re eiving sound volume step

0dB

8dB

16dB

+ 24dB

Position 1 of SW3 is set to 0dB.

[Rear]

[Front]

– 7 –

All manuals and user guides at all-guides.com

2. ADJUSTMENT OF CURRENT SUPPLIED TO TELEPHONE

The distan e between the TD-600 and telephone an be made greater by making swit h

positions of both SW1 and SW2 identi al to adjust the urrent to be supplied to the

telephone. See the table below.

The line loop resistan e is fa tory-preset to 0~1500

Positions of SW1/SW2

Line loop resistan e ( )

0~1500

1500~2000

2000 or more

[Rear]

[Front]

– 8 –

All manuals and user guides at all-guides.com

JUMPER WIRE CONNECTION (When using the EX-200 ex hange)

Referring to Table 1, hange settings of jumper wires JP1-JP3.

All jumpers are fa tory-preset to the EXES-6000' s settings.

EXES-6000

EX-200

Jumper installed

JP1

JP2

JP3

Jumper installed

Jumper not installed

Cut jumper

Install jumper

[Rear]

[Front]

Table 1

Ex hange

Jumper

– 9 –

All manuals and user guides at all-guides.com

4. POLARITY REVERSE SIGNAL CONTROL

When onne ting the telephone line terminal to equipment that must not re eive the polarity

reverse signal, install the jumper wire in pla e marked with JP4 in the figure.

Jumper JP4 is not fa tory-preset be ause the polarity reverse signal is set to transmit

from the CH1 or CH2 telephone line terminal.

[Rear]

[Front]

CALL OPERATIONS

(1 )Lift up the handset and onfirm that a dial tone is audible. Dial the desired station number

within 10 se onds.

(2)Repla e the handset when terminating the onversation.

(3)The inter om station's dial key

orresponds to dial key

of the pushphone.

[Example]

Inter om station

Pushphone

(All all paging)

• Dialing must be ompleted within 10 se onds after lifting up the handset. If in omplete,

no dial signal an be transmitted to the ex hange even when the dial keys are pressed.

Thus, the pushphone annot be used for fun tions su h as all transfer, spee h message,

busy all ba k et . to dial during the onversation.

• When transmitting the DTMF signal during the onversation in onun tion with the TI-20

or TI-600 tie-line unit et ., do not press any button of pushphone. This will lead to

malfu tion of the ex hange.

– 10 –

All manuals and user guides at all-guides.com
