Titon TP221T Manuel utilisateur

Product Manual

Trimbox Mixed Flow Fans

ventilation systems

TP220T TP221T TP222T TP223T

Safety Information

Important Information

Important: read these instructions fully before the installation

of this appliance

1. Installation of the appliance and accessories must be carried out

by a qualied and suitable competent person and be carried out

in clean, dry conditions where dust and humidity are at minimal

levels.

2. This manual covers the installation of the Titon In-Line Fans

3. All wiring must conform to current I.E.E. Wiring Regulations and

all applicable standards and Building Regulations.

4. The units must be connected to a local three pole isolation

switch with a contact separation of at least 3mm.

5. The units are suitable for 230V ~ 50/60Hz single phase suppy.

6. The units are DOUBLE INSULATED and marked with symbol.

There are no Earth terminals and these

units MUST NOT BE EARTHED.

7. Ensure cable clamp is used and fully tightened.

8. Cable entry must be made using the grommet supplied.

9. The unit must be stored in a clean and dry environment.

10. Do not install the appliance in areas where the following may be

present or occur;

• Excessive oil or a grease laden atmosphere,

• Corrosive or ammable gases, liquids or vapours,

• Ambient temperatures above 50°C or below 0°C,

• Obstructions which would hinder access to the fan unit.

• Ducting bends or duct transformations close to the fan unit.

• Humidity levels above 90% or is a wet environment.

11. The appliance is not suitable for installation to the exterior of the

dwelling.

12. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved. Children

should be supervised to ensure that they do not play with the

appliance. Cleaning and user maintenance shall not be made by

children without supervision.

13. The unit must not be connected to a tumble dryer or a cooker

hood.

14. Precautions must be taken to avoid the back-ow of gases into

the room from an open ue appliance.

15. Ensure impellor rotates and is free from obsructions and debris

before conneting ducting.

16. Ensure all ducting associated pipe work is free from debris and

blockages before switching on the unit.

Important environment information about this product.

This symbol on this unit or package, indicates that disposal of this unit

after its life cycle could harm the environment. Do not dispose the unit

as municipal waste; it should be disposed by a specialized company for

recycling. This unit should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt contact your local authorities about waste disposal rules.

Read instruction Manual.

Risk of Electric Shock.

Isolate from the mains power supply before removing

the cover.

Contains rotating mechanical parts. Following

isolation from the mains power supply allow sucient

time for all moving parts to stop before removing any

ducting.

Airow Direction

Explanation of symbols on the appliance.

Contents

When this document is viewed

as a PDF the headings & sub

headings on this page are

hyper links to the content.

Safety Information

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Explanation of symbols on the appliance. . . . . . . . . . . .4

Product Information

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Packaging Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Component Identication . . . . . . . . . . . . . . . . . . . . . . . .8

Fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Overrun Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Speed Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Product Fiche . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Maintenance

Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Product Information

Titon In-Line Fans are designed to extract humid & stale air and expel it to the exterior.

They are also suitable for extracting air from one room and expelling it to another room.

The fan unit is usually tted in the ceiling void, well away from the inlet. This In-Line

feature allows the inlet grille to be mounted in wet areas (eg near the splash zones of

bathrooms) or even above a shower. As the unit is in the ceiling cavity (away from the

inlet grille), noise from the fan is minimized

Product Features

Three speed Low, Medium & High.

Overun timer, 3-30 minutes.

Part Number TP220T TP221T TP222T TP223T

Duct Diameter ID Ø100mm Ø125mm Ø150mm Ø160mm

Supply Voltage 220-240V~ 50Hz

Power Rating 30W 60W

Supply Voltage 220-240V~ 60Hz

Power Rating 38W 84W

Fuse Rating 3A

Protection Class Class II

IP Rating IP55

Weight 1.9Kg 2.0Kg 3.0Kg 3.1Kg

Packaging Contents

Inspect the unit when taking delivery. Check the unit for damage and that all

accessories have been supplied. Package supplied with;

In-Line Fan Unit x 1.

Product Manual x 1.

Any shortages or damage must be immediately reported to the supplier.

Dimensions

The diagram details the overall size of the unit. Installer must allow additional space

around the unit to allow for future servicing and maintenance.

Part Number TP220T TP221T TP222T TP223T

Duct Diameter ID Ø100mm Ø125mm Ø150mm Ø160mm

Dimensions mm

ØA 98 123 148 158

ØB 173 200

C 111 131

D 295 269 289 271

E 100 110

F 195 231

G Fixing Centres 135 136

H Fixing Centres 176 214

Component Identication

Fixing

The units are designed as in-line duct fans to be tted between two duct runs.

1. Choose a suitable mounting location for the inlet grille. Ensure there is adequate

clearance for the ducting.

2. Choose a suitable location for the extract grille ensuring there is adequate clearance

for the ducting.

3. Choose a suitable mounting location for the fan unit. Ensure that a power outlet is

installed near the intended location of the unit.

4. The fan unit must be positioned at the highest point on the system so the ducting

will slope downwards to both grilles.

5. The airlfow direction is marked on the rating label.

6. Do not cover the fan unit with thermal insulation. Keep at least 100mm clearance

between the unit and any thermal insulation.

7. Mount the unit to a support using suitable xings through the four xing holes.

Impellor

Fixing Holes

Gromet

INLET

Terminal Box

8. The unit should be positioned so that the power cord is pointing downwards.

9. Orientation of the junction box can be adjusted to suit the fan units location

10. Unscrew and open the clamps.

11. Rotate the motor unit to the desired position.

12. Replace the clamps and tighten the screws.

13. The duct must not be installed vertically into a roof terminal - the product is not

designed or intended for this type of installation.

Ducting

1. Titon recommend using rigid ducting, any exible ducting used should be fully

extended.

2. All ducting joints must be xed using a method that ensures a long term seal is

achieved.

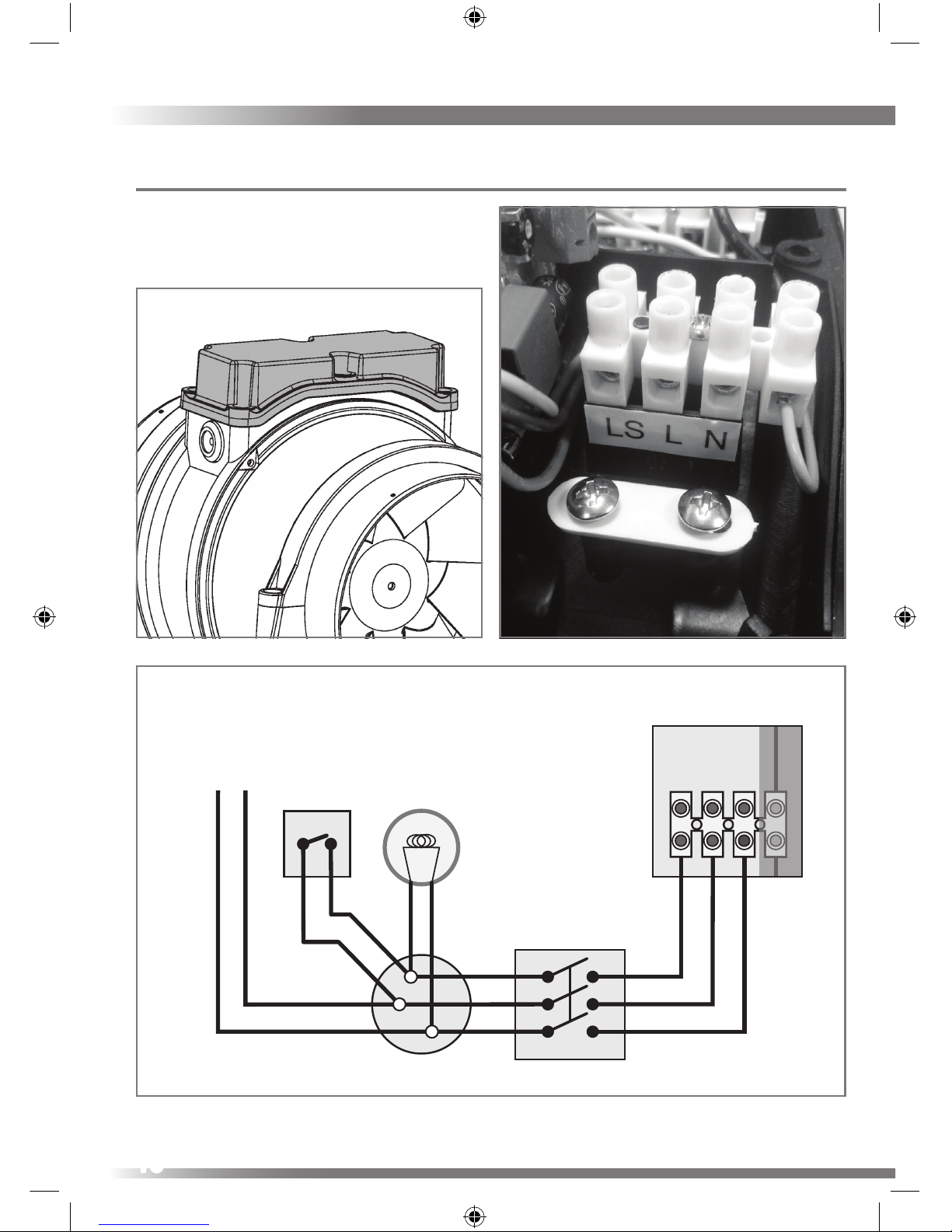

Wiring

1. Access to the wiring terminals is via

the terminal box on top of the unit.

NLs NL

TP 2xxT

220-240V~

50/60Hz
