Welcome

Find this user guide in additional languages, warranty information,

and more details about your Steadicam®Volt™at:

https://tiffen.com/steadicamvolt/

Pour ce guide d’utilisateur en d’autres langues, des informations de

garantie et plus de détails au sujet de votre Steadicam®Volt™allez à:

https://tiffen.com/steadicamvolt/

Retrouvez ce manuel d’utilisation en d’autres langues, des

informations sur la garantie et d’autres détails concernant votre

Steadicam®Volt™sur:

https://tiffen.com/steadicamvolt/

Encuentre esta guía del usuario en otros idiomas, información sobre

la garantía y más detalles sobre su Steadicam®Volt™en:

https://tiffen.com/steadicamvolt/

Diese Betriebsanleitung in mehreren Sprachen,

Garantieinformationen und weitere Einzelheiten über Steadicam®

Volt™ nden Sie auf:

https://tiffen.com/steadicamvolt/

Questa guida in altre lingue, informazioni sulla garanzia e ulteriori

dettagli su Steadicam®Volt™sono presenti su:

https://tiffen.com/steadicamvolt/

Steadicam®Volt™stabilizer

Also included:

• USB charge cable

• Carrying bag

• Quick start guide

Visit store.tiffen.com for accessories.

Battery charger Rechargeable batteries (2) GoPro mount

(Shipped installed)

Threaded start weight Magnetic weights (7) Button clearance pad

In the box

Congratulations on your new Steadicam®Volt™

stabilizer, an evolution of 40 years of Hollywood lm-

making in the palm of your hand! By simulating the

inertia found in professional Steadicam®rigs, this

stabilizer gives you real tactile feedback, allowing

moves that cannot be achieved by handheld operation

or with other stabilizers.

Download the Tiffen Imagemaker™App from your phone’s app

store to expand your camera’s video recording functionality.

Get started Setup

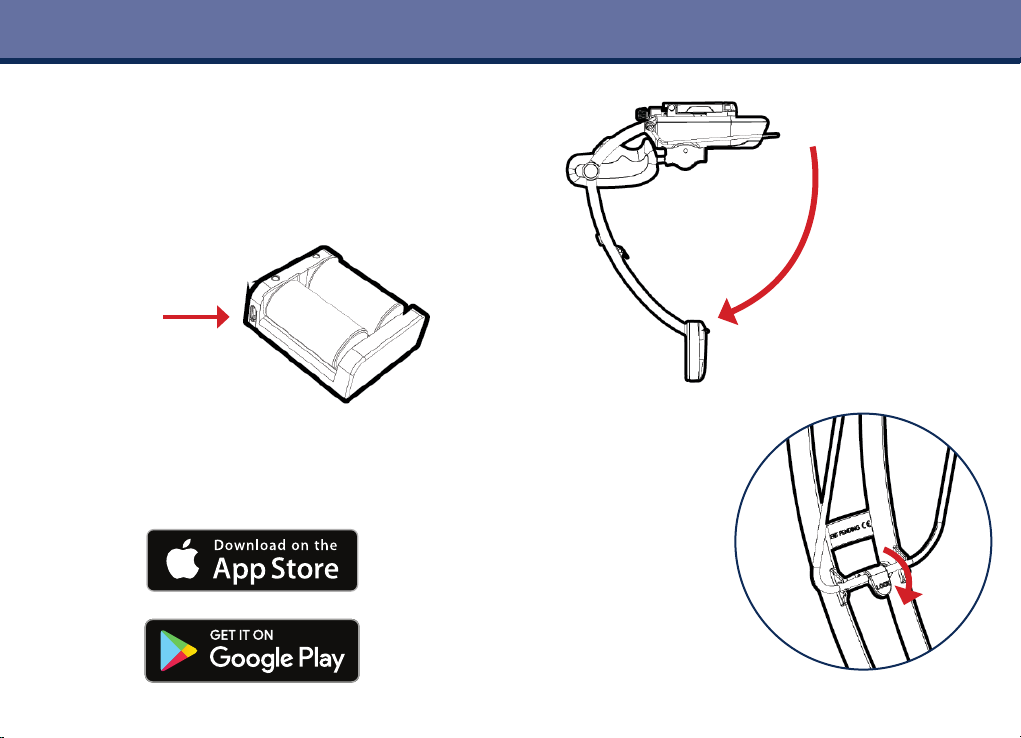

Remove the batteries from the stabilizer and charge batteries

completely before using. To charge, insert the batteries into

battery charger and connect to USB power.

Do not leave batteries charging unattended.

• Red LED: indicates charging in progress.

• Blue LED: indicates charging complete. Unfold the

Arc.

Unfold

support

brace and

clip to the

Arc.

USB

Setup Setup

Unfold

gimbal

handle.

Ensure power

switch is

turned OFF.

Remove

battery

cover

and install

charged

batteries.

+

+

Open the

phone

mount.

O I

Balancing Balancing

Visit tiffen.com for how-to videos and further instructions on

balancing Steadicam®Volt™.

u

v

w

Proper balancing is essential for Steadicam®Volt™to

stabilize your phone. Depending upon the weight of your

device, the stabilizer may need from 0 to 7 balance weights

on the base. Use as few weights as possible.

Center your

phone in the

spring-loaded

phone mount,

and make

sure it’s held

securely.

Next, check top-to-bottom balance. Hold stabilizer horizontal,

supporting most of the weight by the gimbal handle.

Dial the internal

base weight to

position #1.

Note: the stabilizer must have batteries installed, but remain

powered OFF during the balance procedure.

Small phones may require the use of a phone case or button

clearance pad to ensure a secure t.

BalancingBalancing

OR

x

Lighten your

grip on the

base, and if the

base rises up

out of hand,

the base is too

light for your

device.

If you lighten

your grip on

the base and

the base drops

down, the

base is too

heavy for your

device.

If the base is too

light, thread in the

starter weight and

re-test.

Still too light? Add

balance weights

until the base does

not rise up.

If the base is too

heavy, remove one

balance weight at

a time and re-test.

Remove weights

until the base rises

out of hand, then

add ONE weight

back on.

Balancing

Remember to keep the power OFF while balancing!

y

Balancing

z

{

To ne tune

top-to-bottom

balance, dial

the weight

adjuster until

the stabilizer

remains

horizontal as

seen below.

The

stabilizer

should

now hold

horizontal.

If it rolls

over, we’ll

adjust that

next.

Then level it side-to-side

by sliding your phone in the

mount. Make sure the phone

is still secure!

Hold stabilizer upright by

the gimbal handle and

level the stabilizer fore-aft

by turning the adjuster

knob as needed.

Tilt UP

Tilt DOWN

Power ON

Use your device’s camera mode or launch the Tiffen®

Imagemaker™ App for enhanced camera features.

Balancing

Visit tiffen.com

for how-to videos and further instructions on

balancing Steadicam®Volt™.

|When Steadicam®Volt™is balanced and you’re ready to roll

camera, slide the power switch to ON. Note: the gimbal

handle will spin if not held.

For optimal

performance,

repeat balance

steps 5, 6 and 7

until Steadicam®

Volt™balances

in all axes.

O I

LED’s and ModesThe Grip

Operational modes:

Two presses of the mode button engages Movie Mode, one

press returns to default Sport Mode.

• Sport Mode: motors have maximum inuence.

• Movie Mode: gives experienced operators additional

control.

• Blue LED: Indicates Volt is powered on.

Blue LED ashes when batteries are low.

• Green LED: Indicates Movie Mode (see below.)

• Red LED: Flashing indicates an overload situation due to

improper balance. Re-balance Steadicam®Volt™.

• Flashing LED’s at initial power-up is normal. Flashing

LED’s after power up indicates an error condition.

Visit

tiffen.com

for additional operating tips.

Use two hands and start lming! The gimbal grip supports

the stabilizer and a VERY LIGHT touch on the gimbal guide

controls pan and tilt of the camera. Practice makes perfect.

GoPro mount GoPro mount

Go to https://tiffen.com/steadicamvolt/ for camera

compatibility and setting congurations.

Note: side-to-side balance not required for GoPro cameras.

x

z

Remove the

phone mount

by turning the

adjustment

knob clockwise

and sliding the

mount off.

Install the GoPro

mount by sliding

it on and turning

the adjustment

knob counter-

clockwise.

Install your

GoPro

camera,

adjust and

add weights

as shown in

step

Adjust the

fore-aft

position as

shown in

step
