THORLABS CCS Series Manuel d'instructions

Spectrometer

CCS Series Spectrometer

Quick Start Manual

2022

Version:

Date:

Item No.:

2.2

12-Dec-2022

M0009-510-422

Foreword

Contents 2

1 General Information 3

31.1 Safety 51.2 Ordering Codes and Accessories 51.3 Requirements

2 Installation 6

62.1 Parts List 72.2 Installing Software

3 Getting Started 9

4 Appendix 11

114.1 Certifications and Compliances 124.2 Return of Devices 124.3 Manufacturer/Importer Address 124.4 Warranty 124.5 Copyright and Exclusion of Liability 134.6 Thorlabs Worldwide Contacts

We aim to develop and produce the best solution for your application

in the field of optical measurement technique. To help us to live up to

your expectations and improve our products permanently we need

your ideas and suggestions. Therefore, please let us know about

possible criticism or ideas. We and our international partners are

looking forward to hearing from you.

Thorlabs GmbH

Warning

Sections marked by this symbol explain dangers that might result in

personal injury or death. Always read the associated information

carefully, before performing the indicated procedure.

Please read these advices carefully!

This manual also contains "NOTES" and "HINTS" written in this form.

Attention

Paragraphs preceded by this symbol explain hazards that could

damage the instrument and the connected equipment or may cause

loss of data.

Note

1 General Information

Thorlabs' fiber-based, compact, Czerny-Turner CCD spectrometers are available in three mod-

els. Two are sub-nanometer accuracy models that provide detection in the 350 - 700 nm

(CCS110x) or 500 - 1000 nm (CCS175x) range. The CCS200 offers a wide 200 - 1000 nm

spectral range with better than 2 nm accuracy. With the small footprint (122 mm x 79 mm x

29.5 mm), all units share features with larger, more expensive spectrometers such as the ability

to be synchronized via a TTL trigger input (up to 100 Hz) and to automatically compensate for

noise created by dark current.

The CCS Series Spectrometer is designed for general laboratory use. Integrated routines allow

averaging, smoothing, peak indexing, as well as saving and recalling data sets.

Application software OSA-SW

OSA-SW is an acronym for "Optical Spectrum Analyzer Software". This software acquires dir-

ect, transmittance and absorbance measurements in conjunction with Thorlabs' optical spec-

trum analyzers and CCD spectrometers.

Attention

Do not connect the CCS Series Spectrometer to a PC prior to installing the OSA-SW Applica-

tion! The installation package includes CCS Series Spectrometer specific drivers and software

that must be installed before the CCS Series Spectrometer is connected to the PC for the first

time.

After the installation, the software communicates with all Thorlabs CCD based CCS Series

Spectrometers and OSA20x Optical Spectrum Analyzers. Additionally, a number of virtual

devices are included to demonstrate the functionality of OSA-SW: five for OSA20x Analyzers

and one for CCS spectrometers.

1.1 Safety

Attention

The safety of any system incorporating the equipment is the responsibility of the assembler of

the system.

All statements regarding safety of operation and technical data in this instruction manual will

only apply when the unit is operated correctly as it was designed for.

The CCS Series Spectrometer must not be operated in explosion endangered environments!

Do not obstruct the air ventilation slots in the housing!

Do not remove covers!

Do not open the cabinet. There are no parts serviceable by the operator inside!

This precision device is only serviceable if properly packed into the complete original packaging

including the plastic foam sleeves. If necessary, ask for replacement packaging.

Refer servicing to qualified personnel!

Only with written consent from Thorlabs may changes to single components be made or com-

ponents not supplied by Thorlabs be used.

CCS Series Spectrometer

Attention

The following statement applies to the products covered in this manual, unless otherwise

specified herein. The statement for other products will appear in the accompanying

documentation.

Note This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial envir-

onment. This equipment generates, uses, and can radiate radio frequency energy and, if not in-

stalled and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harm-

ful interference in which case the user will be required to correct the interference at his own ex-

pense.

Users that change or modify the product described in this manual in a way not expressly ap-

proved by Thorlabs (party responsible for compliance) could void the user’s authority to operate

the equipment.

Thorlabs is not responsible for any radio television interference caused by modifications of this

equipment or the substitution or attachment of connecting cables and equipment other than

those specified by Thorlabs. The correction of interference caused by such unauthorized

modification, substitution or attachment will be the responsibility of the user.

The use of shielded I/O cables is required when connecting this equipment to any and all

optional peripheral or host devices. Failure to do so may violate FCC and ICES rules.

Attention

Mobile telephones, cellular phones or other radio transmitters are not to be used within the

range of three meters of this unit since the electromagnetic field intensity may then exceed the

maximum allowed disturbance values according to IEC 61326-1.

This product has been tested and found to comply with the limits according to IEC 61326-1 for

using connection cables shorter than 3 meters (9.8 feet).

1 General Information

1.2 Ordering Codes and Accessories

Ordering code

Short description

CCS100(/M) 1

CCS spectrometer, 350 - 700 nm

CCS175(/M) 1

CCS spectrometer, 500 - 1000 nm

CCS200(/M) 1

CCS spectrometer, 200 - 1000nm

M14L01

1 m SMA MMF Patch Cable, 50µm / 0.22 NA (to CCS100 and

CCS175)

FG200UCC

1 m SMA MMF Patch cable, 200µm / 0.22 NA, High OH (to

CCS200)

CVH100; CVH100/M

Cuvette holder (imperial and metric versions)

1CCSxxx = imperial version, mounting holes 1/4-20;

CCSxxx/M = metric version, mounting holes M6x1

Attention

Make sure to use your CCS spectrometer only with the included fiber (see above table). If using

a different fiber, the Amplitude Correction Calibration will be affected!

1.3 Requirements

These are the requirements to the PC intended to be used for remote operation of the CCS

Series Spectrometer.

Minimum Requirements

·Operating System: Windows® 7 SP1, Windows®8, Windows®10, or Windows®11 (64 bit)

·Free USB 2.0 high speed port (Notice that a USB 1.1 port cannot be used)

·Processor: Intel Core i5™ or AMD Athlon II

·8.0 GB RAM

·.NET framework 4.7.2 or higher

·Monitor Resolution: 800 x 600 Pixel

Recommended Requirement

·Operating System: Windows® 11 (64 bit)

·Free USB 2.0 high speed port (Notice that a USB 1.1 port cannot be used)

·Processor: Intel™ Core i9 or AMD Athlon Ryzen

·16.0 GB RAM

·.NET framework 4.7.2 or higher

·Java Runtime 1.6 or higher

Note

An installer for .NET framework 4.7.2 is included in the full installer.

Please be aware that the OSA software requires a number of third party software installed on

your system. The installer checks for these software components and, if necessary, will install

them automatically. You will be notified accordingly.

CCS Series Spectrometer

2 Installation

Attention

Do not connect the CCS Series Spectrometer to a PC prior to install the OSA-SW Application!

The installation package includes CCS Series Spectrometer specific drivers and software that

must be installed before the CCS Series Spectrometer is connected to the PC for the first time.

2.1 Parts List

Inspect the shipping container for damage. If the shipping container seems to be damaged,

keep it until you have inspected the contents and you have inspected the CCS Series

Spectrometer mechanically and electrically.

Verify that you have received the following items within the package:

CCS Series Spectrometer

This CCS Series Spectrometer Quick Reference

USB 2.0 A-B mini cable, 1.5 meters

Optical Fiber, SMA to SMA, 50µm / 0.22 NA, 1 meter (CCS100, CCS175)

Quartz Fiber, SMA to SMA, 200µm / 0.22 NA, 1 meter (CCS200)

Trigger Input cable SMB to BNC

Attention

Make sure to use your CCS spectrometer only with the included fiber (see above table). If using

a different fiber, the Amplitude Correction Calibration will be affected.

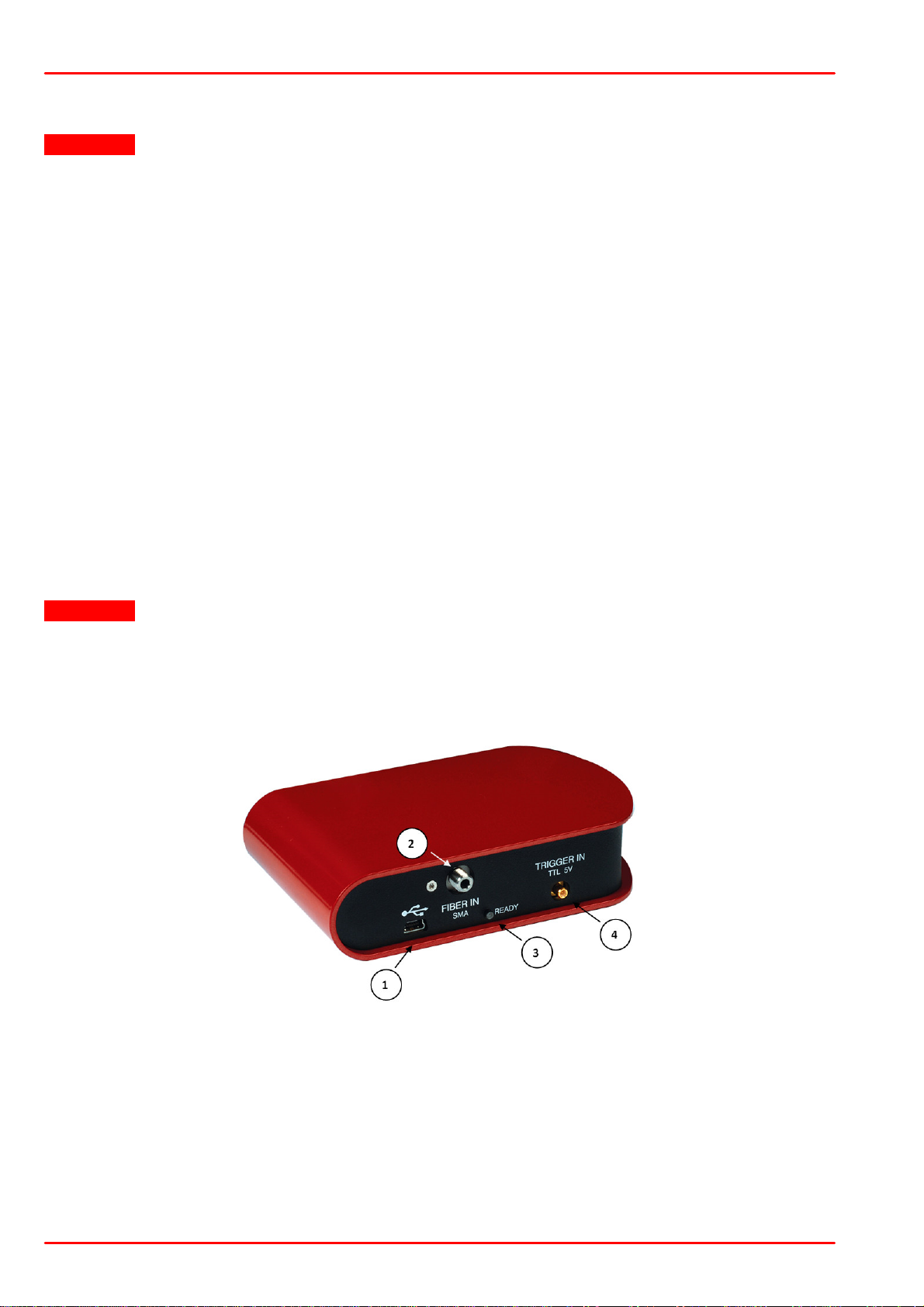

CCS Spectrometer - Ports and Signal LEDs

(1)

USB port

(2)

Fiber input (SMA connector)

(3)

Status LED

(4)

Trigger Input (SMB connector)

2 Installation

2.2 Installing Software

Before installing OSA Software, please make sure that no CCS Series Spectrometer is connec-

ted. The OSA Software is available for download fromt he Thorlabs website.

Note

Please be aware that the OSA software requires a number of third party software installed on

your system. The installer checks for these software components and, if necessary, will install

them automatically. You will be notified accordingly.

Administrator privileges are required for installation. Please contact your system administrator if

you get an error message.

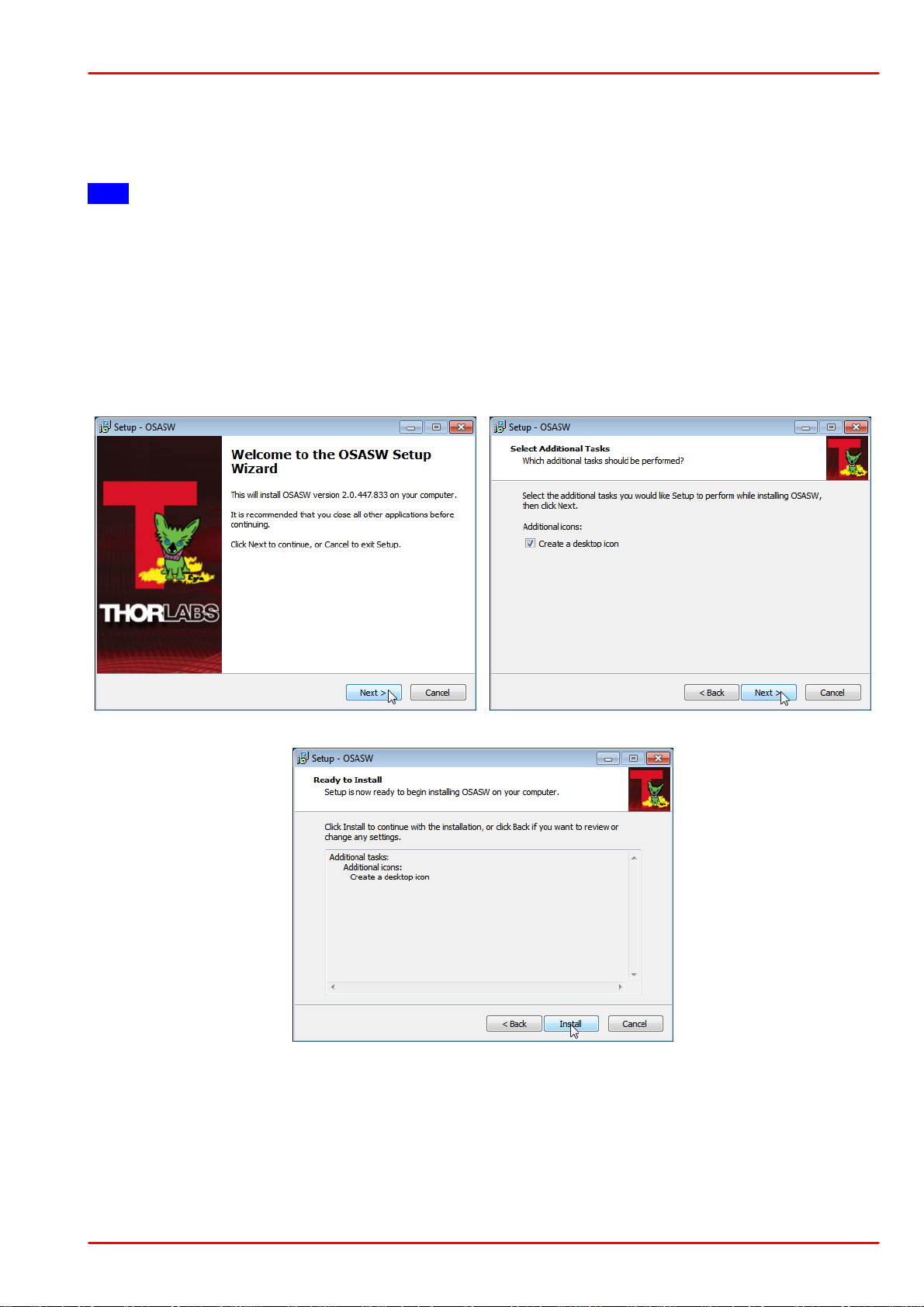

Installation steps are shown below in detail for an installation on a Windows 7©operating

system. After selecting "Install Software", the installer checks your system and determines the

software components that need to be installed.

Click "Install" to continue. The necessary software components (NI VISA) are being installed,

followed by installation of device driver software. The installation of all components is described

below.

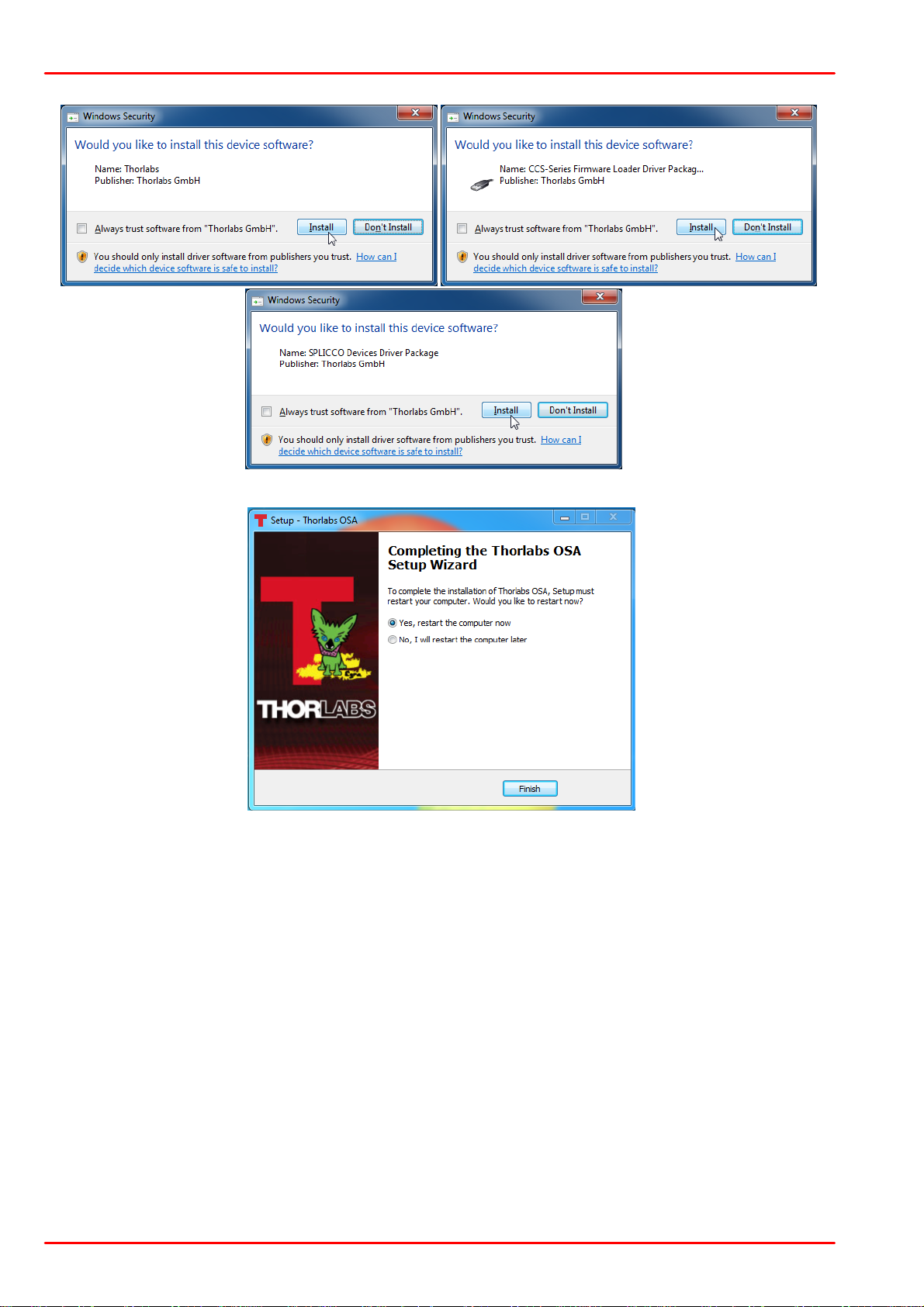

Depending on the set up security level, the Installation Wizard might ask to allow to install the

driver software:

CCS Series Spectrometer

To finalize the OSA Software installation, the computer must be restarted. Click "Finish" to re-

start and complete installation.
