Thor’s Drone World LIFTHOR LOKI Manuel utilisateur
by Thor’s Drone World
User’s Manual
LOK
I
Congratulations on your new
Phone / Tablet holder
for DJI FPV
LO
K
I
Aluminum body

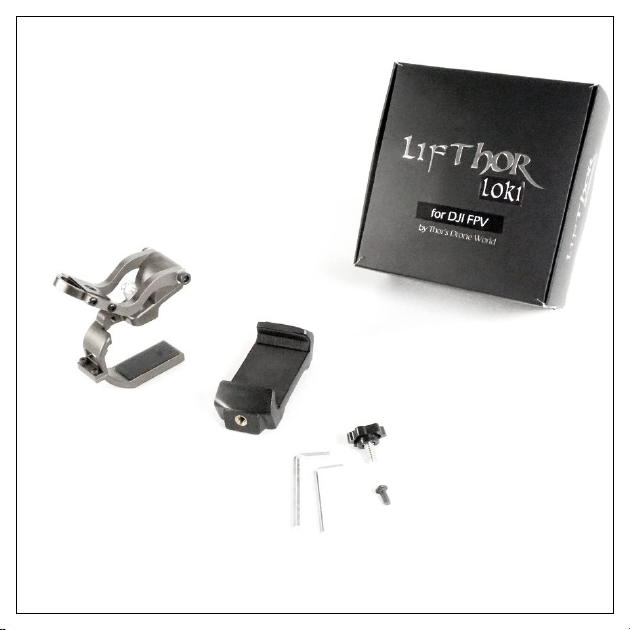

Content:
Phone / Tablet Clamp
Compatible with Smart phones
and tablets up to 10.5”
Tripod knob
Hex Key / Allen Key
(x2)
M4 Screw
How to assemble:

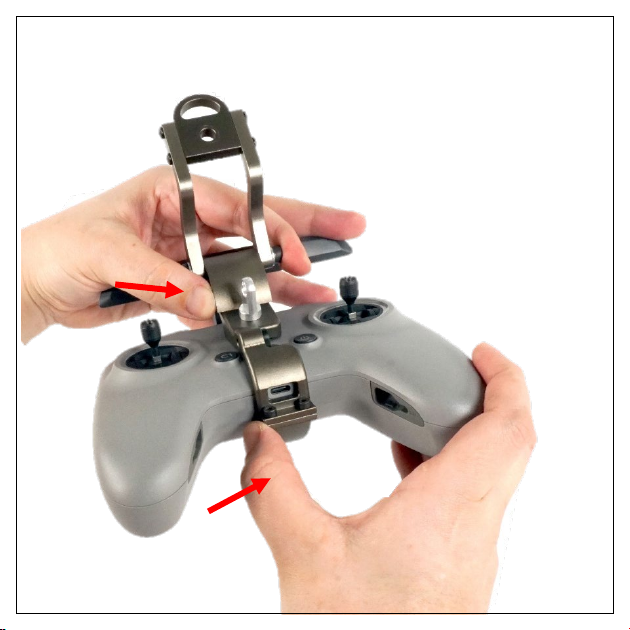

Raise the top bracket from the aluminum body to make access. If
needed use the big Hex Key provided to loosen slightly the hinge
bolt.
*There is no need to unmount the phone/tablet
clamp which comes already mounted

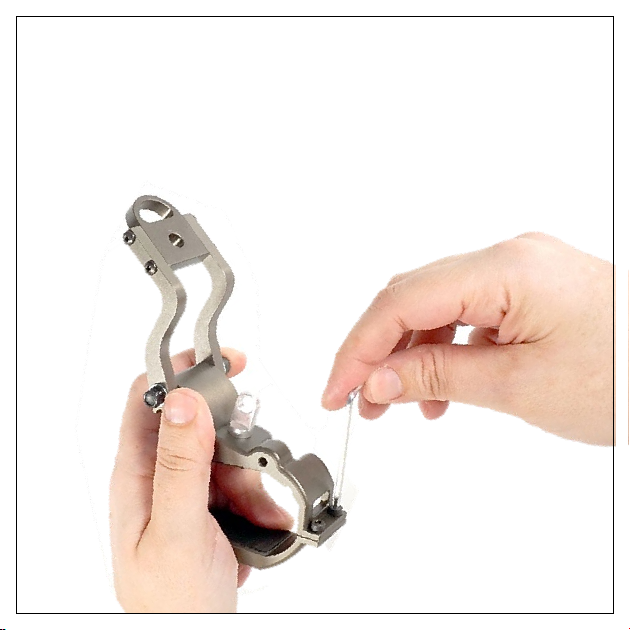

Using the smaller Hex key
provided, unscrew the two
small screw located in the
front

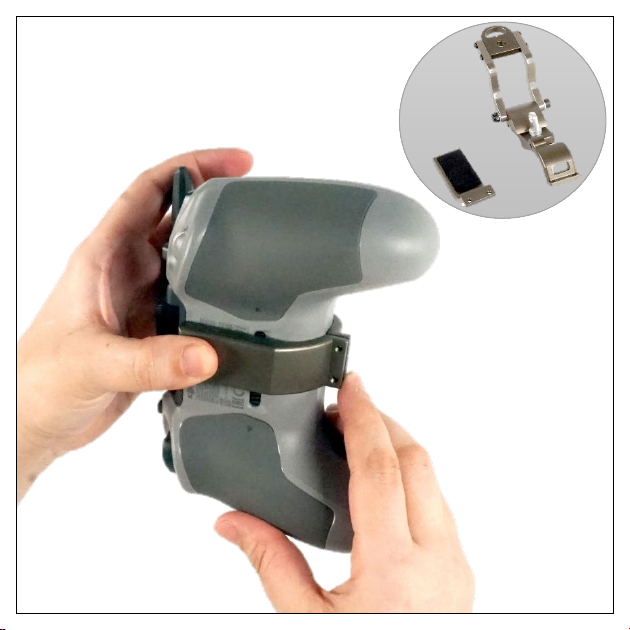

Once the bracket has been
disassembled, align it back on the
controller
Replace the screws and tighten them.

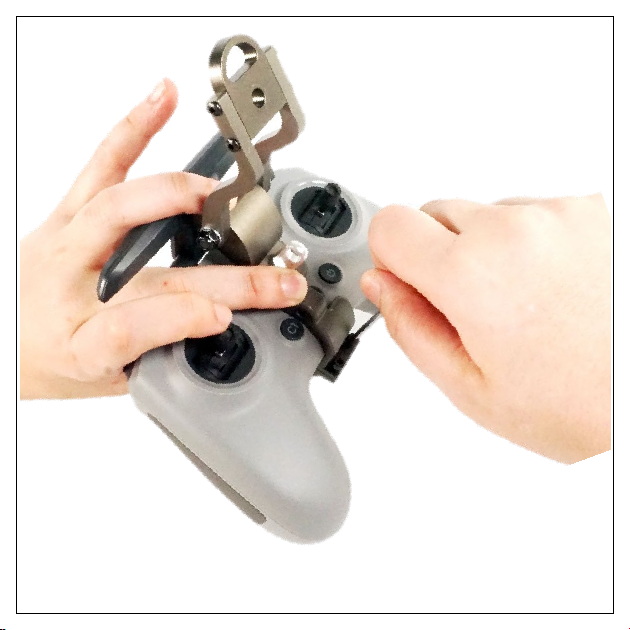

Once the mount is positioned, apply
light pressure to push it sideways to
align it with the RC’s integrated lanyard
hook /eyelet.

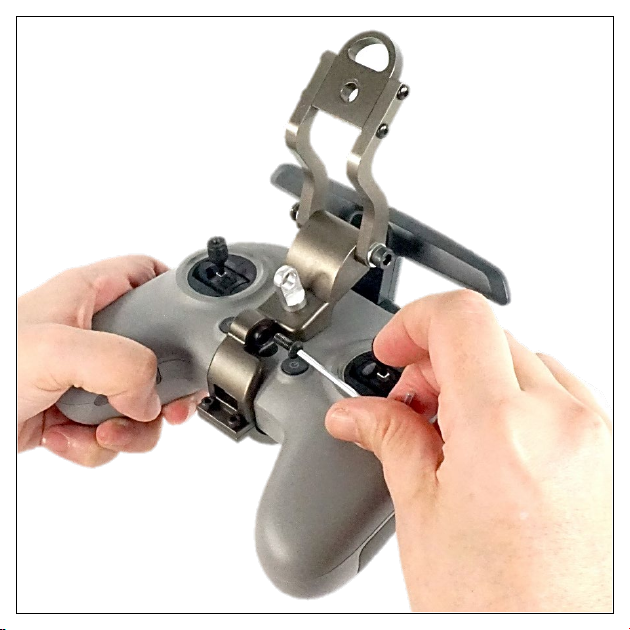

Secure the mount in place
by screwing the M4 screw
provided through the
lanyard hook onto the
LifThor mount

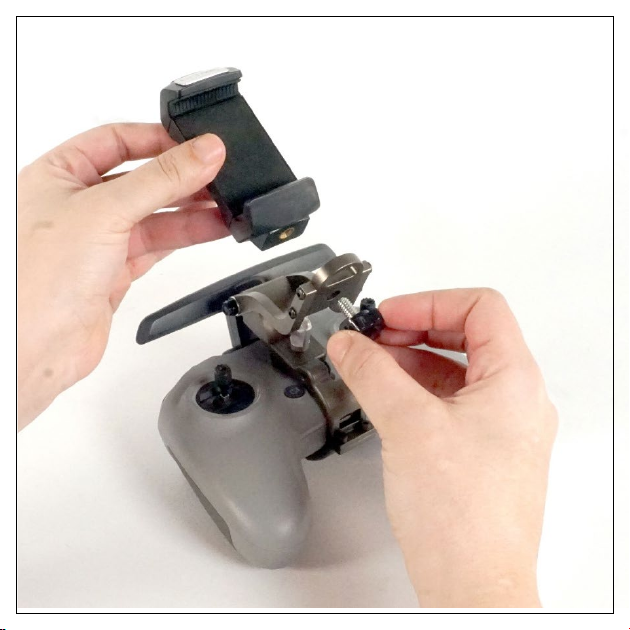

Lower back the top bracket and
mount the phone/tablet clamp by
using the tripod knob provided.
You can fix the position of the top
bracket by tightening the hinge
bolt with the big hex key.

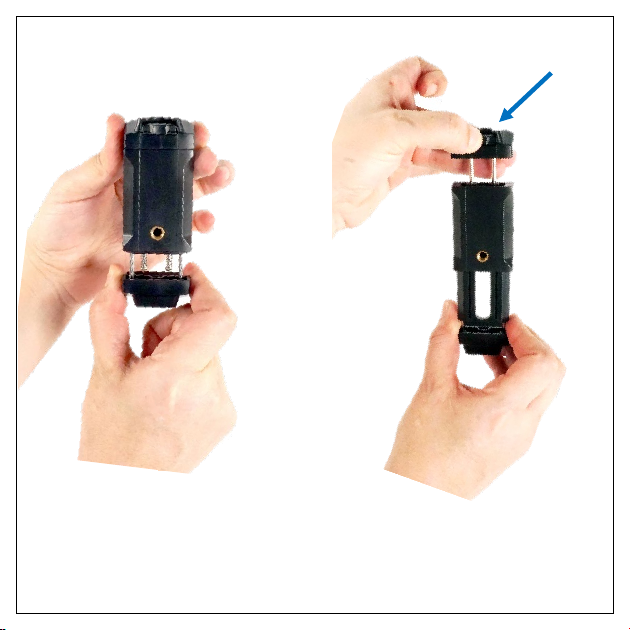

This Phone clamp consist of a doble expanding mechanism.
The lower mechanism supports the use of any Smart Phone. To
unlock the top bracket, push the release bottom located on the
top to expand both lower and upper brackets so it can support up
to a 10.5” tablet.
