DJI GOGGLES

DJI Goggles

DJI Goggles are equipped with high-performance displays and an ultra-low latency video

downlink for use with DJITM aircraft, giving you a real-time aerial First Person View (FPV)

experience. DJI Goggles can also be used to display HD videos, bringing you an immersive

high-denition viewing experience. DJI Goggles support head tracking, allowing aircraft and

gimbal to be controlled using head movements, introducing a new style of ying.*

1. Touch Panel

2. Headband

3. Charging Status Indicator

4. Micro USB Port

5. Headband Knob

6. Speaker

7. Power Button

8. Battery Level Indicators

9. Back Button

10. Function Button

11. Link Button

12. Linking Status Indicator

13. IPD (Interpupillary

Distance) Knob

14. Lens

15. Proximity Sensor

16. Headband Buckle

17. Heat Vent

18. Micro SD Card Slot

19. 3.5 mm Audio Port

20. HDMI Type-D Port

21. Speaker

18 19 20

* Only some aircraft are supported. Please refer to the User Manual for specic models and operations.

Installation and Wearing

Insert the Headband Buckle into the

slot above the DJI Goggles body.

Click

Adjust interpupillary distance.

Flip the DJI Goggles body to see outside.

Wear the DJI Goggles and

adjust the Headband.

Check the Battery Level and Charging

Press once to check the battery level.

Press once, then again and hold to turn on/off.

The Battery is fully charged when the Charging Status Indicator or the Battery

Level Indicators turn off.

Charge time: ~ 4 hours Maximum run-time: ~ 6 hours

Power Outlet

100~240V

USB Charger Micro USB Port

Activation and Connection

First-time activation is required before using your new DJI Goggles.

Ensure all devices are powered on and that the Aircraft is linked with the Remote

Controller. Make sure both are updated to the latest rmware versions.

Micro USB cable

* Live view only, support

somatic control of focus.

Visit the DJI website for

future updates.

Live view only.

INSPIRETM 2*

PHANTOMTM 4 Series

HDMI cable

INSPIRE Series

PHANTOM 4 PRO+

Activate with

DJI ASSISTANTTM 2

Download: www.dji.com/dji-goggles

Activate with

DJI GOTM 4 App

Please update the app rst.

DJI Assistant 2 can also be

used for activation.

DJI Assistant 2 supports Windows 7 (or

later) or OS X 10.11 (or later).

Connect DJI Goggles to your PC

with Micro USB cable, then run

DJI Assistant 2 to activate.

OCUSYNCTM

Press the Link Buttons

on the Mavic Pro and DJI

Goggles, or enter Tools >

Setting > Linking Setting to

connect.

MAVICTM PRO

HDMI cable

Video Play

Device

Low HighBattery Level

Specications

Weight (Typical) DJI Goggles Body: 495 g

Headband: 500 g

Dimensions DJI Goggles Body: 195 × 155 × 110 mm

Headband (folded): 255 × 205 × 92 mm

Screen Size 5 inch × 2

Screen Resolution 3840 × 1080 (single screen: 1920 × 1080)

Communication Frequency 2.4 GHz

Live View Modes 1080p30, 720p60, 720p30

Battery Capacity 9440 mAh

Operating Temperature Range 32° to 104° F (0° to 40° C)

Charger Input: 100-240 VAC, 50 / 60 Hz, 0.5 A

Output: 5 V 3 A / 9 V 2 A / 12 V 1.5 A

DJI is a trademark of DJI.

The content is subject to change.

Download the latest version from

www.dji.com/dji-goggles

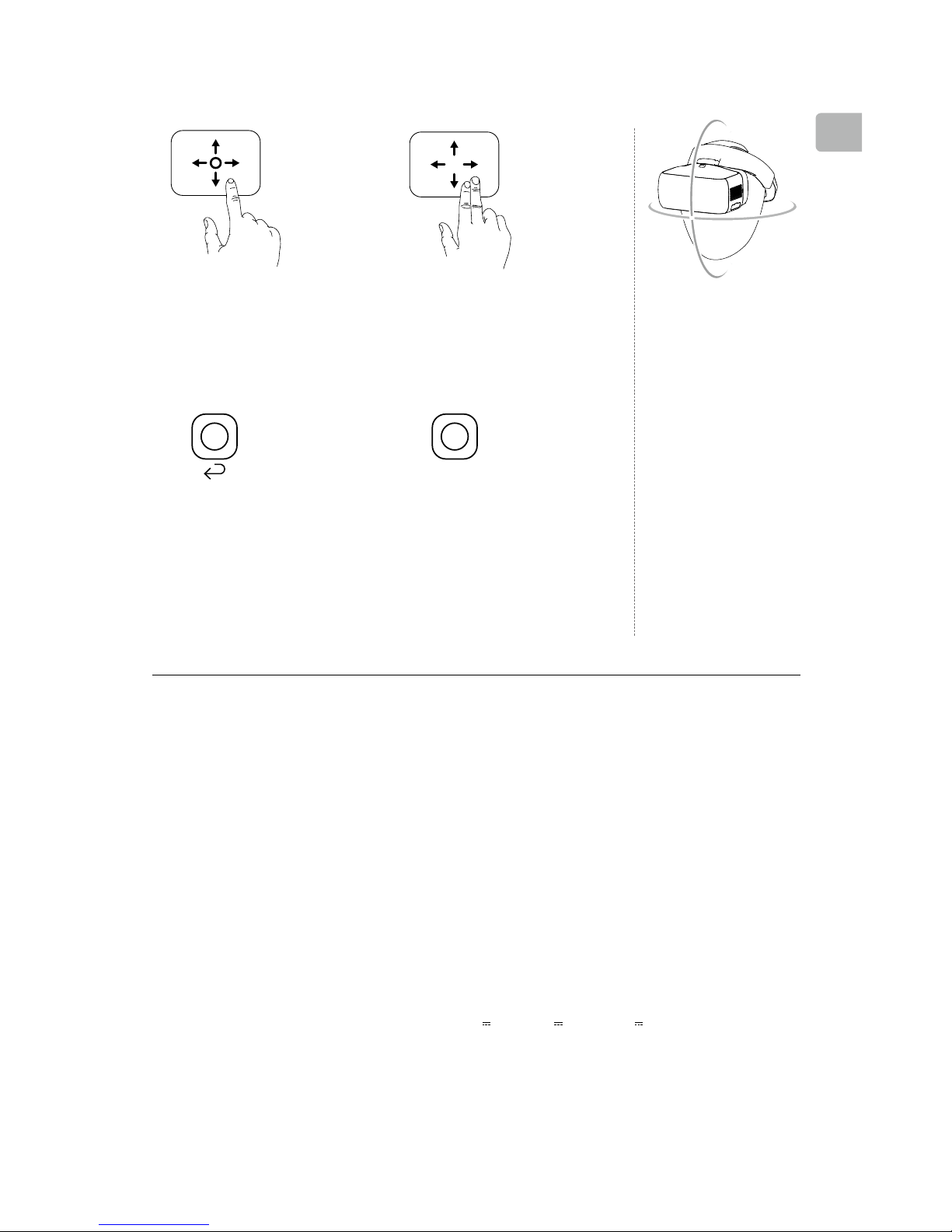

Controls

Single Finger Touch /

5D Button*

●Swipe to scroll on the menu

●Tap to conrm

Two Fingers Touch

●Swipe forward/backward to unlock/

lock the touch panel

●Swipe upward/downward to exit/enter

the shortcut menu

Only support:

Mavic Pro

Phantom 4 Series

Somatic Control

DJI Goggles support

head tracking, allowing

aircraft and gimbal to

be controlled using

head movements. Multi

Intelligent Flight Modes

are also supported.

Function Button / C1 Button*

Press to show the focus cursor, swipe

forward/backward with one nger to zoom

in or zoom out. Move your head then tap

the touch panel to dene the focus point.

Back Button / C2 Button*

Press to return to the previous

menu, or exit the current

Intelligent Flight Mode.

* When connected with Mavic Pro, the 5D, C1, and C2 buttons on the remote controller

will be used to control the DJI Goggles and their original function is disabled.
