THOMSON SPEEDTOUCH 605S Guide de sécurité
SpeedTouch™605s
Business SHDSL Router
Setup and User’s Guide
Release R4.2
600
SERIES
SpeedTouch™605s
Setup and User’s Guide
Release R4.2
Status v1.0
Change Note PeckelbeenS
Short Title Setup and User's Guide ST605s R4.2 (en)
Copyright © 2003 THOMSON. All rights reserved. Passing on, and copying of this document, use and
communication of its contents is not permitted without written authorization from
THOMSON. The content of this document is furnished for informational use only, may be
subject to change without notice, and should not be construed as a commitment by
THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies
that may appear in this document.
1
Contents
1 SpeedTouch™ Installation ............................................ 3
1.1 Getting Acquainted with the SpeedTouch™.................................................... 4
1.2 Setting up the SpeedTouch™............................................................................. 6
1.3 SpeedTouch™ Configuration Setup.................................................................. 7
1.3.1 Configuration Setup for Microsoft Windows Operating Systems ........................................ 8
1.3.2 Configuration Setup for other Operating Systems.................................................................14
1.4 Dr SpeedTouch™ Installation .......................................................................... 17
2 SpeedTouch™ Internet Connectivity ........................ 21
2.1 Surfing the Internet........................................................................................... 22
2.2 Connect to the Internet via SpeedTouch™’s embedded PPP client........... 23
2.2.1 Internet Sessions via Windows XP’s UPnP .............................................................................. 24
2.2.2 Internet Sessions via the SpeedTouch™ Web Pages (all OSs)............................................25
2.3 Connect to the Internet via a Broadband Dial-in Client ............................... 26
2.3.1 Using the Windows XP Dial-in Client....................................................................................... 27
2.3.2 Using the Mac OS X Dial-in Client.............................................................................................30
3 SpeedTouch™ Web Interface..................................... 31
3.1 Basic Topics Menu Links ................................................................................... 34
3.2 Advanced Topics Menu Links ........................................................................... 37
2
4 SpeedTouch™ NAPT Manager .................................. 51
5 SpeedTouch™ System Software Upgrade ................ 57
5.1 The SpeedTouch™ Upgrade Wizard .............................................................. 58
5.2 Manual System Software Management via BOOTP Server ......................... 62
6 Troubleshooting ........................................................... 65
6.1 General................................................................................................................ 66
6.2 SpeedTouch™ Default Configuration.............................................................. 67
1 SpeedTouch™ Installation
E-SIT-CTC-20030605-0003 v1.0 3
1 SpeedTouch™ Installation
Introduction Thank you for purchasing the SpeedTouch™605s Business SHDSL Router!
With the SpeedTouch™605s Business Symmetrical High speed Digital Subscriber Line
(SHDSL) Router, surfing the Internet will become a whole new experience.
In this Setup and User's
Guide
This User's Guide will assist you in getting acquainted with the SpeedTouch™605s Busi-
ness SHDSL Router and in getting connected quickly to the Internet.
Terminology Generally, the SpeedTouch™605s will be referred to as SpeedTouch™ in this Setup and
User's Guide unless specifically indicated.
Safety instructions Before connecting the SpeedTouch™, read the SpeedTouch™ Quick Installation Guide
and Safety Instructions.
UPnP The SpeedTouch™605s is a Universal Plug and Play (UPnP) certified product.
UPnP enables your computer to discover and control UPnP devices on the network.
Note For more information about how to install UPnP on your computer please
consult your operating system’s user’s guide.
Documentation and
software updates
The SpeedTouch™605s product continues to evolve as extra and new functionalities
are made available.
For more information on the latest technological innovations, software upgrades, and
documents, please visit the SpeedTouch™ web site at:
www.speedtouch.com
1 SpeedTouch™ Installation
E-SIT-CTC-20030605-0003 v1.0
4
1.1 Getting Acquainted with the SpeedTouch™
Introducing the
SpeedTouch™
Prior to proceeding, please make sure to read the SpeedTouch™Quick Installation
Guide first. It provides important package content and safety information.
Check whether all items are present in your package.
In the event of damaged or missing items, please contact your local product dealer for
further information.

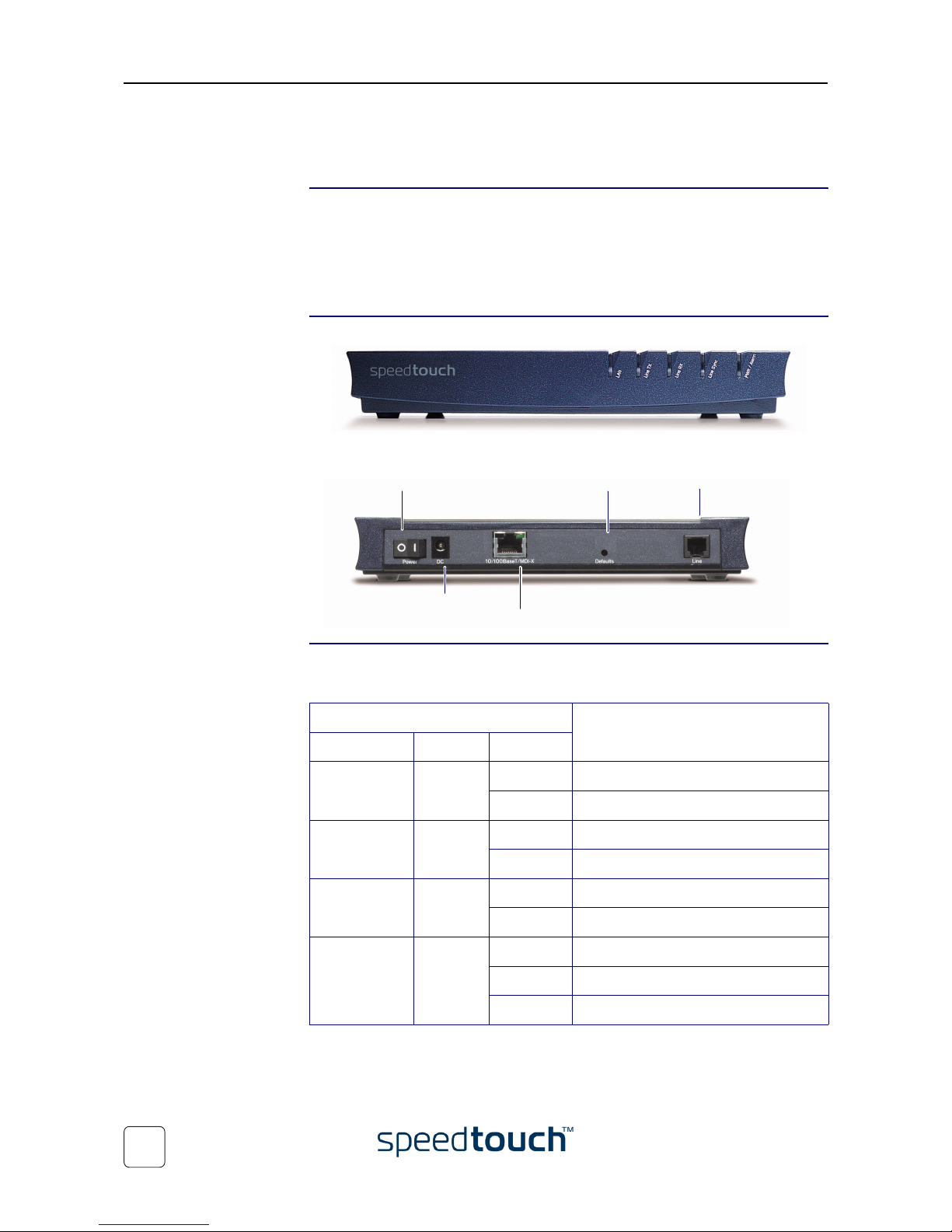

Front and back panel
layout
The SpeedTouch™605s Business SHDSL Router is presented in a slim line housing:
The device is equipped with a single 10/100Base-T Half-/Full-duplex MDI-X Ethernet
port:
Front panel LEDs The SpeedTouch™605s Business SHDSL Router is equipped with five LEDs on its front
panel, indicating the state of the device during normal operation:
Power Switch
DSL
L
ine
P
ort
R
eset
Power Socket
10/100Base-T Ethernet port
Indicator Description
Name Color State
LAN Green Flashing Ethernet LAN activity
Off No Ethernet LAN activity
Line TX Green Flashing ATM cell transmission on DSL line
Off No transmission activity
Line RX Green Flashing ATM cell reception on DSL line
Off No reception activity
Line Sync Green Off No SHDSL line
Flashing Initialization of SHDSL line
On SHDSL line synchronized
1 SpeedTouch™ Installation
E-SIT-CTC-20030605-0003 v1.0 5

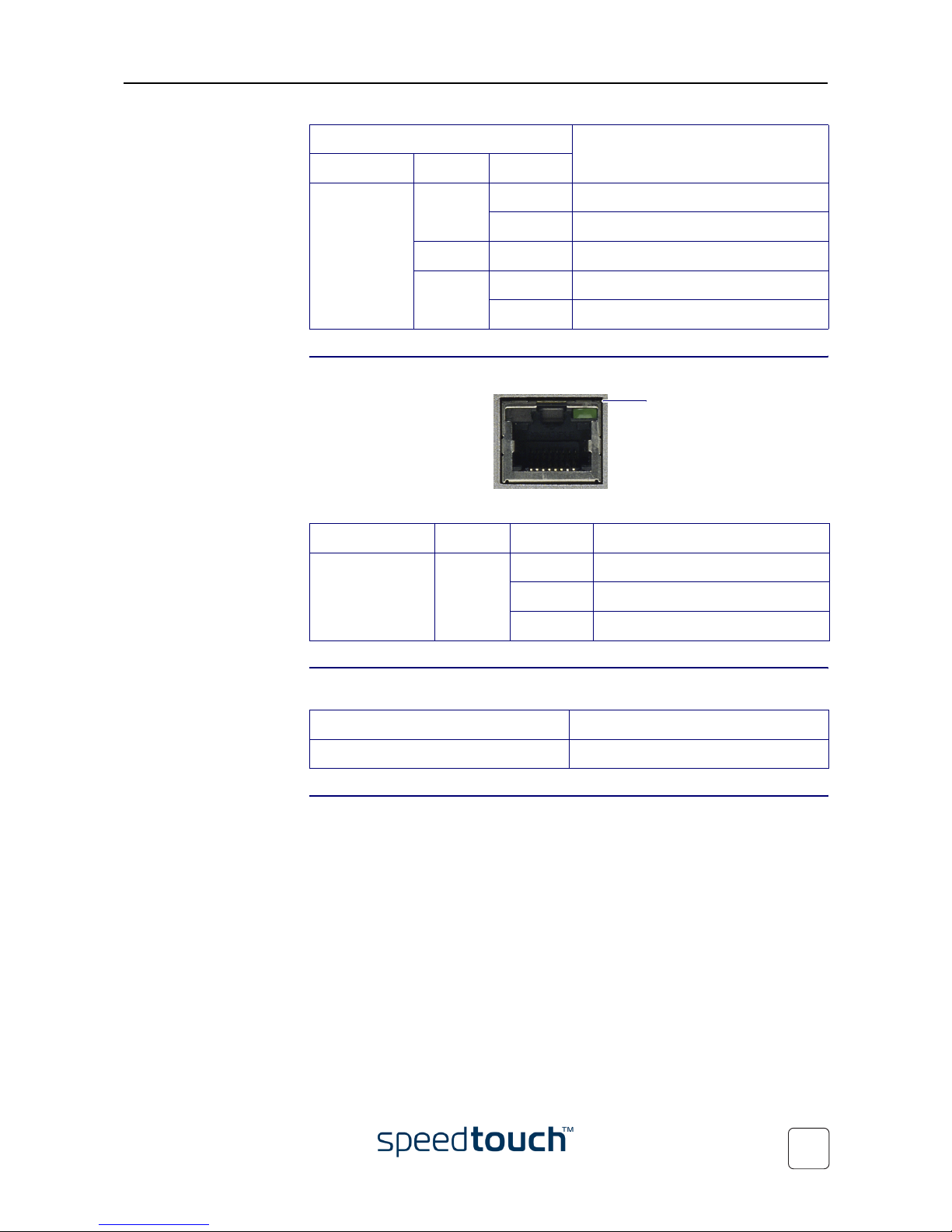

Ethernet port(s) LEDs The Ethernet port on the rear panel has one LED:
DSL Port
DSL service The appropriate SHDSL service must be available at your local premises.
PWR/Alarm Green Flashing Back-to-defaults
On Power on, normal operation
Orange On Self test
Red Flashing Power on
On Power on, selftest failed
Indicator Description
Name Color State
Indicator Name Color State Description
Integrity/Activity Green Off No connection on this port
On Ethernet link up. No activity
Flashing Activity on this Ethernet port
Link Integrity/Activity LED
10/100Base -T
Service Port pinning
2-wire SHDSL 3/4
1 SpeedTouch™ Installation
E-SIT-CTC-20030605-0003 v1.0
6
1.2 Setting up the SpeedTouch™
Local network For Ethernet connectivity you need at least:
•A computer with installed Ethernet Network Interface Card (NIC) or available
on-board Ethernet port
•If needed, a hub or switch and the necessary connection cables
Ethernet Cables In the SpeedTouch™605s box, a full wired Cat.5 straight-through RJ45/RJ45 Ethernet
cable, further referred to as LAN cable is included.
You can use LAN cables other than the one provided in the box. However make sure to
use correct connection cables.
Wiring procedure Proceed as follows:
1Use the included LAN cable to wire your computer's Ethernet port to the
SpeedTouch™605s Ethernet port.
2Use the included DSL cable to wire the SpeedTouch™605s's Line port to your
telephone wall outlet.
3Plug the power adapter's coaxial jack into the SpeedTouch™605s DC inlet and
plug the power adapter in a wall outlet.
Note Always check first whether the included power adapter suits the local
power specifications.
More information on
Ethernet wiring
For more information, see the application note “The SpeedTouch™ and Ethernet
Connectivity”.
PC wiring Once all connections are made, the result should look similar as below:
