Thomas Regout e-Box 487A12 Manuel utilisateur
1
FRONT PAGE
Installation manual
© COPYRIGHT –document number: 902943-00 –note: product specifications may change without prior notice.
e·Box®II Wall Mount
item number: 487A12
EN
NL
DE
FR
IT
ES
DA
SV
NO
FI
PL
RU
AR
2
e·Box®II Wall Mount
document number: 902943-00
General Warnings
Tools
Set
Page 1:
Page 2:
Page 3:
Page 4
Last page:
Note
When
minor, these
Content of
(1x)
(1x)
(1x)
3
e·Box®II Wall Mount
document number: 902943-00
Mounting materials [M] Part nr. 539993 [1:1]
(4x)
(4x)
(4x)
(4x)
(4x)
(4x)
(4x)
(4x)
(8x) C[1:1]
(4x) D[1:1]
(4x) B[1:1]
[1:1]
(8x) A
(8x) E[1:1]
(2x) F
Mounting materials [L] Part nr. 539985
4
e·Box®II Wall Mount
document number: 902943-00
Content of the box
* this is an optional part
#481A70
VESA bracket*
#902949
Warnings Booklet
H
I
** the type of this part depends on the e·Box®model
J
#902943
Installation Manual
G
(2x) K(2x)
P(4x)
(4x) Q
(4x) O
N
M
L
R
5
e·Box®II Wall Mount
document number: 902943-00

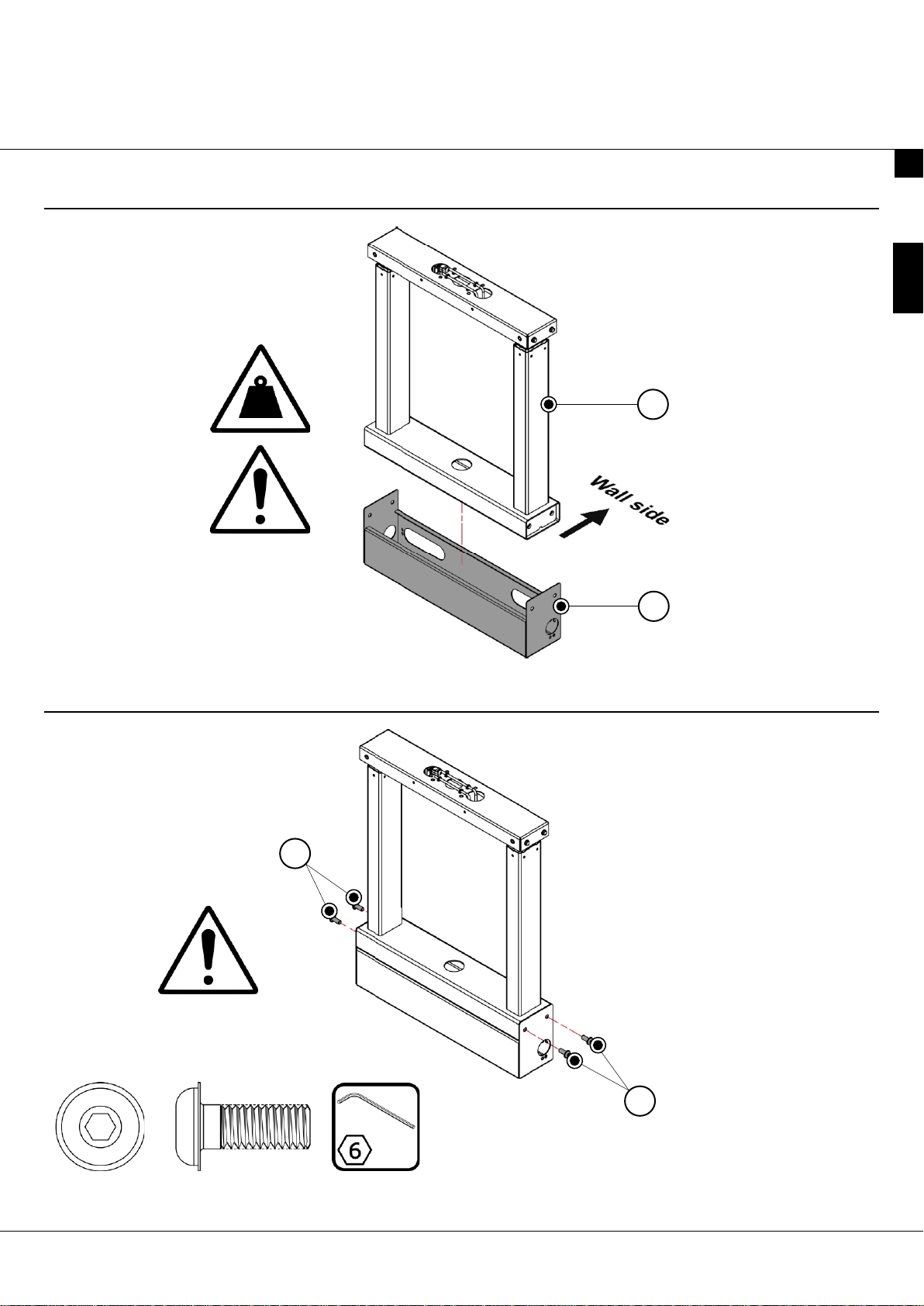

1Slide the motor frame [I] in the floor tray [J].
2Secure the floor tray with 4 screws.
EN
B: 4 x M10x25 [1:1]
B
B
Tighten with appr. torque
of 29.5 ft·lb [40 N·m]
I
J
6
e·Box®II Wall Mount
document number: 902943-00
3Open the two boxes [G] with the wall brackets inside. Take the wall brackets [K] out of the box. Remove the
front cover [S] and two side covers [T] from both wall brackets and save them for later use.
4Connect two connector brackets [O] to the wall bracket [K] with 4 screws and 4 nuts (2x).
T
T
K
S
EN
O
A
A
E
Q
E
K
A: 8 x M8x25 [1:1]
E: 8 x M8 [1:1]
7
e·Box®II Wall Mount
document number: 902943-00
5Place 4 x the front sided motor clamps [Q] on the motors as shown below. Make sure the holes in the motor
clamps are located on the outside.
6Place 4 x the back sided motor clamps [P] on the motors. Make sure the clamps lock into the front sided motor
clamps and stay in place.
Q
Q
Q
Q
P
P
P
P
EN
8
e·Box®II Wall Mount
document number: 902943-00
7Mount the wall brackets [K] to the motor clamps. Use 2 screws per side per wall bracket.
EN
Tighten with appr. torque
of 5.2 ft·lb [7 N·m]
C
K
K
C: 8 x M6x12 [1:1]
9
e·Box®II Wall Mount
document number: 902943-00
min 200mm / 8”
8Gently level the top wall bracket on both sides. Use the circle dot at the motor frames as indicator. Level the
bottom wall bracket as well. Make sure the distance between the wall brackets is at least 200mm / 8”. Tighten
the screws when the brackets are in the correct position.
9Slide the VESA box [H] over the motor frame from the top.
EN
H
10
e·Box®II Wall Mount
document number: 902943-00
10 Secure the VESA box with 4 screws (2 x front / 2 x back).
11 Make sure the assembled e·Box®stays upright for further assembly.
U
EN
Tighten with appr. torque
of 5.2 ft·lb [7 N·m]
D
D
D: 4 x M6x16 [1:1]
