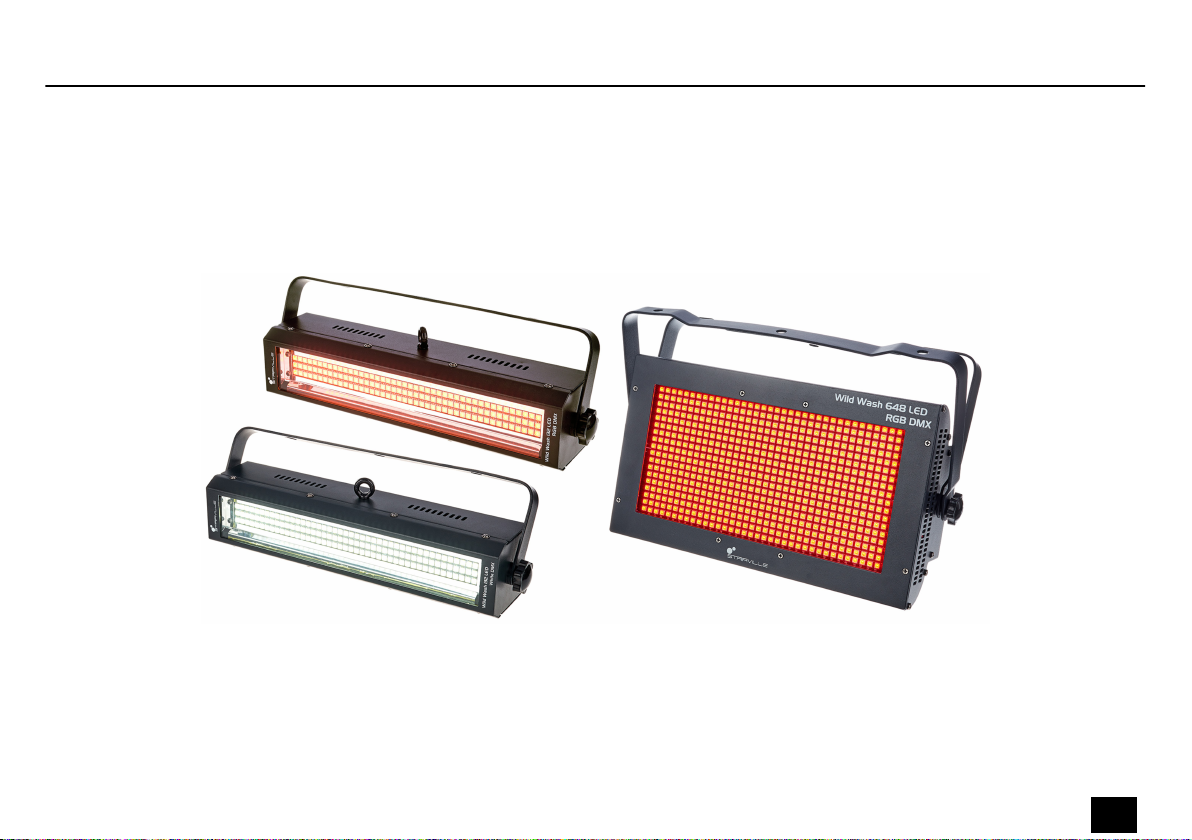

Thomann Wild Wash 132 LED RGB DMX Manuel utilisateur

Wild Wash

132 LED RGB DMX,

132 LED White DMX,

648 LED RGB DMX

LED Floodlight

User Manual

Thomann GmbH

Hans-Thomann-Straße 1

96138 Burgebrach

Germany

Telephone: +49 (0) 9546 9223-0

Internet: www.thomann.de

02.11.2023, ID: 399664, 399663, 399658 (V3)

Table of contents

1 General information................................................................................................................................. 6

1.1 Symbols and signal words............................................................................................................... 6

2 Safety instructions..................................................................................................................................... 9

3 Features....................................................................................................................................................... 13

4 Installation.................................................................................................................................................. 14

5 Starting up.................................................................................................................................................. 17

6 Connections and controls................................................................................................................... 19

7 Operating.................................................................................................................................................... 23

7.1 Starting the device........................................................................................................................... 23

7.2 Main menu.......................................................................................................................................... 23

7.3 Menu overview................................................................................................................................. 30

7.4 Functions in DMX mode 1ch........................................................................................................ 32

7.5 Functions in DMX mode 2Ch (model versions with white LEDs)................................... 32

7.6 Functions in DMX mode 2Ch1 (model versions with RGB LEDs).................................... 33

7.7 Functions in DMX mode 2Ch2..................................................................................................... 35

7.8 Functions in DMX mode 3Ch1..................................................................................................... 36

7.9 Functions in DMX mode 3Ch2 (model versions with RGB LEDs).................................... 37

7.10 Functions in DMX mode 3Ch2 (model versions with white LEDs)............................... 39

7.11 Functions in DMX mode 3Ch3 (model versions with RGB LEDs).................................. 40

Table of contents

Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX 3

LED Floodlight

7.12 Functions in DMX mode 4Ch (model versions with RGB LEDs).................................... 41

7.13 Functions in DMX mode 6Ch (model versions with RGB LEDs).................................... 44

8 Technical specications....................................................................................................................... 46

9 Plug and connection assignments.................................................................................................. 52

10 Troubleshooting...................................................................................................................................... 53

11 Cleaning....................................................................................................................................................... 55

12 Protecting the environment.............................................................................................................. 56

Table of contents

4Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX

LED Floodlight

Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX 5

LED Floodlight

1 General information

This document contains important instructions for the safe operation of the product. Read and

follow the safety instructions and all other instructions. Keep the document for future refer‐

ence. Make sure that it is available to all those using the product. If you sell the product to

another user, be sure that they also receive this document.

Our products and documentation are subject to a process of continuous development. They

are therefore subject to change. Please refer to the latest version of the documentation, which

is ready for download under www.thomann.de.

1.1 Symbols and signal words

In this section you will nd an overview of the meaning of symbols and signal words that are

used in this document.

General information

6Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX

LED Floodlight

Signal word Meaning

DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or

serious injury if it is not avoided.

WARNING! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in death or serious

injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and

environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – dangerous optical radiation.

Warning – suspended load.

General information

Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX 7

LED Floodlight

Warning signs Type of danger

Warning – danger zone.

General information

8Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX

LED Floodlight

2 Safety instructions

This device is intended for use as an electronic lighting eect by means of LED technology. The

device is designed for professional use only and is not suitable for use in households. Use the

device only as described in this user manual. Any other use or use under other operating con‐

ditions is considered to be improper and may result in personal injury or property damage. No

liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sucient physical, sensorial, and intellectual

abilities and having corresponding knowledge and experience. Other persons may use this

device only if they are supervised or instructed by a person who is responsible for their safety.

Extend the operating life of the device by regular breaks and by avoiding frequent

switching on and o. The device is not suitable for continuous operation.

Safety

DANGER!

Risk of injury and choking hazard for children!

Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow

children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small

children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐

sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children

could play with.

Intended use

Safety instructions

Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX 9

LED Floodlight

DANGER!

Danger to life due to electric current!

Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts

inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.

DANGER!

Danger to life due to electric current!

A short circuit could lead to a re hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a

safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and

arrange repair. If in doubt, seek advice from a qualied electrician.

WARNING!

Risk of eye damage caused by high light intensity!

The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly

into the light source.

WARNING!

Risk of epileptic t due to ashing lights!

The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐

lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.

NOTICE!

Risk of re due to covered vents and neighbouring heat sources!

If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐

heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat

sources. Never operate the device in the immediate vicinity of naked ames.

Safety instructions

10 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX

LED Floodlight
