Thermaltake W0106RU Manuel utilisateur

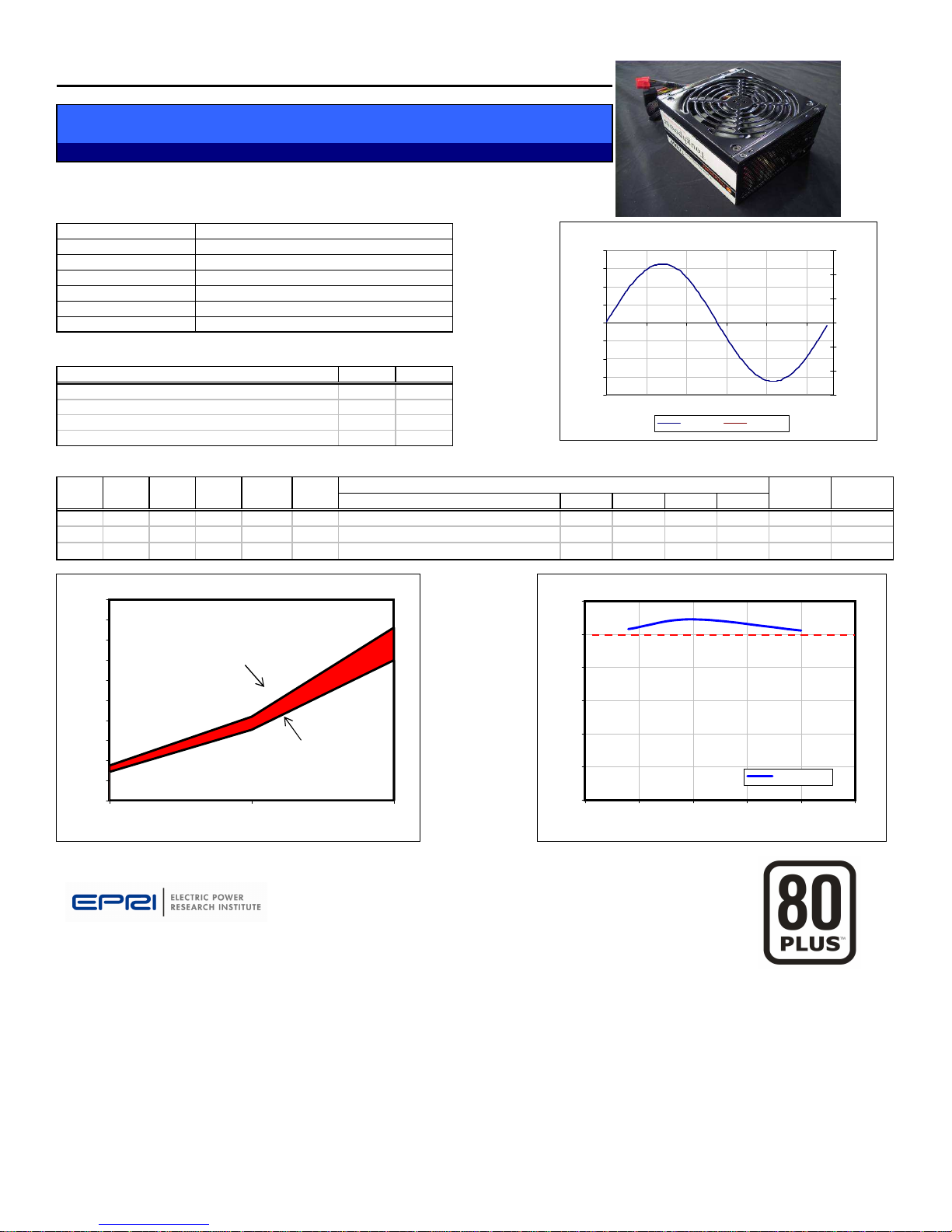

80 PLUS Verification and Testing Report

TYPICAL EFFICIENCY (50% Load):

AVERAGE EFFICIENCY :

80 PLUS COMPLIANT:

YES

Value

Units

100-240 Volts

10-5A Amps

47-63Hz Hz

700W

Watts

Note: All measurements were taken with input voltage at 115 V nominal and 60 Hz. Input AC Current Waveform (ITHD = 8.38%, 50% Load)

RMS

-12V

3.3V

5V*

5VSB

1.54 0.98 11.2% 20% Light 174 12.3/0.1 3.3/3 5.1/2.8 5/0.4 142 81.55%

3.64 0.99 8.4% 50% Typical 417 12.4/0.3 3.2/7.4 5/6.9 4.9/1 352 84.46%

7.51 1.00 7.1% 100% Full 862 12.6/0.5 3.2/14.8 5/13.8 4.9/2 699 81.11%

Tested by Electric Power Research Institute, Knoxville, TN.

8/1/2006

Efficiency

Rated Output Power

Load

(%)

Rated Specifications

Input Voltage

Input Current

THD

(%) Input

Watts

Fraction

of Load DC Terminal Voltage (V)/ DC Load Current (A) Output

Watts

12V (cumulative of 12V1, 12V2, etc.)

12.15/9.44

12.1/23.6

12.05/47.16

Test Date

Input Frequency

61.1

Type

Ecos ID #

Model Number

Serial Number

Year ATX12V

D64351943

2006

Manufacturer

84.46%

82.38%

Thermaltake

W0106RU

Input and Output Power

Input Watts

Output Watts

100

200

300

400

500

600

700

800

900

1000

20% 50% 100%

Loading (% of Rated Output Power)

Power (Watts)

Efficiency of the Power Supply

30%

40%

50%

60%

70%

80%

90%

0% 25% 50% 75% 100% 125%

Loading (% of Rated Output Power)

Efficiency (%)

Efficiency %

These tests were conducted as a part of the 80 PLUS program. 80 PLUS is

a computer buy-down program to promote high-efficiency power supplies

(greater than 80% efficiency in the active mode) in desktop computers and

desktop-derived servers.

Input Current and Voltage Waveforms

-200

-150

-100

-50

100

150

200

0 0.003 0.006 0.009 0.012 0.015

Time (s)

Voltage (V)

-15

-10

-5

Current (A)

Voltage Current
