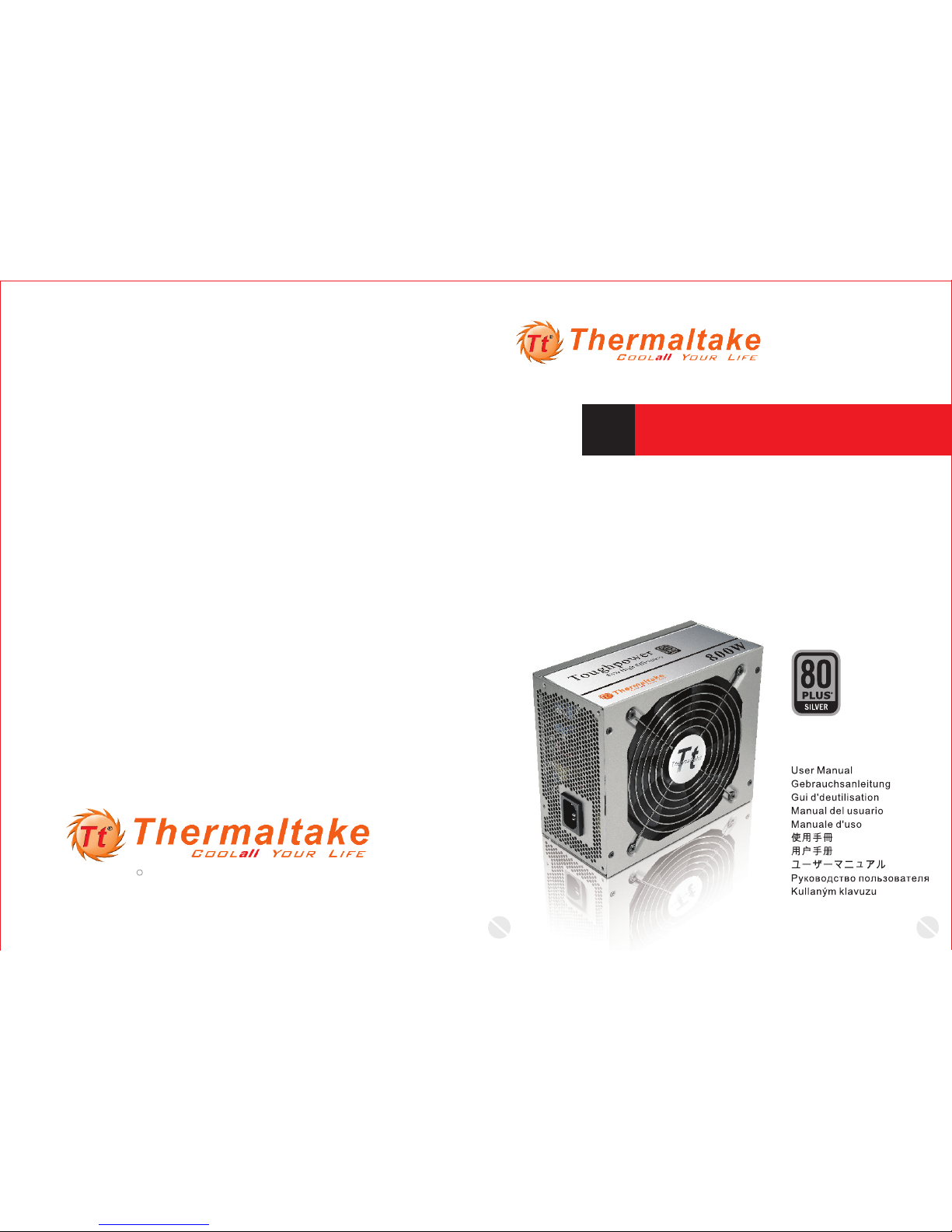

Thermaltake Toughpower 800W Manuel utilisateur

Toughpower 700W / 800W TM

Toughpower 700W / 800W

All trademarks are the property of their respective owners.

Reproduction in whole or in part without written permission is prohibited.

Toughpower 700W / 800W

ATX 1 2 V 2 . 2 & EP S 1 2V 2 .9 1 Ver s i o n

www.thermaltake.com

Toughpower 700W / 800W TM

Toughpower 700W / 800W

Table of contents

01. Warnings & Caution -----------------

02. Components Check -----------------

03. Power Connector Introduction --

04. Installation Steps --------------------

05. Product Features -------------------

06. Output Specification ----------------

07. Total Protection ----------------------

08. EMI & SAFETY -----------------------

09. Environments -------------------------

10. Trouble Shooting ---------------------

Toughpower 700W / 800W TM

Toughpower 700W / 800W

1. Do not unplug the AC power cord when the power supply is in

use. Doing so may cause damage to your components.

2. Do not place the power supply in a high humidity and/or

temperature environment.

3. High voltages exist in the power supply. Do not open the

power supply case unless you are an authorized service

technician or electrician. Doing so will void the warranty.

4. PSU should be powered by the source indicated on the rating

label.

5. All warrantees and guarantees will be voided, if failure to

comply with any of the warnings and cautions covered in this

manual.

1. Warnings and Caution 2. Components Check

01 02

Toughpower 80Plus (Silver)

/ power supply unit 700W 800W

User manual

AC power cord

Mounting screw x 4

Silicone rubber mounting

gasket x 1

Cable strap x 4

Toughpower 700W / 800W TM

Toughpower 700W / 800W

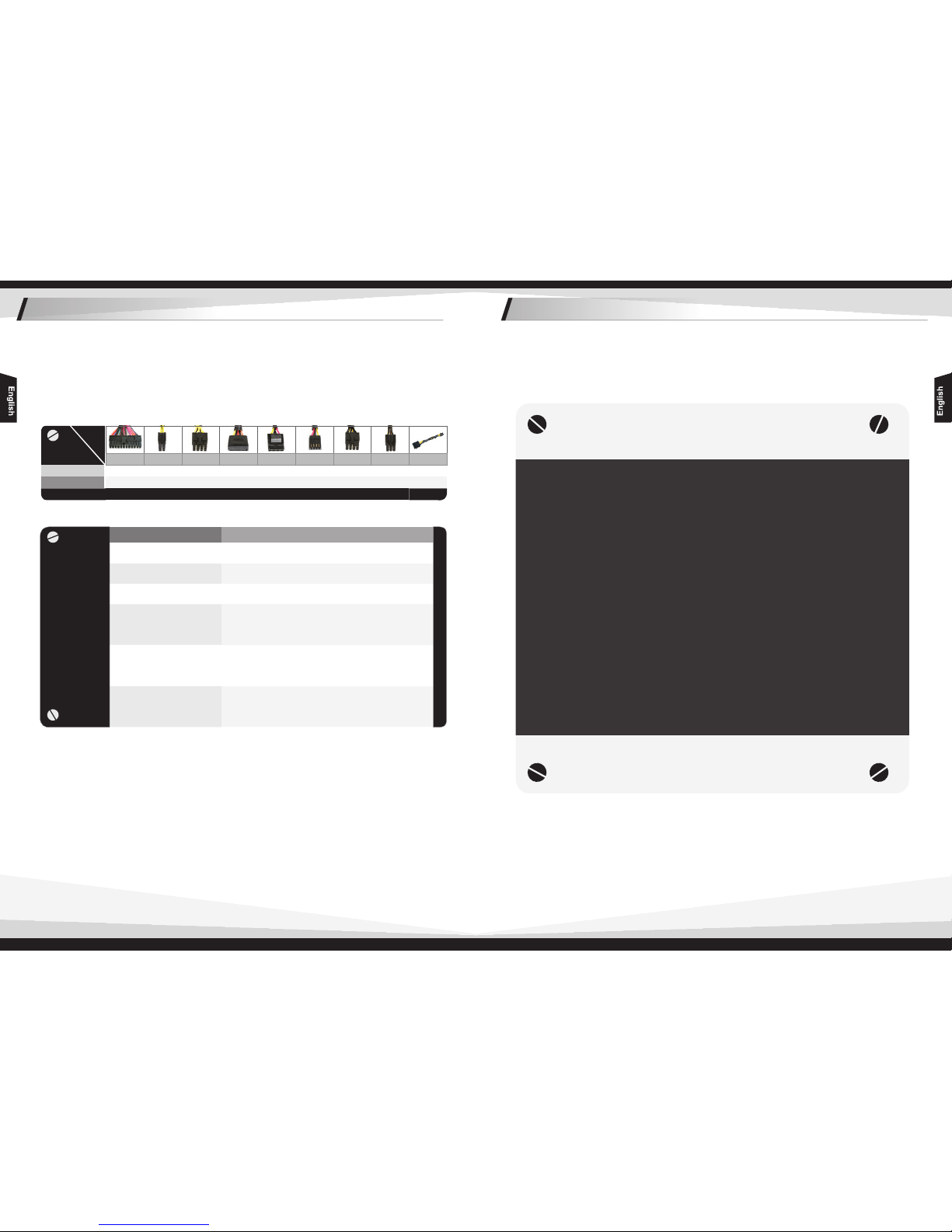

3. Power Connector Introduction

MODELS

Connector Type Connectors & Cable length

700W

800W

20+4pin

ATX 12V 4pin

EPS 12V 8pin

Molex & FDD

SATA

PCI-E 8/6pin

4. Installation Steps

1 x 20+4pin Main connector

(500mm)

1 x ATX 12V 4pin connector

(500mm)

1 x EPS 12V 8pin connector

(500mm)

2 x Peripheral & 1 x FDD connectors

(500mm + 150mm + 150mm)

3 x connectors

(500mm + 150mm + 150mm)

Peripheral

3 x S-ATA connectors

(500mm + 150mm + 150mm)

3 x S-ATA connectors

(500mm + 150mm + 150mm)

1 x 8/6pin PCI-E connectors

(500mm + 150mm)

1 x 8/6pin PCI-E connectors

(500mm + 150mm)

03 04

Cable

P/N Model

W0295 700W

W0296 800W

1 1 1 6 51 2 2 2

1 1 1 6 51 2 2 2 1. Open your computer case; please refer to the direction in your

case manual.

2. Install the PSU into the case with the four screws provided.

3. Connect the 24 pin Main Power Connector to your motherboard

and peripheral. If your motherboard uses a 20-pin

connector, detach the 4-pin attachment on the 24-pin connector.

4. Connect the 8-pin or 4-pin connector for the CPUs.

5. Connect other peripheral power connectors to devices such as

hard drives, optical drives, etc.

6. Close your computer case and connect the AC power cord to

the power supply AC inlet.

Note: The detachable 4-pin section cannot be used in place of a 4-pin +12V

connector.

Note: Make sure that your system is turned off and unplugged.

Disconnect the AC power cord from your old power supply.

20+4pin Main

Connector

4pin +12V CPU

Connector

8pin +12V CPU

Connector

SATA

Connector

Peripheral

Connector

Floppy

Connector

PCI-E (8 to 6)

Connector

6pin PCI-E

Connector

8pin PCI-E

Connector

Toughpower 700W / 800W TM

Toughpower 700W / 800W

5. Product Features

05 06

- Stable 700W / 800W continuous output.

- 80 Plus (Silver) certified.

- High efficiency (88% @ 115V & 230V input).

- Intel ATX 12V 2.2 and EPS 12V 2.91 Compatible.

- Universal AC input 100~240V automatically scans and detects

the correct voltage for different country.

- Supports Dual Core CPU / Quad Core CPU / NVIDIA SLI & Quad

SLI and all Multi-Core GPU technologies.

- Active PFC (PF>0.99).

- High reliability: MTBF>120,000 hours.

- Protections: Over Current, Over Voltage, and Short-Circuit

protection.

- Safety / EMI Approvals: UL, CUL, TUV, CE, FCC, BSMI,

GOST certified

TOTAL

POWER

+5Vsb

-12V+12V1

+3.3V +5V

Voltage

MODEL

INPUT VOLTAGE: 100V-240V~, FREQUENCY: 50HZ-60HZ

700W

3.5A

17.5W

0.5A

30A

672W

24A 30A

170W

MAX Load

Combined

Wattage

700W

800W

15W

0.5A

30A

792W

24A 30A

150W

MAX Load

Combined

Wattage

800W

6. Output Specification

7. Total Protection

Over Voltage Protection

W0295 (700W) / W0296 (800W)

Voltage Source

+3.3V

+5V

+12V

Protection Point

3.76V-4.8V

5.6V-7V

13.5V-16.5V

Short Circuit Protection

Activated when any DC rails short circuited.

+12V2

35A

40A

Over Current Protection

W0295 (700W)

Output Voltage

+3.3V

+5V

+12V1 DC

+12V2 DC

Max. over current limit

35.0A

40.0A

45.0A

W0296 (800W)

Output Voltage

+3.3V

+5V

+12V1 DC

+12V2 DC

Max. over current limit

35.0A

40.0A

55.0A

Toughpower 700W / 800W TM

Toughpower 700W / 800W

8. EMI & SAFETY

9. Environments

SAFETY Standards

EMI Regulatory

UL, CUL, CE, FCC, BSMI and GOST certified.

W0295 (700W)

W0296 (800W)

FCC Part 15 Subpart J, Class B 115 Vac operation

CISPR 22 Class B 230 Vac operation

Humidity

Temperature Range

Operating

Storage

Operating

Storage

+10 to +40 C

-10 to +60 C

5-95% RH, Non-condensing

W0295 (700W)

W0296 (800W)

If the power supply fails to function properly, please follow the troubleshooting

guide before application for service:

If the power supply is still unable to function properly after following the above

instruction, please contact you local store or Tt branch office for after sales service.

You may also refer to Thermaltake's website for more technical support:

1. Is the power cord plugged properly into electrical outlet and into the

power supply AC inlet?

2. Please make sure all power connectors are properly connected to all

the devices.

3. If connected to a UPS unit, is the UPS on and plugged in?

www.thermaltake.com

10. Trouble-Shooting
