Thermaltake EPS 12V 2.91 Manuel utilisateur

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

www.thermaltake.com

TR2 RX 700W

ATX 12V 2.3 & EPS 12V 2.91 Version

W0366RU_TR2 RX 700W_Manual

090706

Serena

12 157

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

Table of contents

01. Warnings & Caution -----------------

02. Components Check ------------------

03. Power Connector Introduction ------

04. Installation Steps -------------------

05. Product Features ---------------------

06. Output Specification -----------------

07. Total Protection ----------------------

08. EMI & SAFETY ------------------------

09. Environments -------------------------

10. Trouble Shooting ---------------------

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

1. Do not unplug the AC power cord when the power supply is in

use. Doing so may cause damage to your components.

2. Do not place the power supply in a high humidity and/or

temperature environment.

3. High voltages exist in the power supply. Do not open the

power supply case unless you are an authorized service

technician or electrician. Doing so will void the warranty.

4. PSU should be powered by the source indicated on the rating

label.

5. All warrantees and guarantees will be voided, if failure to

comply with any of the warnings and cautions covered in this

manual.

1. Warnings and Caution 2. Components Check

TR2 RX power supply unit

User manual

AC power cord

Mounting screw x 4

01 02

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

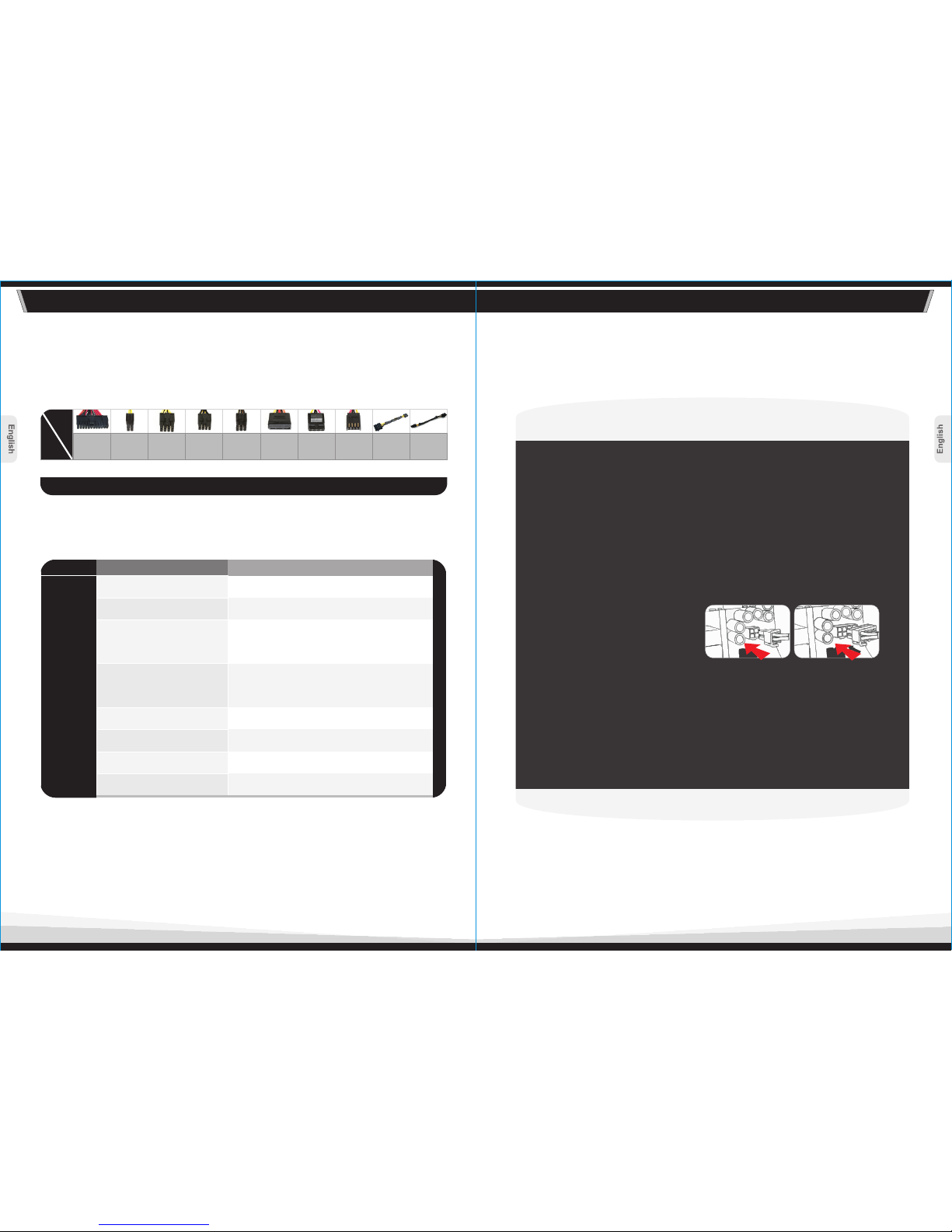

3. Power Connector Introduction

Note: Make sure that your system is turned off and unplugged. Disconnect

the AC power cord from your old power supply.

2. Install the PSU into the case with the four screws provided.

4.1 For motherboard that

requires a single 4pin

auxiliary (CPU) power

connector, please use the

4pin ATX connector from

the power supply.

4. Installation Steps

3. Connect the 24 pin Main Power Connector to your

motherboard and peripheral. If your motherboard uses a 20-

pin connector, detach the 4-pin attachment on the 24-pin

connector.

Note: The detachable 4-pin section cannot be used in place of

a 4-pin +12V connector.

1. Open your computer case; please refer to the direction in your

case manual.

4.2 For motherboard that requires a single 8pin EPS connector,

please use the 8pin EPS connector from the power supply.

5. Connect other peripheral power connectors to devices such as

hard drives, optical drives, etc.

6. Close your computer case and connect the AC power cord to

the power supply AC inlet.

Connector Type Connectors & Cable length

1 x 20+4pin Main connector

(500mm)

MODEL

03 04

Main

Power

Connec tor

(20+4P in)

ATX 12V

(4P in)

EPS 1 2V

(8P in)

1 1 1 1 2 6 6 1 1 1

Model

Cable

W0366

700W

20+4pin

EPS 12V 8 pin + ATX 12V 4pin

Molex & FDD

SATA

PCI-E 8pin

PCI-E 6pin

PCI-E 8pin to 6pin adapter

CPU 4pin to 4pin adapter

700W

(500mm + 150mm + 150mm + 150mm)

x Peripheral & 1 x FDD connectors

(500mm + 150mm + 150mm)

x Peripheral connectors

1 x EPS 12V 8 pin + ATX 12V 4pin connector

( )500mm+150mm

3 x S-ATA connectors

(500mm + 150mm + 150mm)

3 x S-ATA connectors

(500mm + 150mm + 150mm)

(500mm)

x 8pin PCI-E connector

2 x 6pin PCI-E connectors

( )500mm+150mm

1 x 8pin to 6pin adapter

(150mm)

1 x 4pin to 4pin adapter

(150mm)

PCI-E

(8P in)

PCI-E

(6P in)

SATA

(5P in)

Peripheral

(4Pin)

FDD

(4P in)

PCI-E

8Pi n

to 6P in

CPU 4 Pin

to 4P in

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

5. Product Features

- Fully complies with latest Intel ATX 12V V2.3 for utmost stable

and robust power delivery system.

- Universal Input & Active PFC:100-240VAC input with automatic

adjustment and active PFC for global usage.

- Dedicated dual +12V rails ensures efficient power delivery to

critical components within the PC.

- Modularized cable management dramatically improves internal

airflow to enable quieter running computer system and

computing experience.

- Oversized & ultra-quiet 140mm ball bearing fan accelerates heat

removal and decreases overall noise output.

- Latest 6pin and 8pin PCI-Express power connectors to support

advanced graphic cards in Nvidia SLI or ATI CrossFire X

technology.

- Supports all Intel & AMD processors.

- High reliability: MTBF>100,000 hours.

- Protections: Over Current, Over Voltage and Short Circuit

Protection.

- Safety / EMI Approvals: UL, TUV, FCC, CE, BSMI and GOST

certified.

- Dimension (W/H/D): 150mm x 86mm x 160mm.

6. Output Specification

100V-240V 10A-5A 50Hz-60Hz

Model

700W

05 06

AC INPUT

DC OUTPUT

Max Output Current

Min Output Current

+3.3V +5V +12V1 +12V2 -12V +5Vsb

24A 15A 30A 22A 0.3A 2.5A

0.5A 0.5A 0.5A 0.5A 0A 0.05A

The +5V and +3.3V Max-combined power is 130W.

* Over Voltage Protection

* Over Current Protection

The power supply should provide OCP and should shutdown

before 240VA of each output power (included +5V, +3.3V).

Activated when any DC rails short circuited.

Short Circuit Protection

7. Total Protection

Voltage Source Protection Point

+3.3V +4.5V Max.

+5V

+15.6V Max.

+12V

+7.0V Max.

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

TR2 RX 700W

A T X 1 2 V 2 . 3 & E P S 1 2 V 2 . 9 1 V e r s i o n

10. Trouble-Shooting

If the power supply fails to function properly, please follow the

troubleshooting guide before application for service:

www.ther m a ltake.com

1. Is the power cord plugged properly into electrical outlet and

into the power supply AC inlet?

2. Please make sure the "I/O" switch on the power supply is

switched to "I" position.

3. Please make sure all power connectors are properly

connected to all the devices.

4. If connected to a UPS unit, is the UPS on and plugged in?

If the power supply is still unable to function properly after

following the above instruction, please contact you local store

or Thermaltake branch office for after sales service. You may

also refer to Thermaltake's website for more technical

support:

9. Environments

Operating temperature

Operating humidity

MTBF

o o

10 C to + 25 C

20% to 85%, relative humidity

> 100,000 hours

07 08

8. EMI & SAFETY

UL, TUV, FCC, CE, BSMI and GOST.

W0366 TR2 RX 700W

EMI Regulatory & SAFETY Standards
