Dear Valued Customer,

Thank you for choosing Thermaltake.

As a new user we value your thoughts and opinions and

your feedback is important to us. We at Thermaltake

would like to use this opportunity to invite you to join our

Community Forums. Register today to start enjoying the

full benefits of our community.

Benefits of being a member:

Quick and responsive user support

Receive help and advice with new builds

Keep up to date with new product releases

Share your thoughts and builds with the community

Enter monthly contests and giveaways

Tt LCS Certified is a Thermaltake exclusive certification

applied to only products that pass the design and

hardcore enthusiasts standards that a true LCS chassis

should be held to. The Tt LCS certification was created

so that we at Thermaltake can designate to all power

users which chassis have been tested to be best

compatible with extreme liquid cooling configurations to

ensure you get the best performance from the best

features and fitment.

Brand official website

http://www.thermaltake.com/

Global Facebook

https://www.facebook.com/ThermaltakeInc

TT Premium

To continue achieving the corporate mission of delivering the

perfect user experience, Thermaltake developed “TT Premium”

with the essence of combining supreme quality products with a

new logo design. TT Premium is far more than just a guarantee

of quality. Behind the name, it represents the passion in DIY,

Modding and Thermaltake’s desire to be the most innovative

brand in the PC hardware market. To satisfy the demand of the

high-end PC users, TT Premium follows its core values of

Excellent Quality, Unique Design, Diverse Combinations and

Boundless Creativity to provide a high performance PC product

for every enthusiast. http://ttpremium.com

Taiwan Facebook

http://www.facebook.com/ThermaltakeTW

Global community forums

http://community.thermaltake.com

Chapter 1. Product Introduction

Specification

Accessory

Warning and Notice

1.0

1.1

1.2

Contents

Chapter 2. Installation Guide

2.0

2.1

2.2

2.3

2.4

2.5

2.6

2.7

Power Supply Unit (PSU) Installation

Motherboard Installation

3.5" & 2.5" HDD Installation

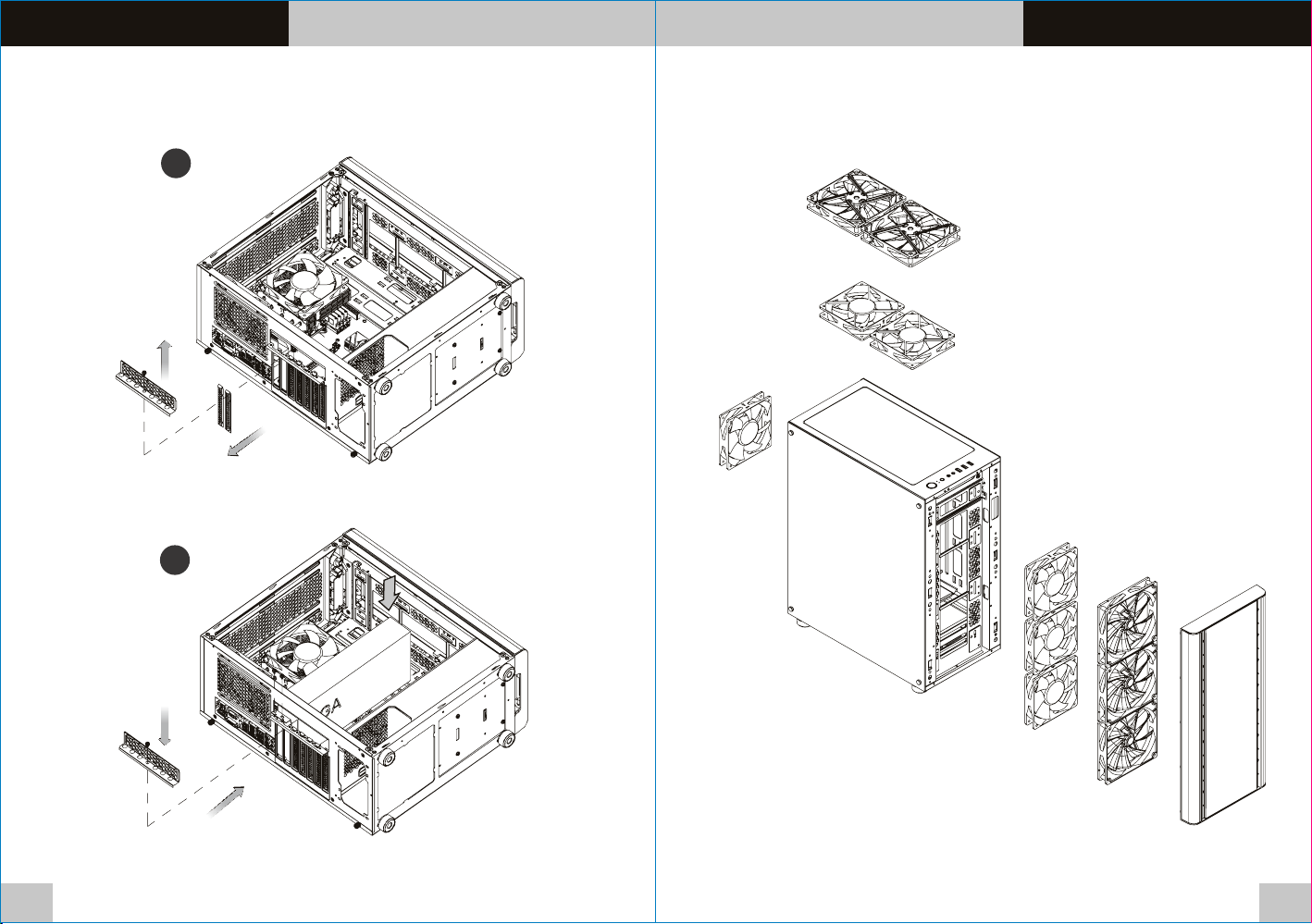

PCI Card Installation

Air Cooling Installation

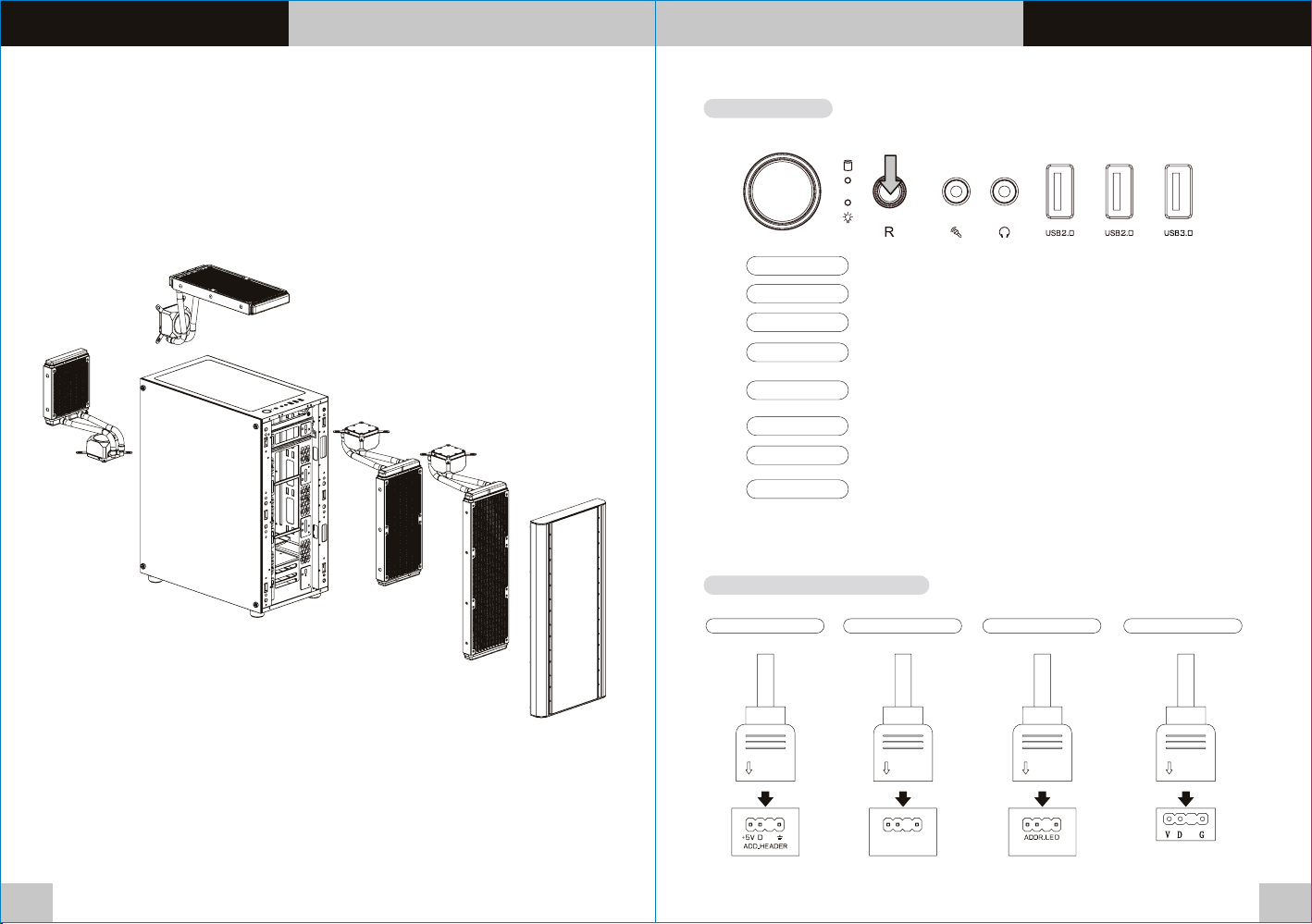

AIO Liquid Cooling Installation

I/O Connection

Remove Components 06

產品料號

CA-1Q5-00M1WN-03 V25 0 TG AR GB Ai r 說明書 21/09/11 A

產品名稱印刷項目發稿日期版本

騎馬釘

20 105 G

雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

裝訂方式材質頁數印刷色彩

規格樣式

整本 CHECK DESIGN

Poki

(21/09/11)

Tiffany

(21/09/11)

藍色線條為尺寸標示，請勿印刷上去！刀模線

125 mm

176 mm

Specification

01 02

Mid Tower

Radiator Support

Front: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm

Top: 1 x 240 mm, 1 x 120 mm

Rear: 1 x 120 mm

Case Type

Dimension (H*W*D) 477 x 216.5 x 430 mm (18.79 x 8.52 x 16.9 inch)

Cooling System

Fan Support

Clearance

Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm

3 x 140 mm, 2 x 140 mm, 1 x 140 mm

Top: 2 x 120 mm, 1 x 120 mm

2 x 140 mm, 1 x 140 mm

Rear: 1 x 120 mm

Drive Bays 2 x 3.5”, 2 x 2.5” or 4 x 2.5”

Expansion Slots 7

Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, R Button x 1

Side Panel Tempered Glass x 1

CPU cooler height limitation: 160 mm

VGA length limitation: 320 mm

PSU length limitation: 160mm(With HDD Rack)

200mm(Without HDD Rack)

Model V250 TG ARGB Air

Material SPCC

Front (intake) :

120 x 120 x 25 mm ARGB fan (1000 rpm, 27.2 dBA) x 3

Rear (exhaust) :

120 x 120 x 25 mm fan (1200 rpm, 24.4 dBA) x 1

PSU Standard PS2 PSU (optional)

For ARGB Version Only

MB Signal Bridge Cable

(ASUS/MSI/ASROCK/GIGABYTE)

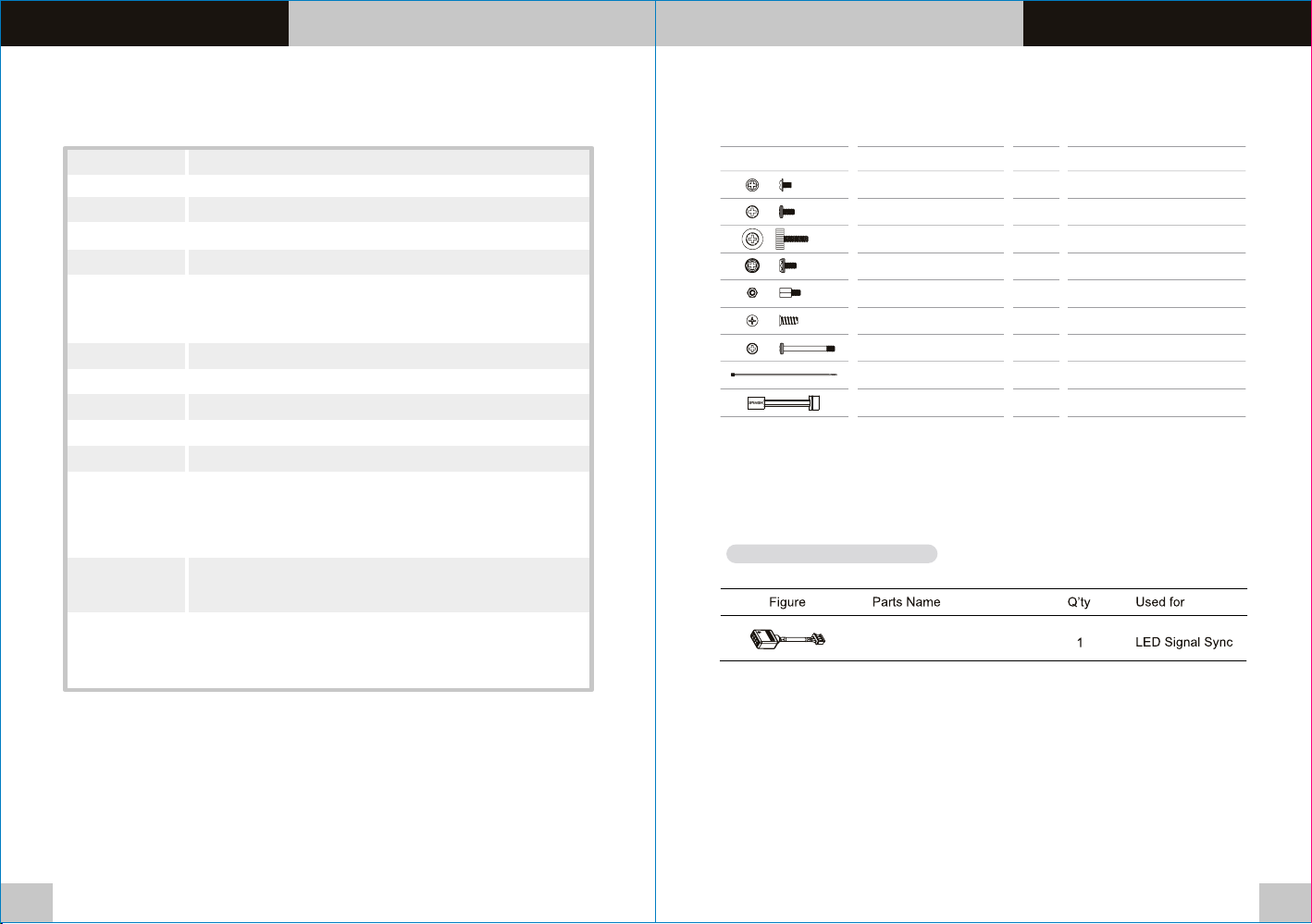

Accessory

V250 TG ARGB Air V250 TG ARGB Air

Figure Parts Name Q’ty Used for

Screw M3 x 5mm

Screw #6-32 x 5mm

Screw #6-32 x 6mm

Stand-off #6-32 x 6mm

Screw T5 x 12mm

Cable Tie

Buzzer

Screw #6-32 x 30mm

Motherboard / 2.5” SSD

3.5” HDD

Power / VGA

Motherboard

Case Fan

Cable Management

Motherboard Alarm

Case Fan

Screw #6-32 x 15mm 2 3.5” HDD Lock

產品料號

CA-1Q5-00M1WN-03 V25 0 TG AR GB Ai r 說明書 21/09/11 A

產品名稱印刷項目發稿日期版本

騎馬釘

20 105 G

雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

裝訂方式材質頁數印刷色彩

規格樣式

整本 CHECK DESIGN

Poki

(21/09/11)

Tiffany

(21/09/11)

藍色線條為尺寸標示，請勿印刷上去！刀模線

125 mm

176 mm

CPU cooler max height: 160mm

VGA length max length: 320mm

03 04

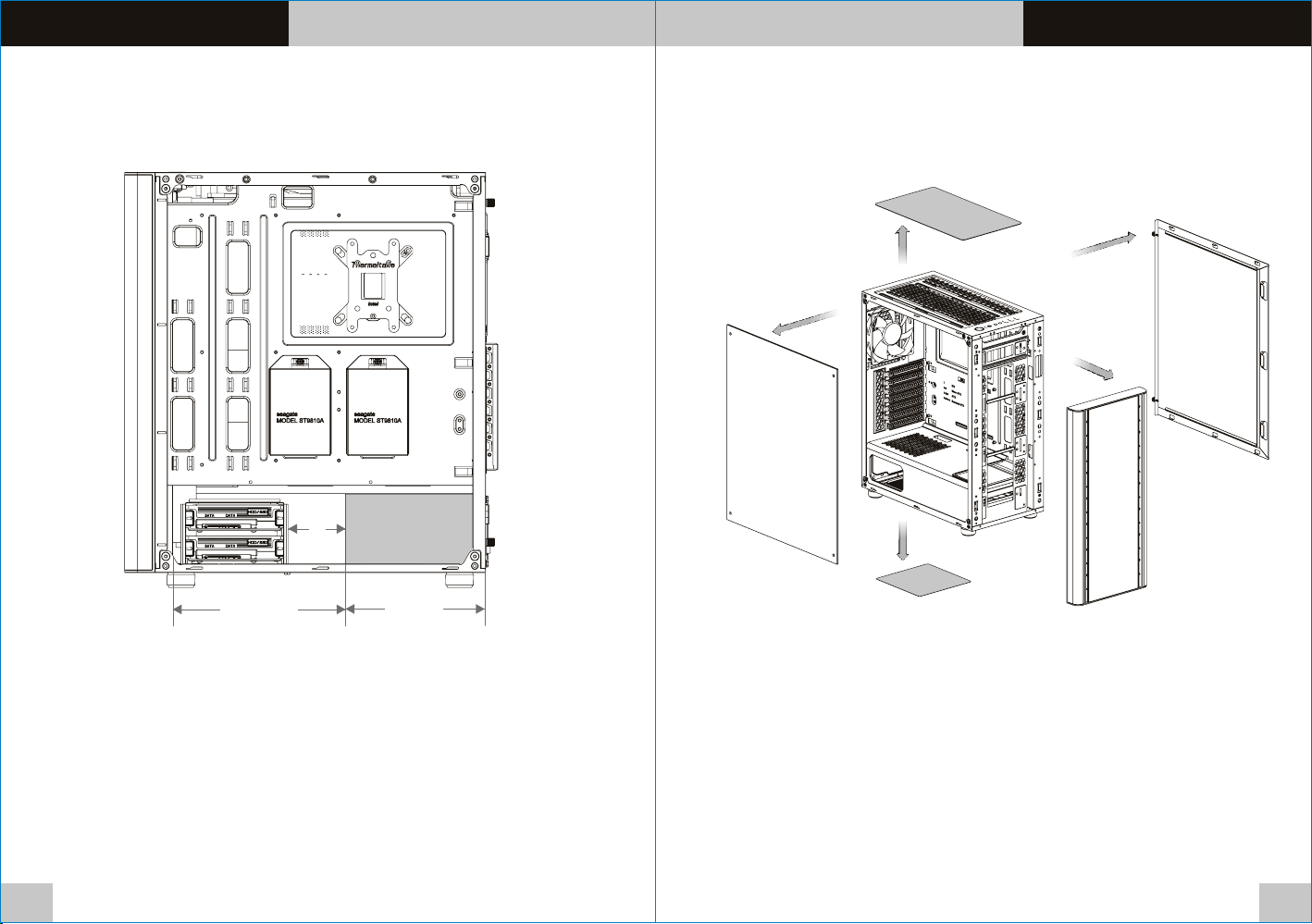

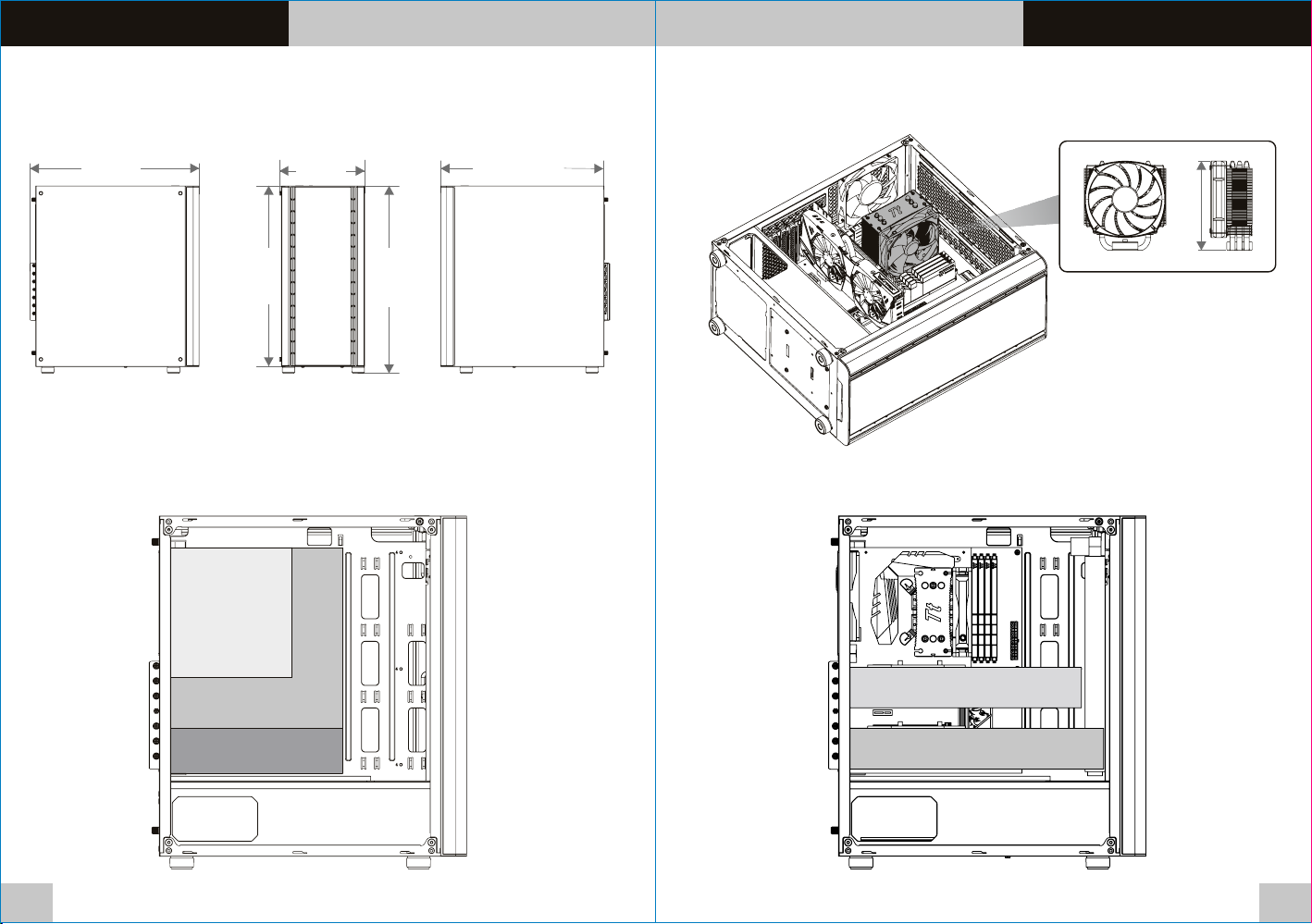

Chassis dimension

Motherboard Compatibility: ITX / mATX / ATX

(Up to 244mm wide)

Warning and Notice

160mm

V250 TG ARGB Air V250 TG ARGB Air

216.5mm

460mm

477mm

416.4mm

430mm

ITXITX

mATXmATX

ATXATX

VGA length l ength: 320mm

VGA length max l ength: 355mm

Radiator 360mm

產品料號

CA-1Q5-00M1WN-03 V25 0 TG AR GB Ai r 說明書 21/09/11 A

產品名稱印刷項目發稿日期版本

騎馬釘

20 105 G

雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

裝訂方式材質頁數印刷色彩

規格樣式

整本 CHECK DESIGN

Poki

(21/09/11)

Tiffany

(21/09/11)

藍色線條為尺寸標示，請勿印刷上去！刀模線

125 mm

176 mm

Remove Components

05 06

PSU max length: 160mm

V250 TG ARGB Air V250 TG ARGB Air

160mm

66mm

198mm

產品料號

CA-1Q5-00M1WN-03 V25 0 TG AR GB Ai r 說明書 21/09/11 A

產品名稱印刷項目發稿日期版本

騎馬釘

20 105 G

雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

裝訂方式材質頁數印刷色彩

規格樣式

整本 CHECK DESIGN

Poki

(21/09/11)

Tiffany

(21/09/11)

藍色線條為尺寸標示，請勿印刷上去！刀模線

125 mm

176 mm

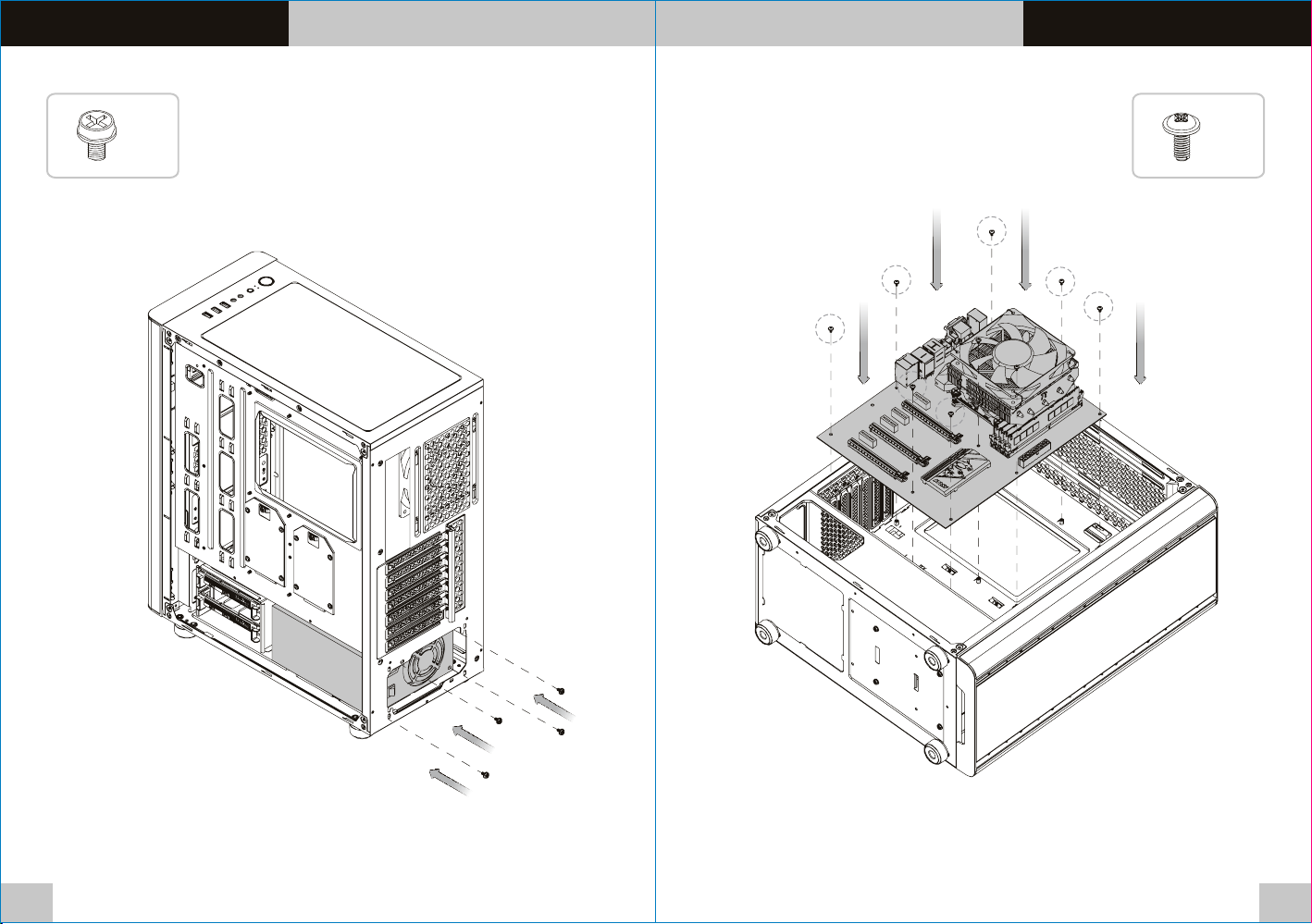

PSU Installation Motherboard Installation

x 4 x 9

07 08

V250 TG ARGB Air V250 TG ARGB Air

產品料號

CA-1Q5-00M1WN-03 V25 0 TG AR GB Ai r 說明書 21/09/11 A

產品名稱印刷項目發稿日期版本

騎馬釘

20 105 G

雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

裝訂方式材質頁數印刷色彩

規格樣式

整本 CHECK DESIGN

Poki

(21/09/11)

Tiffany

(21/09/11)

藍色線條為尺寸標示，請勿印刷上去！刀模線

125 mm

176 mm

x 4

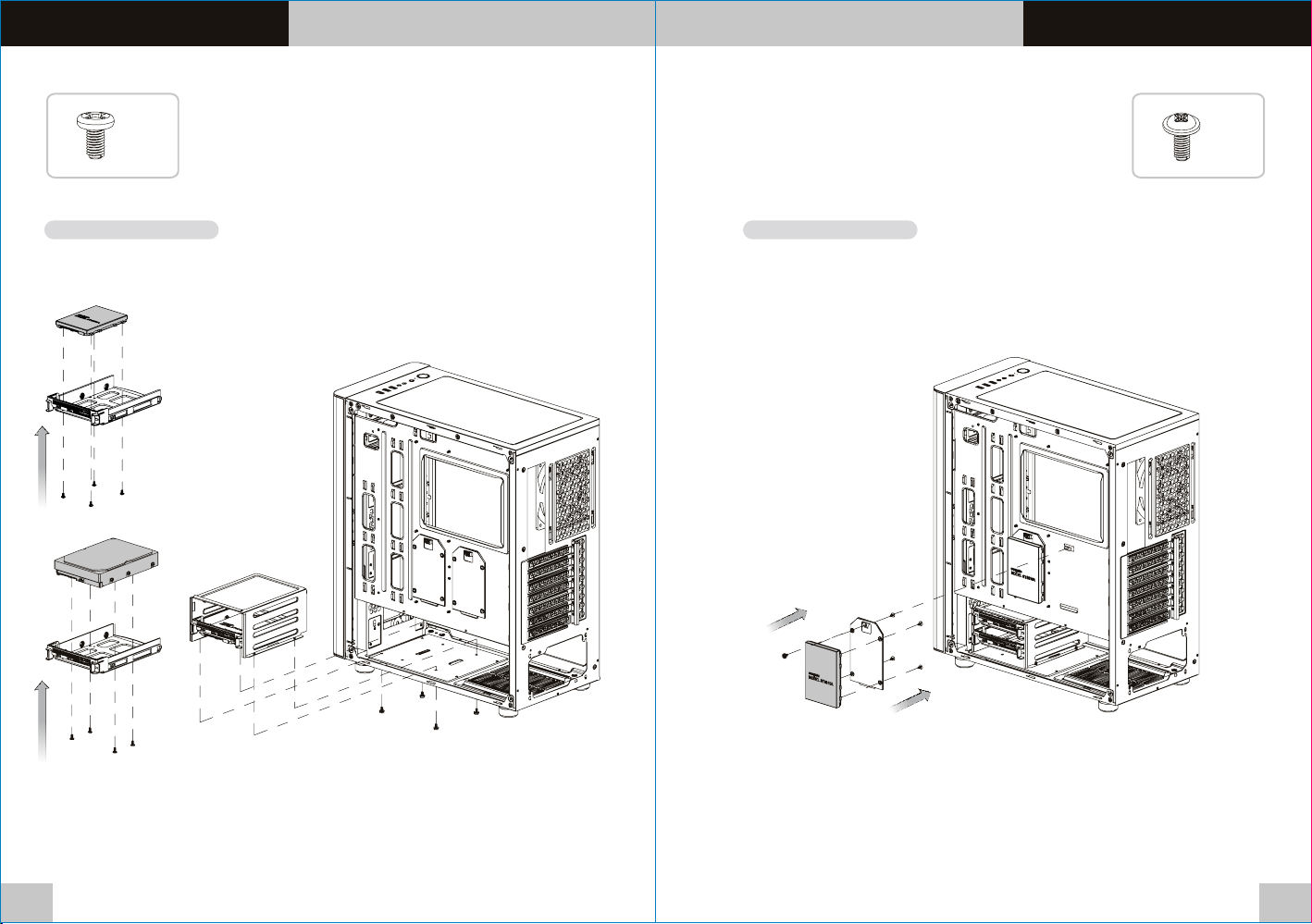

3.5” & 2.5” HDD Installation
