Theben SELEKTA 170 top3 Manuel utilisateur

SELEKTA 170 top3

1700130

SELEKTA 174 top3

1740130

307304 02

05.06.2023

Astro Time Switch

1. General information 4

2. Safety 4

3. Proper use 5

4. Installation and connection5

Mounting the time switch 5

Connecting the time switch 7

Connecting the cable 7

Disconnecting the cable 8

5. Device description 8

Display & buttons 8

Operating instructions 9

Overview of menu selection 10

Initial start-up 11

6. Settings and functions 12

ASTRO menu 12

Change astro time/position 13

Setting the offset function 14

Set xed switching time 15

Setting summer/winter time 17

Switch Permanent ON/OFF 18

Setting holiday function 19

Activate PIN-Code 20

Setting manual or permanent

switching 20

Operating hour counter 21

Using Bluetooth OBELISK

top3 22

Connect time switch, Bluetooth

OBELISK top3 and smartphone

(via app) 23

Resetting the time switch 25

7. Technical Data 26

Cleaning and service 27

Disposal 27

8. Dimensional drawings 28

9. Contact 28

1. General information

•The device is designed for installation on DIN rails (in

accordance with EN 60715)

•Power reserve (10 years) is reduced if memory card is

inserted (using battery power)

•Corresponds to type 1 STU nach IEC/EN 60730-2-7

2. Safety

Assembly and installation should only be carried

out by a qualied electrician, somebody who has

completed appropriate professional training and

has the knowledge and experience necessary to be

able to recognise and avoid the potential dangers

posed by electricity.

Before installation/disassembly, disconnect the

power supply and ensure that the parts are no

longer live.

Prior to commissioning and using the product, read

the entire manual and follow the instructions.

3. Proper use

•The astronomic time switch is used, for instance, for

lighting equipment (roads, external staircases, display

windows, entrances etc.)

•Interface for Bluetooth OBELISK top3 (app)

•Only for use in closed, dry rooms

!Do not use on safety devices, e.g. escape route doors, re

safety equipment etc.

4. Installation and connection

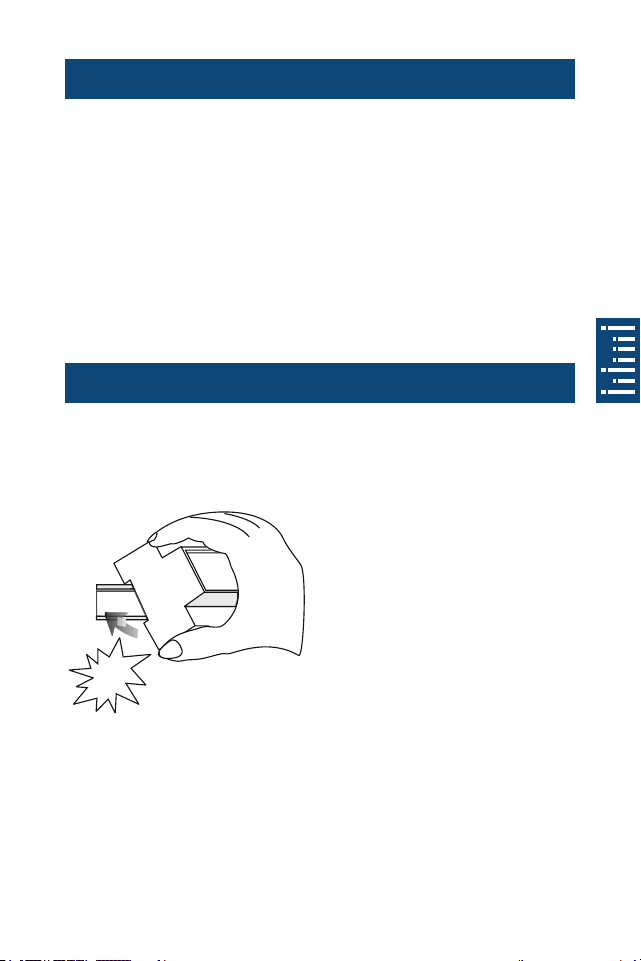

Mounting the time switch

Mount on DIN rail.

TH 35-7,5

(DIN EN 60715)

clic

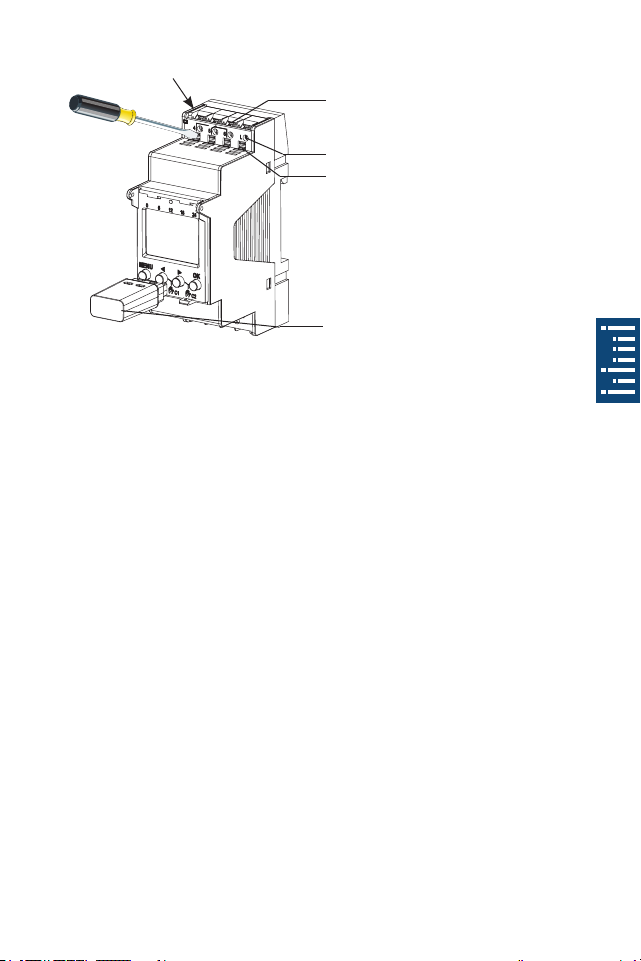

Test connection

45° cable

Spring plug-

in terminal

opener

Bluetooth OBELISK top3

(9070130)

DuoFix spring

plug-in terminal

!Check the depth of the control cabinet when OBELISK

top3 is connected. The depth must be > 94 mm.

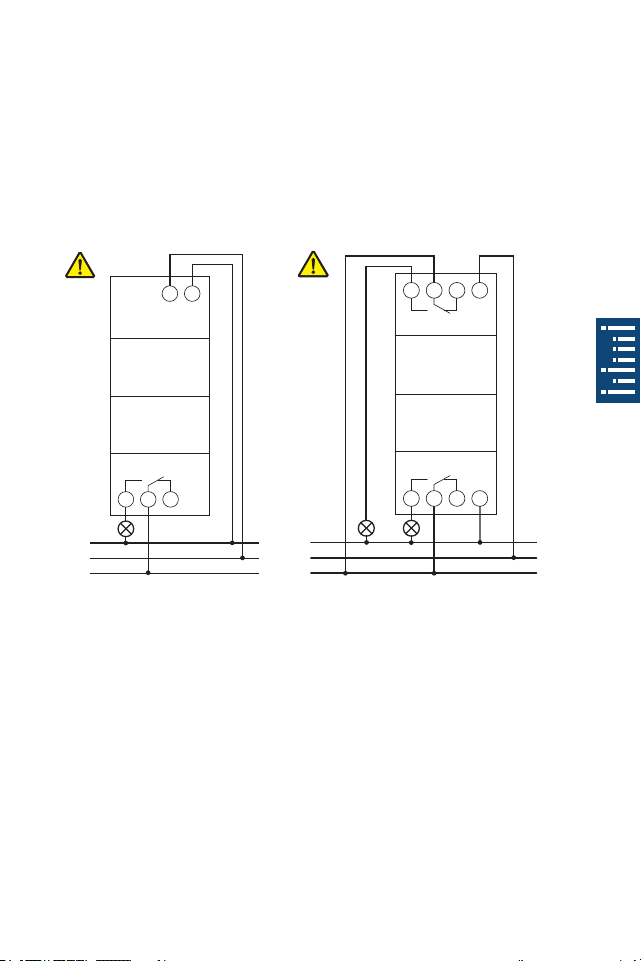

Connecting the time switch

!Correct connection required for smooth zero-cross

switching operation.

SELEKTA 174 top3SELEKTA 170 top3

1 2 3

L N

1 2 3

4 5 6 L

Connecting the cable

Strip cable to 8 mm (max. 9).

Insert cable in the open DuoFix plug-in terminal at 45°.

L2 cables per terminal position possible.

To open the DuoFix plug-in terminal, press screwdriver

downwards.

Disconnecting the cable

Use the screwdriver to push the spring plug-in terminal

downwards.

5. Device description

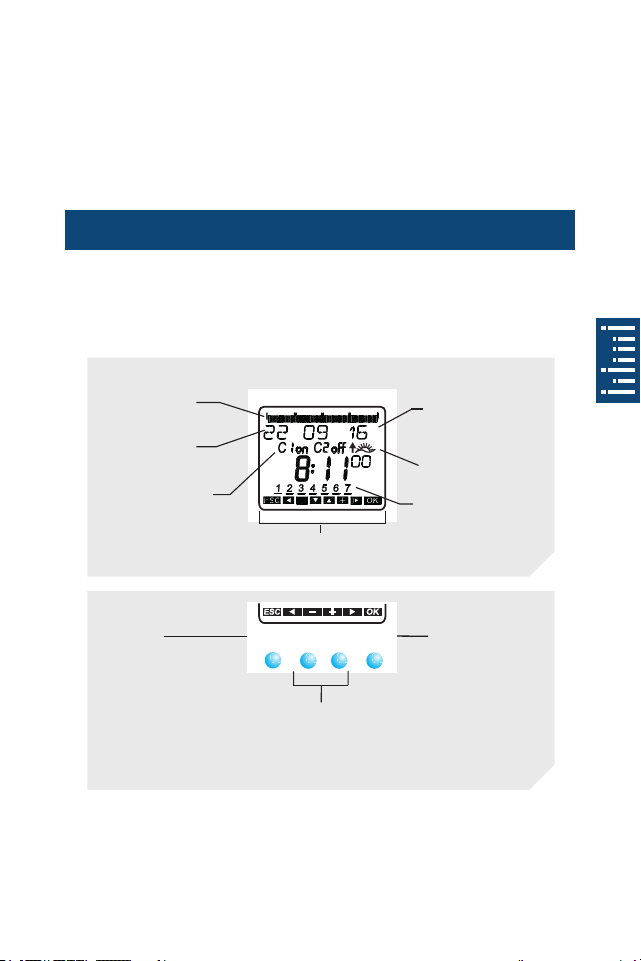

Display & buttons



12 18 24

MENU OK

OKMENU

Date display

Channel status

ON = On

OFF = Off

Programmed

ON times

Days of the week

from 1 to 7

Display of the active buttons

with the relevant function

– Activate screen

– Open menu

– Cancel menu

– ESC

(leave menu)

–Store

selection

–Confirm

selection



Selection options

are displayed

Time display

Sunrise/sunset

display

Operating instructions

YES

Confirmation

press

Change/

select

press

t u

1. Read text lines

Flashing text/symbol

is a prompt

2. Make a decision

Overview of menu selection

ASTRO

MANUAL

PROGRAM

OPTIONS

TIME/DATE

END

u u u

ASTRO-

TIMES

TOTAL

SIMULATION

OFFSET

ASTRO-

MODE

LOCATION

END

CHANNEL C1

NEW

CHECK

MODIFY

DELETE

TOTAL

SIMULATION

END

CHANNEL C1

TIME

SET DATE

SU-WI

WEEK DAY

FORM DATE

FORM TIME

END

PERM ON

PERM OFF

OVERR ON

HOLIDAY

END

OPERATING

HOUR

LCD-ILLUMI-

NATION

LANGUAGE

FACTORY

SETTINGS

INFO

END
