Theben RAMSES BLE OT Manuel utilisateur

RAMSES BLE OT

8509150

307347

Clock thermostat

1. Basic safety information 3

2. Proper use 3

Disposal 3

3. Installation 4

Mounting the clock thermostat4

Dismounting the clock

thermostat 6

4. Connection 6

Terminal layout 7

5. Manual setting at the clock

thermostat 7

1. Quick selection of comfort or

eco mode 8

2. Pairing 8

3. Reset 8

6. Settings and functions –

operation via Theben app 9

Is my smartphone BLE

capable? 9

RAMSES BLE app 9

Connecting clock thermostat and

smartphone (via app) – pairing 10

Program 12

Info 14

Settings 15

7. Technical data 25

8. Contact 25

1. Basic safety information

 Connection and installation should only be carried

out by a qualied electrician!

 Before installation/dismounting, disconnect the

power supply!

NOTE

•The clock thermostat conforms with EN 60730-2-9 if

correctly installed

•Corresponds to type 1 STU in accordance with IEC/EN

60730-2-7

•Operation and programming only via RAMSES BLE app

•With external input (SELV, programmable)

2. Proper use

•Heating control for time-dependent monitoring and

control of room temperature in single-family houses,

ofces etc.

•Use in dry rooms with normal levels of domestic

cleanliness

Disposal

Dispose of device in environmentally sound manner

3. Installation

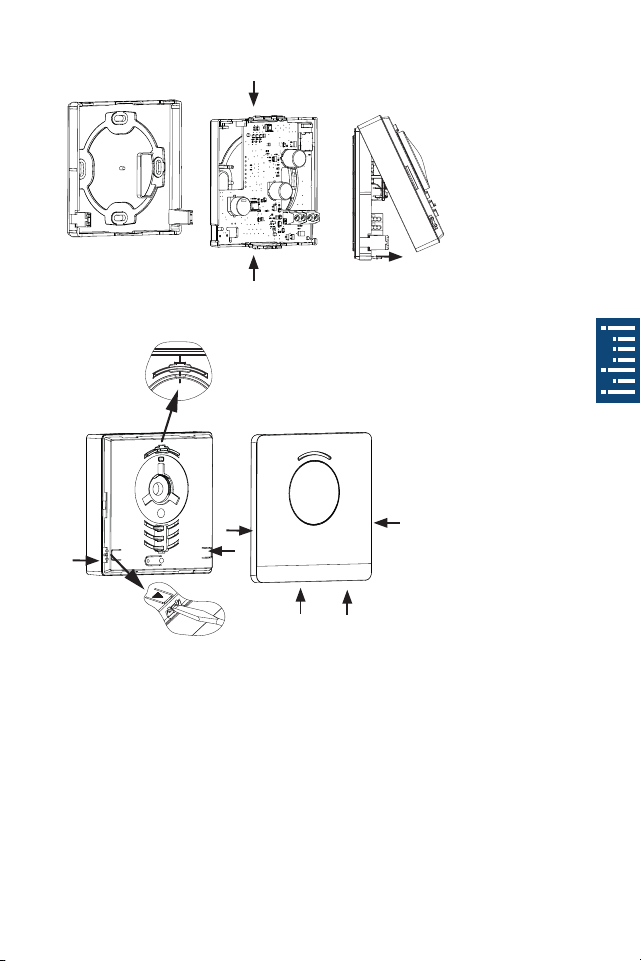

Mounting the clock thermostat

Electrostatic discharge!

Caution, sensitive electronic components!

When tting, observe ESD safety measures (elect-

rostatic discharge).

!Position the clock thermostat on an internal wall, at

about eye level.

!Avoid drafts or heat emission.

LFor wall mounting







Attach the mounting plate above the wall outlet of the

OpenTherm line .

Engage and wire the circuit board carrier .

First, hook in the upper part of the clock thermostat on top,

then engage .

Put on the cover .

Dismounting the clock thermostat

Using a screwdriver, loosen the front panel at the two side

and bottom openings .

Then release the catches on the left and right and remove

the upper part of the housing .

Loosen the plug-in connectors and press the circuit board

carrier together at the top and bottom .

Remove the circuit board carrier through the front.

4. Connection

•The power supply from the thermostat to the boiler is

provided via OpenTherm.

•The two-wire connection (OpenTherm) is not polarised,

i.e. the wires can be connected to the boiler as required.

!Disconnect the boiler from mains supply before connec-

ting the thermostat.

!Faulty connections will damage the device.

!Without interference, the bus line can be extended up to

50 m.

!In order to eliminate the possibility of EMC interference,

always lay the feed of the supply voltage separate from

the mains cables.

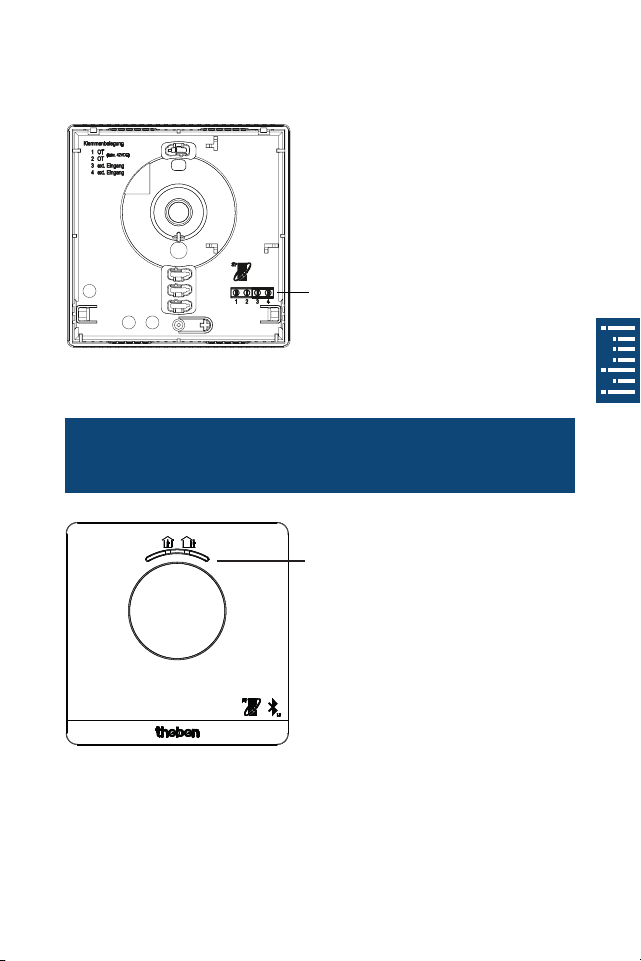

Terminal layout

1 OT

2 OT

3 ext. input

4 ext. input

5. Manual setting at the clock

thermostat

Button with LED display for setting

– Comfort mode (green LED on)

– ECO mode (green LED off)

By using the button, the following functions can be set:

1. Quick selection of comfort or eco mode

Press the button

▻ Comfort mode or eco mode will be set.

At the next switching time, the quick selection will be reset.

2. Pairing

Press the button for 3 s

▻RAMSES BLE OT can be connected with a smartphone/

tablet (paired) for 5 min. (green LED ashes). If pairing

is successful, the LED goes out.

Delete pairing

Press the button for 6 s

▻All connections saved in the RAMSES BLE OT (pairing)

will be deleted (red LED ashes)

Delete the connection/pairing also on the smartphone/

tablet (Settings →Bluetooth pairing →delete respective

device (RAMSES BLE OT)).

The PIN will be reset to 0.

3. Reset

Press the button for 12 s

▻Hardware reset (the red LED goes out)

6. Settings and functions –

operation via Theben app

Is my smartphone BLE capable?

Download Bluescan app for Android and iOS

The app can be used to check whether a device is BLE capa-

ble or not.

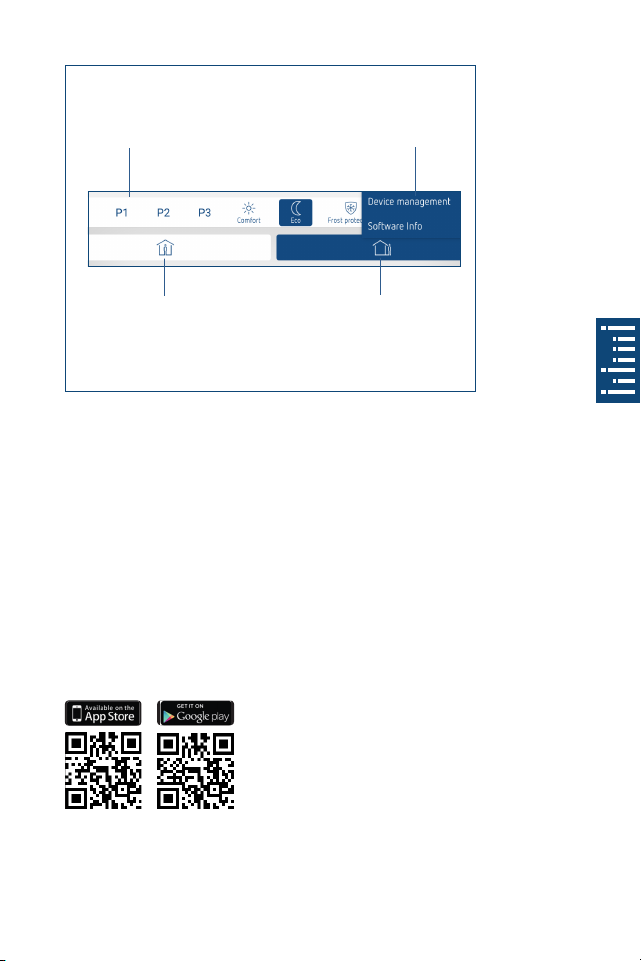

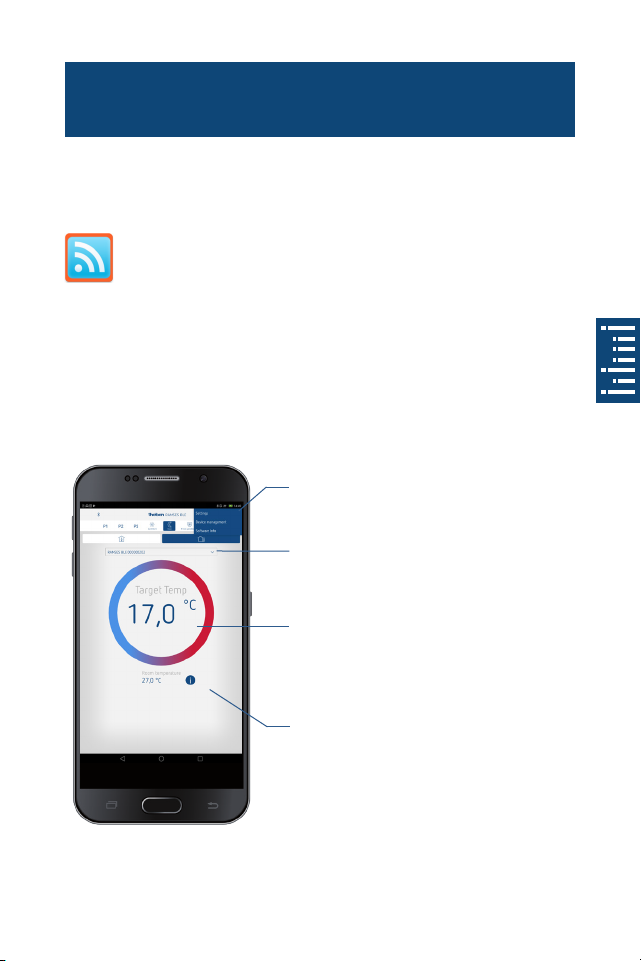

RAMSES BLE app

Set temperature, adjustable in

increments of 0.2 °C (2 °C

– 30 °C)

Selection of OpenTherm

device

Settings, device management

Software info

Info: External input, ame,

PIN etc.

Programming of

switching times

Operating modes:

– Programs P1 – P3

– Comfort, reduction, frost

Quick selection

Comfort mode*

Quick selection

Eco mode*

*until the next switching time

Connecting clock thermostat and smart-

phone (via app) – pairing

The clock thermostats can be programmed using an app

(from Android 4.3, iOS 5) on a mobile end device. Communica-

tion takes place via Bluetooth BLE.

Download the RAMSES BLE app from the App Store or

Google Play Store
