The Wings Maker Flyboy 50 Manuel utilisateur

* Specifications are subject to change without notice.*

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of engine powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual at

hand for quick reference.

Warning ! This model is not a toy.

Wing Span: 63.0 in /1600 mm

Wing Area: 660 sq in / 42.6 sq dm

Flying Weight: 6.0 lbs / 2700 g

Fuselage Length: 51 in / 1290 mm

Required : 2-stroke 0.40-0.46 or 4-stroke 0.70

engine, 5- channel radiow/ 6 servos

Specifications

INSTRUCTION MANUAL

Specifications

Before commencing assembly, please read these instructions thoroughly.

( )

GA014

GA014PO28971303

P.3-P.10

Do not overlook this symbol!

Cut off shaded portion.

Peel off shaded portion

covering film.

Pay close attention here!

Pierce the shaded portion

covering film.

Must be purchased separately!

Drill holes with the specified

diameter (here: 3mm).

3mm

INDEX

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P. 1

P. 2

P. 10

BEFORE YOU BEGIN

Read through the manual before you begin, so you will have an overall idea of what to do.

Symbols used throughout this instruction manual comprise of the following : -

Ensure smooth non-binding

movement while assembling.

Apply instant glue

(C.A.glue, super glue.)

Assemble left and right

sides the same way.

Apply epoxy glue.

P.1

Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT

and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you

find to be defective after the gluing process may be difficult to remove for warranty replacement. The

manufacturer will replace any defective parts. but will not extend to the parts that are good before

gluing to defective parts during assembly. Warranty will not cover any parts modified by customer.

Apply thread locker

GA014PO28971303

P.2

Parts List

COVERING:

TOUGHLON STL 100 WHITE

TOUGHLON STL 331 CUB YELLOW

LIGHTEX SGX 310 RED

LIGHTEX SGX 360 VIOLET

1. MAIN WING -- 1 pair

2. SCREW PB2x25mm -- 6 pcs

FUEL TUBE Ø6x5mm -- 4 pcs

CLEVIS PL4112103 -- 2 pcs

STRAPER PL4112102 -- 2 pcs

TRI-HORN M3x14mm (For Aileron) PL4111185 -- 2 sets

PUSHROD Ø1.8x115mm w/ Threads (For Aileron) -- 2 pcs

3. WING JOINER 5x29x108mm -- 1 pc.

4. RETRACTABLE LANDING GEAR--1 pair

MAIN WHEEL Ø56mm -- 2 pcs

COLLAR Ø4.1mm w/ set screw -- 2 sets

5. LINKAGE CONNECTOR Ø2.1mm w/ set screw -- 2 sets

6. STABILIZER & ELEVATOR -- 1 set

FUSELAGE -- 1 pc.

7. VERTICAL FIN & RUDDER -- 1 set

8. TAIL LANDING GEAR -- 1 set

TAIL WHEEL Ø23mm -- 1 pc.

COLLAR Ø2.1mm w/ screw -- 1 set

SCREW PA3x12mm -- 2 pcs

9. ENGINE MOUNT PL5111050 -- 1 set

SOCKET HEAD SCREW M4x25mm -- 4 pcs

WASHER d4xD9mm -- 4 pcs

10. FUEL TANK 320cc -- 1 set

DOUBLE-SIDED TAPE 40x100mm -- 1 pc.

CABLE TIE 1.5x5x400mm -- 1 pc.

11. SCREW HM3.5x30mm -- 4 pcs

WASHER d3.5xD8mm -- 8 pcs

M3.5 NUT -- 8 pcs

THROTTLE PUSHWIRE Ø1.2x320mm -- 1 pc.

w/ Plastic Tube d2xD3x125mm -- 1 pc.

12. SCREW PB2x16mm -- 6 pcs

TRI-HORN M3x14mm (For Elevator) PL4111185 -- 2 sets

FUEL TUBE Ø6x5mm -- 2 pcs

CLEVIS PL4112103 --2 pcs

PUSHROD Ø1.8x605mm w/ Threads (For Elevator) -- 2 pcs

13. SCREW PB2x16mm -- 3 pcs

CLEVIS PL4112103 -- 1 pc.

FUEL TUBE Ø6x5mm -- 1 pc.

TRI-HORN M3x14mm (For Rudder) PL4111185 -- 1 set

PUSHROD Ø1.8x720mm w/ Threads (For Rudder) -- 1 pc.

14. LINKAGE CONNECTOR Ø2.1mm w/ set screw -- 1 set

15. SPONGE 10x80x200mm (For Radio Equipment) -- 2 pcs

STRAPER PL4112102 -- 2 pcs

FUEL TUBE Ø6x5mm -- 2 pcs

PUSHROD CONNECTOR 4x9x20mm (For Elevator) -- 1 set

PUSHROD Ø1.8x90mm (For Elevator) -- 1 pc.

PLYWOOD 3x49x113mm (For Throttle Servo) -- 1 pc.

BALSA 6x6x46mm (For Throttle Servo Stand ) -- 2 pcs

16. COWLING -- 1 pc.

TRANSPARENT DUMMY COWLING -- 1 pc.

SILICON GROMMET d1.5xD6.5mm -- 4 pcs

SPINNER Ø62mm PL2111062 -- 1 pc.

SCREW PWA2.6x12mm -- 4 pcs

17. CANOPY -- 1 pc.

SILICON GROMMET d1.5xD6.5mm -- 4 pcs

SCREW PWA2.3x12mm -- 4 pcs

PILOT PC001063A -- 1 pc.

18. SCREW HM4x40mm -- 2 pcs

WASHER d4xD15mm -- 2 pcs

19. DECALS: GA014DEC --1 set

GA014PO28971303

P.3

1Aileron

Bottom View

Aileron Servo Lead

Aileron Servo

Bottom View

1.8x115mm

Pushrod

Fuel Tube

6x5mm

straper

1.5mm

PB2x25mm

Clevis

Tri-horn

M3x14mm

Main Wing

Wing Jioner

5x29x108mm

PB 2 x 25mm Screw

Please look for pin-hole marks at under side of control surfaces.

1mm pilot holes for The Wings Maker tri-horn are pre-drilled.

Apply instant type CA glue to both sides of each hinge.

Please dry fit wing joiner into left and right wing to make sure they fit with

the proper dihedral angle, mark the wing joiner if necessary. Apply epoxy

glue to both sides of all surfaces in contact. Use a stick to apply the glue

to inner side of wing joiner sleeve, and apply the glue to wing joiner before

putting them together. Wing joiner not glued properly will lead to wing failure

and plane crash.

TWM PL8210010

CLEVIS WRENCH

GA014PO28971303

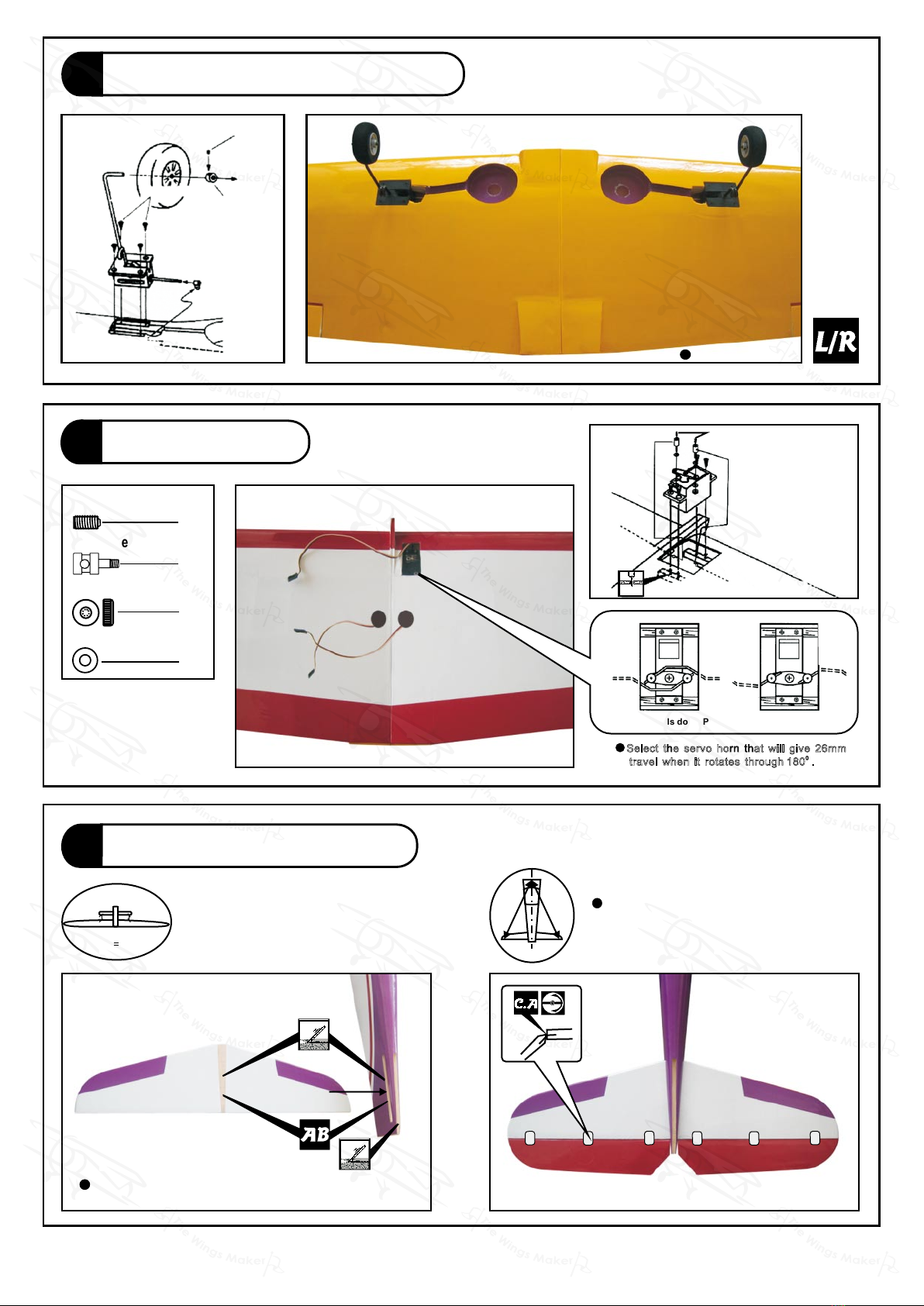

P.4

Retractable Landing Gear

3mm Set Screw

KA3x14mm

4.1mm collar

Bottom View

Retract Servo

3 X 3mm Set Screw

L i n k a g e C o n n e c t o r

2mm Nut

2mm Washer

Select the servo horn that will give 26mm

travel when it rotates through 180 .

Wheels up position

Wheels down Position

R-side

L-side

1mm

3mm

Stabilizer & Elevator

A A'

A=A'

Temporary install the main wing,

adjust leveling of the stabilizer to

make it as parallel to the main wing

as possible.

(Stabilizer)

(Main Wing)

BB'

Apply

instant

type

glue

both

sides

each

hinge.

*Also refer to step 19 Wing Setting

Remove coverings for all surfaces in

contact before applying A/B epoxy glue.

GA014PO28971303

P.5

7Vertical Fin & Rudder

Apply instant type CA glue to both

sides of each hinge.

Tail Landing Gear

3mm Set Screw

2.1mm Collar

PA 3 x 12mm Screw

1.5mm

Engine Mount

M4x25mm SocketHead Screw

d4 x D9mm Washer

C=C'

Completed

2.5mm

Bottom View

M3x3mm Set Screw

PA3x12mm 2.1mm Collar

Wheel 23mmØ

Blind nuts are off-centered

to keep the spinner at the

fuselage axis.

Engine Mount

PL5111050

d4 x D9mm Washer

M 4 x 25mm

Remove coverings for all surfaces in

contact before applying A/B epoxy glue.

GA014PO28971303

Fuel Tank

P.6

Double-sided Tape x mm

40 100

Engine

d4 x D9mm Washer

M3.5 Nut

Throttle Pushwire

w/plastic tube

M3.5 Nut

3.2mm

d4 x D9mm

Washer

M3.5 x 30mm

d4 x D9mm

Washer

Illustration is for mounting. You can mount the engine or

sideways simply by rotation the engine mount. Thrust angles will not be

affected.

upright inverted

114mm

4.5 in

Install Engine position

Fuel Tank

320cc

HM3.5x30mm Socket Head Screw

Cable Tie 1.5x5x4 mm

1 2 3

Bottom View

Plywood 2x59.5x102.4 mm

GA014PO28971303

P.7

Rudder Pushrod

Elevator Pushrod

PB2 x 16mm Screw

170mm

46mm

Elevator Pushrod

Ø1.8x605mm

Tri-horn

M3x14mm(L)

PB2x16mm

Fuel Tube

Ø6x5mm

Clevis

Bottom View

Please look for pin-hole marks at under side of control surfaces.

1mm pilot holes for The Wings Maker tri-horn are pre-drilled.

125mm

26mm

Rudder Pushrod

Ø1.8x720mm

Tri-horn

M3x14mm(L)

PB2x16mm

Fuel Tube

Ø6x5mm

Clevis

Bottom View

Please look for pin-hole marks at side of control surfaces.

1mm pilot holes for The Wings Maker tri-horn are pre-drilled.

Please refer to attached sheet for linkage connector installation.

2mm

Linkage Connector

M2 Nut

2mm Washer

Servo Set

3 x 3mm Set Screw

Throttle / Pushwire

w/ plastic tube

Included with the radio Set.

Throttle Servo.

PB2 x 16mm Screw

TWM PL8210010

CLEVIS WRENCH

TWM PL8210010

CLEVIS WRENCH

GA014PO28971303

Cowling

d1.5 x D6.5 mm Silicon Grommet

PWA2.6 x 12mm Screw

2mm

Spinner Ø62mm

Canopy

d1.5 x D6.5 mm Silicon Grommet

PWA2.3 x 12mm Screw

d1.5 x D6.5 mm

Silicon Grommet

2mm

PWA2.3 x 12mm

First insert the grommet to the canopy then apply screw.

Radio Equipment

Install and arrange the servo as shown in the diagram.

Elevator Pushrod

Front

Fuel Tube

Ø6x5mm

Sponge

Straper

Rudder Pushord

Elevator Servo

KM 2x8mm

M2 Nut

Elevator Pushrod

Ø1.8x90mm

Bottom View

Plywood

3x49x113mm

P.8

First insert the grommet to the cowling then apply screw.

Receiver

Rudder Servo

Elevator Servo

Throttle Servo

PWA2.6x12mm

Silicon Grommet

d1.5xD6.5mm

Cowling

Fuselage

Front

Pilot

Throttle Pushwire

Balsa 6x6x46mm

GA014PO28971303

P.9

Main Wing

HM4 x 40mm Screw

d4 x D15mm Washer

HM4 x 40mm

d4 x D15mm Washer

Bottom View

Adjust the wing and fuselage configuration as shown in the diagrams.

Wing Setting

A =A'

C C'

DD'

B =B'

C=C'

D=D'

GA014PO28971303

Autres manuels pour Flyboy 50

Autres manuels The Wings Maker Jouet

The Wings Maker

The Wings Maker CLIPPED WING CUB - 48 Manuel utilisateur

The Wings Maker

The Wings Maker CAP 232 46S Manuel utilisateur

The Wings Maker

The Wings Maker DF-032 Manuel utilisateur

The Wings Maker

The Wings Maker Handyman EP Manuel utilisateur

The Wings Maker

The Wings Maker Piper J-3 CUB 26 Manuel utilisateur

The Wings Maker

The Wings Maker J-11 B FIGHTER Manuel utilisateur

The Wings Maker

The Wings Maker FC-1 Manuel utilisateur

The Wings Maker

The Wings Maker Wingsman II Manuel utilisateur

The Wings Maker

The Wings Maker Slick 540 Manuel utilisateur

The Wings Maker

The Wings Maker X Fighter Manuel utilisateur

The Wings Maker

The Wings Maker Handyman Twins Manuel utilisateur

The Wings Maker

The Wings Maker SPITFIRE 160 Manuel utilisateur

The Wings Maker

The Wings Maker SZD-45 OGAR Manuel utilisateur

The Wings Maker

The Wings Maker SkyNova 2 Manuel utilisateur

The Wings Maker

The Wings Maker Spitfire EP Manuel utilisateur

The Wings Maker

The Wings Maker SkyNova Manuel utilisateur

The Wings Maker

The Wings Maker Slick 540 Manuel utilisateur

The Wings Maker

The Wings Maker Piper J-3 CUB 26 Manuel utilisateur

The Wings Maker

The Wings Maker ZERO FIGHTER 60 Manuel utilisateur

The Wings Maker

The Wings Maker FAIRCHILD PT-26 40 Manuel utilisateur

The Wings Maker

The Wings Maker ARF Ultimate EP Manuel utilisateur

The Wings Maker

The Wings Maker Flyboy 50 Manuel utilisateur

The Wings Maker

The Wings Maker FAIRCHILD PT-26 40 Manuel utilisateur

The Wings Maker

The Wings Maker Wingman I Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
