The Wings Maker DF-032 Manuel utilisateur

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of electric powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual at

hand for quick reference.

Warning ! This model is not a toy.

THE WINGS MAKER

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

* Specifications are subject to change without notice.*

www thewingsmaker com. .

SpecificationsSpecifications

Before commencing assembly please read these instructions thoroughly, .

INSTRUCTION MANUAL

Wing Span: 33 in / 850 mm

Wing Area: 299 sq in / 19.3 sq dm

Flying Weight: 24 oz / 680 g

Fuselage Length: 26.5 in / 675 mm

Requires: 3-channel “mixing radio”(elevator and aileron)

w/ 2 micro servos, 30A (burst 35A) Brushless ESC

and 3 cells 11.1V 20C 2100 mAh battery and charger

(GM032SXM)

GM032SXMPO27851203

INDEX

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P.1

P.2

P.3-P.9

P.9

P.1

Check all parts. If you find any defective or missing parts contact your local dealer. Please

DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.

Any parts you find to be defective after the gluing process may be difficult to remove for

warranty replacement. The manufacturer will replace any defective parts, but will not extend

to the parts that are good before gluing to defective parts during assembly. Warranty will

not cover any parts modified by customer. For pre-assembled kits, please check proper

functions of all servos on the ground before flying. Servo gears could be damaged when

control surfaces are hit during transportation of models. The manufacturer will replace any

servos due to manufacturer`s defect, but will not cover plane crashes due to damaged

servos not detected before flying.

Symbols used throughout this instruction manual comprise of the following :-

Read through the manual before you begin, so you will have an overall idea of what to do.

Cut off shaded portion.

Ensure smooth non-binding

movement while assembling.

Apply instant glue

(C.A.glue, super glue.)

Assemble left and right

sides the same way.

Peel off shaded portion

covering film.

Pay close attention here!

Apply epoxy glue.

Must be purchased separately !

Drill holes with the specified

diameter (here: 3mm). Pierce the shaded portion

covering film.

3mm

Do not overlook this symbol !

Warning!

Apply thread locker

GM032SXMPO27851203

Parts List

1. MAIN WING -- 1 pair

WING TIP

-- 1 pair

FIBRE TAPE 17x300mm -- 2 pcs

SCREW PA1.7x8mm -- 8 pcs

SERVO MOUNTING PANEL PL5310020 -- 1 pair

PLYWOOD 2x36x36mm (For Aileron Servo) -- 2 pcs

STRAPER PL4112106 -- 2 pcs

CLEVIS PL4112105 -- 2 pcs

FUEL TUBE d2xD4x4mm -- 4 pcs

HORN PL4113103 -- 2 pcs

PUSHROD Ø1.4x55mm w/Threads (For Aileron) -- 2 pcs

3. FUSELAGE -- 1 pc.

CANOPY / BATTERY COVER -- 1 pc.

PLYWOOD&MAGNET “-” 11x12mm -- 2 pcs

PLYWOOD&MAGNET “+”

Ø12

mm -- 2 pcs

PLYWOOD 2x66x182mm (For Battery) -- 1 pc.

PLYWOOD 3x38x86mm (For Fuselage) -- 1 pc.

DUMMY COWLING -- 1 pc.

BATTERY TIE 200mm -- 1 pc.

4. VERTICALFIN -- 1 set

PLYWOOD 4x10x35mm (For Ducted Fan) -- 2 pcs

SCREW PM2.5x8mm -- 4 pcs

WASHER d3xD7mm -- 4 pcs

PLYWOOD&MAGNET “-” 11x12mm -- 2 pcs

PLYWOOD&MAGNET “+”

Ø12

mm -- 2 pcs

DUCTED FAN COVER -- 1 pc.

6. CARBON

FIBER TUBE Ø5x450mm -- 1 pc.

BATTERY MAT 50x150mm -- 2 pcs

DOUBLE-SIDED TAPE 30x35mm -- 1 pc.

8. DECALS: GM032SDEC -- 1 set

GM032SXMPO27851203

Aileron Servo

Bottom View

PA1.7x8mm Screw

TWM PL8210010

CLEVIS WRENCH

02L

03L

04L

02R

03R

04R

Please choose either 02L & 02R or 03L & 03R or 04L & 04R that suits your servo.

Horn

Aileron Servo Lead

Bottom View

Plywood

2x36x36

Completed

Bottom View

17x300mm

Fibre Tape

Bottom Wing Tip

P.3

Main Wing

Straper Fuel Tube

d2xD4x4mm

PA1.7x8mm

Clevis

Pushrod

Ø1.4x55mm

Fuel Tube

d2xD4x4mm

Horn

GM032SXMPO27851203

P.4

Vertical Fin

Fuselage

Completed

Plywood 182x66x2mm

Plywood

3x38x86mm

Battery Tie 200mm

Plywood&Magnet “-” 11x12mm

Plywood&Magnet “+” Ø12mm

Dummy Cowling

GM032SXMPO27851203

P.5

Ducted Fan Propulsion Unit with 28/31 Motor

Make sure rotating motor

casing is not in contact with

wirings or anything.

123

456

M3x6mm

PM2x5mm

Completed

d3xD7mm Washer

PM2.5x8mm Screw

Optional Parts

Ducted Fan

Propulsion Unit

with Motor PL6800010

& Outrunner 28 / 31 KM0283110

Plywood

4x10x35mm

Solder D5x30mm

HEAT SHRINK TUBE

Electric Wire Insulation

Washer

d3xD7mm

PM2.5x8mm

Make sure TWM logo on ducted

fan stay on bottom of fuselage.

CenterLine

Bottom

Electric Wire

Apply a drop of CA to each notch will hold the intake cone in place, pry the notch with screw

driver to remove the cone for impeller or motor replacement.

Plywood&Magnet “-” 11x12mm

Plywood&Magnet “+” Ø12mm

GM032SXMPO27851203

P.6

Main Wing

Battery & ESC

Install and arrange the equipment as shown in the picture.

Battery

Battery Tie

Battery Mat

50x150mm

Bottom View Completed

Completed

Solder Solder

TWM

KP0011310

Bottom View

ESC Ducted Fan

Carbon Fiber Tube

Ø5x450mm

Aileron Servo Lead

Foam

151x13x5mm Foam

151x13x5mm

Aileron Servo Lead

ReceiverReceiver

Double-Sided tape

30A Brushless ESC

Inside View

30A Brushless ESC30A Brushless ESC

GM032SXMPO27851203

Decals

P.7

Bottom View

GM032SXMPO27851203

P.8

Field Stand / Launching Pad

The field stand can be used as a launching-pad if you are flying on paved

runways. Place the on the stand, point it into the wind, check your

controls and advance the throttle. When the gets enough air speed,

pull the elevator gently and the will fly off the field stand and get

airborne gracefully.

If you are flying on grass fields and could not use the field stand as a

launching pad, you will need to hand launch the .

When the has gained enough air speed, gently pull the elevator

and let the climb to a higher safe altitude. Reduce the throttle to

slow the while maintaining altitude. The should fly well

about half throttle. You may add power when turning, climbing or doing

loops. Learn how the behaves and adjust the trims for level flight.

To avoid overheating of ducted fan motor and battery, we recommend you

use full power intermittently. This will also give you longer flying time and

extend the battery life.

For the first hand launch flight, we recommend having an assistant to hand

launch the for you. Ask your assistant to hold the by the

fuselage, pointed into the wind, while you check the correct control surface

response. Fully advance the throttle to start the motor and once the ducted

fan is at full power, the hand launcher should gently push the plane into the

air at a level attitude. Don’t use excessive force as it is not necessary, and

don’t throw the model up the sky as it will cause the model to stall before

gaining air speed. Make sure the is being launched into the wind

and be alert to make corrections to keep the model flying straight and level

into the wind.

GM032SXMPO27851203

C.G.

Control Throws

Adjust the control throws as shown in

the diagram. These throws are good for

general flying. You can adjust according

to your personal preference.

10mm

Ailerons / Elevator

The ideal C.G. position is 70mm (2.76 in.) behind the leading edge

measured at where the wing meets the fuselage. In order to obtain

the C.G. specified, add weight to the fuselage or move the battery

position. Check the C.G. before flying.

70mm

2.76 in

C.G.

P.9

Important Safety Precautions

# First time flyer should never fly by himself / herself. Assistance from experienced flyer

is absolutely necessary.

# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly

pre-adjusted aircraft.

# is specially designed to be powered by KM0283110 Outrunner Motor.

# Make sure the air field is spacious, never fly the plane too close to people and never

get too close to a running propeller.

# Check and re-tighten up all factory assembled screws, use thread locker if necessary.

Warning!

Please note that the mixing function of your radio will add up the control throws of

aileron and elevator input. A control throw of 10mm for the aileron or elevator alone

will give you up to 20mm throw if you input aileron and elevator throw at the same time.

http://www.thewingsmaker.com/instructionManuals.php

GM032SXMPO27851203

Table des matières

Autres manuels The Wings Maker Jouet

The Wings Maker

The Wings Maker J-11 B FIGHTER Manuel utilisateur

The Wings Maker

The Wings Maker Handyman Twins Manuel utilisateur

The Wings Maker

The Wings Maker ARF Ultimate EP Manuel utilisateur

The Wings Maker

The Wings Maker SPITFIRE 160 Manuel utilisateur

The Wings Maker

The Wings Maker Spitfire EP Manuel utilisateur

The Wings Maker

The Wings Maker Wingsman II Manuel utilisateur

The Wings Maker

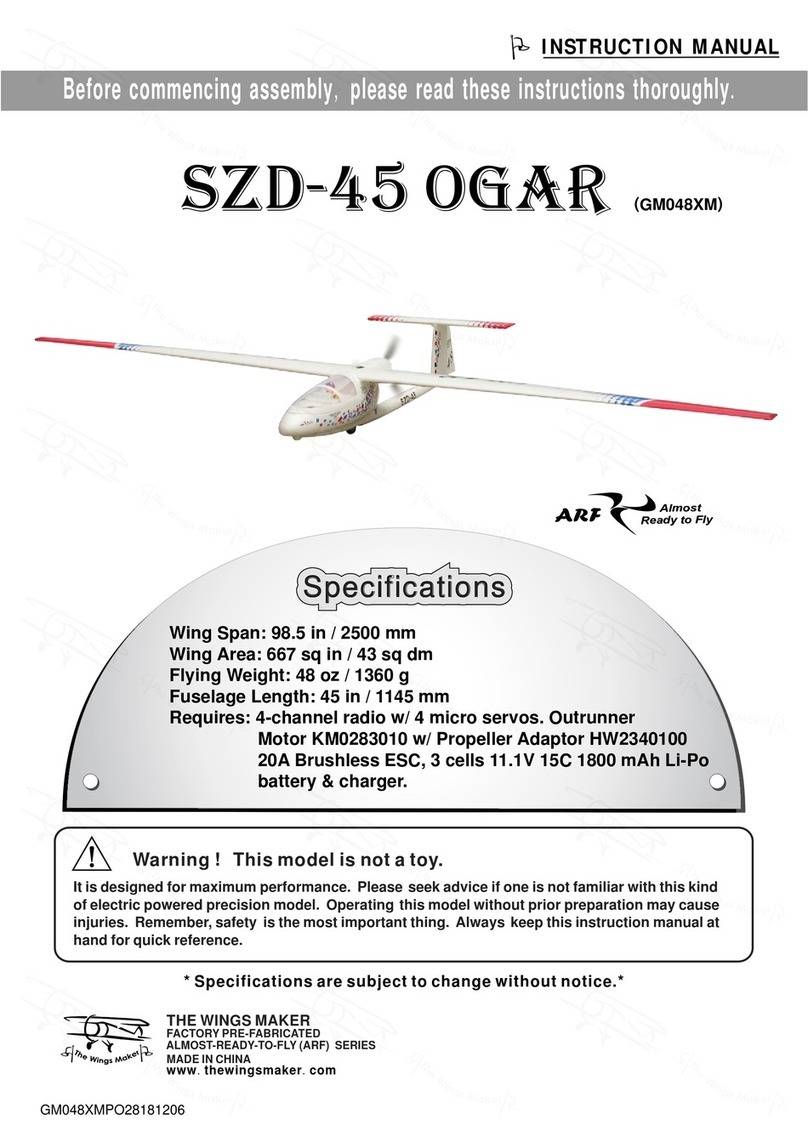

The Wings Maker SZD-45 OGAR Manuel utilisateur
