WARNINGS

ENGLISH

WARNING:TO REDUCE THE RISK OF

FIRE OR SHOCK HAZARD, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE COVER

OR BACK. NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol is intended to alert you

to the presence of uninsulated

dangerous voltage within the

product's enclosure that might be of

sufficient magnitude to constitute a

risk of electric shock. Do not open

the product's case.

This symbol is intended to inform

you that important operating and

maintenance instructions are

included in the literature

accompanying this product.

DRIPPING WARNING

VENTILATION WARNING

Warning:

SAFETY CERTIFICATION

The product shall not be exposed to dripping or

splashing and that no objects filled with liquids, such

as vases, shall be placed on the product.

The normal ventilation of the product shall not be

impeded for intended use.

Changes or modifications to this unit not

expressly approved by the party responsible for

compliance could void the user’s authority to

operate the equipment.

This device is made and tested to meet safety

standards of the FCC, requirements and

compliance with safety performance of the U.S.

Department of Health and Human Services, and

also with FDA Radiation Performance Standards

21 CFR Subchapter J.

Main plug is used as disconnect device and it

should remain readily operable during intended

use. In order to disconnect the apparatus from the

mains completely, the main plug should be

disconnected from the main socket outlet

completely.

Warnings:

CAUTION!

This CD player employs a laser light beam.

Only a qualified service person should

remove the cover or attempt to service this

device, due to possible eye injury.

The use of controls, adjustments, or

procedures other than those specified

herein might result in hazardous radiation

exposure.

This compact disc player is classified as a

CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT label is

located on the rear panel.

Invisible laser radiation when open and inter

locks defeated.Avoid exposure to beam.

The apparatus shall be used in an open

area.

Since CD circuitry may cause interference to

other radio tuners nearby, switch this unit off

when not in use or move it away from the

affected radio tuner.

This device complies with part 15 of the FCC

rules, operation is subject to the following two

conditions: (1) this device may not cause

harmful interference, and (2) this device must

accept any interference received, including

interference that may cause undesired

operation.

This class[B] digital apparatus complies with

canadian ICES-003.

CAUTION

FCC IMPORTANT

The CAUTION marking is located on the rear panel.

Class II equipment symbol

This symbol indicates that the unit

has a double insulation system.

ENGLISH

WARNINGS

NOTE This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as:

set out in the Radio Interference Regulations of Industry Canada These limits are designed to provide reasonable.

protection against harmful interference in a residential installation This equipment generates uses and can radiate.,

radio frequency energy and if not installed and used in accordance with the instructions may cause harmful,,

interference to radio communications However there is no guarantee that interference will not occur in a particular.,

installation If this equipment does cause harmful interference to radio or television which can be determined by.(

turning the equipment off the user is encouraged to try to correct the interference by one or more of the following),

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio TV technician for help/.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

CONTROL LOCATIONS

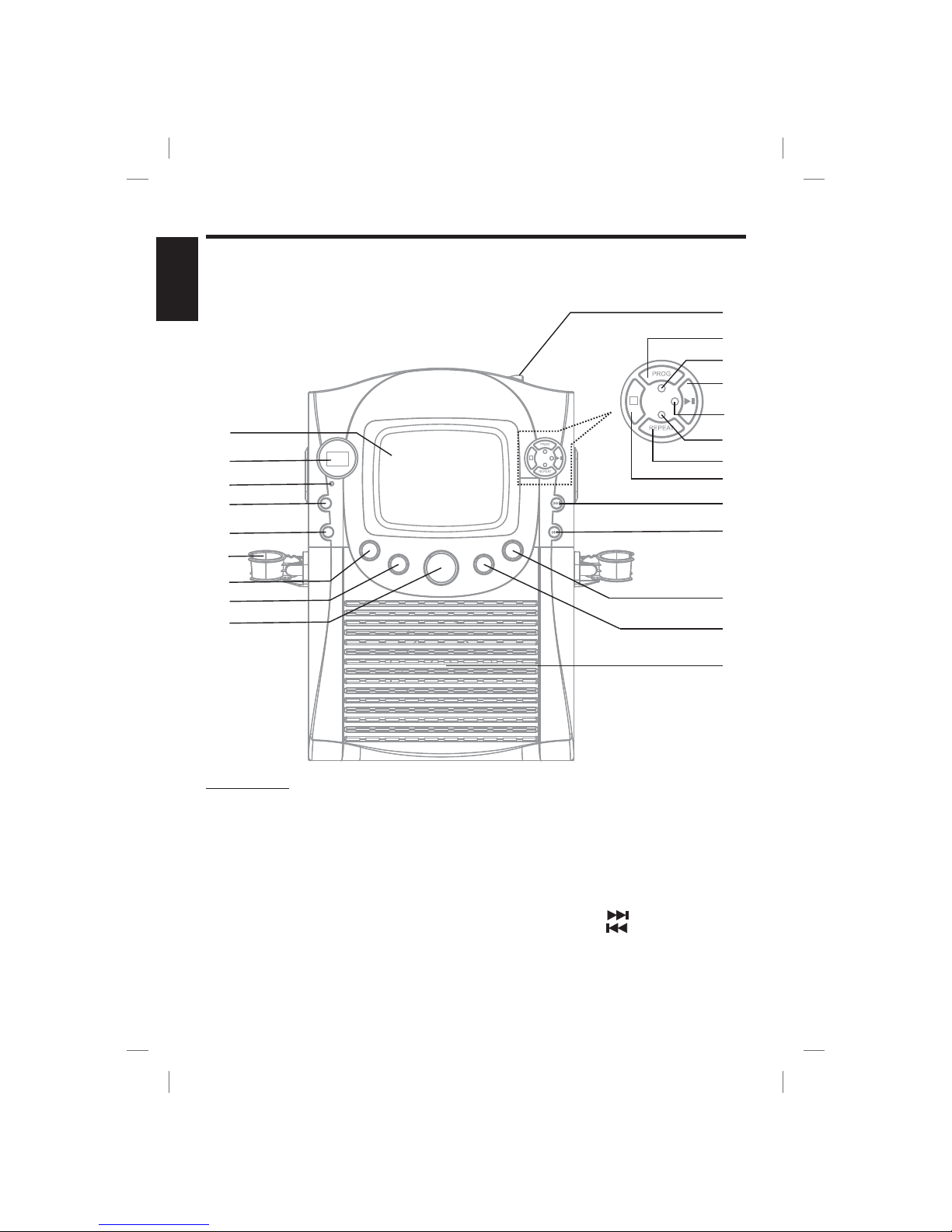

FRONT VIEW

ENGLISH

10.

11.

12 .

13.

14.

15.

16.

17.

18.

19.

20.

2.1

2.2

Monitor

LED Display

Power indicator

Power ON/OFF button

Monitor ON/OFF button

Mic Holder

MIC VOLUME control

A.V.C. control

MASTER VOLUME control

CD Door

PROGRAM button

PROGRAM LED

PLAY/PAUSE button

PLAY/PASUE LED

REPEAR LED

REPEAT button

STOP button

SKIP button

ECHO control

BALANCE control

Loudspeaker

ENGLISH

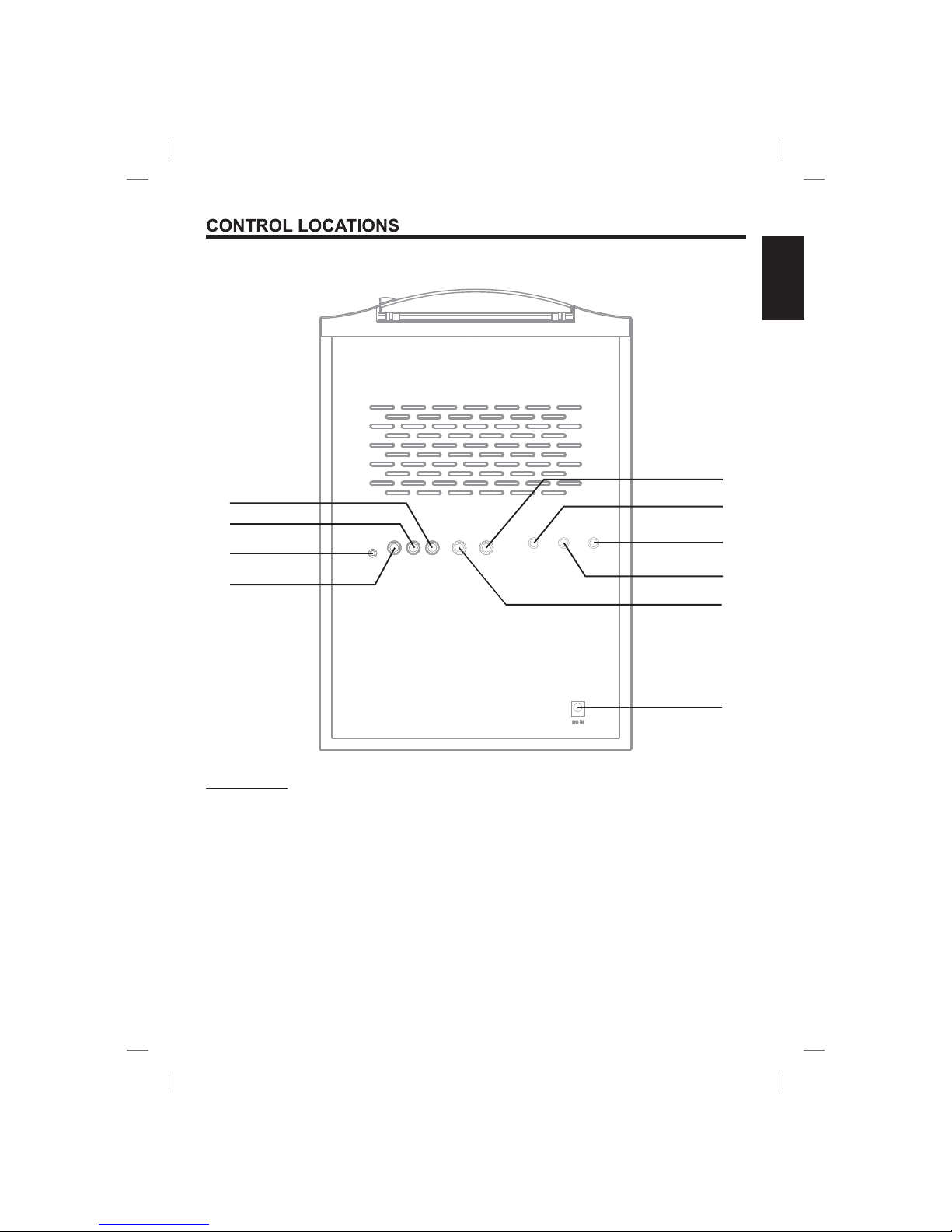

REAR VIEW

26 30

23. AUX OUT Jack (L)

24. AUX OUT Jack (R)

25. AUX IN Jack

26. VIDEO OUT Jack

27. MIC 2 Jack

28. CONTRAST Control

29. VERTICAL HOLD Control

30. BRIGHTNESS Control

31. MIC 1 Jack

32. DC Jack (DC 12V)

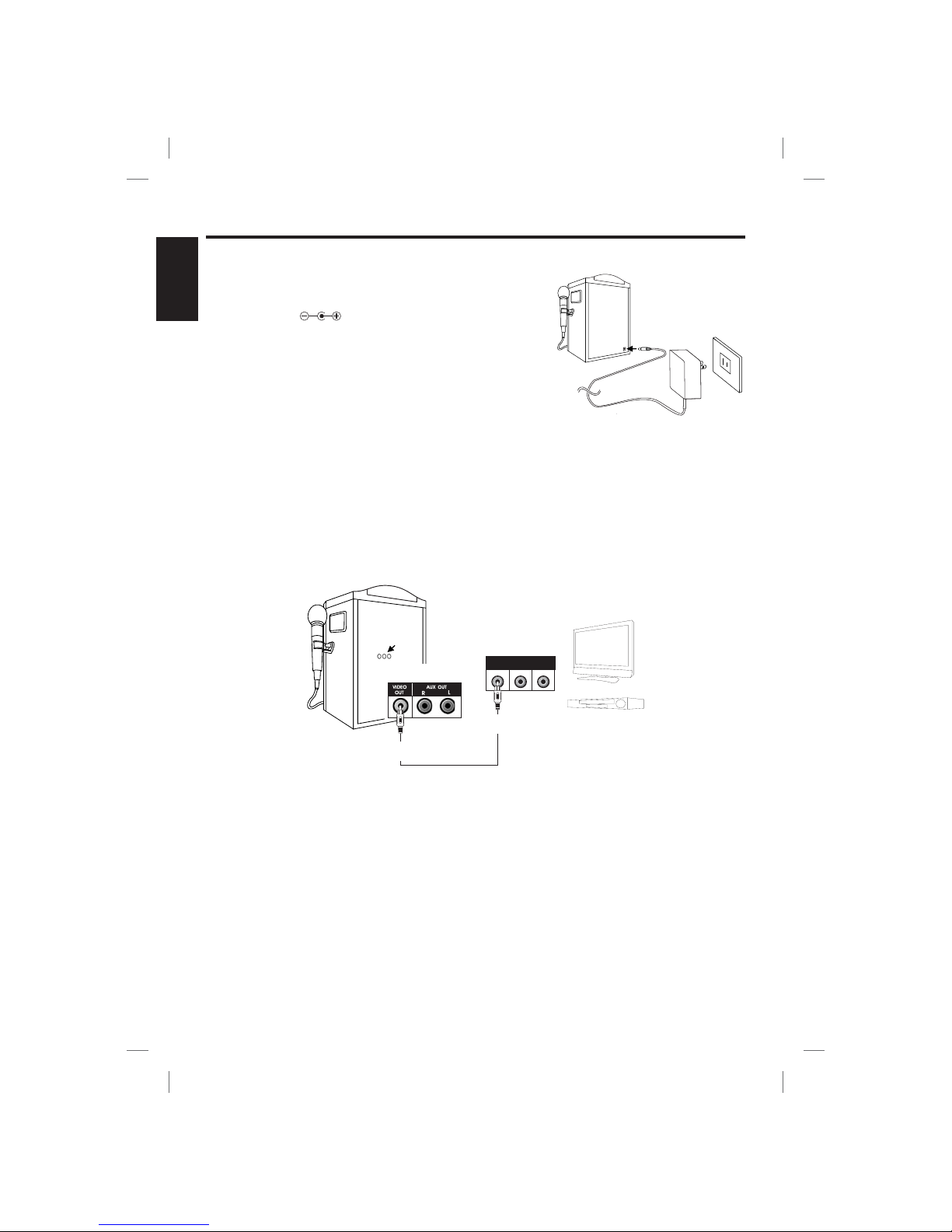

MAKING THE CONNECTIONS

CONNECTING POWER

SELECTING YOUR SINGING MACHINE AS YOUR SOURCE/INPUT

Insert the DC plug of the power adapter into the DC 12V jack of the

unit. You can power the system from a standard AC outlet by using

the supplied Power Adapter (The adapter operates on

Your Singing Machine is designed to connect to your TV the same way you would connect most video

cameras, VCR/DVD players or video game consoles.

We have provided RCA cables to connect your unit to a TV, VCR/DVD player, video device or an external

audio/sound system. The RCA cables have three connections at each end (white and red are for left and

right audio connections and the yellow is for video connection).

Please follow the steps below to display CD+G lyrics on the TV screen:

(1) Locate the multi-colored RCAcables

(2) Connect video cable (yellow) to the video out of the back of the Singing Machine

(3) Connect the other end of the video cable (yellow) to the video input on your TV or VCR/DVD

Player.

Selecting your Singing Machine as a source/input on your TV is very similar to connecting a VCR/DVD or

Satellite system.

We’ve listed below the most common ways of selecting the source from yourTV or VCR/DVD Player:

(1) In the set up menu of the TV or VCR/DVD player there may be an option for “Input Select” where

you can choose between “Cable/Ant., Video 1, Video 2, etc.” as the input source.

(2) Look for a TV channel between the highest and lowest on your TV or VCR/DVD player (i.e. AUX,

EXT, LINE 1 or LINE IN)

(3) Your remote control for either your TV or VCR/DVD player may have source input selections as

well as detailed below:

“VIDEO, VIDEO 1, GAME, AUX, EXT or LINE-IN.“ Choosing one of those in most cases should

display the lyrics from your Singing Machine as well.

AC 100V

240V/50Hz-60Hz )

CAUTION: -The included AC adaptor is for use with this unit only Do not

use it with other equipment

When the adaptor is plugged in the apparatus is not completely

disconnected from the main even when the power is turned off

CONNECTING TOYOUR TV OR VCR/DVD PLAYER

ENGLISH

VIDEO INPUT

(Yellow Jack)

VIDEO OUTPUT

(Yellow Jack)

REAR VIEW OF

SINGING MACHINE

VIDEO

INPUT

AUDIO

INPUT

REAR VIEW OF TV OR VCR

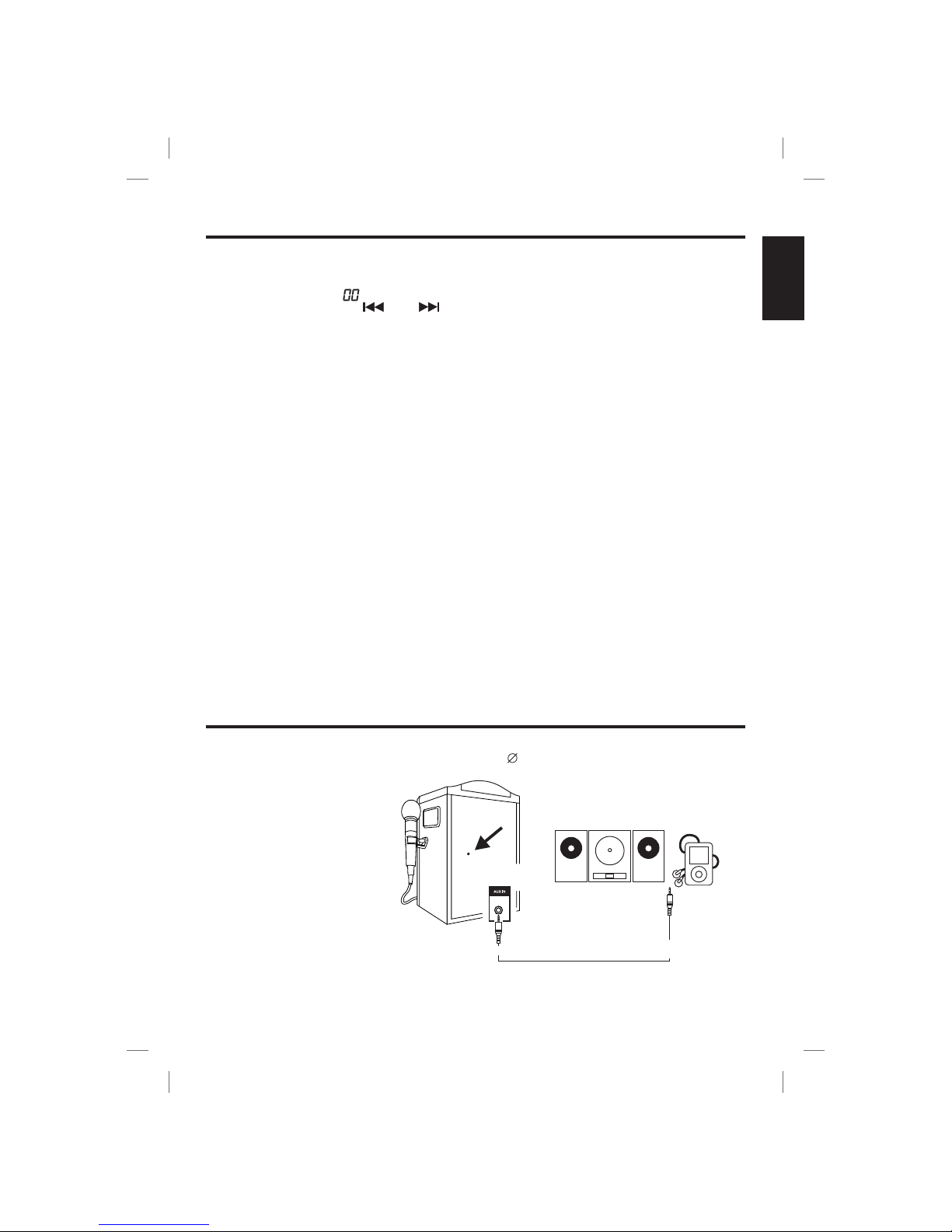

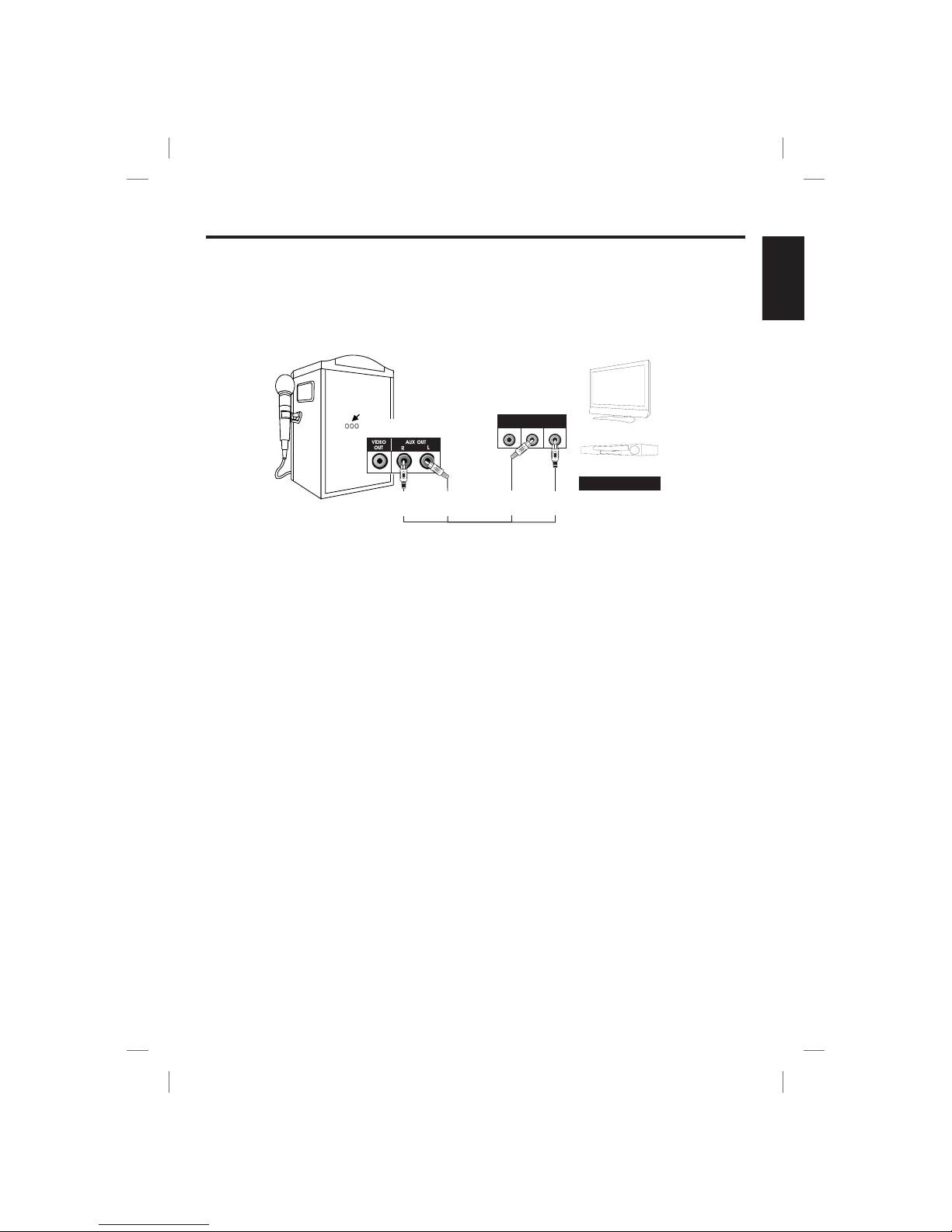

AUDIO CONNECTION

Please follow the steps below to connect the unit to your TV or VCR or home stereo system:

(1) Locate the multi-colored RCAcables.

(2) Connect audio cables (White and Red) to theAudio Out of the back of

the Singing Machine.

(3) Connect the other end of the audio cables to the audio/auxiliary input on your TV or VCR or home

stereo system.

(White-Left and Red-Right)

MAKING THE CONNECTIONS

ENGLISH

Home Stereo System

AUX OUTPUT

(Red Jack)

REAR VIEW OF

SINGING MACHINE

VIDEO

INPUT

AUDIO

INPUT

REAR VIEW OF TV OR VCR

OR HOME STEREO SYSTEM

AUX OUTPUT

(White Jack)

AUX INPUT

(Red Jack)

AUX INPUT

(White Jack)

This unit is designed to play CDs and CD+Gs bearing the identification logo . If the disc does not

conform to the standard, it may not play properly.

respectively

To turn on the unit, press the ON/OFF button, the ON/OFF LED Indicator will light up.

To turn it off, press the ON/OFF button again, the ON/OFF LED Indicator will turn off.

Open the CD door, place a CD or CD+G disc in the compartment with the printed side facing upward and

the shiny side facing down.

Gently close the CD door. If no disc is loaded, it will

display “ ”.)

Adjust MASTER VOLUME control on your unit, TV or audio system to a comfortable level.

To start playing, press the PLAY/PAUSE button. The first track [ ] and the PLAY/PAUSE LED will be lit.

To temporarily stop playing, press the PLAY/PAUSE button. The PLAY/PAUSE LED Indicator will flash.

To resume play, press this button again.

If the STOP button is pressed in the course of playing, the disc will cease to play. (The total number of tracks

will be shown on the LED window.)

Rotate to the MASTER VOLUME control to obtain the desired sound level.

During STOP mode you can skip forward or back to your desired track number by pressing

SKIP buttons - SKIP -

To resume playing the selected song press PLAY PAUSE button

When playing any audio CD, press and hold the SKIP button ( -SKIP- ). The CD will search at high

speed in the forward or backward direction. Normal play will continue when you release the button.

To repeat the track currently playing, press the REPEAT button once. The REPEAT LED will start to flash.

To repeat all tracks, press the REPEAT button twice. The REPEAT LED will light up and stay lit. Press the

PLAY/PAUSE button to begin.

To clear the REPEAT function, press the REPEAT button again. The REPEATLED will turn off.

TURNING POWER ON/OFF

LOADINGADISC

PLAY/PAUSE

STOP

MASTER VOLUME

SKIP (For both CD and CDG discs)

SEARCH (For audio CD disc only)

REPEAT

Note:

(Refer to the Trouble Shooting Guide if a disc is loaded but the total tracks do not appear.)

Note:

Note: The MIC Volume must be adjusted simultaneously with the master volume level.

- Never place anything except a compact disc in the disc tray. Foreign objects can damage the unit.

- Only place one disc on the disc tray at a time.

- Pressing pause repeatedly when a CD+G is playing may cause distorted lyrics on your TV screen. Any distortion will

remain on the TV screen until it is refreshed either during an instrumental break or the song is stopped and/or the

song is started from the beginning.

().

,/ .

the

The monitor will display the total number of tracks. (

CD OR CD+G OPERATION

ENGLISH

CD OR CD+G OPERATION

PROGRAM

Use this button to program and play back songs in a preselected order.

Step 1: Programming should be done in the stop mode only. Press the PROGRAM button until the PROGRAM LED

flashes, the track will read [ ].

Step 2: Press the SKIP buttons ( - SKIP - ) to select a desired track.

Step 3: Press PROGRAM button to confirm entry. You can repeat the same steps up to a maximum of 24 tracks.

Step 4: Press PLAY button when you have completed programming and you are ready to start singing.

Press the STOP button twice to clear all the programmed entries.

MONITOR ON/OFF

KARAOKE FUNCTIONS

MASTER VOLUME

Press MONITOR ON/OFF button to ON if you want to display a CDG lyrics on the Singing Machine’s

monitor.

Adjust the BRIGHTNESS, CONTRAST AND VERTICAL HOLD controls located on the back of the

Singing Machine to display a vivid image.

Your Singing Machine is designed to connect your favorite Digital Music device (e.g. iPod/MP3 player, etc.)

You can connect your device by using an appropriate cable ( .

Rotate to the MASTER VOLUME

control to obtain the desired sound

level.

Sing along with the music by plugging in the provided microphone into either one of the microphone jacks on the unit.

Adjust the MIC VOLUME control to a desired level and obtain the best performance.

Adjust the ECHO control to enhance your voice for a concert hall effect.

Adjust the BALANCE control between the prerecorded singer’s voice and the music when using a multiplex karaoke disc.

(Please see Glossary of term to learn more about multiplex on our website.)

AUTO VOICE CONTROL can be activated by rotating the Auto Voice Control. The vocals on the multiplex recording will be

muted when using the microphone. When the microphone is not in use the pre-recorded vocals will resume on a multiplex

disc.

Warning - Tapping or dropping the microphone while it is on can permanently damage your microphone. Resist

the urge to swing the microphone around by the cord!

Warning - To avoid Microphone feedback please avoid being too close to the speaker.

MIC VOLUME

ECHO

BALANCE

AUTO VOICE CONTROL

DWarning - To avoid the over-

burst amplified volume output

or possible over-tuned sound

crack, you are recommended to

adjust the Digital Music device

volume to one third or lower at

the beginning.

(MULTIPLEX DISCS ONLY)

3.5mm audio cable not included)

AUX IN function can always be

switched ON once the audio cable is

plugged.

Note: Monitor will be turned off when the

audio cable is plugged.

AUX IN OPERATION

AUDIO OUTPUT

/ HEADPHONE JACK

AUX IN

REAR VIEW OF

SINGING MACHINE

YOUR DIGITAL PLAYER OR MP3 PLAYER

TROUBLE SHOOTING GUIDE

If you have followed the instructions and are having difficulty operating the unit, locate the

PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE column to

locate and remedy the problem.

SOLUTION

Insert the power plug into the AC

outlet.

Turn up the volume.

Turn up the volume at TV/PA

system.

Turn on the power at TV/PAsystem.

Follow directions ‘Audio

Connection’page.

PROBLEM

No power when

POWER is on.

No sound.

POSSIBLE CAUSE

No power plug connection at

theAC outlet.

Volume control is set to

minimum.

Volume control on TV set/PA

system is set to minimum.

TV set/PA system power is

OFF.

AUX OUT jacks not

connected.

Check the outlet with a working

lamp or other electrical appliance.

No power when plugged

in.

The AC outlet may not have

power.

Insert disc correctly.

Wipe clean with soft cloth.

Use a new disc.

Only use discs bearing standard

logo.

Disc is inserted upside down.

Disc is dirty.

Disc is scratched.

Disc is warped.

A nonstandard disc is

inserted.

Moisture has formed inside

the CD deck.

CD PLAYER

displayed.is

annot work normally or

“”

Wait about 20 to 30 minutes to let it

dry out.

Singing Machine needs to be

reset.

Disconnect the machine from

power source for 30 seconds.

Lens is dirty. Use a CD lens cleaner.

Remove Audio cable from the AUX

IN jack.

Audio cable has not been

removed from the AUX IN

jack.

ENGLISH

Table des matières

Langues :

Autres manuels The Singing Machine Système de karaoké

The Singing Machine

The Singing Machine SML625BTW Manuel utilisateur

The Singing Machine

The Singing Machine SMC273BK Manuel utilisateur

The Singing Machine

The Singing Machine SML329 BK Manuel utilisateur

The Singing Machine

The Singing Machine STVG-519 Manuel utilisateur

The Singing Machine

The Singing Machine SMG-301 Manuel utilisateur

The Singing Machine

The Singing Machine FIESTA PLUS Manuel utilisateur

The Singing Machine

The Singing Machine SML-383 Mode d'emploi

The Singing Machine

The Singing Machine SML2250 Manuel utilisateur

The Singing Machine

The Singing Machine STVG-718 Manuel utilisateur

The Singing Machine

The Singing Machine CLASSIC STVG569BT Manuel utilisateur

The Singing Machine

The Singing Machine SMDigital iSM-370 Manuel utilisateur

The Singing Machine

The Singing Machine SMDigital iSM-1010 Manuel utilisateur

The Singing Machine

The Singing Machine SMC4TV Manuel utilisateur

The Singing Machine

The Singing Machine Carpool Karaoke The Mic Manuel utilisateur

The Singing Machine

The Singing Machine STVG-519 Manuel utilisateur

The Singing Machine

The Singing Machine SML-385W Manuel utilisateur

The Singing Machine

The Singing Machine SML2200 Manuel utilisateur

The Singing Machine

The Singing Machine STVG785BT Manuel utilisateur

The Singing Machine

The Singing Machine SMG-903 Manuel utilisateur

The Singing Machine

The Singing Machine STVG-999 Manuel utilisateur

The Singing Machine

The Singing Machine STVG-707 Manuel utilisateur

The Singing Machine

The Singing Machine SML392 Manuel utilisateur

The Singing Machine

The Singing Machine SML682BTBK Manuel utilisateur

The Singing Machine

The Singing Machine SML652BK Manuel utilisateur

Manuels Système de karaoké populaires d'autres marques

Memorex

Memorex MKS2430 Manuel utilisateur

Tosing

Tosing 008 Manuel utilisateur

Karma

Karma KSTATION Manuel utilisateur

LG HT902TR-XK Manuel utilisateur

Karaoke Warehouse

Karaoke Warehouse Player 2000 Manuel utilisateur

VocoPro

VocoPro DVG-888K II Manuel utilisateur

ION

ION DISCOVER KEYBOARD USB Manuel utilisateur

Singsation

Singsation CENTER STAGE FREESTYLE Manuel utilisateur

RSQ

RSQ NEO K-2 Manuel utilisateur

VocoPro

VocoPro BRIDGE Manuel utilisateur

MASINGO

MASINGO Illuminato Q4 Manuel utilisateur

auna

auna DisGo Manuel utilisateur

auna

auna Karaoke Star 2 Manuel utilisateur

DAPAudio

DAPAudio DVMP-150 Manuel utilisateur

CAVS

CAVS DK3 Manuel utilisateur

WOW! Videoke Premium

WOW! Videoke Premium WOW Mabuhay Plus 2 Manuel utilisateur

GRAND VIDEOKE

GRAND VIDEOKE TKR-373MU Manuel utilisateur

Disney

Disney FROZEN 2 Manuel utilisateur
