OPERATION MANUAL

GATOR®EK628L

Battery-powered

Crimping Tool

Serial Number

Read and understand all of the instructions and

safety information in this manual before operating

or servicing this tool.

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Description

The EK628L Battery-powered Crimping Tool is a

hand-held, self-contained crimping tool with removable

crimping jaws.

This tool is protected by U.S. Patent No. 6,276,186,

6,401,515, 6,718,870, 7,086,979, 7,216,523, and

7,254,982.

Safety

Safety is essential in the use and maintenance of

Greenlee tools and equipment. This manual and any

markings on the tool provide information for avoiding

hazards and unsafe practices related to the use of this

tool. Observe all of the safety information provided.

Purpose of this Manual

This manual is intended to familiarize all personnel with

the safe operation and maintenance procedures for the

following Greenlee tool:

EK628L Battery-powered Crimping Tool

Keep this manual available to all personnel.

Replacement manuals are available upon request

at no charge at www.greenlee.com.

Do not discard this product or throw away!

For recycling information, go to www.greenlee.com.

All specications are nominal and may change as design

improvements occur. Greenlee Textron Inc. shall not be liable for

damages resulting from misapplication or misuse of its products.

GATOR is a registered trademark of Greenlee Textron Inc.

Blackburn is a registered trademark of Thomas & Betts.

KEEP THIS MANUAL

Table of Contents

Description ..................................................................... 2

Safety ............................................................................. 2

Purpose of this Manual .................................................. 2

Important Safety Information ..................................... 3–4

Identication................................................................... 5

Specications................................................................. 5

Operation.................................................................... 6–7

Die and Connector Selection ......................................... 8

Maintenance................................................................... 9

Troubleshooting............................................................ 10

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

IMPORTANT SAFETY INFORMATION

SAFETY

ALERT

SYMBOL

This symbol is used to call your attention to hazards

or unsafe practices which could result in an injury or

property damage. The signal word, dened below,

indicates the severity of the hazard. The message

after the signal word provides information for pre-

venting or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result

in severe injury or death.

Hazards which, if not avoided, COULD result in

severe injury or death.

Hazards or unsafe practices which, if not avoided,

MAY result in injury or property damage.

Read and understand all of the

instructions and safety information

in this manual before operating or

servicing this tool.

Failure to observe this warning

could result in severe injury or death.

Electric shock hazard:

This tool is not insulated. When

using this unit on or near energized

electrical lines, use proper personal

protective equipment.

Failure to observe this warning

could result in severe injury or death.

Wear eye protection when operating

or servicing this tool.

Failure to wear eye protection could

result in serious eye injury from

ying debris or hydraulic oil.

Skin injection hazard:

Do not use hands to check for oil

leaks. Oil under pressure easily

punctures skin. If injured, seek

medical attention immediately to

remove oil.

Failure to observe this warning

could result in serious injury, gan-

grene, or death.

Do not use solvents or ammable

liquids to clean the tool body.

Solvents or ammable liquids could

ignite and cause serious injury or

property damage.

An incomplete crimp can cause a re.

• Use proper die, connector, and cable combina-

tions. Improper combinations can result in an

incomplete crimp.

• The relief valve sounds and the ram automatically

retracts to indicate a completed crimp. If you do

not hear the sound of the relieve valve or the ram

does not automatically retract, the crimp is not

complete.

Failure to observe these warnings could result in

severe injury or death.

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Pinch points:

• Remove battery before changing

dies, adapters, or jaws.

• Keep hands away from the crimp-

ing tool head when crimping.

Failure to observe these warnings

could result in severe injury or death.

Do not dispose of batteries in a re. They will vent

fumes and may explode.

Failure to observe this warning could result in severe

injury from harmful fumes or burns from ying

debris.

Inspect tool and dies before use. Replace any

worn or damaged parts. A damaged or improp-

erly assembled tool can break and strike nearby

personnel.

Failure to observe this warning could result in severe

injury or death.

• Do not use this tool for continuous use. After 30 to

40 cycles, allow the tool to cool for 15 minutes.

• Do not secure this tool in a vise. This tool is

designed for hand-held operation.

• This tool may be used in damp or wet environ-

ments; however, air-drying is recommended before

use if the tool becomes soaked. Damage may

result when the tool is operated prior to thorough

drying when electrical components are soaked.

• Use this tool for the manufacturer’s intended

purpose only.

Failure to observe these precautions may result in

injury or property damage.

Do not allow anything to contact the battery

terminals.

• Do not immerse the batteries in liquid. Liquid may

create a short circuit and damage the battery.

If batteries are immersed, contact your service

center for proper handling.

• Do not place the battery into a pocket, tool pouch,

or tool box with conductive objects. Conductive

objects may create a short circuit and damage the

battery.

• Do not place a battery on moist ground or grass.

Moisture may create a short circuit and damage

the battery.

Failure to observe these precautions may result in

injury or property damage.

• Do not store the battery at more than 122 °F

(50°C) or less than –4 °F (–20 °C). Damage to the

battery can result.

• Do not use another manufacturer’s charger. Other

manufacturers’ chargers may overcharge and

damage the battery.

• Do not attempt to open the battery. It contains no

user-serviceable parts.

Failure to observe these precautions may result in

injury or property damage.

Do not perform any service or maintenance other

than as described in this manual. Injury or damage

to the tool may result.

Failure to observe this precaution may result in injury

and property damage.

Note: Keep all decals clean and legible, and replace

when necessary.

IMPORTANT SAFETY INFORMATION

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

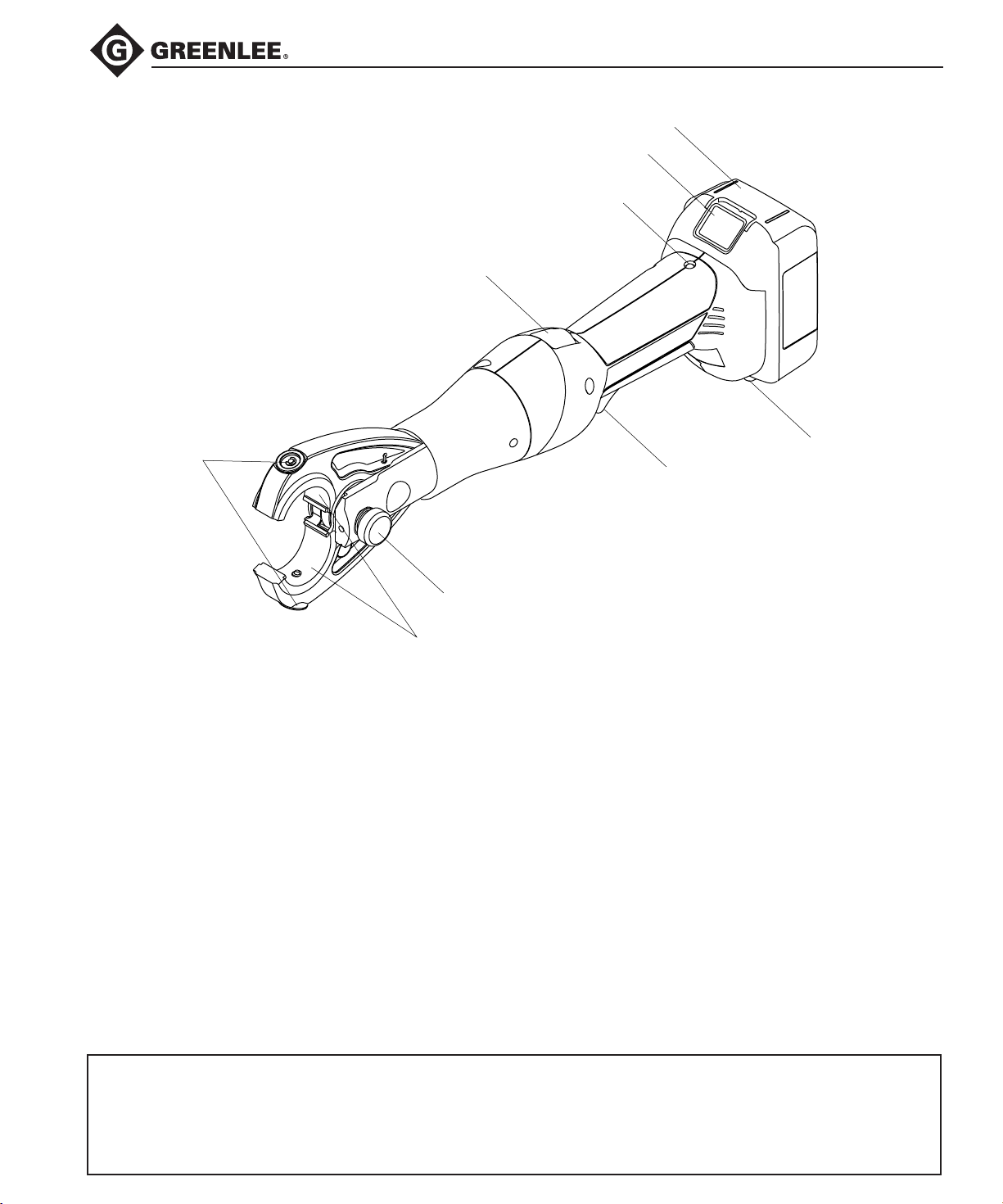

Identiﬁcation

1. Lock Pin

2. Crimping Jaws

3. Crimping Die Release

4. Retract Button

5. LED Indicator (red)

6. Battery Lock

7. Battery Cartridge

8. LED Work Light (white)

9. Trigger

Speciﬁcations

Crimping Tool

Length........................................................................................................ 18.50" (470 mm)

Width .......................................................................................................... 2.87" (72.9 mm)

Depth........................................................................................................ 4.50" (114.3 mm)

Weight................................................................................................................ 6.5 lb (3 kg)

Crimping Force...............................................................................................6 tons (53 kN)

Hydraulic Oil ......................................................... 52057878 biodegradable hydraulic uid

Recommended Operating Temperature Range...................5 °F to 122 °F (–15 °C to 50°C)

Battery Charger........................................................................ Read the instructions supplied

with the battery charger

52047087 120 VAC corded adapter

52047088 230 VAC corded adapter

52049190 18 V, 1.5 Ah lithium-ion battery

52049189 18 V, 3.0 Ah lithium-ion battery

52054992 Li (18 V) to NiCd, NiMH (12 V) charger adapter

52049201 120 VAC, 18 V charger

52049202 230 VAC, 18 V charger

52049204 12 VDC, 18 V charger

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Operation

Inspect tool and dies before use. Replace any

worn or damaged parts. A damaged or improp-

erly assembled tool can break and strike nearby

personnel.

Failure to observe this warning could result in severe

injury or death.

Electric shock hazard:

This tool is not insulated. When

using this unit on or near energized

electrical lines, use proper personal

protective equipment.

Failure to observe this warning

could result in severe injury or death.

Wear eye protection when operating

or servicing this tool.

Failure to wear eye protection could

result in serious eye injury from

ying debris or hydraulic oil.

Pinch points:

• Remove battery before changing

dies, adapters, or jaws.

• Keep hands away from the crimp-

ing tool head when crimping.

Failure to observe these warnings

could result in severe injury or death.

• Do not use this tool for continuous use. After 30 to

40 cycles, allow the tool to cool for 15 minutes.

• Do not secure this tool in a vise. This tool is

designed for hand-held operation.

• This tool may be used in damp or wet environ-

ments; however, air-drying is recommended before

use if the tool becomes soaked. Damage may

result when the tool is operated prior to thorough

drying when electrical components are soaked.

• Use this tool for the manufacturer’s intended

purpose only.

Failure to observe these precautions may result in

injury or property damage.

Charging the Battery

Read the instructions supplied with the battery charger.

LED Work Light (white)

This LED automatically turns on when the trigger is

pulled. It remains on for 10 seconds after the trigger is

released.

LED Indicator (red)

This tool is equipped with a special circuit board incor-

porating several important features to inform the user

about the current status of the unit. The LED signals in

the following cases:

What happens Signal What it means

Flashing light for 2seconds Battery is inserted in tool

Constant light for 20seconds

at end of cycle

Battery charge is below

17V at beginning of cycle

Tool will not start, and

constant light for 20seconds

when trigger is released

Battery charge is below

16V at beginning of cycle

Tool will stop, and constant

light for 20seconds after

trigger is released

Battery voltage drops

below 13V during cycle

Tool will stop, and ﬂashing

light for 20seconds when

trigger is released

Motor current exceeds

20A during cycle

Circuit has become too hot

Pressure Sensor

This tool is equipped with a pressure sensor that alerts

the user of an incomplete crimp.

• If the tool is manually retracted before completion of a

crimp, the red LED and an audible beep will be active

for 2 seconds.

• If the tool is unable to reach the required crimp force,

the red LED, work light, and an audible beep will pulse

until after the trigger is released.

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Operation (cont’d)

Installing Dies

1. Select the proper dies for the connector to be

crimped.

2. Install dies in jaws making certain that they are

properly secured by the spring-loaded, positive

lock, die buttons.

Preparing Cable

Follow the lug manufacturer’s instructions for appropri-

ate cable strip length.

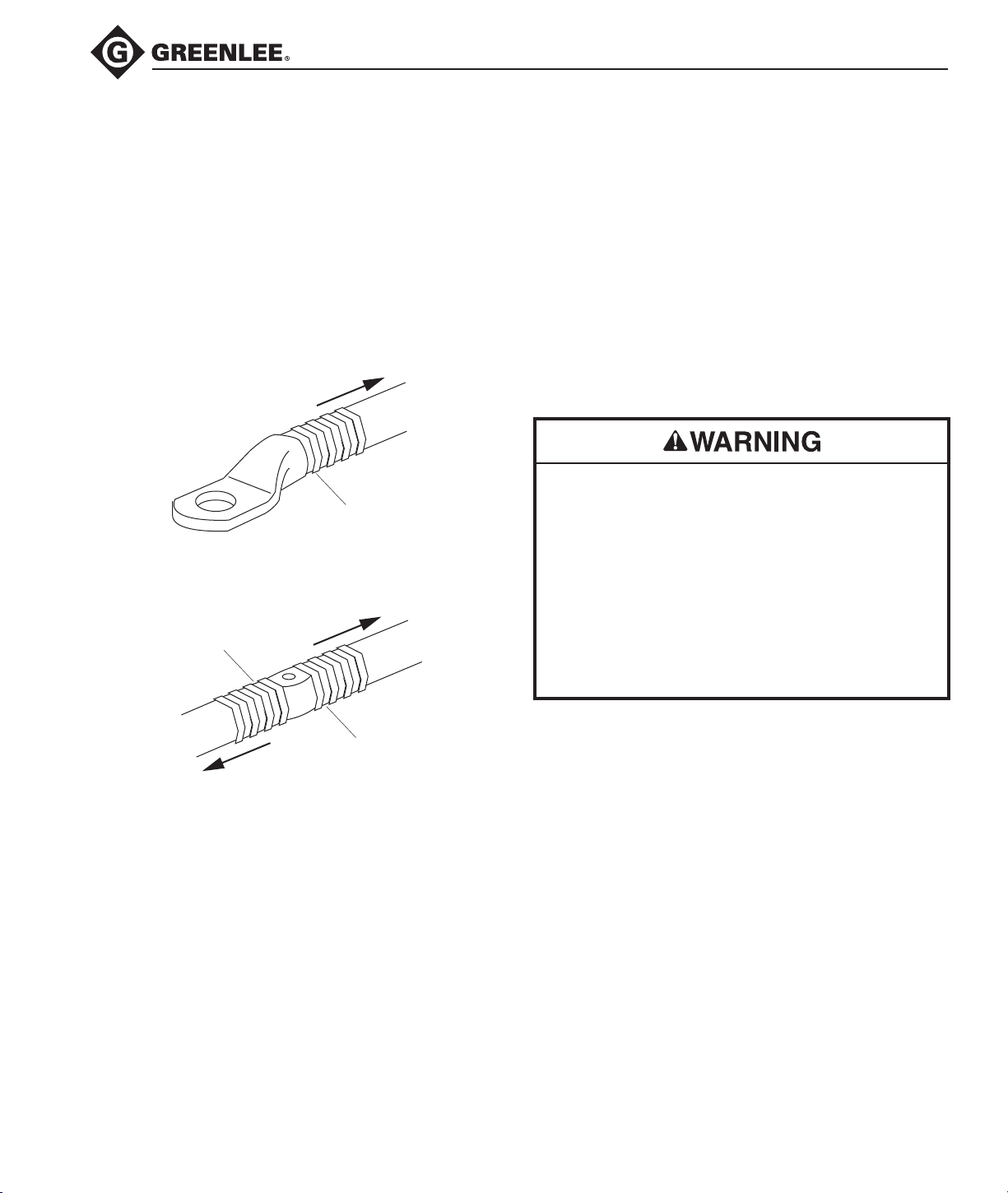

Crimping Direction

First Compression

Crimping Direction

SIDE A

Crimping Direction

SIDE B

First Compression

SIDE A

First Compression

SIDE B

Crimping Procedure

1. Insert conductor into the connector and align the

tool and die on the connector. Start in the center

for splices; start on the end, nearest the pad, for

terminals.

2. Activate the tool by pulling the trigger. Continue to

hold the trigger until the ram retracts. This is the

signal that the crimp is complete.

3. Continue crimping the connector until the correct

number of crimps has been completed. Work from

the center to the outer edges for splices, alternat-

ing sides, if possible, for the best compression

connections.

An incomplete crimp can cause a re.

• Use proper die, connector, and cable combina-

tions. Improper combinations can result in an

incomplete crimp.

• The relief valve sounds and the ram automatically

retracts to indicate a completed crimp. If you do

not hear the sound of the relieve valve or the ram

does not automatically retract, the crimp is not

complete.

Failure to observe these warnings could result in

severe injury or death.

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

CJ22 Jaw and KA22/KC22-type Die Selection

Note: This tool will provide a cUL and UL classiﬁed crimp ONLY when used with the CJ22 jaws

and KA22- or KC22-type dies.

Note: This tool will provide 53 kN (6 tons) of crimping force when used with the CJ22 jaws.

Crimps made on copper cable with Greenlee KC22-type dies and the copper connectors listed here are cUL and UL classied.

Crimps made on copper or aluminum cable with Greenlee KA22-type dies and the dual-rated aluminum connectors listed

here are cUL and UL classied.

Refer to “Connector Selection” for brand names and model numbers of appropriate lugs as well as crimping instructions.

95R7

Dies for Dual-rated Aluminum Connectors

Catalog Number UPC Number Cable Size

KA22-8 06744 8 AWG

KA22-6 06745 6 AWG

KA22-4 06746 4 AWG

KA22-2 06747 2 AWG

KA22-1 06749 1 AWG

KA22-1/0 06750 1/0 AWG

KA22-2/0 06751 2/0 AWG

KA22-3/0 06752 3/0 AWG

KA22-4/0 06753 4/0 AWG

KA22-250 06754 250 kcmil

KA22-300 06755 300 kcmil

KA22-350 06756 350 kcmil

Dies for Copper Connectors

Catalog Number UPC Number Cable Size Color Code

KC22-8 03079 8 AWG Red

KC22-6 03080 6 AWG Blue

KC22-4 03081 4 AWG Gray

KC22-2 03082 2 AWG Brown

KC22-1 03083 1 AWG Green

KC22-1/0 03084 1/0 AWG Pink

KC22-2/0 03085 2/0 AWG Black

KC22-3/0 03086 3/0 AWG Orange

KC22-4/0 03087 4/0 AWG Purple

KC22-250 03088 250 kcmil Yellow

KC22-300 03089 300 kcmil White

KC22-350 03090 350 kcmil Red

KC22-400 03091 400 kcmil Blue

KC22-500 03092 500 kcmil Brown

KC22-600B 03094 600 kcmil Green

Connector Selection

CJ22 Crimping Jaw Range: Copper — 8 AWG to 600 kcmil†; Dual-rated Aluminum — 8 AWG to 350 kcmil

When used with KC22-type dies, this tool is cUL and UL classied for use with the following connector brands:

Connector

Type

Barrel

Type Anderson Blackburn®Burndy ILSCO Panduit T&B Penn-

Union†

No. of

Crimps*

Copper

Splice

Short VHSS CSP YS-LsCT SCSS/SCS 54504-54518 BCU

Long VHS CU YSsCTL SCL/SCH 54804-54818 BBCU

Copper

Lugs

Short VHCS CTL-2/CTL

YA-2LN/YA-L/YA-2L

YA/YA-L-TC/YA-L-2TC

CSW

CRA/CRB

LCAS/LCA

LCD

54104-54118

54204-54218 BLU

Long VHCL CTL-L/LCN YA-2N

CLN/CLW

CRA-L/CRB-L

CRA-2L/CRB-2L

LCB/LCC 54930BE-54918BE

54850BE-54876BE BBLU

When used with KA22-type dies, this tool is cUL and UL classied for use with the following connector brands:

Connector Type Barrel Type Anderson Blackburn®Burndy ILSCO Panduit** T&B Penn-

Union

No. of

Crimps*

Dual-rated

Aluminum Splice — VACS ASP YS-A AS SA 60501-60565 PIK

Dual-rated

Aluminum Lugs — VACL ATL YA-A

YA-ATN

ACL/ACN

2ACL/2ACN LAA/LAB 60101-60166

60230-60267 BLUA

* Use the number of crimps listed in the last column instead of the number provided with the connector:

A — 8 to 1/0 AWG: 1 crimp B — 8 to 2 AWG: 2 crimps

2/0 AWG to 600 kcmil: 2 crimps 1 to 3/0 AWG: 3 crimps

4/0 AWG to 350 kcmil: 4 crimps

** 6 AWG to 350 kcmil

† 500 kcmil maximum with Penn-Union connectors

s 8 AWG to 350 kcmil with Burndy copper splices

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Maintenance

Wear eye protection when operating

or servicing this tool.

Failure to wear eye protection could

result in serious eye injury from

ying debris or hydraulic oil.

Skin injection hazard:

Do not use hands to check for oil

leaks. Oil under pressure easily

punctures skin. If injured, seek

medical attention immediately to

remove oil.

Failure to observe this warning

could result in serious injury, gan-

grene, or death.

Do not use solvents or ammable

liquids to clean the tool body.

Solvents or ammable liquids could

ignite and cause serious injury or

property damage.

Pinch points:

• Remove battery before changing

dies, adapters, or jaws.

• Keep hands away from the crimp-

ing tool head when crimping.

Failure to observe these warnings

could result in severe injury or death.

Relief valve adjustments must be done by an

authorized service center.

Daily

Before use:

1. Inspect the tool for wear or damage, such as cracks,

gouges, or chips.

2. Inspect the tool for damage or leaks.

3. Inspect the rotation of the head assembly. Fully

retract the ram. The head should rotate no more

than 360°. If damage is detected, send the tool to a

Greenlee Authorized Service Center for inspection.

After use:

1. Use a damp cloth and mild detergent to clean the

housing. Allow the housing to dry.

2. Fully retract the ram. Place the tool in the carrying

case and store in a cool, dry place.

3. If necessary, recharge the batteries. Refer to the

instructions supplied with the battery charger.

Monthly

1. Thoroughly clean all surfaces.

2. Check the oil level.

Annually or After 10,000 Crimps

1. Replace the hydraulic oil.

2. Send the tool to a Greenlee Authorized Service

Center for inspection.

Checking the Oil Level

1. Remove the screws holding the housing cover

together.

2. Point the crimping head downward and remove the

oil reservoir plug. Fill reservoir if necessary.

3. Replace the oil plug and housing cover.

EK628L Battery-powered Crimping Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Problem Possible Cause Probable Remedy

Tool is inoperative. Dirt, contaminants, etc., in

ram area oftool.

Clean tool.

Tool battery contacts damaged. Reform contacts.

Tool components worn or

damaged.

Return tool to a Greenlee Authorized Service

Center.

Motor is inoperative. Low or uncharged battery. Try known charged battery. Inoperative battery

may be discharged or may have reached life

expectancy.

Broken switch components. Return tool to a Greenlee Authorized Service

Center.

Motor runs but tool will not

complete a cycle.

Oil level low. Return tool to a Greenlee Authorized Service

Center.

Air in hydraulic system. Pull trigger and hold retract button simultane-

ously. Run for approximately 10 seconds, and

then attempt to crimp. If unsuccessful, return

tool to a Greenlee Authorized Service Center.

Cold oil. Pull trigger and hold retract button simultane-

ously to warm oil. Store tool in warm area.

Dies stop during operation. Oil level low. Return tool to a Greenlee Authorized Service

Center.

Air in hydraulic system. Pull trigger and hold retract button simultane-

ously. Hold for approximately 10 seconds.

LED glows for 20 seconds. Battery charge low. Charge or replace battery.

Tool loses oil. Damaged internal seal. Return tool to a Greenlee Authorized Service

Center.

Troubleshooting

Before You Begin

1. Make sure that the battery is charged. Recheck

the battery after several minutes to make sure the

battery is holding its charge.

2. Use a nonﬂammable contact cleaner or pencil

eraser to clean the electrical contacts on the battery

and tool.

3. Reinstall the battery and check the tool again.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Textron Outils de sertissage

Textron

Textron Klauke EK 60 VP-L Manuel utilisateur

Textron

Textron Greenlee Gator EK1230CL Manuel utilisateur

Textron

Textron Greenlee GATOR EK425L Manuel utilisateur

Textron

Textron Klauke K 94 Manuel utilisateur

Textron

Textron Greenlee EK50ML Manuel utilisateur

Textron

Textron Klauke K 28 F Manuel utilisateur

Textron

Textron Greenlee GATOR EK210L22 Manuel utilisateur

Textron

Textron Klauke K 28 Manuel utilisateur

Textron

Textron GREENLEE GATOR EK06ATL Manuel utilisateur

Textron

Textron Greenlee GATOR EK1240KLX Manuel utilisateur

Textron

Textron Klauke mini EBS 8ML Manuel utilisateur

Textron

Textron EK1240L Manuel utilisateur

Textron

Textron Greenlee RK1550FT Manuel utilisateur

Textron

Textron Greenlee GG1-1/0 Manuel utilisateur

Textron

Textron Klauke EK 60/19-L Manuel utilisateur

Textron

Textron Klauke K 15 Manuel utilisateur

Textron

Textron Greenlee RK1240 Manuel utilisateur

Textron

Textron EK1240CL Manuel utilisateur

Textron

Textron Klauke ES 65CL Manuel utilisateur

Textron

Textron Klauke EKM 60IDCL Manuel utilisateur

Textron

Textron Greenlee GATOR EK410LT Manuel utilisateur

Textron

Textron Greenlee EK622PLT Manuel utilisateur

Textron

Textron Klauke EK 35/4CL Manuel utilisateur

Textron

Textron Greenlee EK1550LT Manuel utilisateur

Manuels Outils de sertissage populaires d'autres marques

Panduit

Panduit CT-1000 Guide de l'administrateur

JST

JST CS 10 Manuel utilisateur

molex

molex 63811-5100 Manuel utilisateur

Danfoss

Danfoss ET4200 Manuel utilisateur

Tyco Electronics

Tyco Electronics PRO-CRIMPER III Manuel utilisateur

TE Connectivity

TE Connectivity 2063528-1 Manuel utilisateur

molex

molex 63825-3000 Manuel utilisateur

Tyco Electronics

Tyco Electronics 69156-1 Manuel utilisateur

CRH

CRH CRL CBLHCT1 Manuel utilisateur

Emerson

Emerson Klauke ES 105CFM Manuel utilisateur

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Mode d’emploi

Danfoss

Danfoss ET4350 Manuel utilisateur

Milwaukee

Milwaukee M18 Manuel utilisateur

HOGERT

HOGERT HT1P169 Manuel utilisateur

Tyco Electronics

Tyco Electronics 90035-3 Manuel utilisateur

Emerson

Emerson Klauke ES 20RMCCFB Manuel utilisateur

Continental Refrigerator

Continental Refrigerator PC150HD Manuel utilisateur

TE Connectivity

TE Connectivity ERGOCRIMP 1-1579001-3 Manuel utilisateur
