User's Guide
TPS56837 Buck Converter Evaluation Module
ABSTRACT
This user's guide contains information for the TPS56837 as well as support documentation for the
TPS56837EVM evaluation module. This user's guide includes the performance specifications, schematic, and
the bill of materials of the TPS56837EVM.
Table of Contents
1 Introduction.............................................................................................................................................................................2
2 Performance Specification Summary................................................................................................................................... 2
3 Modifications...........................................................................................................................................................................2
3.1 Output Voltage Setpoint..................................................................................................................................................... 2
3.2 Mode Selection.................................................................................................................................................................. 3
3.3 Adjustable UVLO................................................................................................................................................................4
4 Test Setup and Results.......................................................................................................................................................... 5
4.1 Input, Output Connections................................................................................................................................................. 5
4.2 Start-Up Procedure............................................................................................................................................................ 5
4.3 Output Voltage Ripple........................................................................................................................................................ 5
4.4 Start-Up..............................................................................................................................................................................6
4.5 Shutdown........................................................................................................................................................................... 7
5 Board Layout...........................................................................................................................................................................8
5.1 Layout................................................................................................................................................................................ 8
6 Schematic, List of Materials, and Reference......................................................................................................................10
6.1 Schematic........................................................................................................................................................................ 10
6.2 List of Materials................................................................................................................................................................ 11
6.3 Reference.........................................................................................................................................................................13
7 Revision History................................................................................................................................................................... 13
Trademarks
D-CAP3™ and Eco-mode™ are trademarks of Texas Instruments.
All trademarks are the property of their respective owners.
www.ti.com Table of Contents
SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
TPS56837 Buck Converter Evaluation Module 1
Copyright © 2023 Texas Instruments Incorporated
1 Introduction
The TPS56837 is an adaptive on-time D-CAP3™ control mode synchronous step-down DC/DC converter. With
the wide operating input voltage range of 4.5 V to 28 V, the TPS56837 is designed for systems powered from
12-V, 19-V, 24-V power-bus rails. The device supports up to 8-A continuous output current between 0.6 V
and 13 V. The TPS56837 device provides 500-kHz, 800-kHz and 1.2-MHz switching frequencies for selection.
This switch mode power supply (SMPS) IC is optimized for applications requiring very low power consumption,
such as printers, DTV, monitor and some industrial applications, by providing an Eco-mode™ (pulse-skipping).
D-CAP3 control mode provides an easy-to-design, stable regulation with very little external components, and
supports cost-effective ceramic capacitors. Table 1-1 shows the rated input voltage and output current ranges for
the evaluation module.
The TPS56837EVM evaluation module (EVM) is a single, synchronous buck converter providing 5-V at 8-A
output from 5.5-V to 28-V input. This user’s guide describes the TPS56837EVM performance.
Table 1-1. Input Voltage and Output Current Summary
EVM Input Voltage (VIN) RANGE OUTPUT CURRENT (IOUT) RANGE
TPS56837EVM 5.5 V to 28 V 0 A to 8 A
2 Performance Specification Summary
A summary of the TPS56837EVM performance specifications is provided in Table 2-1. Specifications are given
for an input voltage of VIN = 24 V and an output voltage of 5 V, unless otherwise noted. The ambient temperature
is 25°C for all measurement, unless otherwise noted.
Table 2-1. TPS56837EVM Performance Specifications Summary
SPECIFICATIONS TEST CONDITIONS MIN TYP MAX UNIT
Input voltage range (VIN) 5.5 24 28 V
Output voltage 5 V
Operating frequency VIN = 24 V, IOUT = 8 A 500 kHz
Output current range 0 8 A
Output ripple voltage VIN = 24 V, IOUT = 8 A 40 mVPP
Maximum efficiency VIN = 24 V, IOUT = 5 A 94.96 %
3 Modifications
These evaluation modules are designed to provide access to the features of the TPS56837. Some modifications
can be made to this module.
3.1 Output Voltage Setpoint
To change the output voltage of the EVMs, change the value of resistor R6 (RFB_TOP) and resistor R7 (RFB_BOT).
Changing the value of R6 and R7 can change the output voltage above 0.6 V. The value of R6 and R7 for a
specific output voltage can be calculated using Equation 1.
¸
¹
·
¨
©
§u
R7
R6
10.6VOUT
(1)
Table 3-1 lists the R6 and R7 values for some common output voltages.
Introduction www.ti.com
2TPS56837 Buck Converter Evaluation Module SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
Table 3-1. Recommended Component Values
Switching
Frequency (kHz)
Output Voltage(1)
(V)
R6(2)
(kΩ) R7 (kΩ) L1 (µH)
COUT (3) (µF) C10 (4)(pF)
TYP
500
1.05 7.5 10 1 68
1.8 20 10 1.5 68
3.3 45.3 10 2.2 62 150
5 73.2 10 3.3 35 150
9 140 10 4.7 22 100
12 383 20 5.6 17 30
800
1.05 7.5 10 0.68 68
1.8 20 10 1 68
3.3 45.3 10 1.5 62 150
5 73.2 10 2.2 35 150
9 140 10 3.3 22 100
12 383 20 3.3 17 30
1200
1.05 7.5 10 0.47 68
1.8 20 10 0.68 68
3.3 45.3 10 1 62 150
5 73.2 10 1.5 35 150
9 140 10 2.2 22 100
12 383 20 2.2 17 30
(1) Please use the recommended L1 and COUT combination of the higher and closest output rail for
unlisted output rails.
(2) R6 = 0 Ω for VOUT = 0.6 V.
(3) COUT is the sum of effective output capacitance. In this data sheet, the effective capacitance is
defined as the actual capacitance under DC bias and temperature, not the rated or nameplate
values. All high value ceramic capacitors have a large voltage coefficient in addition to normal
tolerances and temperature effects. A careful study of bias and temperature variation of any
capacitor bank must be made to verify that the minimum value of effective capacitance is provided.
Refer to the information of DC bias and temperature characteristics from manufacturers of ceramic
capacitors.
(4) R8 and C10 can be used to improve the load transient response or improve the loop-phase
margin. The Optimizing Transient Response of Internally Compensated DCDC Converters with
Feed-forward Capacitor application report is helpful when experimenting with a feed-forward
capacitor.
3.2 Mode Selection
TPS56837 has a MODE pin that can offer six different options of overcurrent limit and switching frequency, as
shown in Table 3-2.
Table 3-2. MODE Pin Settings
MODE Pin Switching Frequency Over Current Limit
R = 10kohm 500 kHz ILIM-1 (Typ = 7.2 A)
R = 30.1kohm ILIM (Typ = 9.6 A)
R = 102kohm 800 kHz ILMI-1 (Typ = 7.2 A)
R = 162kohm ILIM (Typ = 9.6 A)
R = 249kohm 1200 kHz ILMI-1 (Typ = 7.2 A)
R = 374kohm ILIM (Typ = 9.6 A)
www.ti.com Modifications
SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
TPS56837 Buck Converter Evaluation Module 3
Copyright © 2023 Texas Instruments Incorporated
3.3 Adjustable UVLO
The undervoltage lockout (UVLO) can be adjusted externally using R1 (REN(TOP)) and R2 (REN(BOT)). See the
TPS56837 4.5-V to 28-V Input, 8-A Synchronous Buck Converter Data Sheet for detailed instructions for setting
the external UVLO.
Modifications www.ti.com
4TPS56837 Buck Converter Evaluation Module SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
4 Test Setup and Results
This section describes how to properly connect, set up, and use the TPS56837EVM. The section also includes
test results of output voltage ripple, start-up, and shut-down.
4.1 Input, Output Connections
Table 4-1 shows the provided input, output connectors and test points on the TPS56837EVM. A power supply
capable of supplying 8 A must be connected to J1 through a pair of 20-AWG wires. The load must be connected
to J2 through a pair of 20-AWG wires. The maximum load current capability is 8 A. Wire lengths must be
minimized to reduce losses in the wires. Test point TP12 provides a place to monitor the VIN input voltages with
TP11 providing a convenient ground reference. TP13 is used to monitor the output voltage with TP14 as the
ground reference.
Table 4-1. Connection and Test Points
Reference Designator Function
J1 VIN (see Table 1-1 for VIN range)
J2 VOUT, 5 V at 8-A maximum
J3 EN control. Connect EN to GND to disable
TP1 VIN terminal near J1
TP2 GND terminal near J1
TP3 GND test point
TP4 Switch node test point
TP5 Power good (PG) test point
TP6 Test point provided to connect external voltage source for PG pullup
TP7 Test point between voltage divider network and output. Used for loop
response measurement
TP8 VOUT terminal near J2
TP9 GND terminal near J2
TP10 GND test point
TP11 GND monitor test point near C1
TP12 VIN monitor test point near C1
TP13 VOUT monitor test point near C6
TP14 GND monitor test point near C6
4.2 Start-Up Procedure
1. Ensure that the jumper at J3 (Enable control) pins 1 and 2 are covered to shunt EN to GND, disabling the
output.
2. Apply appropriate VIN voltage to VIN (J1-1) and GND (J1-2).
3. Move the jumper at J3 (Enable control) away from pins 2 and 1 (EN and GND) to enable the output.
4.3 Output Voltage Ripple
The TPS56837EVM output voltage ripple waveforms are shown below. The output currents are as indicated.
www.ti.com Test Setup and Results
SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
TPS56837 Buck Converter Evaluation Module 5
Copyright © 2023 Texas Instruments Incorporated
Vin = 200 mV/div (AC)
Vout = 100 mV/div
SW = 20 V/div
IL = 5 A/div
100 us/div
Figure 4-1. TPS56837EVM Output Voltage Ripple, VIN = 24 V, IOUT = 0.01 A
Vin = 1 V/div (AC)
Vout = 50 mV/div
SW = 20 V/div
IL = 5 A/div
2 us/div
Figure 4-2. TPS56837EVM Output Voltage Ripple, VIN = 24 V, IOUT = 8 A
4.4 Start-Up
The TPS56837EVM start-up waveform relative to EN is shown below.
Test Setup and Results www.ti.com
6TPS56837 Buck Converter Evaluation Module SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
EN = 5 V/div
Vout = 5 V/div
SW = 20 V/div
PG = 5 V/div
2 ms/div

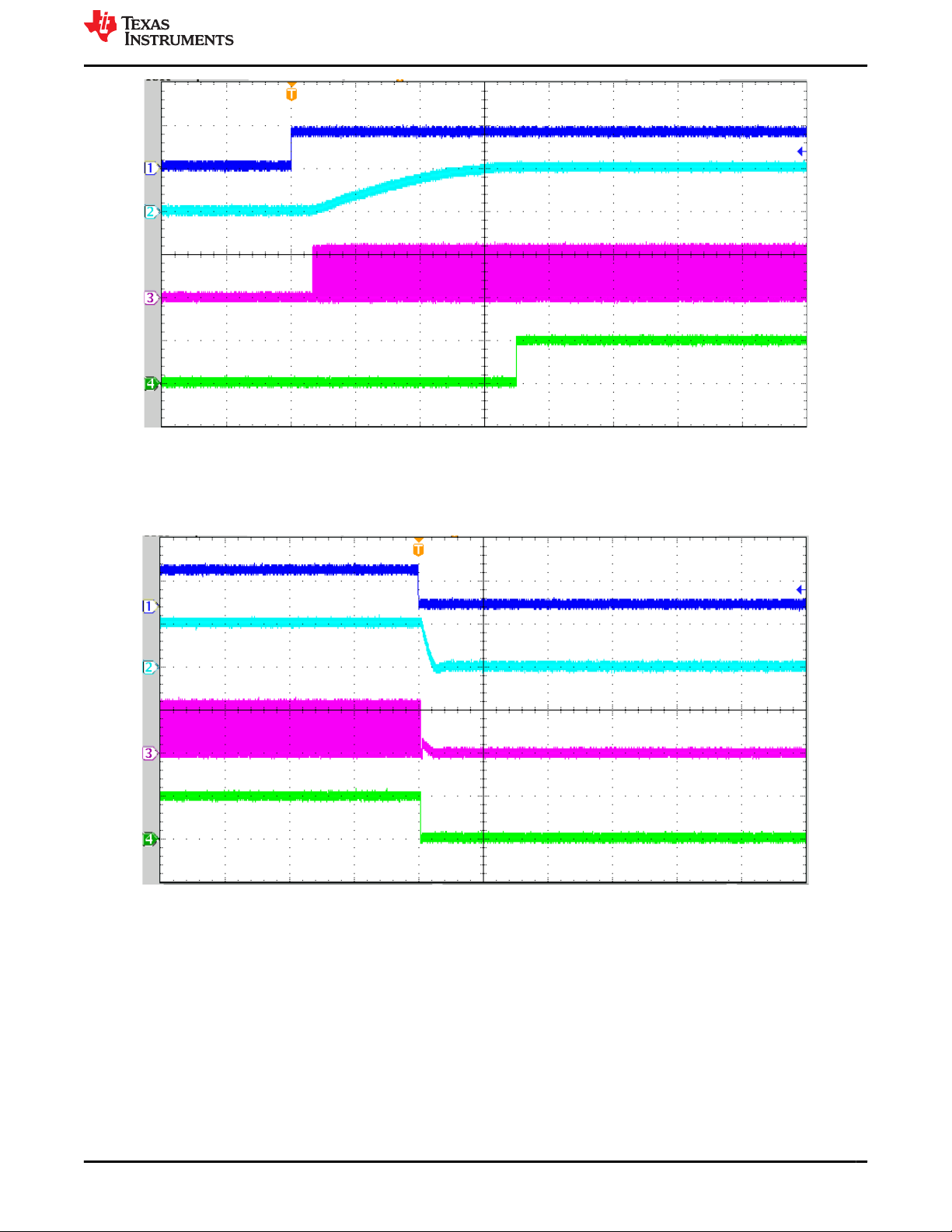

Figure 4-3. TPS56837EVM Start-Up Relative to EN, IOUT = 8 A
4.5 Shutdown
The TPS56837EVM shutdown waveform relative to EN is shown below.
EN = 5 V/div
Vout = 5 V/div
SW = 20 V/div
PG = 5 V/div
200 us/div
Figure 4-4. TPS56837EVM Shutdown Relative to EN, IOUT = 8 A
www.ti.com Test Setup and Results
SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
TPS56837 Buck Converter Evaluation Module 7
Copyright © 2023 Texas Instruments Incorporated
5 Board Layout
This section provides a description of the TPS56837EVM, board layout, and layer illustrations.
5.1 Layout
The board images are shown in Figure 5-1 and Figure 5-2. The board layouts are shown in Figure 5-3 to
Figure 5-7. The top layer contains the main power traces for VIN, VOUT, and ground. Also on the top layer are
connections for the pins of the TPS56837 and a large area filled with power ground (PGND). Most of the signal
traces are also located on the top side. The input decoupling capacitors, C1, C2, and C3 are located as close to
the IC as possible. The input and output connectors, test points, and all of the components are located on the
top side. Middle layer 1, Middle layer 2, and the bottom layer are predominantly PGND planes. Analog ground
(AGND) area is provided on Middle layer 1. Figure 5-5 shows the AGND and PGND are connected at a single
point on the Middle layer 1. The bottom layer contains the output voltage feedback trace, the connection to the
VIN pin of the EN control, and the connections of test points.
Figure 5-1. TPS56837EVM Front Photo Figure 5-2. TPS56837EVM Back Photo
Figure 5-3. Top Assembly Figure 5-4. Top Layer
Board Layout www.ti.com
8TPS56837 Buck Converter Evaluation Module SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
6 Schematic, List of Materials, and Reference
6.1 Schematic
Figure 6-1 is the schematic for the TPS56837EVM.

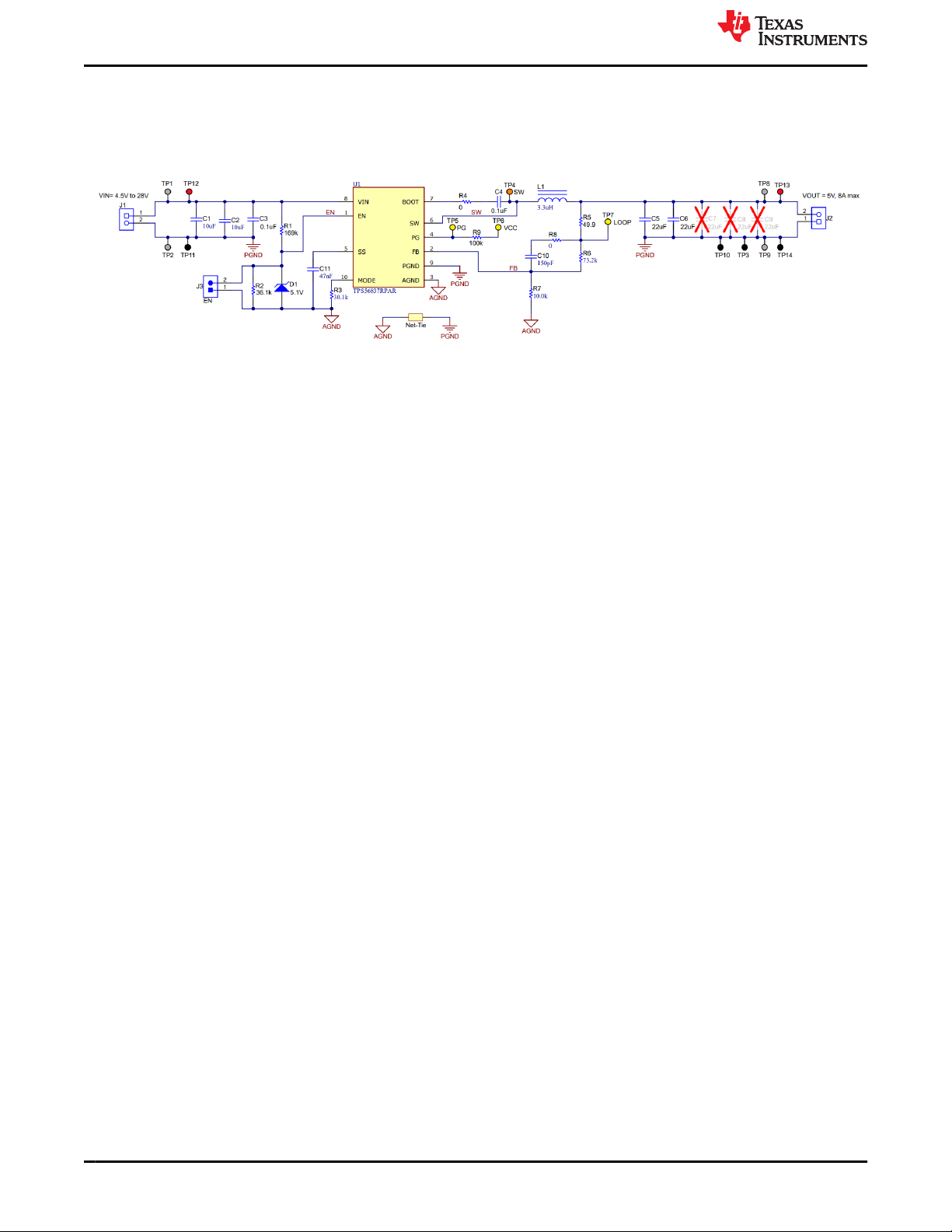

Figure 6-1. TPS56837EVM Schematic Diagram
Schematic, List of Materials, and Reference www.ti.com
10 TPS56837 Buck Converter Evaluation Module SLVUCE1A – MARCH 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
Table des matières
Autres manuels Texas Instruments Carte mère
Texas Instruments
Texas Instruments TPS62350EVM-201 Manuel utilisateur
Texas Instruments
Texas Instruments ADS7041EVM-PDK Manuel utilisateur
Texas Instruments
Texas Instruments TVP9900EVM Manuel utilisateur
Texas Instruments
Texas Instruments DDC264EVM Manuel utilisateur
Texas Instruments
Texas Instruments TPS23881EVM Manuel utilisateur
Texas Instruments
Texas Instruments DAC3152EVM Manuel utilisateur
Texas Instruments
Texas Instruments INA4180-INA4181 Manuel utilisateur
Texas Instruments
Texas Instruments TMDSEVM6474LE Manuel utilisateur
Texas Instruments
Texas Instruments TLV2553EVM-PDK Manuel utilisateur
Texas Instruments
Texas Instruments MultiPkgLDOEVM-823 Manuel utilisateur
Texas Instruments
Texas Instruments DRA72 Series Manuel utilisateur
Texas Instruments
Texas Instruments TAS5733L Manuel utilisateur
Texas Instruments
Texas Instruments LM3405A Manuel utilisateur
Texas Instruments
Texas Instruments ADS131E08 Manuel utilisateur
Texas Instruments
Texas Instruments INA301EVM Manuel utilisateur
Texas Instruments
Texas Instruments UCC5870QDWJEVM-026 Manuel utilisateur
Texas Instruments
Texas Instruments LMX2492 Manuel utilisateur
Texas Instruments
Texas Instruments TPS7A14EVM-058 Manuel utilisateur
Texas Instruments
Texas Instruments TPS6030 EVM-170 Series Manuel utilisateur
Texas Instruments
Texas Instruments TLV320AIC3111 EVM Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
Biostar
Biostar M7VIT Bravo Instructions d'utilisation et d'installation
