User's Guide

SLVU432–February 2011

TPS53129EVM-621 Evaluation Module

The TPS53129EVM-621 Evaluation Module presents an easy-to-use reference design for a common

dual-output power supply using the TPS53129 controller in cost-sensitive applications.

Contents

1 Introduction .................................................................................................................. 2

2 Electrical Performance Specifications .................................................................................... 2

3 Schematics ................................................................................................................... 3

4 Connector and Test Point Descriptions .................................................................................. 4

5 Test Setup ................................................................................................................... 5

6 Test Procedure .............................................................................................................. 7

7 Performance Data and Typical Characteristic Curves ................................................................. 8

8 EVM Assembly Drawings and Layout .................................................................................. 12

9 Bill of Materials ............................................................................................................. 16

List of Figures

1 TPS53129EVM-621 Schematic........................................................................................... 3

2 Tip and Barrel Measurement for Output Voltage Ripple............................................................... 5

3 TPS53129EVM-621 Recommended Test Setup ....................................................................... 7

4 Efficiency vs Load .......................................................................................................... 9

5 Efficiency vs Load .......................................................................................................... 9

6 Output Voltage vs Load .................................................................................................. 10

7 Output Voltage vs Load .................................................................................................. 10

8 Output Voltage Ripple .................................................................................................... 11

9 Output Voltage Ripple .................................................................................................... 11

10 Switching Waveform ...................................................................................................... 12

11 Switching Waveform ...................................................................................................... 12

12 Top Assembly.............................................................................................................. 13

13 Bottom Assembly.......................................................................................................... 13

14 Top Layer................................................................................................................... 14

15 Bottom Layer............................................................................................................... 14

16 Internal Layer 1............................................................................................................ 15

17 Internal Layer 2............................................................................................................ 15

List of Tables

1 TPS53129EVM-621 Electrical and Performance Specifications...................................................... 2

2 TPS53129EVM-621 Test Points Description............................................................................ 4

3 TPS53129EVM-621 Bill of Materials.................................................................................... 16

SLVU432–February 2011 TPS53129EVM-621 Evaluation Module

Introduction

www.ti.com

1 Introduction

1.1 Description

The TPS53129EVM-621 evaluation board provides the user with a convenient way to evaluate the

TPS53129 Dual D-CAP2™ Mode Control Step-Down Controller in a realistic cost-sensitive application.

Providing both a low core-type 1.05-V and I/O type 1.8-V output at up to 4 A from a loosely regulated 12-V

(8-V to 22-V) source, the TPS53129EVM-621 includes switches and test points to assist users in

evaluating the performance of the TPS53129 controller in their application.

1.2 Application

• Digital television

• Set-top box

• DSL and cable modems

• Cost-sensitive digital consumer products

1.3 Features

• 8-V to 22-V input

• 1.05-V and 1.8-V output

• Up to 4 A per channel output

• 700-kHz pseudo-fixed frequency D-CAP2™ mode control

• Independent enable switches for power-on/power-off testing

2 Electrical Performance Specifications

Table 1. TPS53129EVM-621 Electrical and Performance Specifications

Parameter Notes and Conditions MIN TYP MAX UNIT

INPUT CHARACTERISTICS

VIN Input Voltage 8 12 22 V

IIN Input Current VIN = 12 V, IOUT1 = 4 A, IOUT2 = 4 A – 1.2 1.5 A

No-Load Input Current VIN = 12 V, IOUT = 0 A – 20 – mA

VIN_UVLO Input UVLO IOUT = 4 A 4.0 4.2 4.5 V

OUTPUT CHARACTERISTICS

VOUT1 Output Voltage 1 VIN = 12 V, IOUT1 = 2 A – 1.05 – V

Line Regulation VIN = 8 V to 22 V – – 1%

Load Regulation IOUT1 = 0 A to 4 A – – 1%

VOUT1_rip Output Voltage Ripple VIN = 12 V, IOUT2 = 4 A – - 30 mVpp

IOUT1 Output Current 1 VIN = 8 V to 22 V 0 4 A

VOUT2 Output Voltage 2 VIN = 12 V, IOUT2 = 2 A – 1.80 – V

Line Regulation VIN = 8 V to 22 V – – 1%

Load Regulation IOUT2 = 0 A to 4 A – – 1%

VOUT2_rip Output Voltage Ripple VIN = 12 V, IOUT2 = 4 A – – 30 mVpp

IOUT2 Output Current 2 VIN = 8 V to 22 V 0 4 A

SYSTEMS CHARACTERISTICS

FSW Switching Frequency 350 700 800 kHz

ηpk1 Peak Efficiency of Output 1 VIN = 12 V – 85% –

η1 Full-Load Efficiency of Output 1 VIN = 12 V, IOUT1 = 4 A – 84% –

ηpk2 Peak Efficiency of Output 2 VIN = 12 V – 89% –

η2 Full-Load Efficiency of Output 2 VIN = 12 V, IOUT2 = 4 A – 88% –

D-CAP2 is a trademark of Texas Instruments.

2TPS53129EVM-621 Evaluation Module SLVU432–February 2011

Submit Documentation Feedback

www.ti.com

Schematics

3 Schematics

NOTE: For Reference Only, See Table 3 for Specific Values.

Figure 1. TPS53129EVM-621 Schematic

SLVU432–February 2011 TPS53129EVM-621 Evaluation Module

Connector and Test Point Descriptions

www.ti.com

4 Connector and Test Point Descriptions

4.1 Enable Switches – SW1 and SW2

TPS53129EVM-621 includes independent enable switches for each of the two outputs. When the switch is

in the DIS position, the channel is disabled and discharged per the TPS53129’s internal discharge

characteristics.

To enable VOUT1, place SW1 in the EN position. To enable VOUT2, place SW2 in the EN position.

4.2 Switching Frequency Select Switch – SW3

TPS53129EVM-621 does not populate SW3. When using TPS53129EVM-621 to evaluate the TPS53126

controller in the TSSOP package, SW3 can be populated to allow selection of the TPS53126 switching

frequency between 350 kHz and 700 kHz.

4.3 Test Point Descriptions

Table 2 lists the test points, their labels, uses, and where additional information is located.

Table 2. TPS53129EVM-621 Test Points Description

Test Point Label Use Section

TP1 SS1 Monitor Channel-1 Soft-Start Voltage Section 4.3.4

TP2 SS2 Monitor Channel-2 Soft-Start Voltage Section 4.3.4

TP3 GND Ground for Input Voltage Section 4.3.1

TP4 GND Ground for Channel-1 Output Voltage Section 4.3.2

TP5 SW1 Monitor Switching Node for Channel 1 Section 4.3.5

TP6 GND Ground for Channel-2 Output Voltage Section 4.3.3

TP7 VOUT2 Monitor Output Voltage for Channel 2 Section 4.3.3

TP8 VOUT1 Monitor Output Voltage for Channel 1 Section 4.3.2

TP9 VIN Monitor Input Voltage Section 4.3.1

TP10 VREG5 Monitor Output of VREG5 Regulator Section 4.3.6

TP11 SW2 Monitor Switching Node for Channel 2 Section 4.3.5

4.3.1 Input Voltage Monitoring – TP3 and TP9

TPS53129EVM-621 provides two test points for measuring the voltage applied to the module. This allows

the user to measure the actual module voltage without losses from input cables and connectors. Measure

all input voltage between TP9 and TP3. To use TP9 and TP3, connect a voltmeter positive terminal to TP9

and negative terminal to TP3.

4.3.2 Channel-1 Output Voltage Monitoring – TP4 and TP8

TPS53129EVM-621 provides two test points for measuring the voltage generated at the VOUT1 output by

the module. This allows the user to measure the actual output voltage without losses from output cables

and connectors. Measure all dc output voltage measurements between TP8 and TP4. To use TP8 and

TP4, connect a voltmeter positive terminal to TP8 and negative terminal to TP4.

For output ripple measurements, TP8 and TP4 allow a user to limit the ground loop area by using the tip

and barrel measurement technique shown in Figure 2.

4TPS53129EVM-621 Evaluation Module SLVU432–February 2011

Submit Documentation Feedback

TP4TP8

Metal Ground Barrel

Probe Tip

www.ti.com

Test Setup

Figure 2. Tip and Barrel Measurement for Output Voltage Ripple

4.3.3 Channel-2 Output Voltage Monitoring – TP6 and TP7

TPS53129EVM-621 provides two test points for measuring the voltage generated at the VOUT2 output by

the module. This allows the user to measure the actual output voltage without losses from output cables

and connectors. Measure all dc output voltage between TP7 and TP6. To use TP7 and TP6, connect a

voltmeter positive terminal to TP7 and negative terminal to TP6.

For output ripple measurements, TP7 and TP6 allow a user to limit the ground loop area by using the tip

and barrel measurement technique shown in Figure 2.

4.3.4 Soft-Start Voltage Monitoring – TP1, TP2, and TP3

TPS53129EVM-621 provides two test points for measuring the soft-start ramp voltages. TP1 monitors the

soft-start ramp of Channel 1. TP2 monitors the soft-start ramp of Channel 2. To use TP1 or TP2, connect

an oscilloscope probe between TP1 or TP2 and TP3.

4.3.5 Switching Node Monitoring – TP3, TP5, and TP11

TPS53129EVM-621 provides two test points for measuring the switching node waveform voltages. TP5

monitors the switching node of Channel 1. TP2 monitors the switching node of Channel 2. To use TP5 or

TP11, connect an oscilloscope probe between TP5 or TP11 and TP3.

4.3.6 5-V Regulator Output Monitoring – TP3 and TP10

TPS53129EVM-621 provides a test point for measuring the output of the internal 5-V regulator. TP10

monitors the output voltage of the internal 5-V regulator. To use TP10, connect a voltmeter positive

terminal to TP10 and negative terminal to TP3.

5 Test Setup

5.1 Equipment

5.1.1 Voltage Source

Use an input voltage source (VIN) of 0-V to 25-V variable dc source capable of supplying 2 Adc minimum.

5.1.2 Meters

A1: 0-Adc to 5-Adc, ammeter

V1: VIN, 0-V to 25-V voltmeter

V2: VOUT1, 0-V to 2-V voltmeter

V3: VOUT2, 0-V to 2-V voltmeter

SLVU432–February 2011 TPS53129EVM-621 Evaluation Module

Test Setup

www.ti.com

5.1.3 Loads

LOAD1: One output load is an electronic load set for constant-current mode capable of 0 Adc to 4 Adc at

1.05 Vdc.

LOAD2: The other output load is an electronic load set for constant-current mode capable of 0 Adc to 4

Adc at 1.8 Vdc.

5.1.4 Oscilloscope and Probe

The oscilloscope, analog or digital, must be set for ac-coupled measurement with 20-MHz bandwidth

limiting. Use 20-mV/division vertical resolution, 1-µs/division horizontal resolution for output ripple voltage

test.

Oscilloscope probes with exposed conductive ground barrels are recommended.

5.1.5 Recommended Wire Gauge

VIN to J3 – The connection between the source voltage VIN and J1 of TPS53129EVM-621 can carry as

much as 2 Adc. The minimum recommended wire size is AWG 16 with the total length of wire less than 2

feet (1-foot input, 1-foot return).

J1 to LOAD1 and J2 to LOAD2 – The connection between J1 and LOAD1, and J2 and LOAD2 of

TPS53129EVM-621 can carry as much as 4 Adc each. The minimum recommended wire size is AWG 14

with the total length of wire less than 2 feet (1-foot input, 1-foot return).

5.1.6 Other Test Equipment

FAN – The TPS53129EVM-621 evaluation module includes components that can become hot to the

touch. Because this EVM is not enclosed to allow probing of circuit nodes, a small fan capable of 200-400

lfm is recommended to reduce component temperatures when operating.

5.2 Recommended Setup

Figure 3 shows the recommended test setup to evaluate the TPS53129EVM-621. Working at an ESD

workstation, ensure that any wrist straps, bootstraps, or mats are connected referencing the user to earth

ground before power is applied to the EVM. An electrostatic smock and safety glasses also are

recommended.

6TPS53129EVM-621 Evaluation Module SLVU432–February 2011

Submit Documentation Feedback

LOAD1

1.05V @

4A V2

LOAD2

1.8V @

4A V3

VIN

FAN

www.ti.com

Test Procedure

Figure 3. TPS53129EVM-621 Recommended Test Setup

6 Test Procedure

6.1 Start-Up Procedure

1. Prior to connecting the dc input source VIN, it is advisable to limit the source current from VIN to 2 Adc

maximum. Ensure that VIN is initially set to 0 V.

2. Ensure that LOAD1 and LOAD2 are set to constant-current mode to sink 0 A before VIN is applied.

3. Verify that SW1 and SW2 are in the desired position.

4. Place a fan as shown in Figure 3 and turn on, making sure that air is flowing across the EVM.

SLVU432–February 2011 TPS53129EVM-621 Evaluation Module

Performance Data and Typical Characteristic Curves

www.ti.com

5. Increase VIN from 0 Vdc to 12 Vdc.

6.2 Line/Load Regulation and Efficiency Measurement Procedure

1. Set up the TPS53129EVM-621 per Section 5.2.

2. Start up the TPS53129EVM-621 per Section 6.1.

3. Adjust VIN to desired value between 8 Vdc and 22 Vdc.

4. Adjust LOAD1/LOAD2 to desired load between 0 Adc and 4 Adc.

5. Read input voltage, output voltage, and input current from V1, V2/V3, and A1, respectively.

6. Shut down the TPS53129EVM-621 per Section 6.4.

6.3 Output Ripple Voltage Measurement Procedure

1. Set up the TPS53129EVM-621 per Section 5.2.

2. Start up the TPS53129EVM-621 per Section 6.1.

3. Adjust VIN to desired value between 8 Vdc and 22 Vdc.

4. Adjust LOAD1/LOAD2 to desired load between 0 Adc and 4 Adc.

5. Connect the oscilloscope probe to TP8 and TP4 for VOUT1, or TP7 and TP6 for VOUT2 as shown in

Figure 2.

6. Measure output ripple.

7. Shut down the TPS53129EVM-621 per Section 6.4.

6.4 Shutdown Procedure

1. Set SW1 to DIS.

2. Set SW2 to DIS.

3. Decrease LOAD1 to 0 A, and shut down LOAD1.

4. Decrease LOAD2 to 0 A, and shut down LOAD2.

5. Decrease VIN to 0 V, and shut down VIN.

6. Shut down the fan.

7 Performance Data and Typical Characteristic Curves

Figure 4 through Figure 11 present typical performance curves for the TPS53129EVM-621. Because

actual performance data can be affected by measurement techniques and environmental variables, these

curves are presented for reference and may differ from actual field measurements.

8TPS53129EVM-621 Evaluation Module SLVU432–February 2011

Submit Documentation Feedback

012345

I - Load Current - A

LOAD

V = 8 V

h- Efficiency - %

V = 12 V

V = 22 V

V = 8 V-22 V,

V = 1.05 V,

I = 0 A-4 A

OUT1

h- Efficiency - %

0 1 2 3 4 5

I - Load Current - A

LOAD

V = 8 V

V = 12 V

V = 22 V

V = 8 V-22 V,

V = 1.8 V,

I = 0 A-4 A

OUT2

OUT1

www.ti.com

Performance Data and Typical Characteristic Curves

7.1 Efficiency

Figure 4. Efficiency vs Load

Figure 5. Efficiency vs Load

SLVU432–February 2011 TPS53129EVM-621 Evaluation Module

012345

I - Load Current - A

LOAD

V = 8 V

V = 12 V

V = 22 V

V = 8 V-22 V,

V = 1.05 V,

I = 0 A-4 A

OUT1

1.044

1.046

1.048

1.05

1.052

1.054

1.056

1.058

1.06

V - Output Voltage - V

1.795

1.8

1.805

1.81

1.815

1.82

1.825

1.83

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5

V - Output Voltage - V

I - Load Current - A

LOAD

V = 8 V

V = 12 V

V = 22 V

V = 8 V-22 V,

V = 1.8 V,

I = 0 A-4 A

OUT2

Performance Data and Typical Characteristic Curves

www.ti.com

7.2 Line and Load Regulation

Figure 6. Output Voltage vs Load

Figure 7. Output Voltage vs Load

10 TPS53129EVM-621 Evaluation Module SLVU432–February 2011

Submit Documentation Feedback

Table des matières

Autres manuels Texas Instruments Carte mère

Texas Instruments

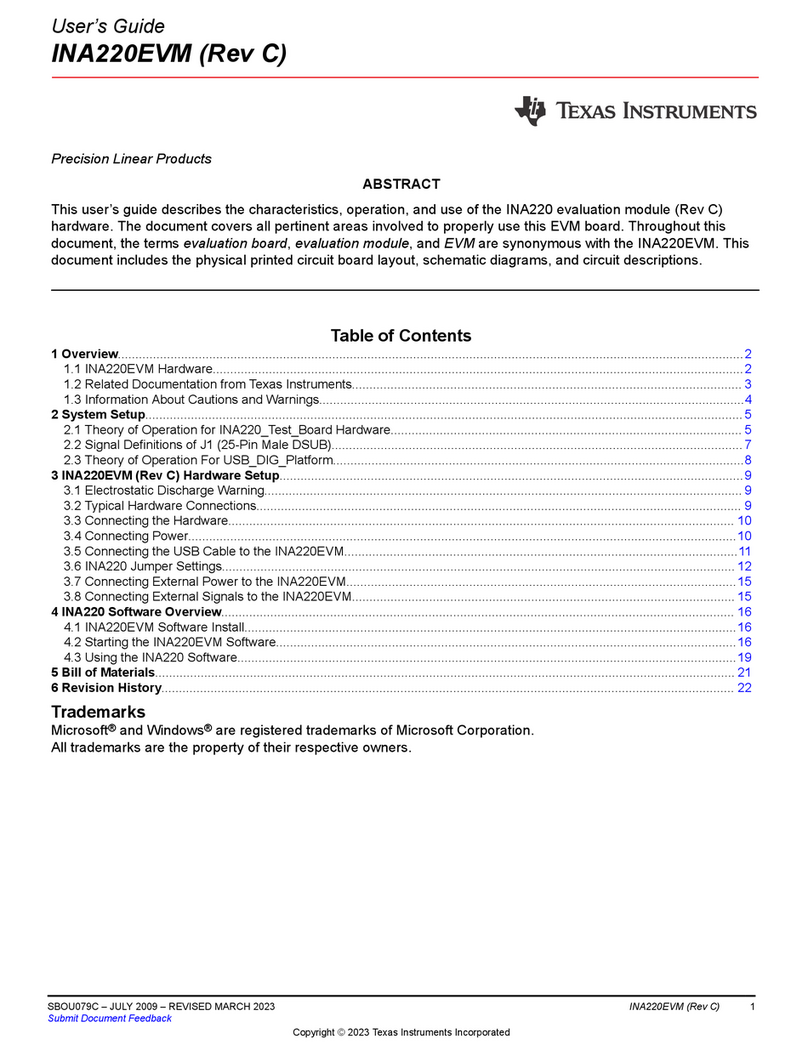

Texas Instruments INA220EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS54373EVM-237 Manuel utilisateur

Texas Instruments

Texas Instruments TPS51120 Manuel utilisateur

Texas Instruments

Texas Instruments TPS51113 Manuel utilisateur

Texas Instruments

Texas Instruments DS110DF111EVM Manuel utilisateur

Texas Instruments

Texas Instruments LM3405A Manuel utilisateur

Texas Instruments

Texas Instruments BQ24800EVM Manuel utilisateur

Texas Instruments

Texas Instruments C2000 F28003x Series Manuel utilisateur

Texas Instruments

Texas Instruments TPS25921XEVM-637 Manuel utilisateur

Texas Instruments

Texas Instruments OPT4060DTSEVM Manuel utilisateur

Texas Instruments

Texas Instruments TMUX-24PW-EVM Manuel utilisateur

Texas Instruments

Texas Instruments TLC5944EVM-358 Manuel utilisateur

Texas Instruments

Texas Instruments BUF12800 Manuel utilisateur

Texas Instruments

Texas Instruments HDC2080EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPA0253EVM Manuel utilisateur

Texas Instruments

Texas Instruments LM5158EVM-BST Manuel utilisateur

Texas Instruments

Texas Instruments ADC161S626BEB Manuel utilisateur

Texas Instruments

Texas Instruments DRV2603 Manuel utilisateur

Texas Instruments

Texas Instruments TAS5780M Manuel utilisateur

Texas Instruments

Texas Instruments C28 Series Manuel utilisateur

Texas Instruments

Texas Instruments TPS60250EVM-185 Manuel utilisateur

Texas Instruments

Texas Instruments LMX2572LPEVM Manuel utilisateur

Texas Instruments

Texas Instruments BQ21061EVM Manuel utilisateur

Texas Instruments

Texas Instruments LM2695EVAL Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
