Texas Instruments TAS5514BQ1DKDEVM Manuel utilisateur

TAS5514B Evaluation Module (EVM)

User's Guide

Literature Number: SLOU345

June 2012

Contents

1 Quick-Start Guide ................................................................................................................ 4

1.1 Overview .................................................................................................................. 4

1.2 Connections .............................................................................................................. 4

1.3 Initial Power Up .......................................................................................................... 5

2 EVM Description ................................................................................................................. 5

2.1 Description of Inputs .................................................................................................... 5

2.2 Description of Outputs .................................................................................................. 5

2.3 Controls ................................................................................................................... 6

2.4 Indicator Description .................................................................................................... 7

3 TAS5514B EVM Schematic ................................................................................................... 7

4 Board Layouts .................................................................................................................... 8

5 Bill of Materials ................................................................................................................. 11

6 Related Documentation from Texas Instruments ................................................................... 12

2Table of Contents SLOU345–June 2012

Submit Documentation Feedback

www.ti.com

List of Figures

1 Connections for Input, Speaker Loads, and Power .................................................................... 4

2 Front Panel Labels.......................................................................................................... 5

3 Wiring Harness for Power and Speaker Connections.................................................................. 6

4 Power and Speaker Connections to the EVM........................................................................... 6

5 TAS5514BDKD Top Layer................................................................................................. 8

6 TAS5514BDKD Mid Layer Level 1 ....................................................................................... 9

7 TAS5514BDKD Mid Layer Level 2 ....................................................................................... 9

8 TAS5514BDKD Bottom Layer ........................................................................................... 10

9 TAS5514BDKD Top Silkscreen Overlay ............................................................................... 10

10 TAS5514BDKD Bottom Silkscreen Overlay............................................................................ 11

List of Tables

1 Bill of Materials for TAS5514BDKD..................................................................................... 11

SLOU345–June 2012 List of Figures

User's Guide

SLOU345–June 2012

TAS5514B Evaluation Module (EVM) User's Guide

The TAS5514B evaluation module (EVM) is intended to be used to demonstrate the capabilities of the

device. All the device features can be accessed through the hardware supplied. This user’s guide contains

a description of the EVM. Included are the EVM schematics, bill of materials, and the board layout.

1 Quick-Start Guide

This section provides a guide to set up and power up the EVM without the details of its operation. For a

more-detailed description, read the complete user's guide.

1.1 Overview

The EVM consists of a single printed circuit board (PCB) mounted inside a metal chassis for EMC testing

and a power/speaker cable connector assembly. The EVM is different than the TAS5414B EVM as it does

not need an I2C controller board to function.

1.2 Connections

The connections are for an analog signal for the input, speaker loads, and power. The audio inputs are

made through the four RCA connectors. The power connections and speaker connections are made using

the 10-pin connector.

The basic connections are: PVDD or power is connected to the EVM through the supplied 10-pin

connector with the twisted red and black wires. The speakers or loads are also connected through the

same 10-pin connector with the twisted red and white wires. See Figure 1for EVM input details.

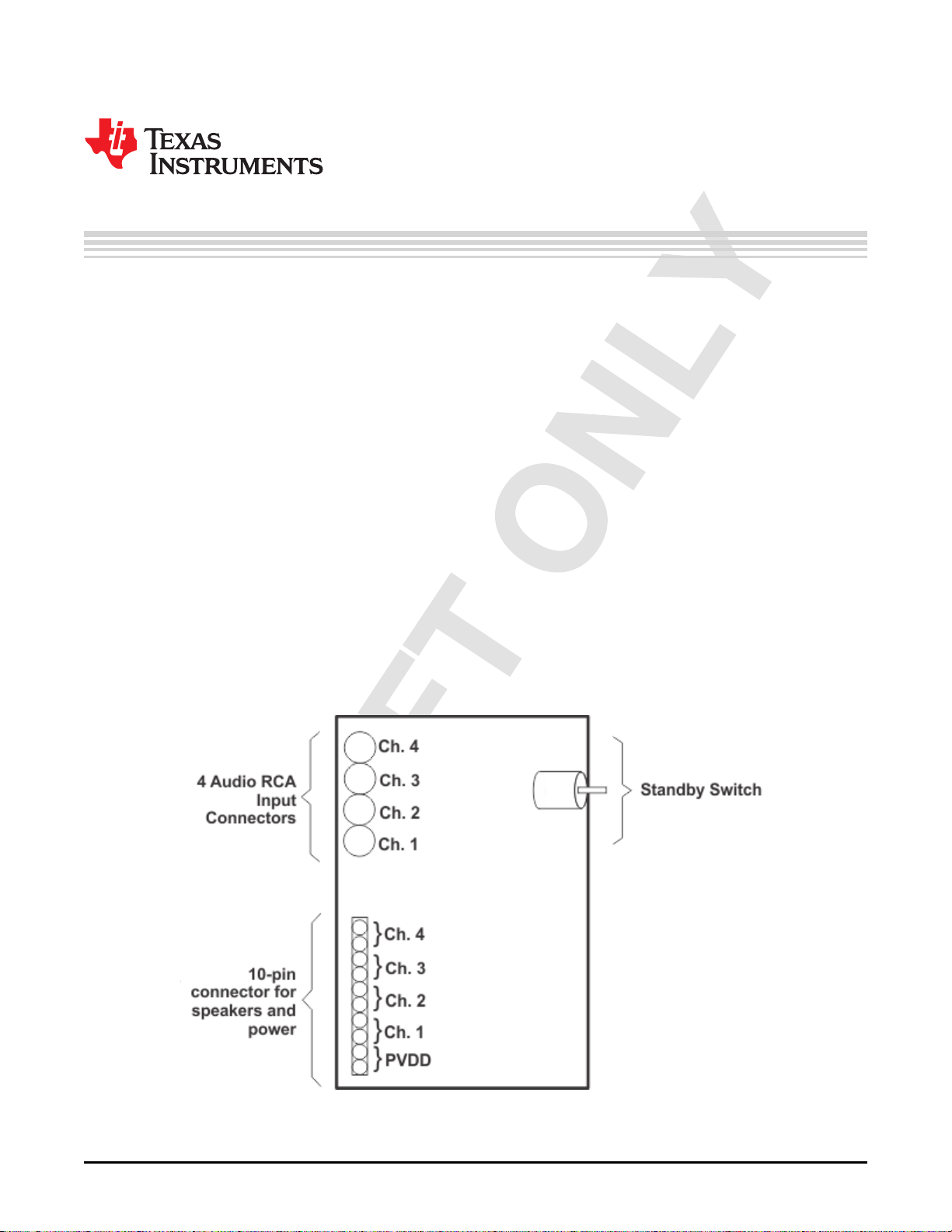

Figure 1. Connections for Input, Speaker Loads, and Power

4TAS5514B Evaluation Module (EVM) User's Guide SLOU345–June 2012

Submit Documentation Feedback

www.ti.com

EVM Description

1.3 Initial Power Up

Before applying power, check to make sure the standby control switch is in the Standby OFF position, as

shown in Figure 2.

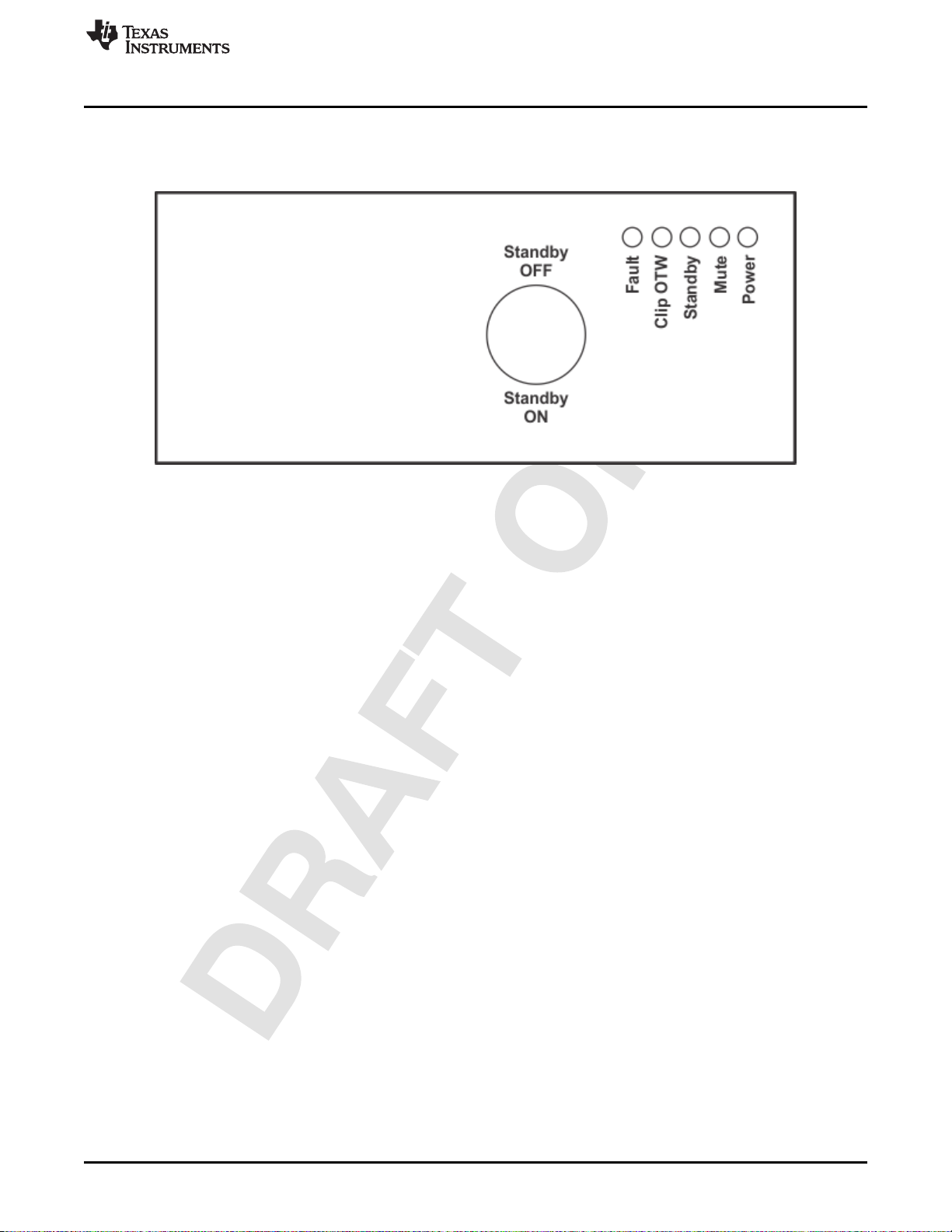

Figure 2. Front Panel Labels

Apply power: the Standby, Mute, and Power LEDs should be on. This indicates that the unit is powered,

and the TAS5514B is in Standby Mode. The TAS5514B is place into play mode by simply moving the

toggle switch to the Standby OFF position. The Fault LED may flash once and then go off. This is the

device automatically clearing the faults at startup.

2 EVM Description

2.1 Description of Inputs

2.1.1 Analog Inputs

The TAS5424B EVM provides balanced input and the TAS5514B EVM provides unbalanced (single-

ended) inputs. The four RCA jacks on either EVM are provided for the audio input. The unbalanced inputs

have the shield of the RCA connected to ground. The balanced inputs have the plus (+) input on the

center pin of the RCA and the minus (–) input on the shield. The balanced ground can be connected to

the chassis or Power– (GND).

2.1.2 Power

The EVM requires one dc power connection. The connection is made through a 10-pin supplied

connector. The black wire is ground and the red wire is connected to PVDD, which can range from 6 to 24

Vdc.

2.2 Description of Outputs

2.2.1 Speaker and Power Connections

The 10-pin connector on the EVM and the wiring harness provide the power connections and the speaker

connections. The power connection consists of a pair of red and black twisted wires, which correspond to

the plus (+) input and minus (–) input, respectively. This pair of wires must be attached to a power supply.

The speaker connections consist of the remaining four pairs of red and white twisted wire. Each pair of red

and white wires corresponds with a channel. The red wire corresponds to the plus (+) output, and the

white wire corresponds to the minus (–) output. These wires must be terminated to a speaker load or

resistive load.

SLOU345–June 2012 TAS5514B Evaluation Module (EVM) User's Guide

Ch. 4

Ch. 3

Ch. 2

Ch. 1

Power

EVM Description

www.ti.com

See Figure 1for more details on the 10-pin connector on the EVM, Figure 3for more details about the

speaker cables, and Figure 4for the power and speaker-cables connections to the EVM.

Figure 3. Wiring Harness for Power and Speaker Connections

Figure 4. Power and Speaker Connections to the EVM

NOTE: Do not connect any of the speaker outputs to ground. The TAS5514B has full bridged

outputs; connecting to ground triggers a fault.

The outputs can be paralleled by connecting the plus (+) of one channel to the plus (+) of the other

channel. The minus (–) connection of one channel and the minus (–) connection of the other channel must

be connected also. See the data sheet for more details on parallel outputs (PBTL).

2.3 Controls

2.3.1 Standby

The standby switch is located on the front panel. Having the toggle in the Standby ON position forces the

TAS5514B into the standby mode. This is the same as a power-on reset (POR). POR shuts down the

device.

Setting the switch to the Standby OFF position puts the device in the EVM into the power up mode. The

amplifier will perform load diagnostics and then will place the amplifier outputs into play mode. Please

note, that any channel that has a shorted load, short to ground, or a short to power will not be placed into

play mode.

6TAS5514B Evaluation Module (EVM) User's Guide SLOU345–June 2012

Submit Documentation Feedback

www.ti.com

TAS5514B EVM Schematic

2.4 Indicator Description

There are five LED indicators on the chassis next to the standby switch. The LED farthest away from the

standby switch is for the 3.3 Vdc supply. The 3.3 V supply is needed for the LEDs and the standby circuit.

The other four LEDs output pins: FAULT, CLIP_OTW, STANDBY, and MUTE. In normal play mode, these

four LEDs should not light.

3 TAS5514B EVM Schematic

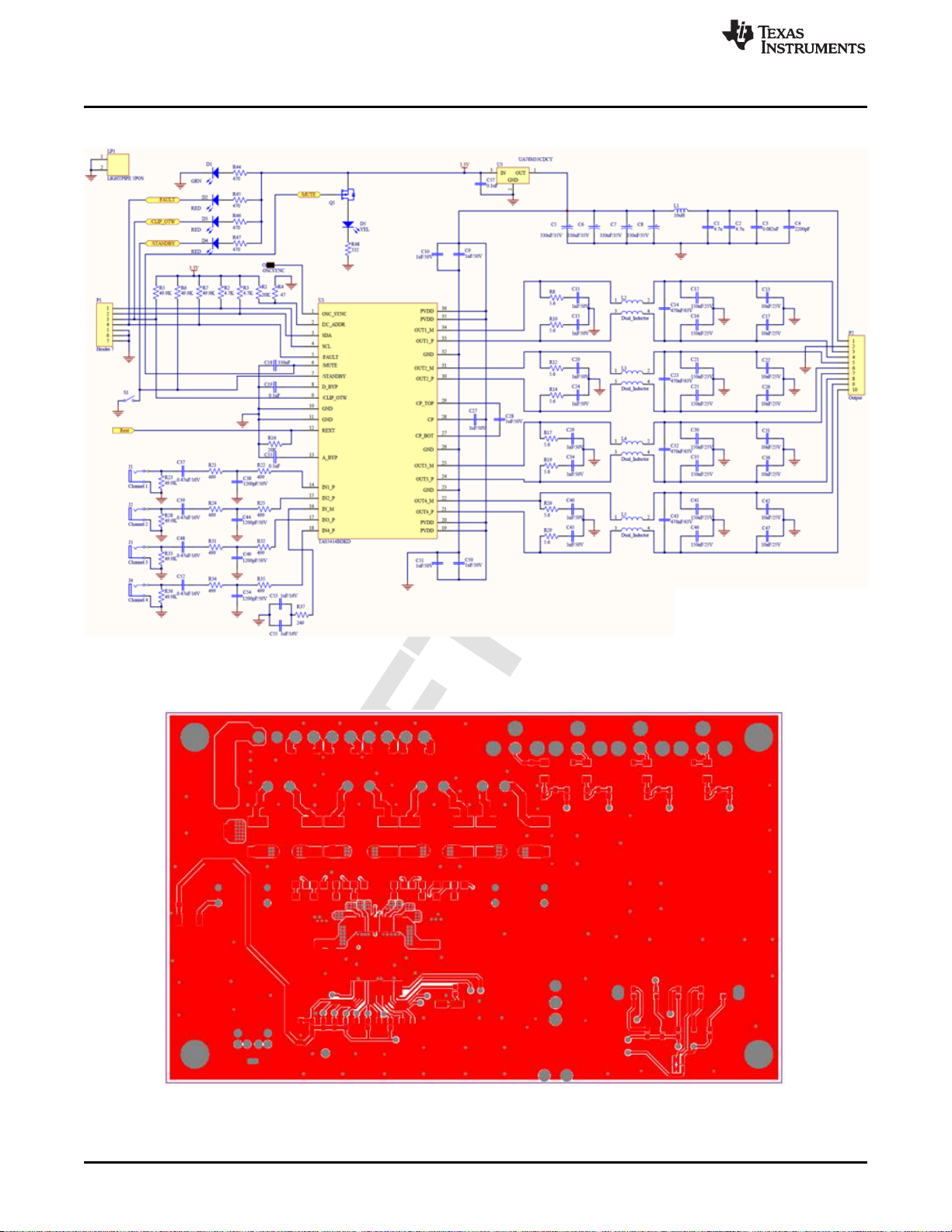

The schematic for the TAS5514BDKD EVM is shown on the following pages.

SLOU345–June 2012 TAS5514B Evaluation Module (EVM) User's Guide

Board Layouts

www.ti.com

TAS5514BDKD EVM Schematic

4 Board Layouts

Figure 5. TAS5514BDKD Top Layer

8TAS5514B Evaluation Module (EVM) User's Guide SLOU345–June 2012

Submit Documentation Feedback

www.ti.com

Board Layouts

Figure 6. TAS5514BDKD Mid Layer Level 1

Figure 7. TAS5514BDKD Mid Layer Level 2

SLOU345–June 2012 TAS5514B Evaluation Module (EVM) User's Guide

Board Layouts

www.ti.com

Figure 8. TAS5514BDKD Bottom Layer

Figure 9. TAS5514BDKD Top Silkscreen Overlay

10 TAS5514B Evaluation Module (EVM) User's Guide SLOU345–June 2012

Submit Documentation Feedback
