Texas Instruments PCM182xEVM Manuel utilisateur
User’s Guide
PCM182xEVM/PCM182xQ1EVM EVM User's Guide
ABSTRACT
This user's guide describes the function and use of the PCM1820EVM /PCM1821EVM/ PCM1822EVM /
PCM1820Q1EVM/PCM1821Q1EVM/PCM1822Q1EVM evaluation modules. This document includes the
hardware configuration instructions, a quick-start guide, jumper and connector descriptions, schematics, and
printed-circuit board (PCB) layout that demonstrate TI's recommended practices for these devices .
Figure 1-1. EVM BOARD
www.ti.com
SBAU363A – FEBRUARY 2021 – REVISED MARCH 2022
Submit Document Feedback
PCM182xEVM/PCM182xQ1EVM EVM User's Guide 1
Copyright © 2022 Texas Instruments Incorporated
Table of Contents
1 Introduction.............................................................................................................................................................................3
2 Power Supply.......................................................................................................................................................................... 3
3 Hardware Configuration.........................................................................................................................................................4
4 PCM182xEVM /PCM182xQ1EVM Inputs................................................................................................................................6
4.1 Onboard Microphone Inputs...............................................................................................................................................6
4.2 Line Inputs..........................................................................................................................................................................7

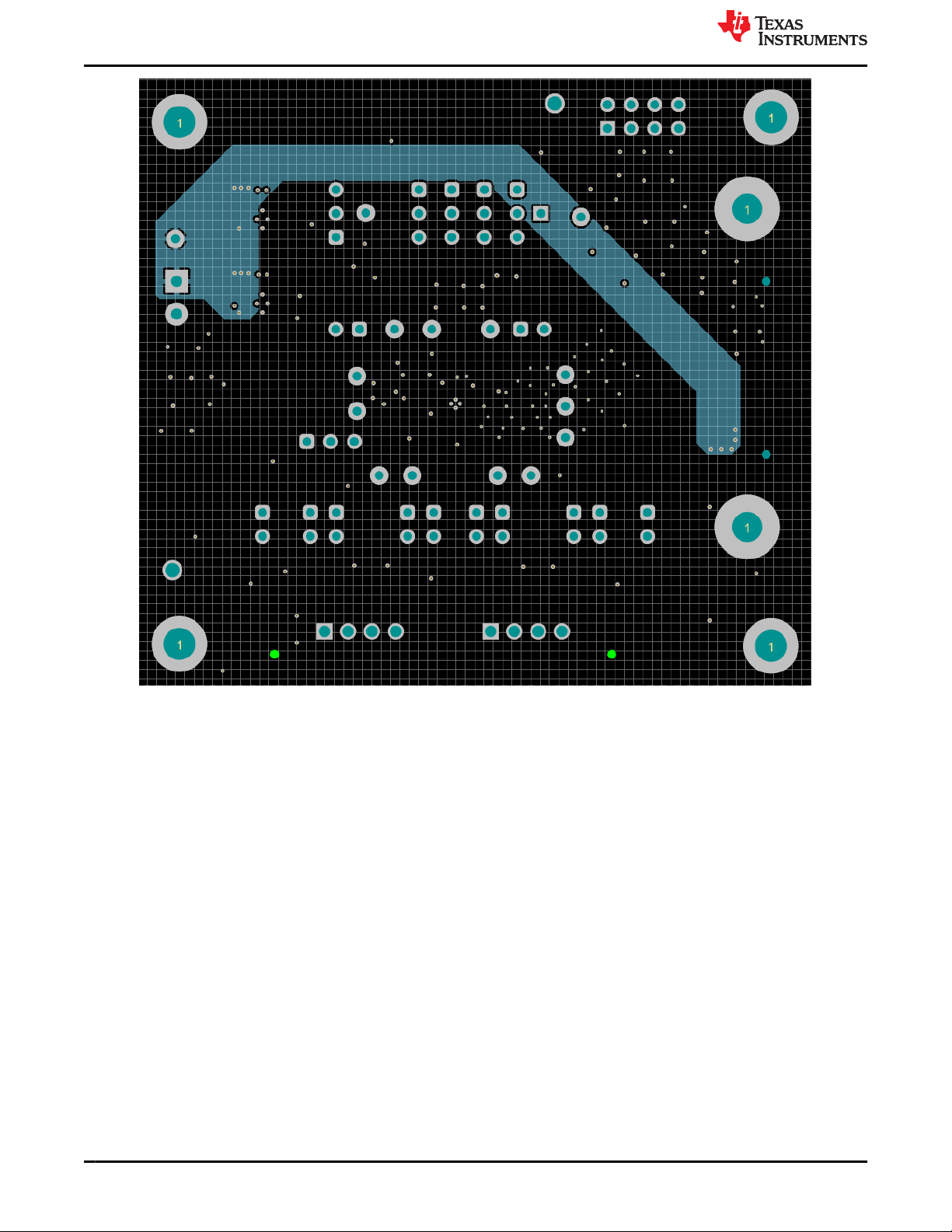

5 Layer Plots.............................................................................................................................................................................. 8
6 Schematics............................................................................................................................................................................12
7 Bill of Materials..................................................................................................................................................................... 13
8 Revision History................................................................................................................................................................... 15
List of Figures
Figure 1-1. EVM BOARD.............................................................................................................................................................1
Figure 2-1. PCM182x /PCM182x-Q1 Power Supply....................................................................................................................3
Figure 4-1. PCM182x /PCM182x-Q1 Input Architecture..............................................................................................................6
Figure 4-2. PCM182x/PCM182x-Q1 Onboard Microphones....................................................................................................... 7
Figure 4-3. PCM182x/ PCM182x-Q1 Line Inputs........................................................................................................................ 7

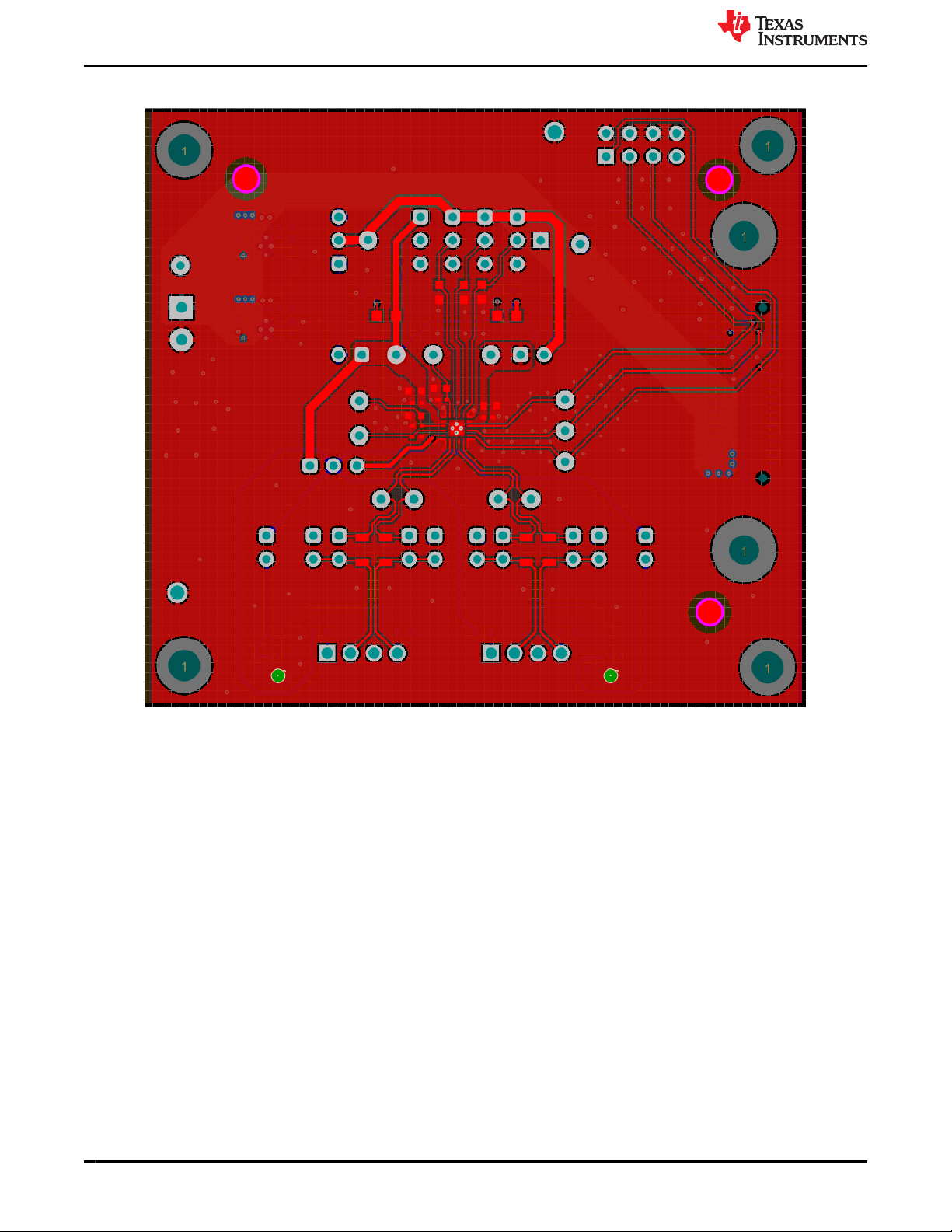

Figure 5-1. Top Layer...................................................................................................................................................................8

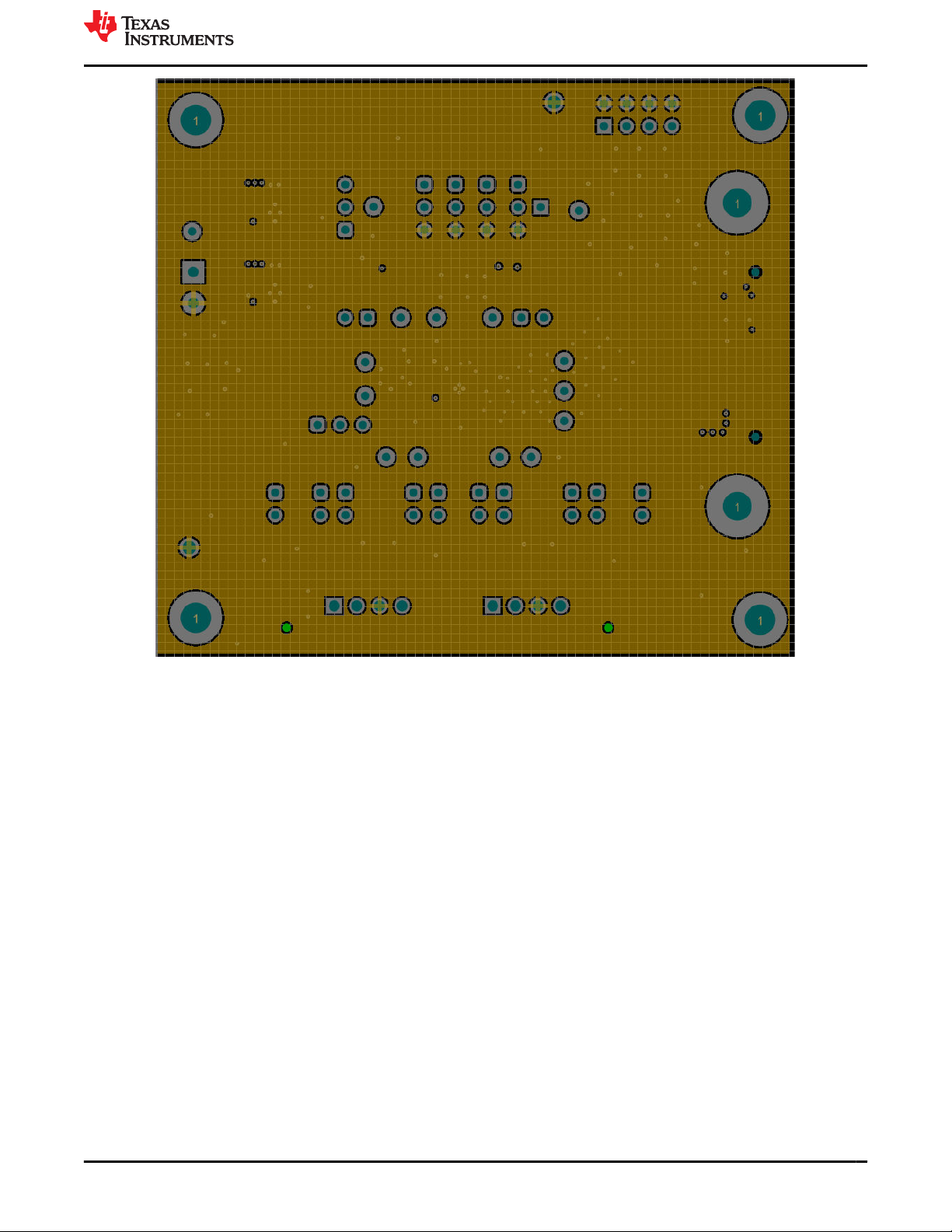

Figure 5-2. Power Plane 1........................................................................................................................................................... 9
Figure 5-3. Power Plane 2......................................................................................................................................................... 10
Figure 5-4. Bottom Layer........................................................................................................................................................... 11
Figure 6-1. Schematic................................................................................................................................................................12
Trademarks
Burr-Brown™ is a trademark of Texas Instruments.
All trademarks are the property of their respective owners.
Table of Contents www.ti.com
2PCM182xEVM/PCM182xQ1EVM EVM User's Guide SBAU363A – FEBRUARY 2021 – REVISED MARCH 2022
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
1 Introduction
The PCM182xEVM/ PCM182xQ1EVM is an evaluation module (EVM) designed to demonstrate the performance
and functionality of the PCM182x / PCM182x-Q1 device. The devices covered are PCM1820/PCM1821/
PCM1822/PCM1820-Q1/PCM1821-Q1/PCM1822-Q1.The PCM182x/ PCM182x-Q1 is a high-performance audio
analog-to-digital converter (ADC) that is configured through logic-level mode selection pins and does not require
a digital interface such as I2C or SPI to configure registers. As such, no software is necessary to interface with
the EVM. The EVM is powered with a single 5-V supply. Access to the converter output is provided on the audio
serial interface in I2S or TDM format.
2 Power Supply
The PCM182xEVM/PCM182xQ1EVM can be powered with a single 5-V power supply connected to J6. Onboard
low dropout regulators convert the 5-V supply to the 3.3-V and 1.8-V rails used by the ADC. The analog supply,
AVDD, is fixed at 3.3 V. The digital supply, IOVDD, can be set to either 1.8 V or 3.3 V with J5. It is also possible
to power the ADC directly by removing J9 and J5 and applying a voltage directly to the AVDD and IOVDD test
points. Note that if this is done, it is important to keep J10 populated (or ensure there is a path between the pins
if the supply current is being monitored) as this jumper connects the applied IOVDD to the mode selection pins
and other circuitry that relies on IOVDD.
External
Power
+5V
LDO
LDO
+3.3V
+1.8V
AVDD
IOVDD
J5 J10
J9
J6

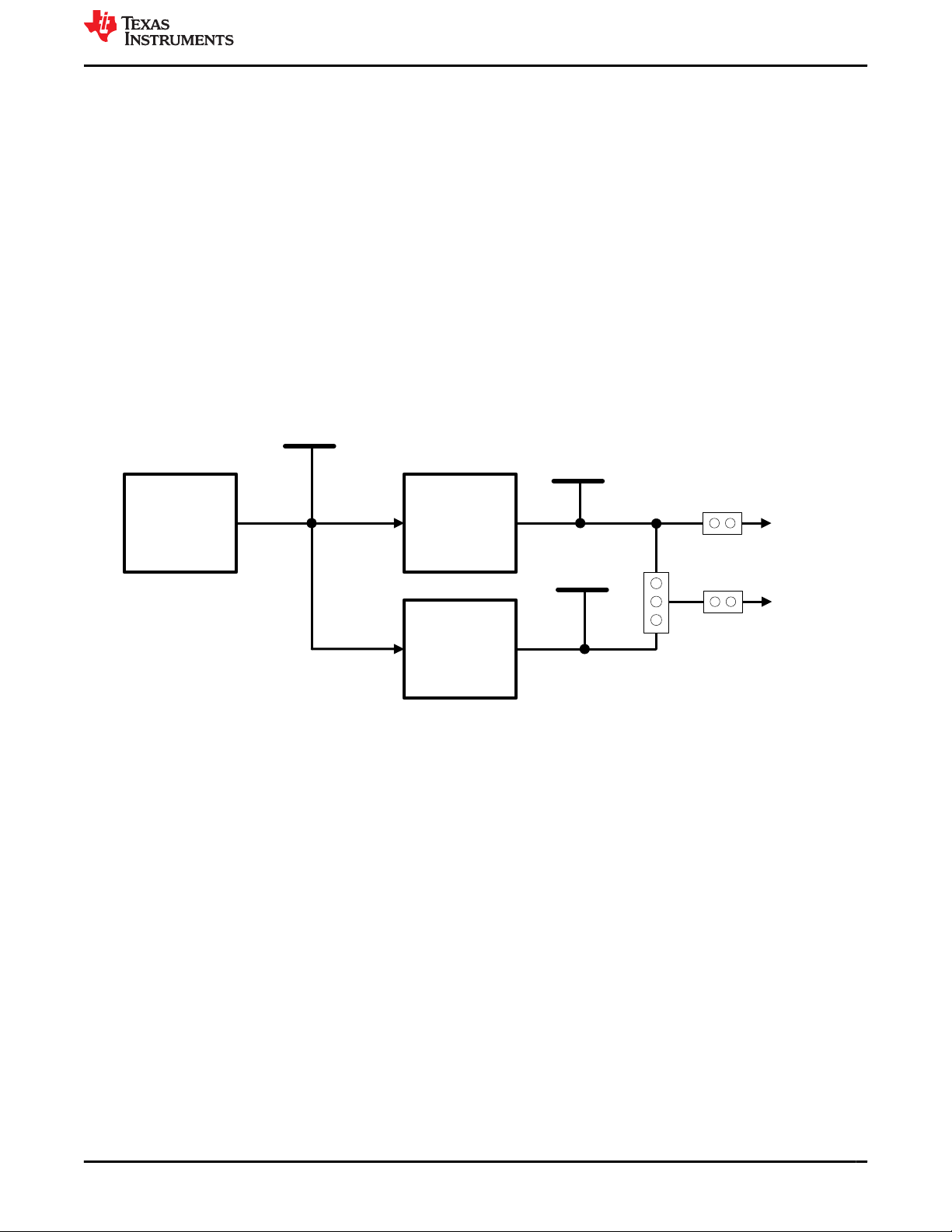

Figure 2-1. PCM182x /PCM182x-Q1 Power Supply
www.ti.com Introduction
SBAU363A – FEBRUARY 2021 – REVISED MARCH 2022
Submit Document Feedback
PCM182xEVM/PCM182xQ1EVM EVM User's Guide 3
Copyright © 2022 Texas Instruments Incorporated
3 Hardware Configuration
The format of the audio data and the operating mode of the ADC are controlled by the following pins: MD0,
MD1, MSZ, and FMT0. These signals are referenced to IOVDD and can be set to high (1) or low (0). If no
shunt is installed, then a 47-kΩ pulldown resistor will set the pin low so that the ADC remains in a defined state.
Table 3-1 shows the header numbers and their pin functions and Table 3-2 , Table 3-2 and , Table 3-2 show the
possible modes and output formats. The MSZ pin selects whether the device is a master or a slave on the audio
bus. When MSZ is pulled high, the device is in master mode and MD1 becomes an input for MCLK. A shunt
connecting J19 to the center pin of J18 will route the MCLK signal provided on J8 to the MD1 pin on the ADC to
allow for easy interfacing with audio measurement equipment.
Table 3-1. PCM182xEVM /PCM182xQ1EVM Headers and Jumpers
Designator Function
J1 Differential line/mic input 1
J2 Differential line/mic input 2
J4 MICBIAS Selection
J5 IOVDD-SYS voltage Selection (1.8V or 3.3V)
J6 +5V input
J7 AC-MB Connector
J8 Audio Serial Interface header
J9 Connect AVDD to onboard 3.3V regulator
J10 Connect IOVDD to onboard regulator
J11 Connect MICBIAS to onboard MIC2
J12 Connect MIC2 OUT+ to ADC IN2P
J13 MSZ select
J14 Connect MICBIAS to onboard MIC1
J15 Connect MIC1 OUT+ to ADC IN1P
J16 Connect MIC1 OUT- to ADC IN1M
J17 MD0 select
J18 MD1 select
J19 MCLK to MD1
J20 FMT0 select
J21 Connect MIC2 OUT- to ADC IN2M
J22 IN2M capacitor bypass
J23 IN1P capacitor bypass
J24 IN2P capacitor bypass
J25 IN1M capacitor bypass
Table 3-2. PCM182xEVM /PCM182xQ1EVM MD0 Modes
MD0 Modes
MD0 MSZ (0 = Slave, 1 = Master) MD0 Functional Mode
0 0 Linear phase filters are used for the decimation in slave
mode. For master mode, the device always use linear
phase filters for the decimation.
0 1 System clock with frequency 256 × fS connected to the
MD1 pin as MCLK
1 0 System clock with frequency 512 × fS connected to the
MD1 pin as MCLK
1 1 Low latency filters are used for the decimation in slave
mode. For master mode, the device always use linear
phase filters for the decimation.
Hardware Configuration www.ti.com
4PCM182xEVM/PCM182xQ1EVM EVM User's Guide SBAU363A – FEBRUARY 2021 – REVISED MARCH 2022
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Table 3-3. PCM182xEVM /PCM182xQ1EVM MD1 Modes
MD1 Modes
MD1 MSZ (0 = Slave, 1 = Master) MD0 Functional Mode
0 0 DRE Disabled
1 0 The DRE is enabled with DRE_LVL = –36 dB and
DRE_MAXGAIN = 24 dB
MCLK 1 MCLK input in master mode
Table 3-4. PCM182xEVM /PCM182xQ1EVM Audio Output Format
Audio Output Data Format
FMT0 Audio Serial Interface Format
0 2-channel output with inter IC sound (I2S) mode
1 2-channel output with time division multiplexing (TDM) mode
All hardware pins are tied low by default, placing the device in slave mode with a linear phase filter, DRE
disabled, and 2-channel I2S audio output. Note that DRE is not supported for PCM1821/PCM1821-Q1 and only
applies to PCM1820/PCM1822/PCM1820-Q1/PCM1822-Q1. For more information on the operating modes of
the PCM182x device, see the PCM182x Stereo Channel, 32-Bit, 192-kHz, Burr-Brown™ Audio ADC data sheet.
www.ti.com Hardware Configuration
SBAU363A – FEBRUARY 2021 – REVISED MARCH 2022
Submit Document Feedback
PCM182xEVM/PCM182xQ1EVM EVM User's Guide 5
Copyright © 2022 Texas Instruments Incorporated
4 PCM182xEVM /PCM182xQ1EVM Inputs
The PCM1820/PCM1820-Q1 device is intended to be driven with differential line or microphone inputs. Each
of the inputs has a 1-µF AC coupling film capacitor. Coupled with the 2.5-kΩ input impedance of PCM1820/
PCM1820-Q1 , this sets the high pass filter cutoff frequency at approximately 63-Hz. PCM1821/PCM1821-Q1
has an input impedance of 10-kΩ, setting the cutoff frequency at 16-Hz. This can be adjusted by replacing the
input AC coupling capacitors on the EVM if necessary. Figure 4-1 shows the architecture of the inputs to the
evaluation module. The EVM supports a differential full scale input range of 2 VRMS with an AVDD of 3.3 V.
Please Note: PCM1822EVM/PCM1822Q1EVM is set up to support single ended inputs.
PCM182x
MIC2
IN2M
IN2P
IN2MIN2P
J21
J12
MICBIAS
J11
MIC1
IN1P IN1M
IN1P IN1M
J16
J15
MICBIAS
J14
J23 J25 J24 J22

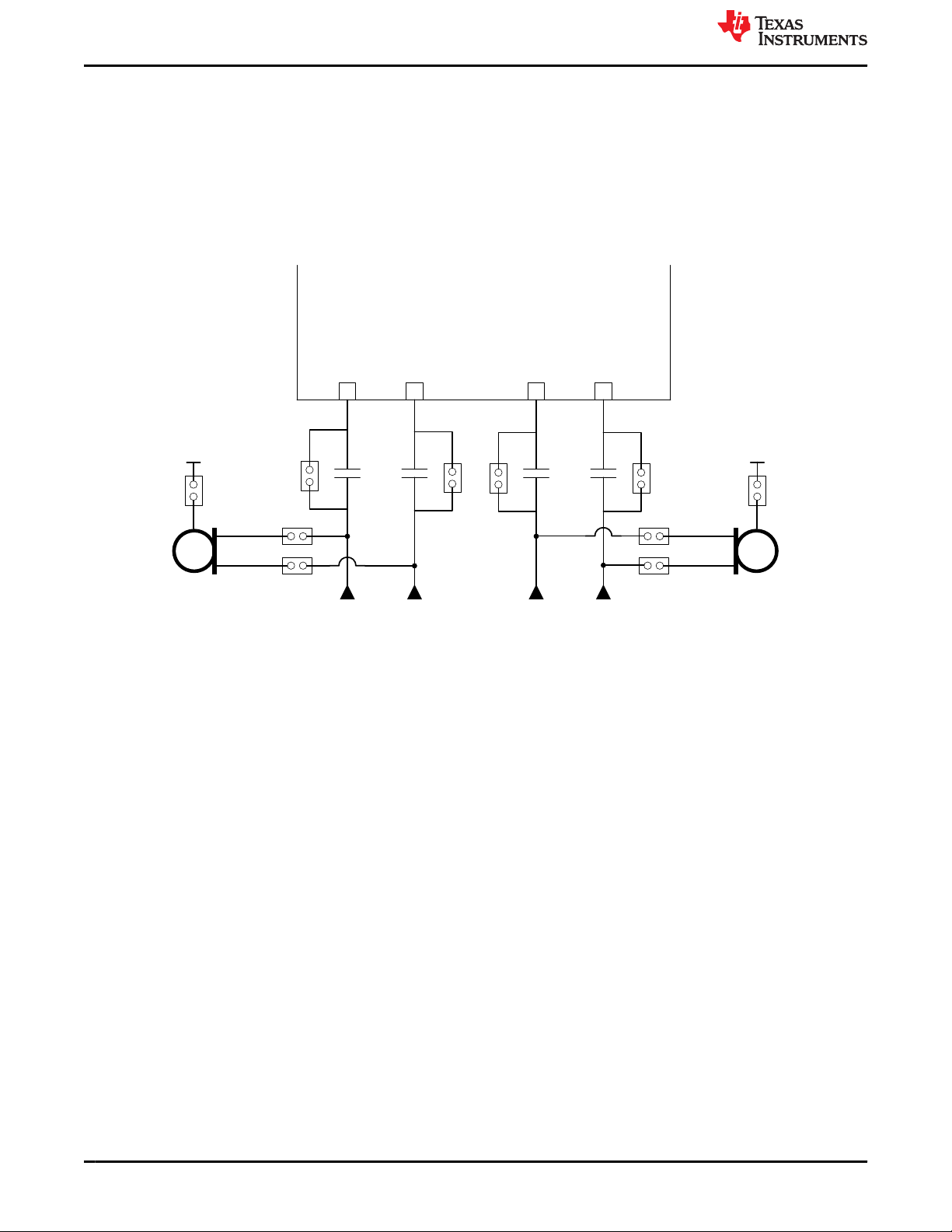

Figure 4-1. PCM182x /PCM182x-Q1 Input Architecture
4.1 Onboard Microphone Inputs
PCM182x EVM/PCM182xQ1 EVM has two onboard differential microphones that can be routed to the inputs
with jumpers. The microphones require a bias be applied to MPWR. MPWR can be tied to AVDD on J4, or
to MICBIAS if using a device that supports this feature. Note that the PCM182x/PCM182x-Q1 do not have
an integrated MICBIAS and this option is provided for future devices that might incorporate this feature. The
following jumpers need to be installed to use the onboard mics: J4, J11,J12, J14, J15, J16, and J21.
If the onboard mics are used, leave the J1 and J2 headers unconnected to preserve the microphone
performance.
PCM182xEVM /PCM182xQ1EVM Inputs www.ti.com
6PCM182xEVM/PCM182xQ1EVM EVM User's Guide SBAU363A – FEBRUARY 2021 – REVISED MARCH 2022
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated

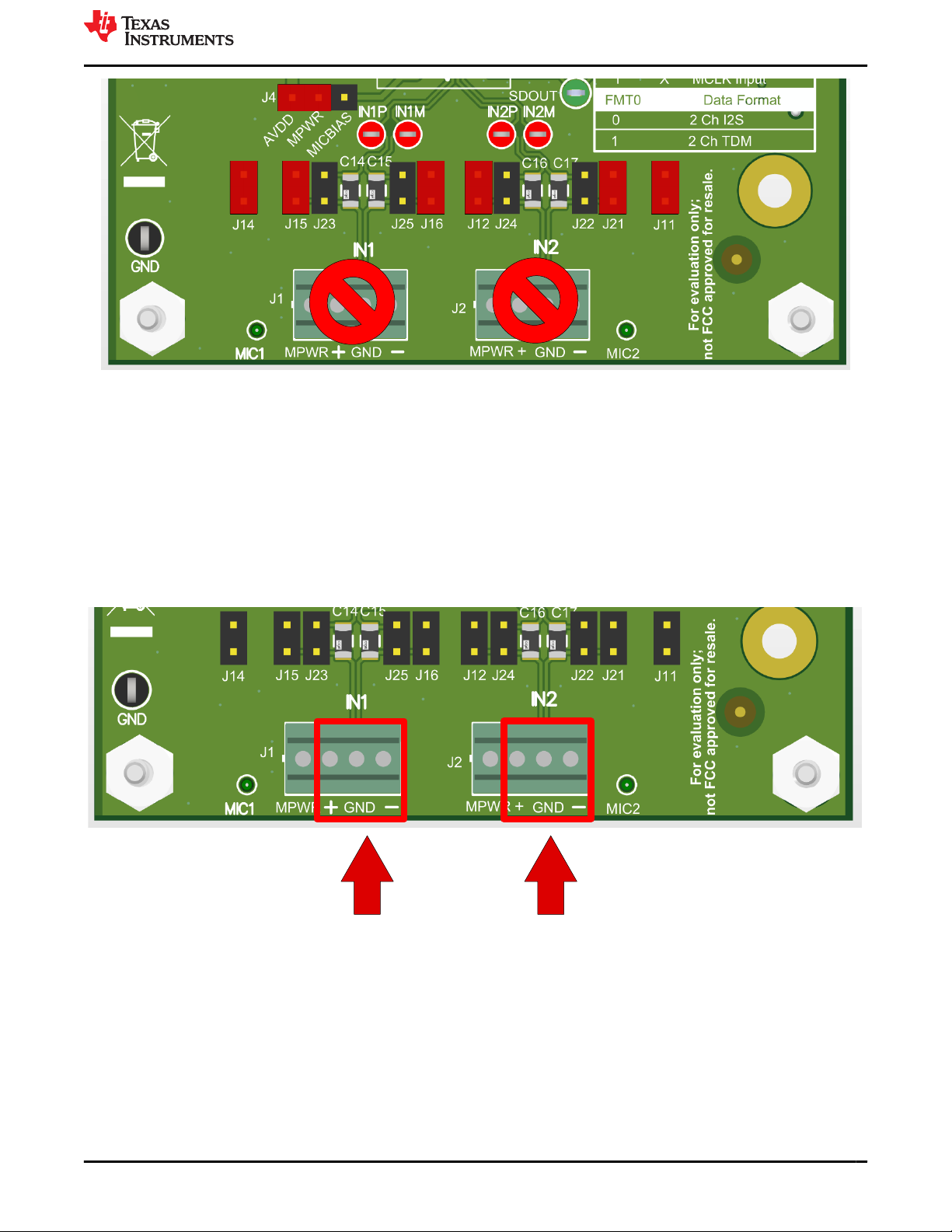

Figure 4-2. PCM182x/PCM182x-Q1 Onboard Microphones
4.2 Line Inputs
For the line input configuration, shown in Figure 4-3, the PCM1820/PCM1820-Q1 /PCM1821/PCM1821-Q1
captures the audio signal provided through terminals J1 (IN1) and J2 (IN2). The input accepted in this mode
is a differential, 2 VRMS, full-scale audio signal. Single-ended inputs are not supported by the PCM1820/
PCM1820-Q1 device and it is recommended to keep the inputs AC coupled.
Please Note: PCM1822EVM/PCM1822Q1EVM is set up to support single ended inputs.Resistance R3 and R5
are mounted as 0 ohms.
PCM1822/PCM1822-Q1 accepts , 1 VRMS, single ended/differential full-scale audio signal
Figure 4-3. PCM182x/ PCM182x-Q1 Line Inputs
www.ti.com PCM182xEVM /PCM182xQ1EVM Inputs
SBAU363A – FEBRUARY 2021 – REVISED MARCH 2022
Submit Document Feedback
PCM182xEVM/PCM182xQ1EVM EVM User's Guide 7
Copyright © 2022 Texas Instruments Incorporated
