EVM User's Guide: MCF8329EVM

MCF8329 Evaluation Module

Description

The MCF8329EVM allows users to evaluate the

performance of a MCF8329 motor driver. The EVM

includes an onboard FTDI chip to convert USB

communication, from the micro-USB connector, into

UART. An onboard MSP430FR2355 microcontroller

(MCU) translates the UART communication into either

control signals or SPI formatted data, which is

sent to the MCF8329 device. There are many user-

selectable jumpers, resistors, connectors, and test

points to assist with evaluating the many features of

the MCF8329 IC and the configurable device-specific

settings.

Get Started

1. Download the latest design files from the

MCF8329EVM tool page on ti.com

2. Download the latest version of the Motor Studio

GUI and firmware from the Motor Studio tool page

on ti.com

Features

• GUI software to simplify the MCx tuning process

and performance evaluation

• MCU-to-MCx shunt jumper header with removable

shunts to disconnect main signals going to the

motor driver IC from the MCU

– The shunts can be removed if the user desires

to control the MCF8329 IC with an external

MCU or to use the EVM MCU to control an

external MCF8329 IC

Applications

•Cordless vacuum

•Cordless garden tools

•CPAP machine

•Ventilator

• Server fans

MCF8329EVM (Top View)

www.ti.com Description

SLLU373 – NOVEMBER 2023

Submit Document Feedback

MCF8329 Evaluation Module 1

1 Evaluation Module Overview

1.1 Introduction

This document is provided with the MCF8329 customer evaluation module (EVM) as a supplement to the

MCF8329 data sheet. This user's guide details the hardware setup instructions, GUI installation, and usage

instructions.

CAUTION

Hot surface temperature

The EVM can have high surface temperatures marked by the FIRE triangular symbol on the EVM.

Avoid toughing the marked hot surface are when driving high currents to prevent potential burn

damage.

1.2 Kit Contents

Table 1-1 lists the contents of the EVM kit. Contact the Texas Instruments Product Information Center nearest to

you if any components are missing. TI highly recommends that users check the TI website at https://www.ti.com

to verify that the latest version of the related software is being used.

Table 1-1. Kit Contents

Item Quantity

MCF8329EVM 1

USB A Male-to-USB B Micro Male Cable 1

1.3 Specification

The MCF8329EVM can support voltages up to 60 V and currents up to 30 A. To prevent damage to both the IC

and the EVM, confirm that these voltage and current specifications are not exceeded.

1.4 Device Information

The MCF8329 is a 4.5-V to 60-V, three-phase brushless-DC gate driver IC with code-free sensorless field

oriented control (FOC) for motor drive applications. The device provides three half-bridge gate drivers, each

capable of driving high-side and low-side N-channel power MOSFETs. The device generates the correct gate

drive voltages using an internal charge pump and enhances the high-side MOSFETs using a bootstrap circuit. A

trickle charge pump is included to support 100% duty cycle. The gate drive architecture supports peak gate drive

currents up to 1-A source and 2-A sink.

The internal sensorless FOC algorithm is highly configurable through register settings in a non-volatile EEPROM

ranging from motor start-up behavior to closed loop operation, which allows for the device to operate stand-alone

once the device has been configured. Motor current is sensed using an integrated current sense amplifier

supporting a single external shunt resistor. The device can receive a speed command through a PWM input,

analog voltage, variable frequency square wave, or I2C command. There are a large number of protection

features integrated into the MCF8329, intended to protect the device, motor, and system against fault events.

Evaluation Module Overview www.ti.com

2MCF8329 Evaluation Module SLLU373 – NOVEMBER 2023

Submit Document Feedback

2 Hardware

2.1 Quick Start Guide

The MCF8329EVM requires a power supply source, which has a recommended operating range from a 4.5-V to

60-V. To setup and power the EVM, follow the sequence below:

1. Connect motor phases to A, B, and C on connector J11.

2. Do not turn on the power supply yet. Connect the motor supply to PVDD and GND on connector J10.

3. Select J6 to 5V_USB and J8 to 3V3COM to power MSP430 from USB power supply.

4. Connect the micro-USB cable into the computer.

5. Turn the potentiometer fully clockwise to set the motor to zero speed upon power up.

6. Flip the switch S1 to the top to configure BRAKE = RUN, switch S2 to the top to configure DRVOFF = ON,

switch S3 to the bottom to configure DIR = ABC, and switch S4 to the bottom to configure WAKE.

7. Flip the switch SW1 to left to configure SPEED/WAKE pin to SPEED mode and DACOUT/SOx/SPEED_ANA

pin to DACOUT mode. Note that flipping the switch SW1 to right configures SPEED/WAKE pin to WAKE

mode and DACOUT/SOx/SPEED_ANA pin to SPEED_ANA mode. When SW1 is flipped to right, switch S4

can be used to put the device in SLEEP or WAKE mode and potentiometer R47 can be used to apply analog

voltage to the DACOUT/SOx/SPEED_ANA pin.

8. Set J12 to leftmost position (closer to C6) to apply AVDD to VREG.

9. Set J13 to middle position to apply the analog voltage from potentiometer R47 to the SPEED/WAKE pin.

10. Turn on the motor power supply.

11. Use the potentiometer R47 to control the speed of the motor and the switches to disable the motor driver,

change the direction, or apply a brake to the motor. Optionally, use the GUI (as shown in Section 3) to

monitor the real-time speed of the motor, put the MCF8329 into a low-power sleep mode, and read status of

the LEDs.

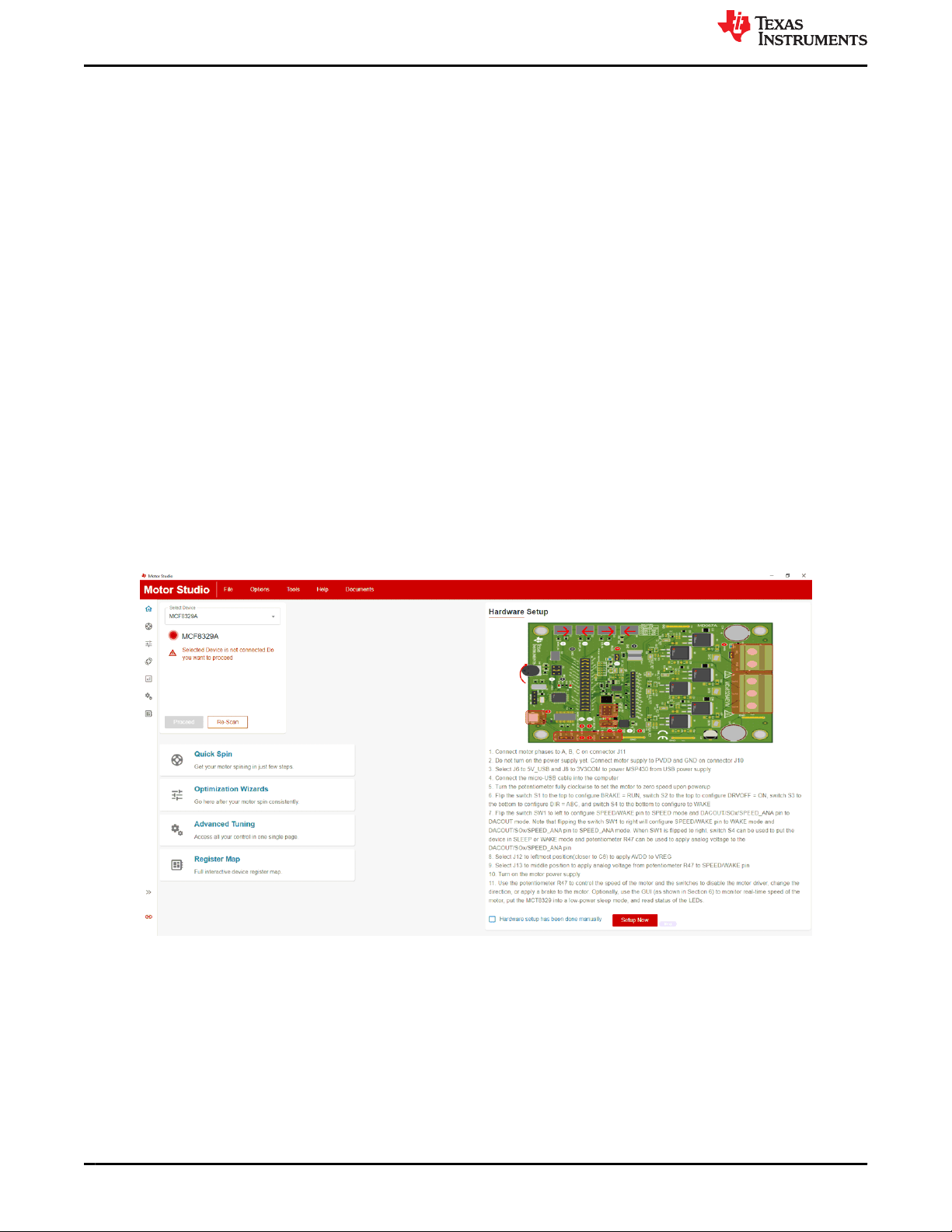

Figure 2-1. Reference for Quick Start Guide

www.ti.com Hardware

SLLU373 – NOVEMBER 2023

Submit Document Feedback

MCF8329 Evaluation Module 3

2.2 Hardware Setup

The hardware required to run the motor is the MCF8329EVM, a micro-USB cable, and a power supply with a DC

output from 4.5-V to 60-V. Follow these steps to start up the MCF8329EVM:

1. Connect the DC power supply to header J10. Connect to PVDD and GND.

2. Apply user configurable jumper settings. See Section 2.7 for more information.

3. Flash the firmware into the MCU as described in Section 3.4. Launch Motor Studio and disconnect the 4-pin

JTAG connections.

4. Turn on the power supply to power up the MCF8329EVM.

5. Connect a Micro-USB cable to the MCF8329EVM and computer.

If using the MCF8329EVM with an external microcontroller, then remove all shunt jumpers from jumper bridge

J9. Connect with external jumpers to the right side of the jumper bridge from the external MCU.

2.3 Hardware Connections Overview

Figure 2-2 shows the major blocks of MCF8329EVM. The MCF8329EVM is designed for an input supply from

4.5 V to 60 V at 30 A max. The MCF8329EVM includes a power stage with six external N-channel power

MOSFETs (part number: CSD18536KTTT) and passive components. The MCF8329EVM also includes a 1 mΩ

current sense shunt resistor and an external N-channel MOSFET controlled by GCTRL to generate VREG. For

interfacing with the GUI, the MCF8329EVM has an onboard FTDI chip and MSP430.

Figure 2-2. MCF8329EVM Major Hardware Blocks

Hardware www.ti.com

4MCF8329 Evaluation Module SLLU373 – NOVEMBER 2023

Submit Document Feedback

2.4 Connection Details

Figure 2-3 outlines which connections must be made to the MCF8329EVM in order to spin a 3-phase sensorless

brushless-DC motor.

Connect a 4.5-V to 60-V power supply to the PVDD and GND terminals on connector J10.

Connect the three phases of the BLDC motor to the A, B, and C terminals of the screw terminal connector J11.

Figure 2-3. Connections from Motor to MCF8329EVM

Figure 2-4 shows where the micro-USB cable is plugged into the MCF8329EVM to provide communication

between evaluation module and GUI. The USB data and 5 V power from the USB is converted, by the FTDI chip,

into UART data and 3.3 V power which is used to power the MSP430FR2355 microcontroller. The 5 V from the

USB power is limited to 500 mA and the 3.3 V from the FTDI chip is limited to 30 mA. If the user wants to supply

more current to these rails, then use the 5V_SEL jumper J6 and 3V3_SEL jumper J8 to connect external power

rails.

Figure 2-4. Micro-USB connector and USB-to-UART interface

www.ti.com Hardware

SLLU373 – NOVEMBER 2023

Submit Document Feedback

MCF8329 Evaluation Module 5

2.5 MSP430FR2355 Microcontroller

The MCF8329EVM includes a MSP430FR2355 low-power MCU, shown in Figure 2-5, to communicate via I2C

with the MCF8329 IC.

To program the MSP430FR2355, an external MSP430 FET programmer must be connected to the Spy-Bi-Wire

(SBW) interface connector J7. Many MSP430 LaunchPads™ provide an onboard eZ-FET Debug Probe that can

be jumper-wired to the MCF8329EVM to flash the firmware into the onboard MSP430FR2355 microcontroller.

The user can use the Reset (RST) button at any time to restart the MCU program. Two active-low LEDs, D13

and D14, can be used for debug purposes as well.

The 32-pin shunt jumper bridge J9 ties all signals between the microcontroller and MCF8329 IC. These jumpers

can be inserted or removed as needed to isolate the microcontroller from the gate driver. This allows for

microcontroller signal debugging or using the MCF8329EVM as a standalone gate driver with an external

microcontroller.

Figure 2-5. MSP430FR2355 MCU on MCF3829EVM

Hardware www.ti.com

6MCF8329 Evaluation Module SLLU373 – NOVEMBER 2023

Submit Document Feedback

2.6 LED Lights

The MCF8329EVM has 5 status LEDs that provide the status of power supplies and functions of the evaluation

module. By default, the PVDD LED and AVDD LED lights up when the board is powered and the program

has been flashed onto the microcontroller. Table 2-1 shows LED descriptions including those that are on during

power up in bold with Figure 2-6 showing the locations of the LEDs.

Table 2-1. Description of MCF8329EVM LEDs (Default in Bold After Power Up)

Designator Name Color Description

D1 3.3V Green Lights up when AVDD is turned ON

D2 nFAULT Red Lights up when fault condition has occurred on

MCF8329

D3 PVDD Green Lights up when voltage is applied on PVDD

D13 MSP_LED1 Red Used for UART or debugging

D14 MSP_LED2 Red Used for UART or debugging

Figure 2-6. MCF8329EVM LED Locations

www.ti.com Hardware

SLLU373 – NOVEMBER 2023

Submit Document Feedback

MCF8329 Evaluation Module 7

2.7 User Configurable Settings

The MCF8329EVM includes a variety of user-selectable jumpers, switches, and resistors on the entirety of the

evaluation board to configure settings. Table 2-2 summarizes all of these configurable settings.

Table 2-2. Description of User-Selectable Settings on MCF8329EVM (Default in Bold)

Designator Setting Name Description Layer Position Function

J8 3V3_SEL Select 3.3 V source for MCU power Top J8 = 3V3EXT External

J8 = 3V3COM From FTDI (30 mA)

J6 5V_SEL Select 5 V source for FTDI power Top J6 = 5V_EXT External

J6 = 5V_USB From USB power (500 mA)

J13 SPEED_SEL Selects SPEED input source Top

J13 = EXT External EXT_SPEED test point

J13 = POT From Potentiometer R47

J13 = INT_PWM

From internal PWM. PWM Duty

cycle can be varied by rotating the

POT R47

MSP to MCx

Shunt jumper

bridge

Connects signals from MVU and

user switches to MCF8329 when

jumpers are inserted

Top

DRVOFF_SW DRVOFF

DIR_SW DIR

BRAKE_SW BRAKE

SPEED_WAK SPEED/WAKE

MSP_POCI/SCL SCL

MSP_PICO/SDA SDA

MSP_CLK NC

MSP_STE NC

DAC/SPEED DAC/SPEED

MSP_A2 NC

MSP_A1 GCTRL

NC NC

MSP_nFAULT nFAULT

MSP_FGOUT FGOUT

NC NC

GND GND

J12 VREG_SEL Selects VREG power supply Top

Left position VREG powered by AVDD

Middle position VREG powered externally

Right position VREG powered by MOSFET Q7

J1 AVDD LED Connects AVDD LED to 3.3 V pull

up Top Connected D1 lights up when AVDD is turned

J2 nFAULT LED Connects nFAULT LED to 3.3 V

pull up Top Connected D2 Lights up when nFAULT is

pulled low

J3 PVDD LED Connects PVDD LED to 3.3 V pull

up Top Connected D3 lights up when voltage is

applied to PVDD

S1 Brake Turns on all low-side MOSFETs Top Bottom Break enabled

Top Brake disabled

S2 DRVOFF Disables gate drivers Top

Bottom MCF8329 Disabled

Top MCF8329 Disabled

S3 DIR Controls direction of motor rotation Top Bottom ABC

Top ACB

S4 SPEED/WAKE Pulls SPEED/WAKE pin to AVDD

and GND Top Bottom SPEED/WAKE pin pulled to AVDD

Top SPEED/WAKE pin pulled to GND

Hardware www.ti.com

8MCF8329 Evaluation Module SLLU373 – NOVEMBER 2023

Submit Document Feedback

Table 2-2. Description of User-Selectable Settings on MCF8329EVM (Default in Bold) (continued)

Designator Setting Name Description Layer Position Function

SW1 N/A

Configure SPEED/WAKE pin to

SPEED mode and DACOUT/SOx/

SPEED_ANA pin

Top

Left

Configure SPEED/Wake pin to

SPEED mode and DCAOUT/SOx/

SPEED/ANA pin to DACOUT mode

Right

Configure SPEED/WAKE pin to

WAKE mode and DACOUT/SOx/

SPEED_ANA pin to SPEED_ANA

mode

www.ti.com Hardware

SLLU373 – NOVEMBER 2023

Submit Document Feedback

MCF8329 Evaluation Module 9

3 Software

3.1 Firmware and GUI Application

The MCF8329EVM includes a USB-to-UART interface, using a MSP430FR2355 microcontroller, that serves as a

communication bridge between a host PC and the MCF8329 device for configuring various device settings and

reading fault diagnostic information.

The MCF8329EVM is supported on the Motor Studio GUI which can be used to configure the MCF8329 though

this communication interface. The Motor Studio GUI simplifies the tuning process of the MCF8329 by offering

guided tuning instructions, a virtual oscilloscope for real-time variable monitoring, and more. The latest version of

the Motor Studio GUI can be downloaded on ti.com.

By default, the onboard MSP430 microcontroller already contains the firmware needed to communicate with the

Motor Studio GUI. If there is a firmware update or the GUI does not connect to the EVM, then the user must

flash the firmware code into the MSP430 by following the steps outlined in Section 3.4.

Flashing the firmware code onto the MSP430 requires an integrated development environment (IDE) and

an eZ-FET Debug Probe. The following example uses the Code Composer Studio™(CCS) IDE and the MSP-

EXP430FR2355 LaunchPad™ Development Kit to provide the eZ-FET Debug Probe.

3.2 Downloading and Running Motor Studio

1. Connect the MCF8329EVM as described in Section 2.2.

2. Download the latest version of the Motor Studio GUI.

3. Once the Motor Studio GUI is installed, run the Motor Studio GUI application.

4. Click the red Setup Now button under Hardware Setup on the bottom right side of the window.

5. After setting up the hardware settings of the MCF8329EVM, click on the Quick Spin option to begin

configuring the device.

Figure 3-1. Motor Studio GUI MCF8329A Home Page

Software www.ti.com

10 MCF8329 Evaluation Module SLLU373 – NOVEMBER 2023

Submit Document Feedback

Table des matières

Autres manuels Texas Instruments Carte mère

Texas Instruments

Texas Instruments RF430F5978 EVM Kit Manuel utilisateur

Texas Instruments

Texas Instruments DLP LightCrafter Dual DLPC900 Manuel utilisateur

Texas Instruments

Texas Instruments TMS320C5 Series Manuel utilisateur

Texas Instruments

Texas Instruments SN74AVC2T244EVM Manuel utilisateur

Texas Instruments

Texas Instruments CC1111 Manuel utilisateur

Texas Instruments

Texas Instruments EVM430-FR6043 Manuel utilisateur

Texas Instruments

Texas Instruments TSW6011EVM Manuel utilisateur

Texas Instruments

Texas Instruments DP838367 RGMII EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS54202EVM-716 Manuel utilisateur

Texas Instruments

Texas Instruments UCD3138OL40EVM-032 Manuel utilisateur

Texas Instruments

Texas Instruments ADS9224REVM-PDK Manuel utilisateur

Texas Instruments

Texas Instruments ADC32RF-EVM Series Manuel utilisateur

Texas Instruments

Texas Instruments CPG004DRV88 EVM Series Manuel utilisateur

Texas Instruments

Texas Instruments LM10010 Manuel utilisateur

Texas Instruments

Texas Instruments TPS40100 Manuel utilisateur

Texas Instruments

Texas Instruments ADS9110EVM-PDK Manuel utilisateur

Texas Instruments

Texas Instruments LAUNCHXL-F28069M Manuel utilisateur

Texas Instruments

Texas Instruments 2N7001TEVM Manuel utilisateur

Texas Instruments

Texas Instruments LM5169FQEVM Manuel utilisateur

Texas Instruments

Texas Instruments TLV3601EVM Manuel utilisateur

Texas Instruments

Texas Instruments ADS62PXXEVM Manuel utilisateur

Texas Instruments

Texas Instruments CDCE62005 Manuel utilisateur

Texas Instruments

Texas Instruments CSD87381PEVM-603 Manuel utilisateur

Texas Instruments

Texas Instruments Fly-Buck LM5017 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
