DS280DF810EVM User’s Guide

User's Guide

SNLU214A–July 2016–Revised September 2019

DS280DF810EVM User’s Guide

The DS280DF810 is an eight-channel multi-rate retimer with integrated signal conditioning. It is used to

extend the reach and robustness of long, lossy, crosstalk-impaired high-speed serial links while achieving

a bit error rate (BER) of 10-15 or less. Each channel of the DS280DF810 independently locks to serial

data rates in a continuous range from 20.2 Gbps to 28.4 Gbps or to any supported sub-rate (÷2 and ÷4),

including key data rates such as 25.78125 Gbps and 28.125 Gbps. Integrated physical AC coupling

capacitors (TX and RX) eliminate the need for external capacitors on the PCB. The DS280DF810 has a

single power supply and minimal need for external components. These features reduce PCB routing

complexity and BOM cost. The advanced equalization features of the DS280DF810 include a low-jitter 3-

tap transmit finite impulse response (FIR) filter, an adaptive continuous-time linear equalizer (CTLE), and

an adaptive decision feedback equalizer (DFE). This enables reach extension for lossy interconnect and

backplanes with multiple connectors and crosstalk. The integrated CDR function is ideal for front-port

optical module applications to reset the jitter budget and retime the high-speed serial data. The

DS280DF810 implements 2x2 cross-point on each channel pair, providing the host with both lane crossing

and fanout options.

The DS280DF810 can be configured via the default SMBus slave mode or with an external EEPROM. Up

to 16 devices can share a single EEPROM. A non-disruptive on-chip eye monitor and PRBS generator

and checker functions allow for in-system diagnostics. With this kit, users can quickly evaluate the

DS280DF810 retimer performance.

www.ti.com

2SNLU214A–July 2016–Revised September 2019

Submit Documentation Feedback

DS280DF810EVM User’s Guide

Contents

1 Hardware Description and Setup .......................................................................................... 3

2 Software Description ........................................................................................................ 4

3 Best Practices and Usage Tips........................................................................................... 21

4 Test Case Examples....................................................................................................... 22

5 Supplemental Documents................................................................................................. 23

6 EVM Cable Assemblies ................................................................................................... 24

List of Figures

1 DS280DF810EVM, Showing Necessary Connections for Power, Signal, and USB Communications........... 3

2 Download SigCon Architect from www.ti.com ........................................................................... 4

3 Sigcon Architect Start-Up Screen ......................................................................................... 5

4 Capture Illustrating the Manage Devices Pop-Up Window for Adding New Part Numbers to the Selection

Panel .......................................................................................................................... 6

5 Low-Level Page Capture Illustrating the Different Block Select Options............................................. 7

6 Low-Level Page Capture After Selecting Access to an Individual Register.......................................... 7

7 Eye Monitor Page for DS280DF810 Profile.............................................................................. 8

8 EEPROM Page for DS280DF810 Profile................................................................................. 9

9 High-Level Page, with Block Diagram Tab Selected .................................................................. 10

10 High-Level Page, with Device Status Tab Selected................................................................... 11

11 Rx EQ/DFE Tab............................................................................................................ 12

12 Cross-Point Tab, Default Mode Selected ............................................................................... 14

13 Cross-Point Tab, Fanout Mode Selected ............................................................................... 14

14 Cross-Point Tab, Lane Crossing Mode Selected ...................................................................... 15

15 CDR Tab, Standard Mode Selected..................................................................................... 16

16 CDR Tab, Manual Mode Selected....................................................................................... 17

17 TX FIR Tab.................................................................................................................. 18

18 PRBS Tab, PRBS Generator Configuration ............................................................................ 19

19 PRBS Tab, PRBS Checker Configuration .............................................................................. 20

20 SDD21 Loss Characteristic of Example Test Case.................................................................... 22

Trademarks

All trademarks are the property of their respective owners.

www.ti.com

Hardware Description and Setup

SNLU214A–July 2016–Revised September 2019

DS280DF810EVM User’s Guide

1 Hardware Description and Setup

The general procedure for setting up and testing with the DS280DF810 Evaluation Module

(DS280DF810EVM) hardware is as follows:

1. Check the EVM jumper settings to ensure they match Figure 1 below.

2. Connect the EVM to a PC using the provided USB cable.

3. Connect 3.3V power (2A max) as shown below. The EVM has an on-board 3.3V-to-2.5V regulator to

supply the Retimer with the required 2.5V.

Figure 1. DS280DF810EVM, Showing Necessary Connections for Power, Signal, and USB

Communications

4. Connect the EVM to the system under test.

The default EVM configuration has four differential RX inputs and four differential TX outputs accessible to

the user. Connect the RX and TX signals to the test channel using Huber+Suhner 1x8 MXP cable

assemblies (See Section 6 for ordering information).

NOTE: All TX and RX channels are AC coupled with physical 220 nF capacitors on the package of

the device, so external AC coupling capacitors are not needed when using this EVM.

Software Description

www.ti.com

4SNLU214A–July 2016–Revised September 2019

Submit Documentation Feedback

DS280DF810EVM User’s Guide

2 Software Description

2.1 Setup

The one-time procedure for installing the GUI software is as follows:

1. Download and install the TI SigCon Architect GUI. The steps for installing the software are as follows:

1. Go to www.ti.com/tool/sigconarchitect and download the latest version of SigCon Architect. At the

time this document was written, the latest version of SigCon Architect is 2.0.0.4.

Figure 2. Download SigCon Architect from www.ti.com

2. Extract the executable file (.EXE) from the downloaded file and run the executable.

3. Follow the installation wizard’s instructions to install SigCon Architect.

4. Request download link for the DS250DF810 profile via Special Note link. Software access will be

granted with TI MySecure software access.

5. Extract the executable file (.EXE) from the downloaded file and run the executable.

www.ti.com

Software Description

SNLU214A–July 2016–Revised September 2019

DS280DF810EVM User’s Guide

2. Run the SigCon Architect software.

1. Start the software by double-clicking its icon on the desktop.

2. On the Selection panel, the DS280DF810 should appear.

3. If DS280DF810 is not listed:

1. Go to Device tab and choose Manage Devices.

2. Click on +icon and then select the “DS280DF810” device model.

3. Fill in the “New Device Name, DS280DF810 is recommended.

4. Select the slave address as configured on EVM (typical setting is 0x30).

5. Click OK.

4. Navigate to the Configuration page of DS280DF810 via the Selection panel. Choose Slave

Address “0x30” from the drop down menu. Verify the USB2ANY Details, specify USB2ANY 0, and

click Apply. Successful connection is indicated by the green “CONNECTED” indicator on the

bottom of the application.

Figure 3. Sigcon Architect Start-Up Screen

Software Description

www.ti.com

6SNLU214A–July 2016–Revised September 2019

Submit Documentation Feedback

DS280DF810EVM User’s Guide

Figure 4. Capture Illustrating the Manage Devices Pop-Up Window for Adding New Part Numbers to the

Selection Panel

3. Once connection is successfully established, users can read and write various settings to the device in

real-time, using the functional pages.

2.2 Functional Pages

2.2.1 Low-Level Page

The low-level page allows the user to read and write to all registers on the DS280DF810. To access it,

navigate to the Low Level Page, as shown below.

• The user may click Read All to load the data in each register from the device to the Register Map.

• The user may access the Shared, Global or Channel registers via Block Select.

• To Read a register:

– Type the readable address in the Current Address text box or select a register from the Register

Map.

– Click Read Register. The data in this register will appear in the Data text box.

• To Write a register:

– Type the writeable address in the Current Address text box or select a register from the Register

Map.

– The user may either type the data value (in HEX) to write to this address in the Data text box, or

check/uncheck boxes as desired for individual bits within the register. Then click Write Register.

– If Broadcast is selected for channel register writes, the specified write will be performed to all

channels in the device.

www.ti.com

Software Description

SNLU214A–July 2016–Revised September 2019

DS280DF810EVM User’s Guide

Figure 5. Low-Level Page Capture Illustrating the Different Block Select Options

Figure 6. Low-Level Page Capture After Selecting Access to an Individual Register

Software Description

www.ti.com

8SNLU214A–July 2016–Revised September 2019

Submit Documentation Feedback

DS280DF810EVM User’s Guide

2.2.2 Eye Opening Monitor (EOM) Page

The Eye monitor page allows the user to visualize DS280DF810 eye plots, a means of assessing received

signal quality after equalization.

• Select the channel for eye plotting. Note that plots can only be generated for a given channel if CDR

Locked is indicated.

• The EOM_SEL_VRANGE pull-down allows the user to adjust the vertical scale for eye plots.

• The user may perform a Single Capture of eye monitor plot, or select Continuous Capture to

accumulate multiple plots over a period of time.

• The Horizontal Eye Opening (HEO) and Vertical Eye Opening (VEO) may be read on the Eye Monitor

page.

• If the user desires to do their own analysis or post-processing of the EOM data, the Export Raw Data

and Export Density buttons respectively generate an Excel spreadsheet containing the 63x63 eye

monitor values matrix.

Figure 7. Eye Monitor Page for DS280DF810 Profile

www.ti.com

Software Description

SNLU214A–July 2016–Revised September 2019

DS280DF810EVM User’s Guide

2.2.3 EEPROM Page

The SigCon Architect EEPROM page allows the user to either: create a DS280DF810 Hex file that is

programmable to an EEPROM, or configure a DS280DF810 device based on values from an existing

DS280DF810 Hex file.

Figure 8. EEPROM Page for DS280DF810 Profile

The user may choose to update the EEPROM page settings based on values read from the DS280DF810

device by clicking “Update Slot from Device”. To create the programmable hex file, click “Write to

EEPROM Hex”. Note that the evaluation module does not include an EEPROM, but an external EEPROM

can be used. SigCon Architect cannot directly program the EEPROM. The EEPROM Hex File can be

burned on the EEPROM via I2C communication (i.e. AARDVARK or equivalent interface adapter). The

EEPROM control settings are described in greater detail below.

• Common Channel: If this box is checked, all channels receive the same configuration. Different

devices can receive different configurations, but within one device, all channels will receive the same

configuration. If this box is unchecked, then the EEPROM will store the configuration as unique

channel configurations. Each of the four channels can receive a unique configuration.

• EEPROM>256:

– This setting must be enabled if there are more than 4 EEPROM slots.

– When this box is checked, the EEPROM Size drop down menu is automatically populated by 512

Bytes if previously populated by 256 Bytes.

– When this box is unchecked, the EEPROM Size drop down menu is automatically populated by 256

Bytes. Up to 4 EEPROM slots can be programmed.

• Enable CRC: If enabled, each device will have a CRC value specific to the base header, address map

header, and data. If disabled, the CRC is not computed.

• Slot Update Details: The number of slots refers to the total number of unique SMBus register settings

to load from the EEPROM. The user can choose to update all slots, or which slot # to update the

SigCon Architect EEPROM page from.

Software Description

www.ti.com

10 SNLU214A–July 2016–Revised September 2019

Submit Documentation Feedback

DS280DF810EVM User’s Guide

• EEPROM Size: The EEPROM size must be set to 256, 512, or 1024 bytes. A single external EEPROM

can be used by up to 16 DS280DF810 devices.

– The first 3 bytes of EEPROM data is the base header. The base header contains the CRC enabled,

address map header enabled, EEPROM<256 bytes, device count, and maximum EEPROM burst

size settings.

– If multiple devices are programmed, an address map header is needed for each device. The

address map header specifies the CRC value and the Device EEPROM Start Address.

– EEPROM Size ≤256 Bytes:

• EEPROM Size = 3 Bytes (Base Header) + # of devices * 8 Bytes/device (Address Header) + #

of slots * 66 Bytes/slot (Data)

– EEPROM Size > 256 Bytes:

• EEPROM Size = 3 Bytes (Base Header) + # of devices * 12 Bytes/device (Address Header) + #

of slots * 66 Bytes/slot (Data)

2.2.4 High-Level Page

2.2.4.1 Overview

The High-Level Page on the Selection Panel enables the user to easily configure and/or check the status

of the DS280DF810 high-speed data path functional blocks: Clock and data recovery (CDR), Receiver

equalization, Transmitter output driver, PRBS generator and checker, and cross-point. Figure 9 shows the

landing page after uses selects “High-Level Page on the Selection Panel. The first button option is the

“Block Diagram”, an illustrative page highlighting the DS280DF810’s functional stages. The configuration

features for the additional tabs within the High-Level Page are described further in the next sub-sections.

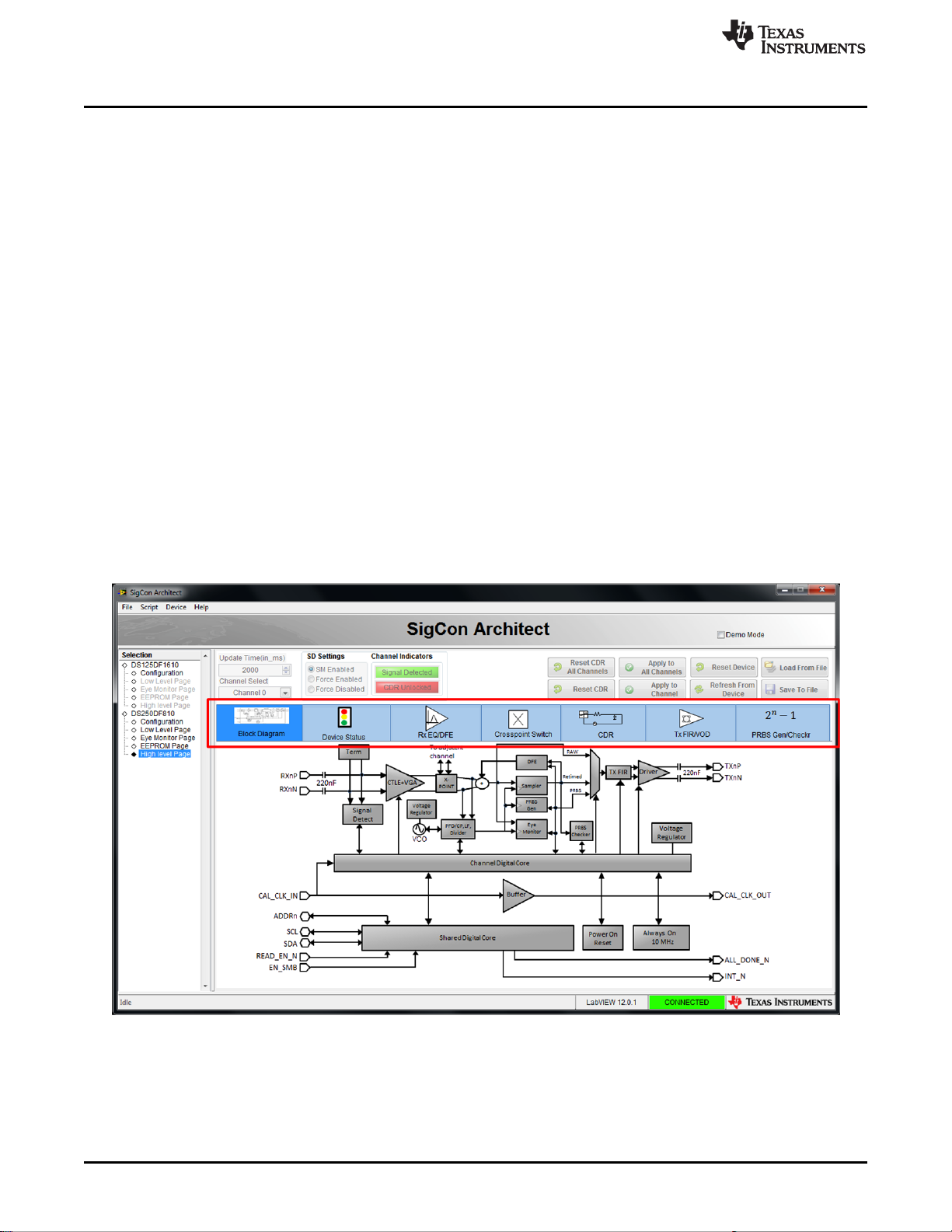

Figure 9. High-Level Page, with Block Diagram Tab Selected

Table des matières

Autres manuels Texas Instruments Carte mère

Texas Instruments

Texas Instruments TSB42AA9 (StorageLynx) EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPD1E10B06-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments DAC5668 Manuel utilisateur

Texas Instruments

Texas Instruments PCM6 0Q1EVM-PDK Series Manuel utilisateur

Texas Instruments

Texas Instruments SimpleLink CC3200MOD Manuel utilisateur

Texas Instruments

Texas Instruments LMT01EVM Manuel utilisateur

Texas Instruments

Texas Instruments TLV3602EVM Manuel utilisateur

Texas Instruments

Texas Instruments DLP LightCrafter Display 3310 Manuel utilisateur

Texas Instruments

Texas Instruments PGA411-Q1 EVM Manuel utilisateur

Texas Instruments

Texas Instruments TMP007EVM Manuel utilisateur

Texas Instruments

Texas Instruments BQ24150 Manuel utilisateur

Texas Instruments

Texas Instruments TPS562231EVM Manuel utilisateur

Texas Instruments

Texas Instruments MSP-EXP430FR5739 Manuel utilisateur

Texas Instruments

Texas Instruments LM5185-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments ADS54J20EVM Manuel utilisateur

Texas Instruments

Texas Instruments DAC161S055EVM Manuel utilisateur

Texas Instruments

Texas Instruments bq24725 Manuel utilisateur

Texas Instruments

Texas Instruments LM3405A Manuel utilisateur

Texas Instruments

Texas Instruments SWIFT TPS54680EVM-228 Manuel utilisateur

Texas Instruments

Texas Instruments TPA2050D4EVM Manuel utilisateur

Texas Instruments

Texas Instruments ADS1224EVM Manuel utilisateur

Texas Instruments

Texas Instruments CDCE62005 Manuel utilisateur

Texas Instruments

Texas Instruments TPS2378EVM-602 Manuel utilisateur

Texas Instruments

Texas Instruments TPS53915 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
