BOOSTXL-DRV8320x EVM User’s Guide

User's Guide

SLVUB00B–February 2017–Revised March 2018

BOOSTXL-DRV8320x EVM User’s Guide

This document is provided with the BOOSTXL-DRV8320x customer evaluation module (EVM) as a

supplement to the DRV8320x data sheet (DRV832x 6 to 60-V Three-Phase Smart Gate Driver). This

user's guide details the hardware implementation of the EVM and how to install the various software

packages.

Contents

1 Introduction ................................................................................................................... 3

1.1 Device Overview.................................................................................................... 3

1.2 Purpose and Scope ................................................................................................ 3

2 Hardware Overview.......................................................................................................... 4

2.1 Hardware Connections Overview – DRV8320x + MSP430F5529 ........................................... 4

2.2 Connection Details.................................................................................................. 5

2.3 LED Lights and Switch Functions ................................................................................ 7

2.4 Interfacing DRV8320x and MSP430F5529 LaunchPad development kit ................................... 8

3 Firmware Installation ........................................................................................................ 9

3.1 Installing Code Composer Studio................................................................................. 9

3.2 Installing DRV832X Reference Software Development Package........................................... 12

3.3 Creating or Importing a DRV8x Project into CCS............................................................. 16

3.4 Updating the MSP430 USB-FET ............................................................................... 19

4 GUI Application............................................................................................................. 20

4.1 Installation.......................................................................................................... 20

4.2 Hardware Setup ................................................................................................... 21

4.3 Launching BOOSTXL-DRV832X EVM GUI.................................................................... 22

List of Figures

1 Block Diagram................................................................................................................ 3

2 Hardware Connections Overview.......................................................................................... 4

3 Connections .................................................................................................................. 5

4 Jumper Connections 1...................................................................................................... 6

5 Jumper Connections 2...................................................................................................... 6

6 Micro-USB Connection...................................................................................................... 7

7 Switches and LED Functions............................................................................................... 7

8 Downloaded Executable for Code Composer Studio Installation ..................................................... 9

9 CCS License Agreement.................................................................................................. 10

10 Default Installation Location for CCS.................................................................................... 10

11 Processors Supported by CCS........................................................................................... 11

12 Components Available for Installation................................................................................... 11

13 Emulators Available for Installation ...................................................................................... 12

14 DRV832XX EVM Firmware Executable File............................................................................ 12

15 Language Selection........................................................................................................ 12

16 Setup Home Screen ...................................................................................................... 13

17 DRV832XX Software License Agreement .............................................................................. 13

18 Setup Destination Folder.................................................................................................. 14

19 Select Setup Components ................................................................................................ 14

www.ti.com

2SLVUB00B–February 2017–Revised March 2018

Submit Documentation Feedback

BOOSTXL-DRV8320x EVM User’s Guide

20 Warning Message to Close CCS......................................................................................... 15

21 Firmware Setup Complete ................................................................................................ 15

22 Workspace Launcher ...................................................................................................... 16

23 Importing Existing Projects................................................................................................ 16

24 Selecting Existing Projects................................................................................................ 17

25 DRV832x Project Explorer................................................................................................ 17

26 Build Project Files Buttons................................................................................................ 17

27 Execute Buttons............................................................................................................ 18

28 Flashing Firmware ......................................................................................................... 18

29 New CCS Project .......................................................................................................... 19

30 Error Initializing Emulator ................................................................................................. 20

31 Updating LaunchPad development kit Firmware....................................................................... 20

32 TI MSP430 USB Installer.................................................................................................. 21

33 BOOSTXL-DRV832X EVM Device Launch............................................................................. 22

List of Tables

1 Fault Status................................................................................................................... 8

2 BOOSTXL-DRV8320x J1 Pin Connections .............................................................................. 8

3 BOOSTXL-DRV8320x J2 Pin Connections .............................................................................. 9

Trademarks

LaunchPad, Code Composer Studio, BoosterPack, MSP430 are trademarks of Texas Instruments.

All other trademarks are the property of their respective owners.

6 to 60 V

DRV832x

Three-Phase

Smart Gate Driver

PWM

Gate Drive

Current

Sense

Current Sense 3x Sense Amplifiers

N-Channel

MOSFETs

nFAULT

SPI or H/W

600 mA

Protection

Controller

Buck Regulator

www.ti.com

Introduction

SLVUB00B–February 2017–Revised March 2018

BOOSTXL-DRV8320x EVM User’s Guide

1 Introduction

1.1 Device Overview

The DRV8320x is a gate driver IC for three phase motor drive applications. It provides three high-accuracy

trimmed and temperature compensated half bridge drivers, each capable of driving a high-side and low-

side N-type MOSFET.

Both SPI and hardware interface variants provide detailed fault reporting and flexible parameter settings

such as current control options for slew rate control of the gate drivers and various protection features.

Along with the hardware of DRV8320x, the MSP430F5529 microcontroller has loaded reference software

that provides the necessary gating pulses to DRV8320x to control the BLDC motors.

Figure 1. Block Diagram

1.2 Purpose and Scope

This document is designed to be used as a startup guide and to supplement the DRV832X +

MSP430F5529 BLDC motor control demo code kit. This document is intended for the engineers involved

in the design, implementation, and validation of DRV832X + MSP430F5529 reference software.

The scope of this document is to provide the user with a guide to evaluate the DRV8320x device with an

MSP430F5529 LaunchPad™ development kit. This document covers the hardware connections required

between DRV8320x and the LaunchPad development kit. When the HW connections are complete, the

user is required to download the necessary tools and SW to spin a motor. For step-by-step details to instal

the Code Composer Studio™ (CCS) software, import the DRV832xx project into CCS, build the project,

debug the project, and spin the motor, refer to Section 3.

This reference SW comprises trapezoidal sensored and sensorless algorithms for BLDC motor control.

For additional information on these algorithms, refer to DRV832XX EVM Sensored Software User's Guide

and DRV832XX EVM Sensorless Software User's Guide.

LMR16006XDDCR

DRV8320x

OPA374AIDBVTG4

TPD4S009DCKRG4

3x CSD88584Q5DC

Hardware Overview

www.ti.com

4SLVUB00B–February 2017–Revised March 2018

Submit Documentation Feedback

BOOSTXL-DRV8320x EVM User’s Guide

2 Hardware Overview

2.1 Hardware Connections Overview – DRV8320x + MSP430F5529

Figure 2 shows the major blocks of the hardware where the BOOSTXL-DRV8320x BoosterPack™ plug-in

module is mounted on the MSP430F5529XL LaunchPad development kit. The BOOSTXL-DRV8320x is

designed for an input supply from 6 to 54 V and up to 15-A drive current. Three half h-bridges capable of

driving a three-phase BLDC motor implementing sensored or sensorless control. Hall sensor pins a, b, c

are connected to pins P2.0, P2.2, and P2.6 of the MSP430™ MCU, respectively. The 3.3-V supply to the

Hall sensors is derived by the LMR16006XDDCR buck converter integrated in the DRV8320x.

Figure 2. Hardware Connections Overview

Power Motor

High-side Source Headers

Ground

Gate Headers

Hall Sensor Power, Ground,

and Inputs A, B, C

www.ti.com

Hardware Overview

SLVUB00B–February 2017–Revised March 2018

BOOSTXL-DRV8320x EVM User’s Guide

2.2 Connection Details

Figure 3 shows the power connector and motor phase connector. A supply voltage ranging from 6 to 54 V

from a battery or a DC voltage source is connected to the voltage supply pins. Three phases of the BLDC

motor are connected to the three-phase motor socket provided on the BOOSTXL-DRV8320x.

Figure 3. Connections

Figure 4 and Figure 5 show the jumper pin connections required for the proper functioning of the software.

GROUND

HALL A

HALL B

SDI

SDO

HALL C

nSCS/GAIN

CAL

LED

MODE

INLC

INHC

INLB

INHB

INLA

INHA

3.3 V

VSENVM

ENABLE

POT

SCLK

GROUND

VSENA

VSENB

VSENC

ISENC

ISENB

ISENA

IDRIVE

VDS

Hardware Overview

www.ti.com

6SLVUB00B–February 2017–Revised March 2018

Submit Documentation Feedback

BOOSTXL-DRV8320x EVM User’s Guide

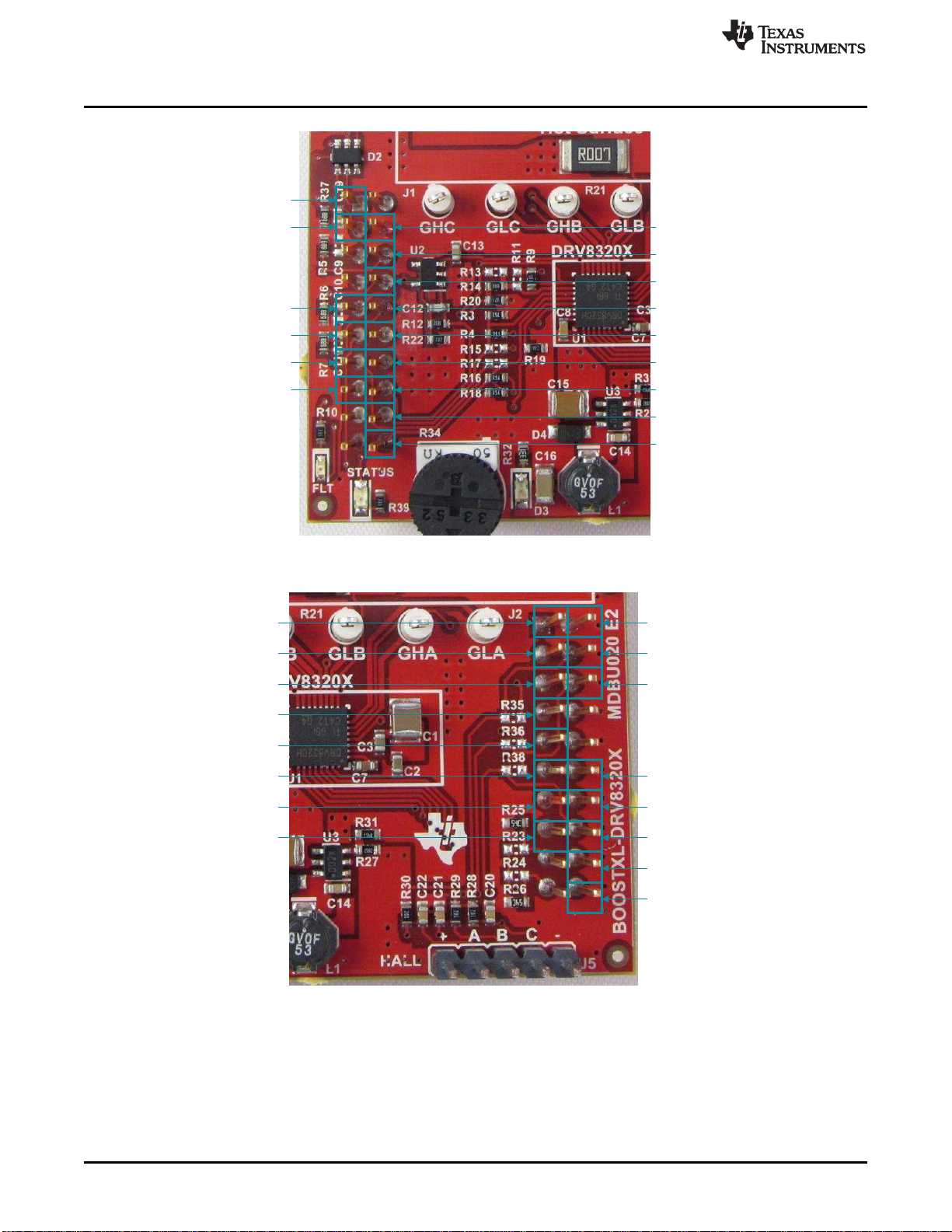

Figure 4. Jumper Connections 1

Figure 5. Jumper Connections 2

Figure 6 shows where the Micro-USB cable is plugged in to power the LaunchPad development kit and

provides communication between the MSP430F5529 firmware and GUI.

Micro-USB Connector

www.ti.com

Hardware Overview

SLVUB00B–February 2017–Revised March 2018

BOOSTXL-DRV8320x EVM User’s Guide

Figure 6. Micro-USB Connection

2.3 LED Lights and Switch Functions

Two LEDs and two push-button switches are available on the MSP430F5529 LaunchPad development kit

to notify the user of different motor statuses and to control the operation of the motor. These switches are

configured in the reference software and preloaded with the following functions:

Figure 7. Switches and LED Functions

P1.1 switch (motor direction reversal) — This switch allows the user to toggle the direction of motor

spin either to be clockwise or counterclockwise rotation.

P2.1 switch (fault clear switch) — This switch is configured to clear the fault status in SPI registers and

to restart the motor. When the user does not want automatic fault recovery when a fault occurs, it

can be turned off in the parameter setup file. In such cases, this button helps in restarting motor

after successful identification and mitigation of fault.

Hardware Overview

www.ti.com

8SLVUB00B–February 2017–Revised March 2018

Submit Documentation Feedback

BOOSTXL-DRV8320x EVM User’s Guide

LED1 and LED2 — During normal motor operations LED1 and LED2 define the direction of spin. When

any fault occurs, LED1 and LED2 flashes in different patterns to identify the fault. Table 1 describes

the patterns observed with different fault conditions.

Table 1. Fault Status

Fault Status LED 1 LED 2

Voltage Toggle Toggle

Motor stall ON Toggle

Overcurrent Toggle ON

Overtemperature ON OFF

Gate driver ON ON

Other OFF OFF

Hall sensor invalid (Sensored) OFF ON

2.4 Interfacing DRV8320x and MSP430F5529 LaunchPad development kit

The DRV8320x device has 40 pins with different functions. These pins are interfaced with the

MSP430F5529XL LaunchPad development kit which is mapped appropriately to receive the functionality

of the BoosterPack plug-in module plug-in module. These 40 pins are grouped into 4 ports. Table 2 and

Table 3 list the interfacing of these ports with the MSP430F5529 device.

Table 2. BOOSTXL-DRV8320x J1 Pin Connections

J1 Pin

Number BOOSTXL-DRV8320x

Function MSP430F5529

Function Description

1 3.3 V 3.3 V 3.3-V supply for Hall sensor

2 No function 5 V 5-V supply

3 VSENVM P6.5, ADC channel – A5 Sensing VCC supply voltage

4 GND GND ADC - GND connections

5 No function P3.4, I/O PIN Software debug pins(optional)

6 VSENA P6.0, ADC channel – 0 Sensing A phase voltage

7 No function P3.3, I/O PIN Software debug pins(optional)

8 VSENB P6.1, ADC channel – 1 Sensing B phase voltage

9 ENABLE P1.6, I/O pin with interrupt Logic low to enter a low-power sleep mode

10 VSENC P6.2, ADC channel – 2 Sensing C phase voltage

11 POT P6.6, ADC channel – A6 Optional POT to vary the voltage 0 to 3.3 V on pin

12 No function P6.3, ADC channel – 3 Sensing C phase current (only DRV8323Rx devices)

13 SCLK P3.2,UCBOCLK – SPI CLK Secondary function for pin SPI CLK

14 No function P6.4, ADC channel – 4 Sensing B phase current (only DRV8323x devices)

15 NFAULT P2.7, I/O pin with interrupt Pulled logic low during a fault condition

16 ISEN P7.0, ADC channel – 12 Sensing total current

17 No function P4.2, I/O pin Software debug pins(optional)

18 IDRIVE P3.6, I/O pin Sets gate drive peak current, 7-level input pin

(DRV8320H devices only)

19 No function P4.1, I/O pin Software debug pins(optional)

20 VDS P3.5, I/O pin Sets VDS monitor threshold voltage, 7-level input pin

(DRV8320H devices only)

www.ti.com

Firmware Installation

SLVUB00B–February 2017–Revised March 2018

BOOSTXL-DRV8320x EVM User’s Guide

Table 3. BOOSTXL-DRV8320x J2 Pin Connections

J2 Pin

Number BOOSTXL-DRV8320x

Function MSP430F5529

Function Description

1 INHA P2.5, TA2.2 Secondary function, Timer 2 comparator output to

generate PWM for A phase high-side switches

2 GND GND ADC - GND connections

3 INLA P2.4, TA2.1 Secondary function, Timer 2 comparator output to

generate PWM for A phase low-side switches

4 HALLA P2.0, SPI enable Hall sensor A from motor

5 INHB P1.5, TA0.4 Secondary function, Timer 1 comparator output to

generate PWM for B phase high-side switches

6 HALLB P2.2, I/O PIN with interrupt Hall sensor B from motor

7 INLB P1.4, TA0.3 Secondary function, Timer 1 comparator output to

generate PWM for B phase low-side switches

8 No function P7.4, I/O pin No Function

9 INHC P1.3, TA0.2 Secondary function, Timer 1 comparator output to

generate PWM for C phase high-side switches

10 No function RST No Function

11 INLC P1.2, TA0.1 Secondary function, Timer 1 comparator output to

generate PWM for C phase low-side switches

12 SDI P3.0,UCBOSIMO Secondary function for data input to DRV832xx

13 MODE P4.3, I/O pin Sets the input control mode, 4-level input pin

(DRV8320H devices only)

14 SDO P3.1,UCBOSOMI Secondary function for data output from DRV832xx

15 LED P4.0, I/O pin Visual feedback for faults

16 HALLC P2.6, I/O pin with interrupt Hall sensor C from motor enable the gate driver and

current shunt amplifiers

17 EVM ID P3.7, I/O pin Pulled low for DRV8320x, high for DRV8323x devices

18 nSCS/GAIN P2.2, I/O PIN with interrupt Active low enables serial interface communication

Sets the gain of the shunt amplifiers, 4-level input pin

(DRV8323RH devices only)

19 EVM ID P8.2, I/O pin Pulled low for DRV832xH, high for DRV832xS devices

20 No function P8.1, I/O pin Pull logic high to internally short all amplifier inputs

together (DRV8323Rx devices only)

3 Firmware Installation

3.1 Installing Code Composer Studio

CCS versions 5.x.x and 6.x.x have been used and tested for DRV832XX reference code. An authorized

version can be installed from www.ti.com/tool/ccstudio.

NOTE: A myTI login account is required to download CCS as well as the SDK package. This section

describes the installation procedure for CCS5.4; however, installing other versions of CCS

v5.x including CCS v6.x is similar.

After following the required steps to download the CCS installer, the ccs_setup_5.4.0.00091.exe file

should be located in the specified download directory. Figure 8 shows this file.

Figure 8. Downloaded Executable for Code Composer Studio Installation

Follow the installation process listed:

Step 1. Run the installer by double clicking the ccs_setup_win32.exe file.

Firmware Installation

www.ti.com

10 SLVUB00B–February 2017–Revised March 2018

Submit Documentation Feedback

BOOSTXL-DRV8320x EVM User’s Guide

Step 2. Read through and accept the license agreement to proceed with the installation (see

Figure 9).

Figure 9. CCS License Agreement

Step 3. Choose a destination directory. Using the default (c:\ti) removes a step in the SDK installation

procedure (see Figure 10).

Figure 10. Default Installation Location for CCS

Step 4. Choose the processor architectures to install (see Figure 11).

For the DRV83xx, the MSP430 and C28x are the only needed processor packages. The compiler tools

are required. Ensure that the box for the TI MSP430 Compiler Tool is checked.

Table des matières

Autres manuels Texas Instruments Carte mère

Texas Instruments

Texas Instruments bq27546EVM Manuel utilisateur

Texas Instruments

Texas Instruments BoosterPack BOOST-DRV8848 Manuel utilisateur

Texas Instruments

Texas Instruments LM25066EVK Manuel utilisateur

Texas Instruments

Texas Instruments SimpleLink CC3200MOD Manuel utilisateur

Texas Instruments

Texas Instruments CDCE6214-Q1EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPA5051EVM Manuel utilisateur

Texas Instruments

Texas Instruments INA293EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS7A94EVM-046 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65251 Manuel utilisateur

Texas Instruments

Texas Instruments TPA0122 Manuel utilisateur

Texas Instruments

Texas Instruments BQ24800EVM Manuel utilisateur

Texas Instruments

Texas Instruments AM263 Series Manuel utilisateur

Texas Instruments

Texas Instruments ADS7041EVM-PDK Manuel utilisateur

Texas Instruments

Texas Instruments ADC12DL3200 Manuel utilisateur

Texas Instruments

Texas Instruments TPD1E10B09-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments PSIEVM Manuel utilisateur

Texas Instruments

Texas Instruments TLC5924EVM Manuel utilisateur

Texas Instruments

Texas Instruments Tiva TM4C1294 Manuel utilisateur

Texas Instruments

Texas Instruments TPS25921XEVM-637 Manuel utilisateur

Texas Instruments

Texas Instruments TAS5766MRMTEVM Manuel utilisateur

Texas Instruments

Texas Instruments TRS3122EEVM Manuel utilisateur

Texas Instruments

Texas Instruments PGA5807A Manuel utilisateur

Texas Instruments

Texas Instruments LMR33640EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS7H2140-SEP Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
