OPERATION MANUAL

RS232

REMOTE

VANE

DIGITAL

ANEMOMETER

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

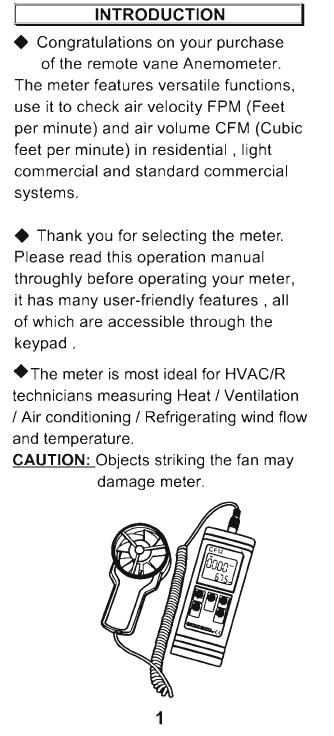

A. Measuring Air Velocity (Single point)

Feet per Minute (FPM).

B. Continuous Moving Average.

C. MIN/MAX/AVG reading on a single

point.

D. Air Velocity average for multiple

points .

E. Non Sleep Mode(Bypass auto power

off).

F. Default setting ( Imperial/ Metric)

G. RS232 interface setting.

H. Auto power off function.

I. Direct measuring of air flow

(Single point) CFM

J. Obtain air flow (CFM) average

for multi-point

FEATURES

Typical Measurement

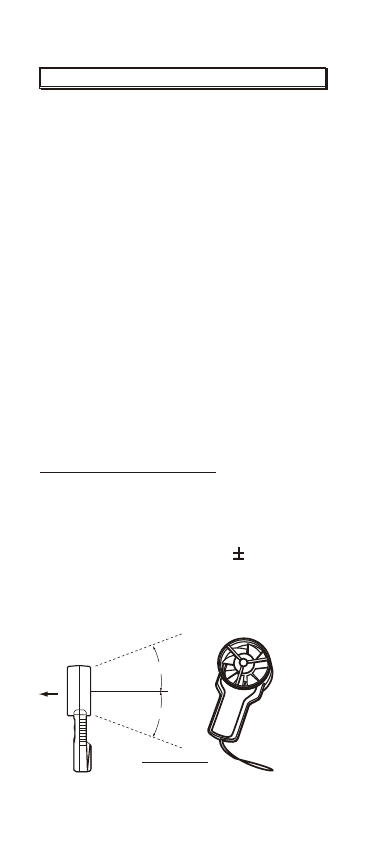

a) Please placethe meter inthe

airstream. Make surethat the

airstream and thesensor

are aligned asshown ( 20

degrees maximum).

b) 3 secondsfor the

reading to stabilize.

Rear side

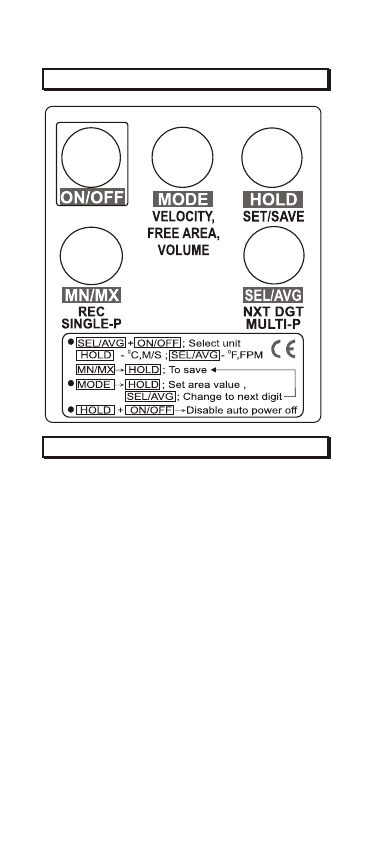

1.ON/OFF. Power on or off .

2.HOLD SET/SAVE. Freezs the reading.

Adjust the digit to the value needed.

3.SEL/AVG ,NXT DGT-> MULTI-P.

AVERAGE . Display the average of

all the measurements. Select the next

digit for editing.

4.MN/MX REC SINGLE-P

View the minimum or maximum ,

average or record value .

5.MODE :

VELOCITY .Air Velocity in FPM .

FREE AREA. Enter area value .

VOLUME. Air Volume mode.

BUTTON / DISPLAY

FRONT PANEL DESCRIPTION

MIN

mil/h cfm

AVG

REC

FLOW

km/h cms

AREA

m/s

vel Hold PH Knots

ft/m 2

MAX

INDICATORS

16. Primary readout-Numerical display

for Air Velocity/ Air Volume/Free

area digit

17. Secondary readout -Temperature

display or records number.

18. "-" Polarity indicator for negative

temperature.

19. Knots.

20. Mil/h.

21. Km/h.

1850 meters per hour

Miles per hour

Kilometer per hour

1.vel.

Air velocity measurement.

2.FLOW. Air Flow/Air volume.

3.AREA. Free area degault setting.

4.Hold. Freezs the reading.

5.ft/m.

m/s

Feet per minute.(imperial)

Meter per second.(metric)

6.ft . Feet square.(imperial)

7.m .

2meter square.(metric)

8.cfm. Cubic feet per minute.

9.cms. Cubic meter per second.

10.C. Celsius unit.

11.F. Fahrenheit unit.

12.REC. Record and saved.

13.AVG. Average data

14.MIN. Minimum data

15.MAX. Maximum data

B. CONTINUOUS MOVING AVERAGE

1. Turn the power ON .

2. Place sensor in front of air flow

source.

3. Press MN/MX record key once.

An "AVG" in the lower left corner

of the display confirms the meter

is in the continuous moving average

measurement mode. The display

will update once per second.

(See Fig.3)

The meter has the ability to display

continuous moving average for up to

two(2) hours.

1. Press the ON/OFF button and turn

meter on. Meter will show full display

when first powered on in 5 seconds.

(See Fig.1)

2. Unit is ready for use when LCD display

shows "vel" at upper left corner and

temperature at lower right corner.

(See Fig.2)

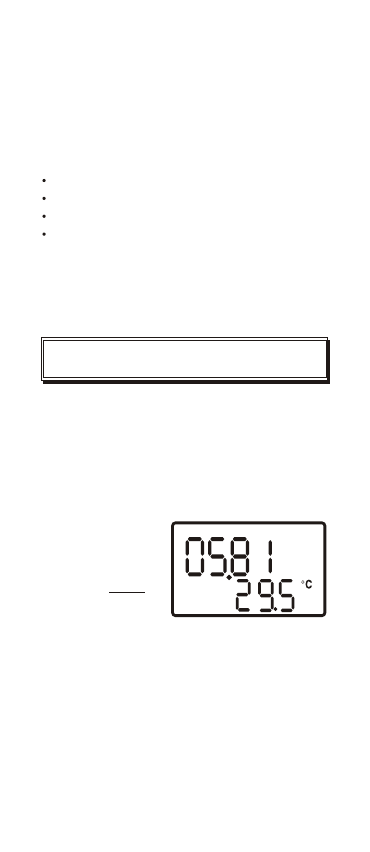

A. MEASURING AIR VELOCITY

(SINGLE POINT) FEET PER

MINUTE (FPM)

Fig.1 Fig.2

Fig.3

vel

m/s

MIN

cfm

AVG

REC

FLOW

cms

AREA

m/s

vel Hold

ft/m 2

MAX

AVG

vel

m/s

C. MIN/MAX/AVG READING ON A

SINGLE POINT

1. Power unit ON.

2. Place sensor in front of air flow

source.

3. Press MN/MX REC SINGLE-P

key. The unit will begin to record

the readings.

The meter displays the average

velocity by default. (See Fig.C-1)

Each press of the MN/MX button

cycles the display through:

* Real-time readings.

* MIN velocity.(Fig.C-2)

* MAX velocity.(Fig.C-2)

* Back to AVG velocity.(Fig.C-1)

To obtain MIN/MAX/AVG readings on a

single point.

AVG

REC

m/s

vel

MIN REC

m/s

vel

REC

m/s

vel

MAX

Fig.C-1

Fig.C-2

Fig.C-3

Press the HOLD key before removing the

unit from the air source.Press the MIN/

MAX REC SINGLE-POINT key to view

the stored data which will appear in the

following order :

Instantaneous measurement

Minimum

Maximum

Average

To clear the current MIN/MAX average

readings, turn off the power or press

and hold MN/MX key until unit beeps

twice, then release.

1. Turn the meter on and position the

vane at the first point to be measured.

soon as the first measurement is

completed press the HOLD key,(you

will hear a single beep), and release.

The display will show HOLD above

the reading. (See Fig.4)

D. AIR VELOCITY AVERAGE FOR

MULTIPLE POINTS

Fig.4

vel Hold

m/s

2. Press the MN/MX key,(You will hear

a single beep), and release,( the

display will show a digit 1-8). This

number represents the point that is

being recorded.(See Fig.5)

Hold anucinator and point at the

lower corner will be disappeared in

one second.

3. Once all measurements have been

recorded press SEL/AVG key.

The unit will display the average air

velocity reading and number of points

measured. ( See Fig.5-1) as an

example of stored 8 points shows

average air velocity measurement.

Fig.5

Repeat this process until all desired

points have been measured and

recorded, A maximum of 8 points may

be recorded at one time.

vel Hold

m/s

Fig.5-1

AVG

m/s

vel Hold

Fig.6

E. NON SLEEP MODE

(Bypass auto power off)

Power unit off;press ON/OFF & HOLD at

the same time and then release ON/OFF

only. An "n" appears on the LCD then

you can release the HOLD key. The

meter will remain on until the ON/OFF

button is pressed.(See Fig.6 )

Fig.7

Fig.8

The default measuring units can be

changed by following the steps below.

The unit should be turned off before

commencing.

m/s

ft/m

1. Press and hold the SEL/AVG key,

then press the ON/OFF key once to

turn the unit on. When the LCD

displays " ft/m,ms " and " C, F"

release the SEL/AVG key.(Fig.7)

2. To choose metric units press the

HOLD key. The LCD should display "

m/s, C". (See Fig.8)

F. HOW TO CHANGE THE DEFAULT

SETTING/IMPERIAL TO METRIC

Vice Versa(METRIC TO IMPERIAL)

To choose the imperial units press the

SEL/AVG key. The LCD should display

"ft/m, F" (See Fig.9).

ft/m

Fig.9
