TESmart PKS0802A10 Caractéristiques techniques
www.tesmart.com
1
DP Dual Monitor KVM Switch
# PKS0802A10
DP Dual Monitor KVM Switch can easily integrate cross-platform computer devices. Our
Dual Monitor KVM Switch can help you add more inputs to your TV or AV receiver if you
have too many devices to manage. Each input device requires 2 DisplayPort inputs to
display to 2 monitors. Support 2 display mode, you can choose any connected PC to
duplicate or extend to 2 monitors, or switch any PC to display on any monitor at will. Support
DCCI, you can extend the connected PCs to up to 4 monitors using 2 of this KVM Switch.
Supports using USB hubs and USB keyboard and mouse. You can connect a printer, USB
drive, bar code scanner or other USB 2.0 devices to this KVM. This product also supports
several other switching modes. You can switch input ports with front panel button, IR signals
and keyboard hot keys.
Features
Using only 1 set of keyboard, mouse and 2 monitors to control 4 computers
Support 2 monitors to display the desktop of 1 computer or to display 2 desktops at the same
time.
Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/ Raspbian/Ubuntu for Raspberry
Pi and other Linux basic system
Support resolution up to 3840*2160@60HZ
Support hot plug, disconnect or connect devices to the KVM at any time without turning off
PC
Support front panel button, keyboard hotkeys, IR remote control and RS232 to control KVM
Available to use keyboard and mouse without any delay after switching input sources
With extra USB 2.0 port, it is possible to connect bar code scanner, USB hard device or
other USB device
Support keyboard and mouse pass through mode to improve KVM compatibility
Support auto switch to monitor computers in a specified time interval
Support DCCI
Packing list
1 * Dual Monitor DP KVM Switch
1 * IR remote control
1 * IR Receiver cable
1 * DC 12V power adapter
1 * 3 Pins Connector(For RS232)
2 * Rack-ears
1 * AUX Cable
1 * User manual
www.tesmart.com
2
Panel Descriptions
ID
Name
Description
1
DC 12V input
DC 12V power supply
2
RS232 port
Connect this port to any control termination, then it
is able to select the input sources by sending
RS232 commands
3
Ext.IR
For extended IR receiver cable input
4
L/R audio output
Analog audio output, connect to speaker
5
Standard USB 2.0 port
Connect to USB 2.0 devices, printers, USB drives
6
DCCI port
Used for product cascading to realize simultaneous
display of 4 monitors
7
Keyboard and mouse input
Connect to keyboard and mouse
8
HDMI output ports
Connect to DP displays
9
PC 4 Input
DP input A/B:Connect to the two outputs of the
same computer
USB:Connect to computer by USB Type A to Type
B cable
10
PC 3 Input
DP input A/B:Connect to the two outputs of the
same computer
USB:Connect to computer by USB Type A to Type
B cable
11
PC 2 Input
DP input A/B:Connect to the two outputs of the
same computer
USB:Connect to computer by USB Type A to Type
B cable
www.tesmart.com
3
12
PC 1 Input
DP input A/B:Connect to the two outputs of the
same computer
USB:Connect to computer by USB Type A to Type
B cable
13
Auto scan time interval
settings
[MIN]: Press [MIN] to loop between 0~59 minutes
[SEC]: Press [SEC] to loop between 0~59 seconds
[Set]: After setting minutes and seconds, press
button [Set] to enter final scan time interval setting
14
LED display
Display current selected input port
15
Status LED
Red: Turn off auto scanning mode
Green: Turn on auto scanning mode
16
IR receiver
Receive IR remote signal
17
Keypad
[1~4]: Press button[1]~[4] to directly select input
1~4
[Output A]: Keyboard and mouse focus on the
desktop of output A in the display mode 2
[Output B]: Keyboard and mouse focus on the
desktop of output B in the display mode 2
[Output A]+[1~4]: After pressing [Output A], then
press [1~4] to switch input sources of output A
[Output B]+[1~4]: After pressing [Output B], then
press [1~4] to switch input sources of output B
[Close]: Press this button to turn on or off the LED
display and monitor
[Scan]: Press this button to start or stop
automatically scanning between input1 to input8.
The interval time can be set by [Set], [MIN], [SEC]
as described above
18
Power switch
Turn on or turn off power supply
www.tesmart.com
4
Connection Diagram
www.tesmart.com
5

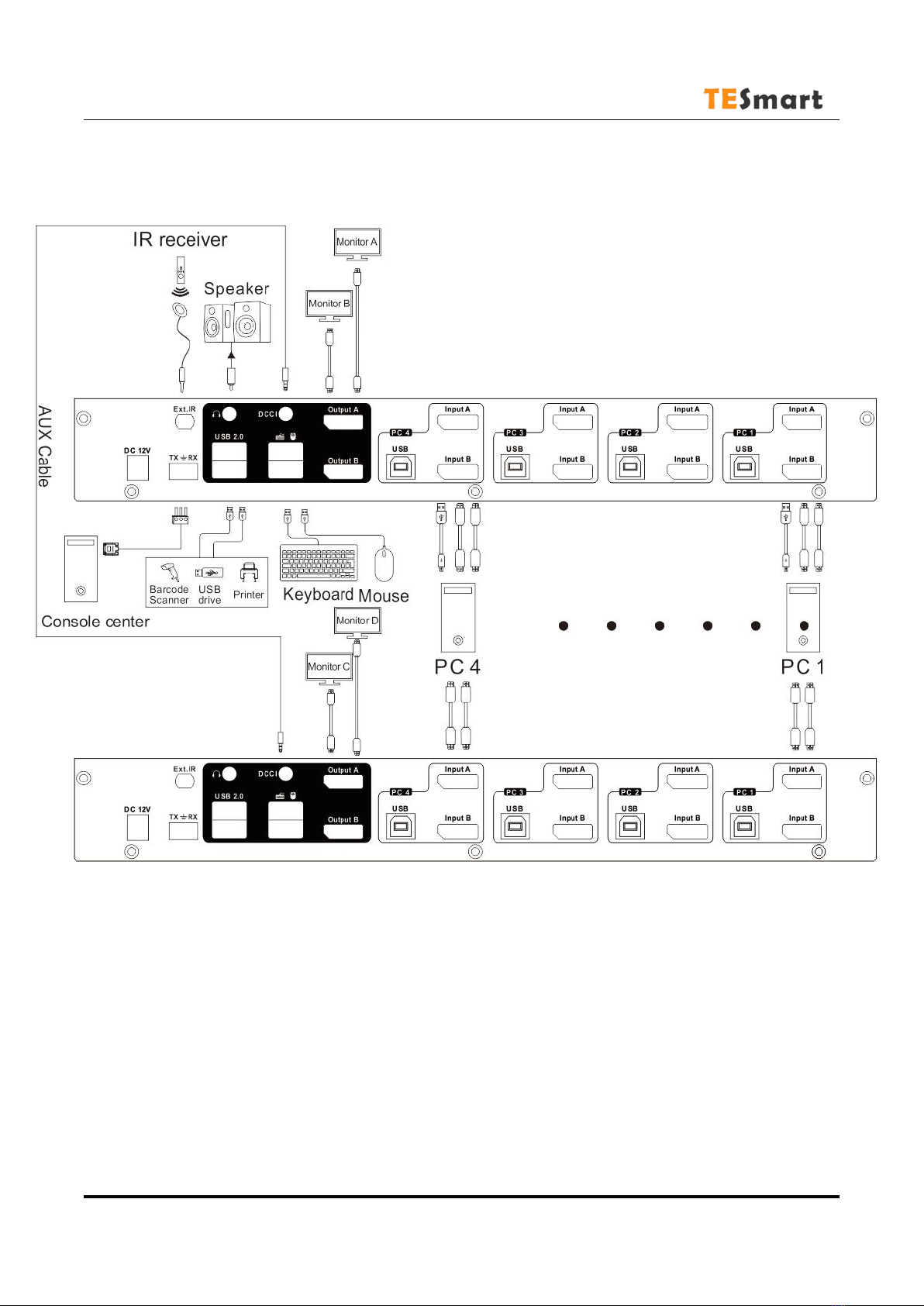

DCCI Connection Diagram
www.tesmart.com
6
Specification
PKS0802A10
DP Dual Monitor KVM Switch
Functionality:
Auto Scan
Yes
Port selection
Front panel buttons
Yes
Keyboard hotkeys
Yes
IR remote control
Yes
Console commands
RS232
Technical:
Max. Resolution
3840x2160@60Hz
Auto to get EDID
Yes
Data rate
18 Gbps
OSD
No
Supported OS
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/
Raspbian /Ubuntu for Raspberry Pi and other Linux
based systems
Input ports
Video /Audio
8 * DP Type A
USB 2.0 Hub ports
3 * USB Type A
USB Data
4 * USB Type B
Output ports
Video /Audio
2 * DP Type A
USB 2.0 Hub ports
1 * USB Type A
Keyboard/Mouse
emulation
2 * USB Type A
L/R audio output
2*AUX
DCCI output
1*AUX
Ext.IR
1*AUX
RS232
3 Pins jack
ESD protection
Human body model - ±8kV (Air-gap discharge)
Mechanical:
Chasing material
Metal
Product
Dimension
350 (L) x 149 (W) x 44.5 (H) mm
Weight
1268g
Item
Dimension
397 (L) x 197(W) x 107 (H) mm
Weight
2764g
Carton
Dimension
505 (L) x 280 (W) x 395 (H) mm
Quantity
4pcs
Total Weight
11.806kg
