Tesla TSL-SWI-WIFI1 Manuel utilisateur

QUICK START GUIDE

TESLA SMART SWITCH/DUAL

(With Neutral Required)

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

- Voice/APP Control

- Smart Home Automation with Multi devices

- Silent switch with LED Indication

Product Indtoruction

Smart switch products are suitable for electrical equipment such as light-

ning, fans, curtains, etc., through the network, voice and APP remote control

functions, with various sensors to easily achieve home automation.

Specification

Input Power: 100~240V AC 50/60Hz

Resistive load: Incandescent: 1500W MAX

CFL: 600W MAX

LED: 600W MAX

Communication: WiFi 2.4G

Standby Power: ≤0.5W

Working Temperature: -10°C ~ 45°C

Working Humidity: <90%

Life Cycle: 50k times

Dimension: 86x86x37.5mm

Product outline

Indicator Light Status

Indicator LED

On/Off button

Light Color Green Light Status Switch Status:

White OFF The switch turn off

ON The switch turn on

Flicker The switch is in quick

configure mode

Green ON The switch turn off

OFF The switch turn on

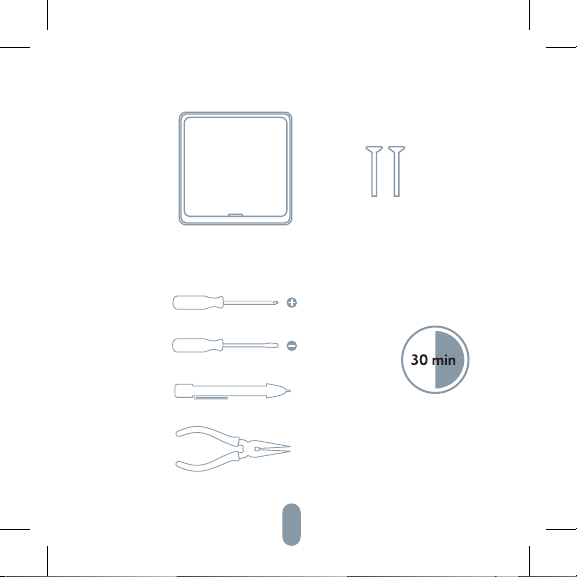

Contents Supplied

Tools You‘ll Need

Switch

Screws

Flat-head Screwdriver

Screwdriver

Pliers

Voltage tester Approximately

30 minutes of your time

to install and setup

the Switch

Installation

Turn Off The Breaker

Turn off the circuit break and use the electrical

tester to test the power.

WARNING: RISK OF ELECTRIC SHOCK

This product installation requires handling 100-240 volt wiring.

Follow each step carefully. If any concerns handling wiring, hire

a qualified electrician. Ensure all work meets applicable local and

national codes.

L2 LN

N L

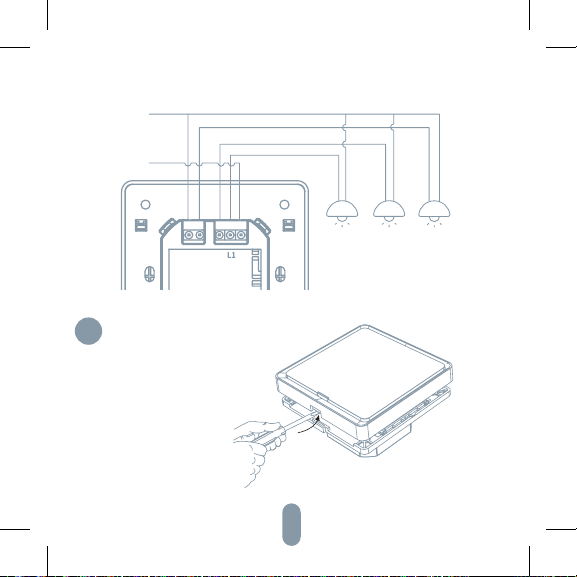

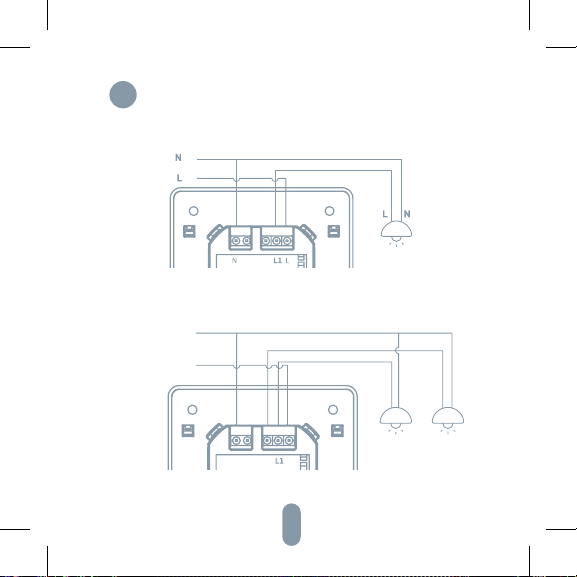

Connection Diagram

1 GANG

2 GANG

3 GANG

L2L3 LN

NL N L

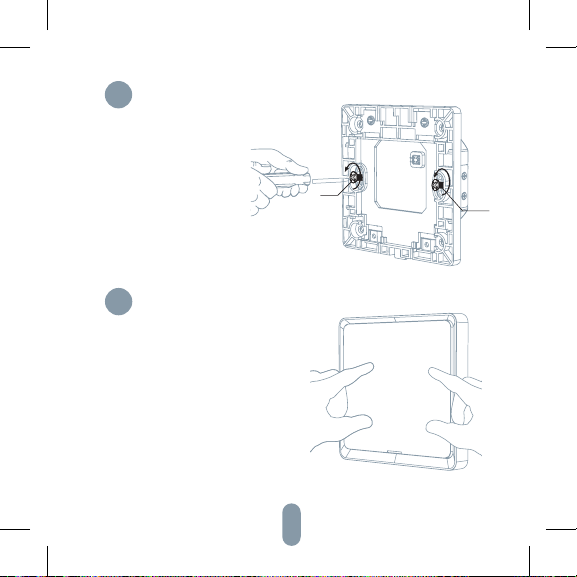

Remove The Panel

Remove the switch panel

cover of the switch.

Mount The Switch

Attach The Wallplate

Use the screws provided.

Attach the adapter to the switch

using the screws provided and snap

on the wallplate.

Turn On The power

APP Operation

Turn the power back on at the circuit breaker

1 Preparation for use

•Tesla Smart is available for both iOS and Android OS. Search the name

‚Tesla Smart‘ in App Store or Android Market, or scan the QR-Code to

download the App and register or login your account.

• Make sure that the smartphone is connected to the 2.4Ghz network.

2 Connect the device

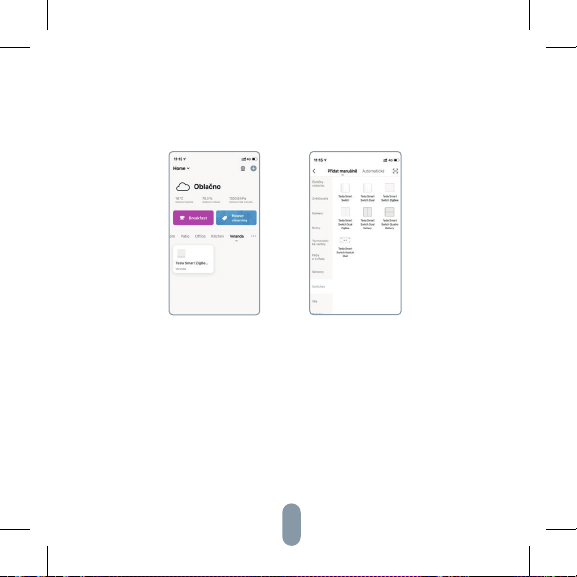

• Open Tesla Smart app and click “+” sign to Add new device

• Select Switches - Tesla Smart Switch

• Please follow the instructions to add the Tesla Smart Switch step by step

3 Control Switch

• Control switch with APP

Ce manuel convient aux modèles suivants
